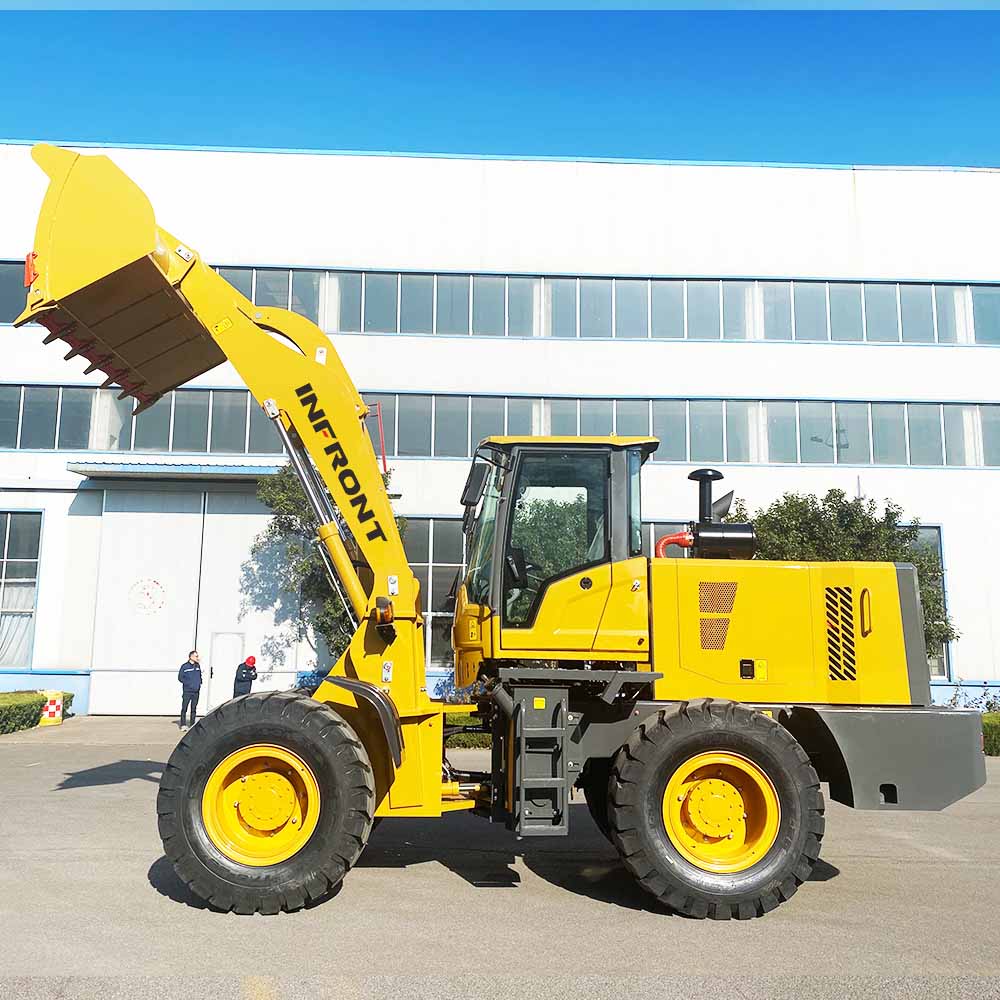

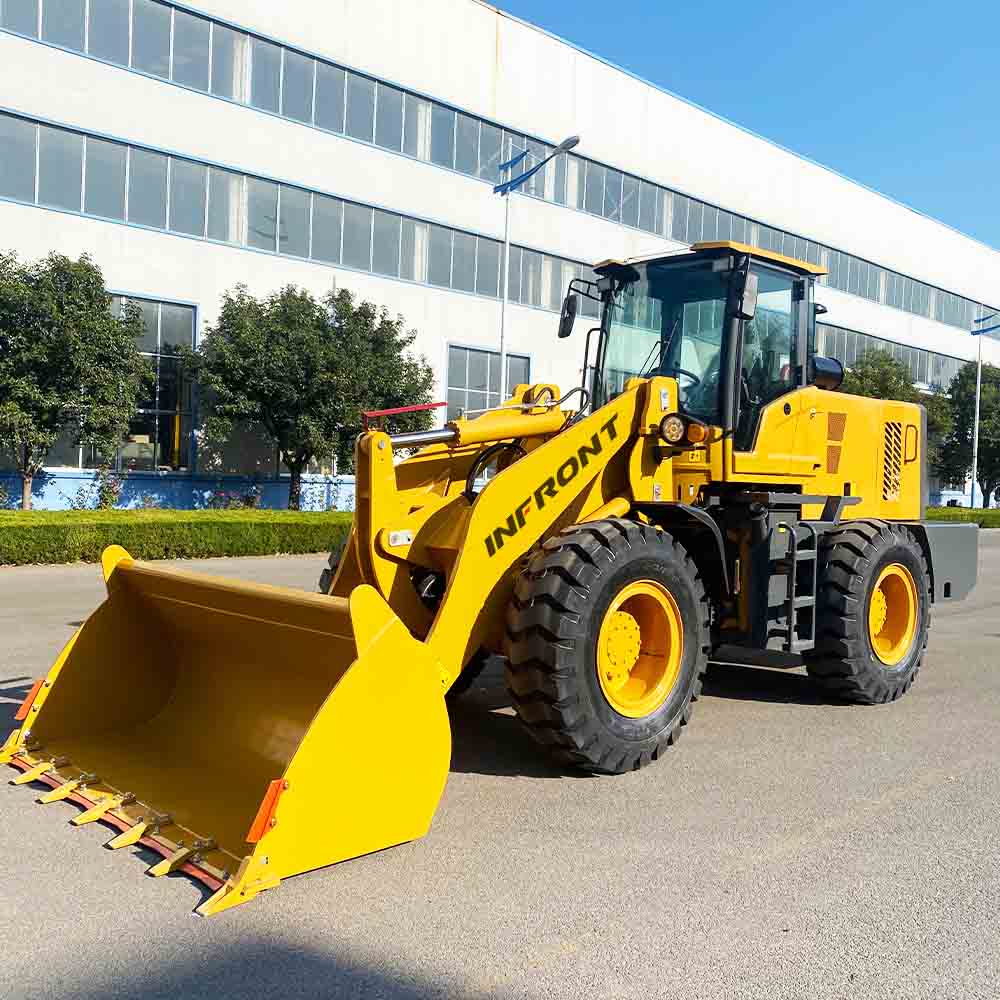

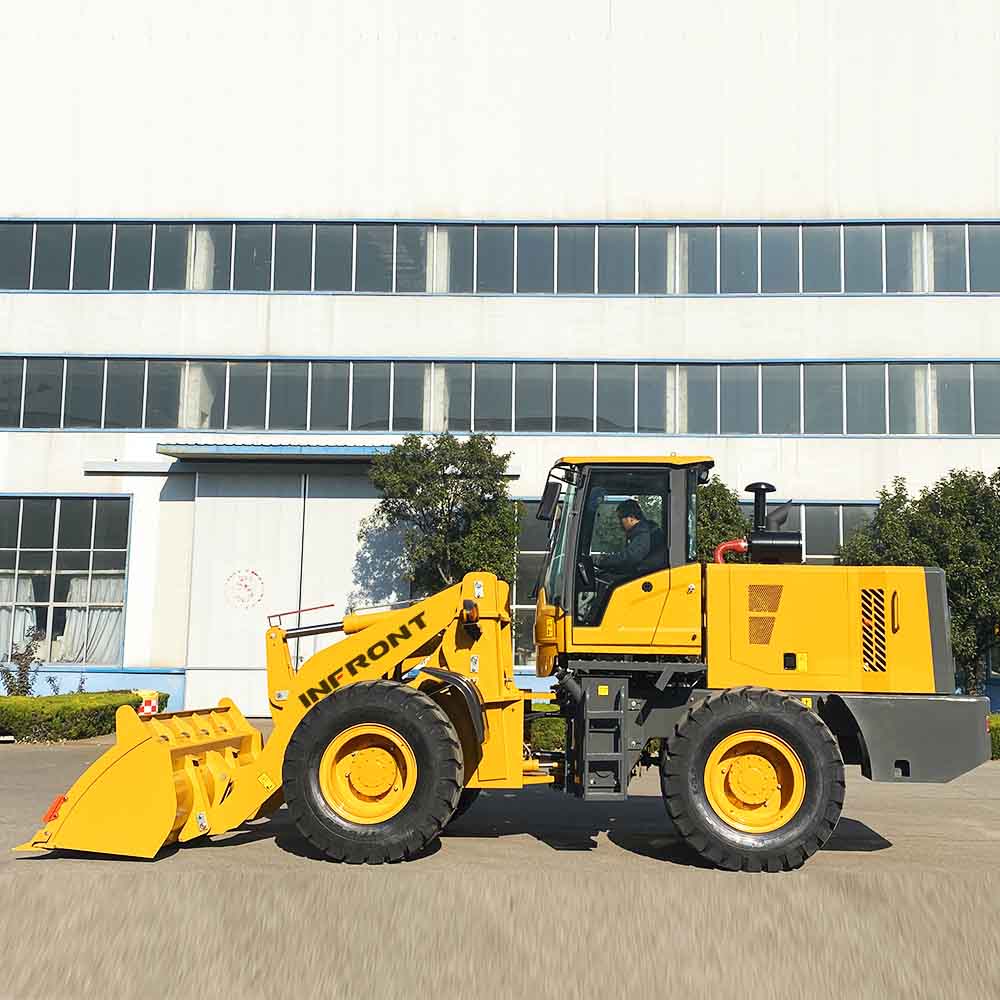

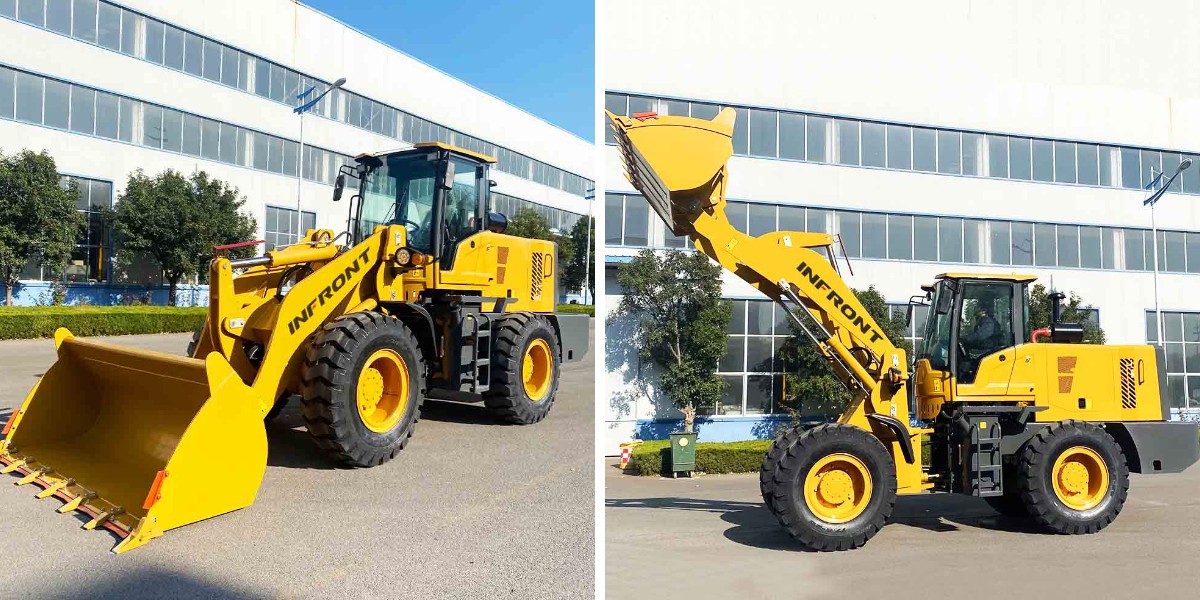

All-Terrain Loader
The fuel loader's transmission system (gearbox, drive shaft) utilizes mechanical hard-connections for strong impact resistance. When operating on rough terrain, components wear more slowly than the motor reducer of an electric motor. Structural components, such as the bucket and boom, are primarily constructed of high-strength, wear-resistant steel. This extends their service life by 30% compared to electric motors, especially when exposed to frequent materials like sand, gravel, and concrete. This makes it particularly suitable for extensive operations.
Loader is a kind of earth-rock construction machine widely used in construction projects such as roads, railways, and buildings. It is then used to shovel bulk materials such as soil, sand and gravel, and can also perform some light shoveling and digging. The auxiliary working device is also It can carry out some loading and unloading functions such as bulldozing and lifting. Moreover, the loader has the advantages of fast operation speed, high efficiency, and good mobility, so it has become one of the main models in engineering construction.

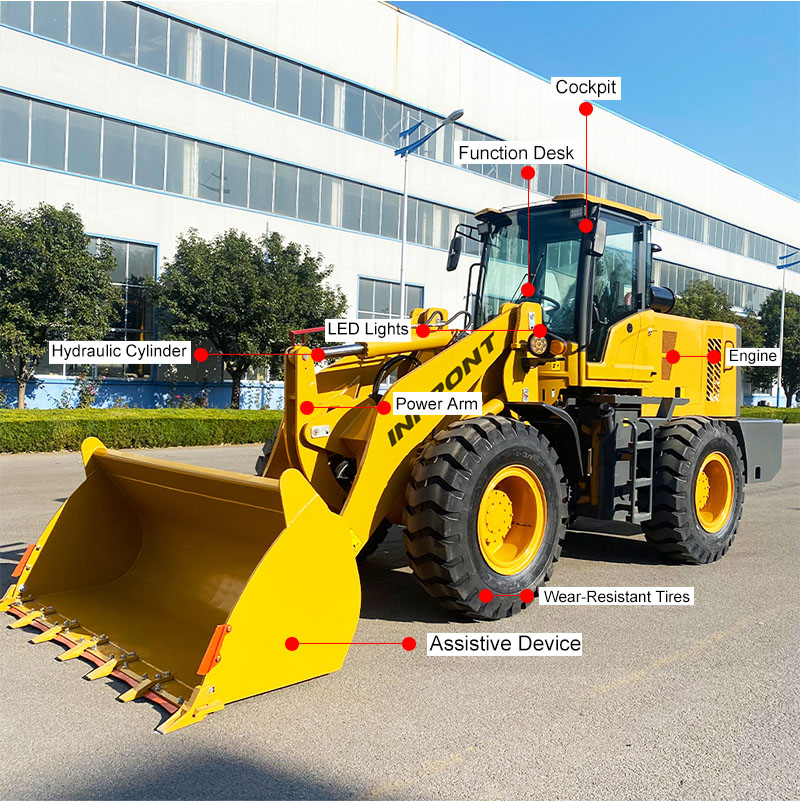

Details：

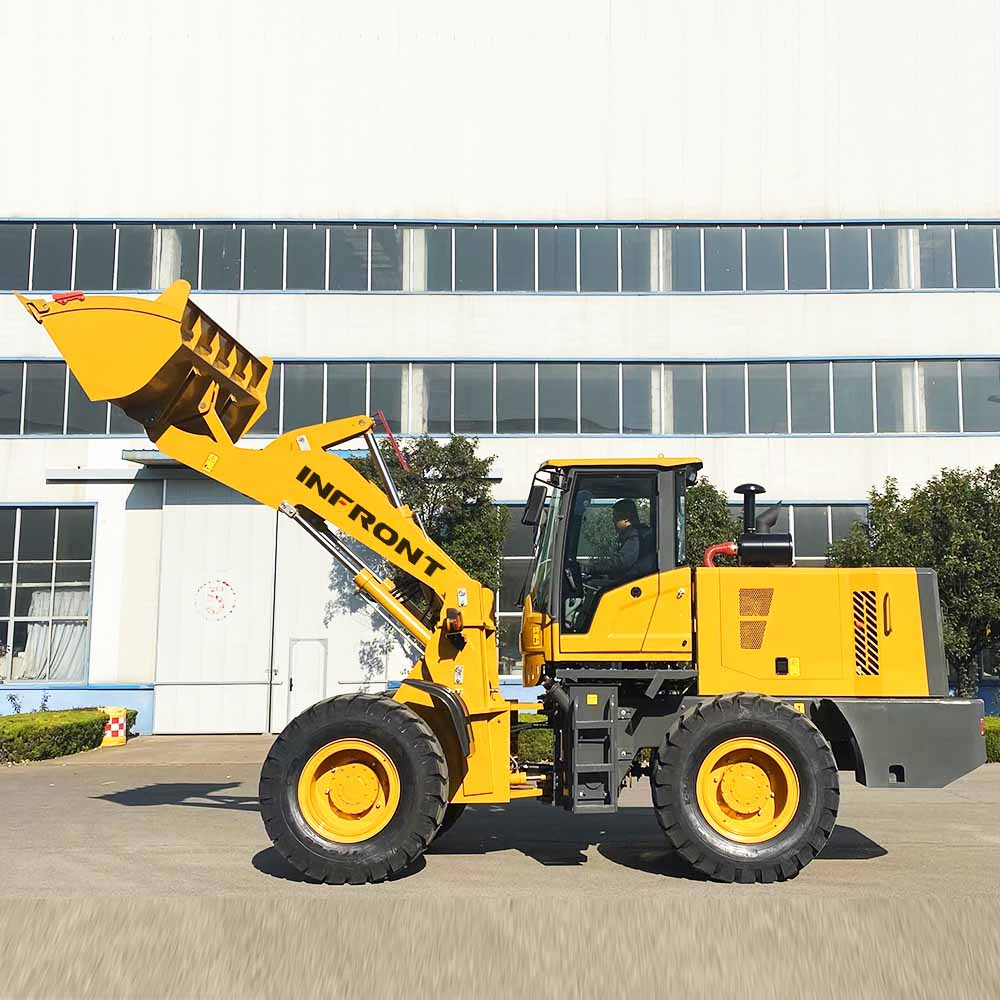

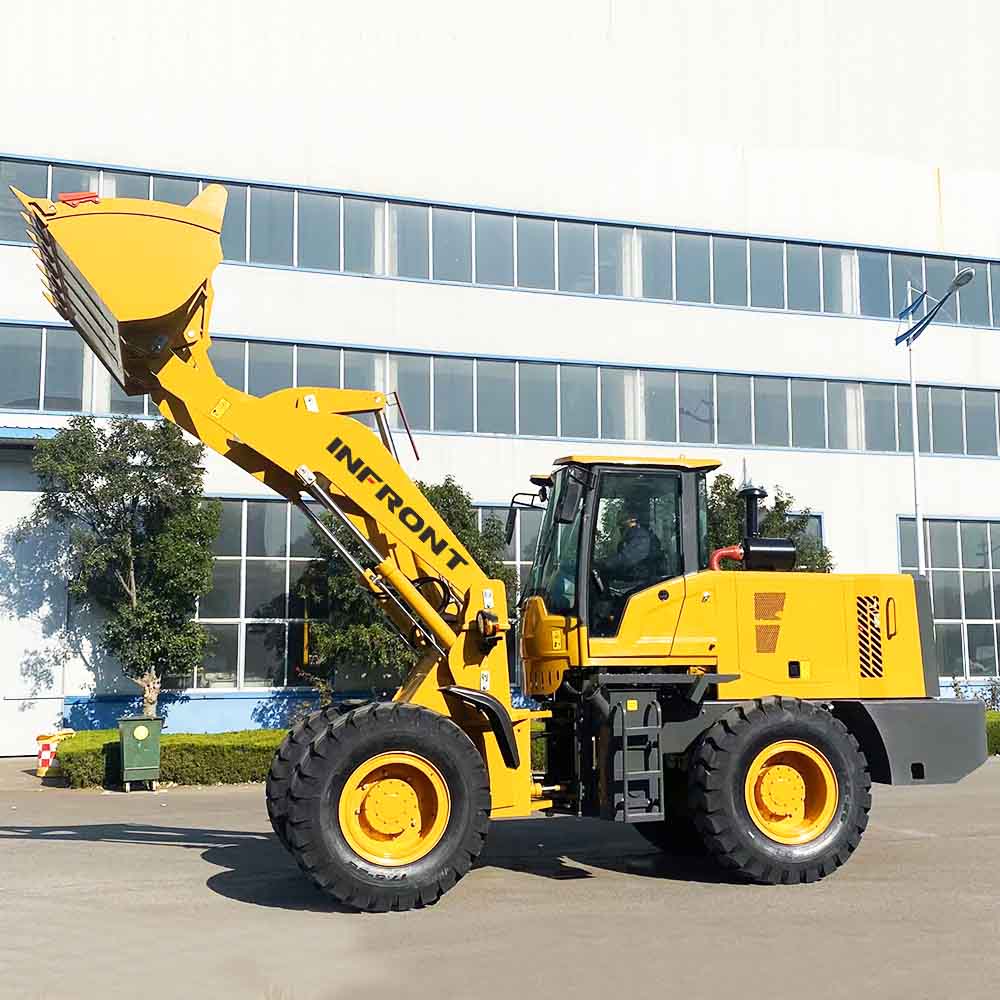

Strong breakout force, the bucket is automatically leveled to the high discharge position, the working time is greatly shortened, and the work efficiency is greatly improved.

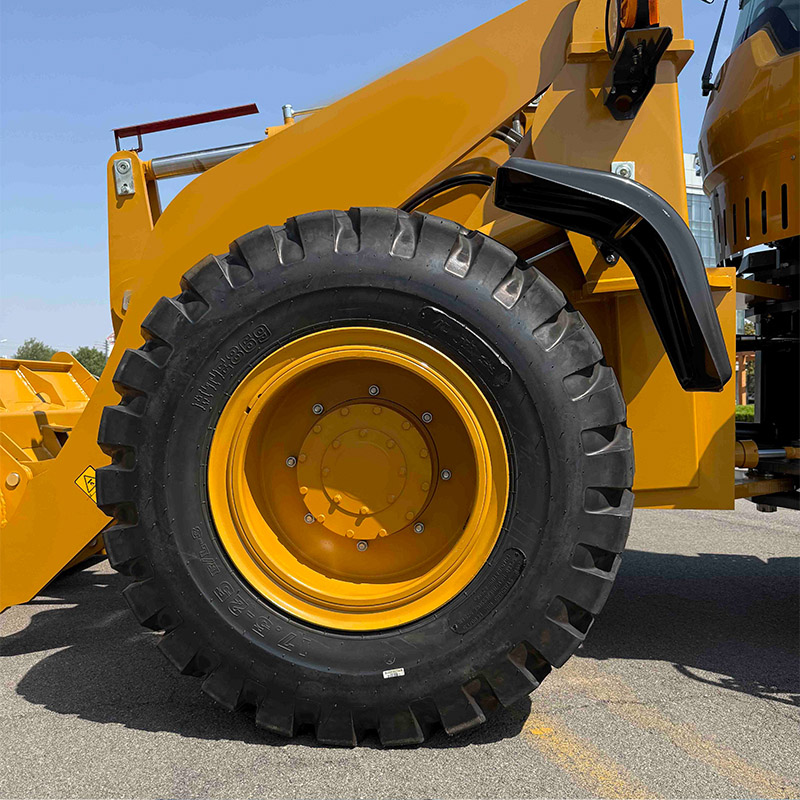

Adopting four-wheel drive, low-pressure wide base off-road tires, and a swinging rear axle, the wheel loader can have good off-road performance, traffic capacity, and greater traction.

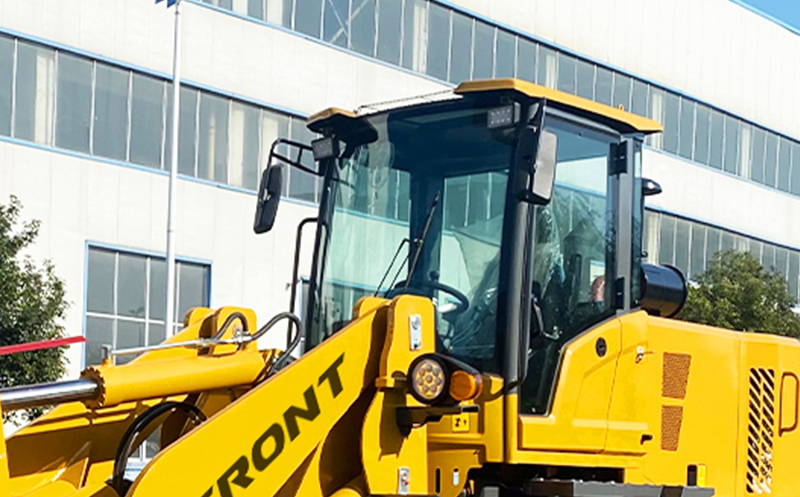

A fully enclosed glass cab with adjustable floating seats provides comfortable driving and a wide field of view. Electric fans are standard configurations. Air conditioning is optional.
Parameter：
Parameters of the whole machine | |
Minimum turning radius (mm) | 5850 |
Theoretical climbing angle(°) | 15 |
Maximum travel speed (KM) | 38 |
Minimum travel speed (KM) | 8 |
Maximum unloading height(mm) | 3700 |
No-load lifting time(s) | ≤6 |
No-load drop time (s) | ≤5 |
No-load unloading time (s) | ≤1.5 |
Three and (s) | ≤12.5 |
wheelbase (mm) | 2850 |
Discharge distance (mm) | 1000 |
Discharge angle (° ) | 33.5 |
Body length (mm) | 7100 |
Body width (mm) | 2350 |
Vehicle height (mm) | 3100 |
Minimum ground clearance(mm) | 420 |
Tread (mm) | 1685 |
Rated loading mass (kg) | 2500 |
The weight of the whole machine (kg) | 8100 |

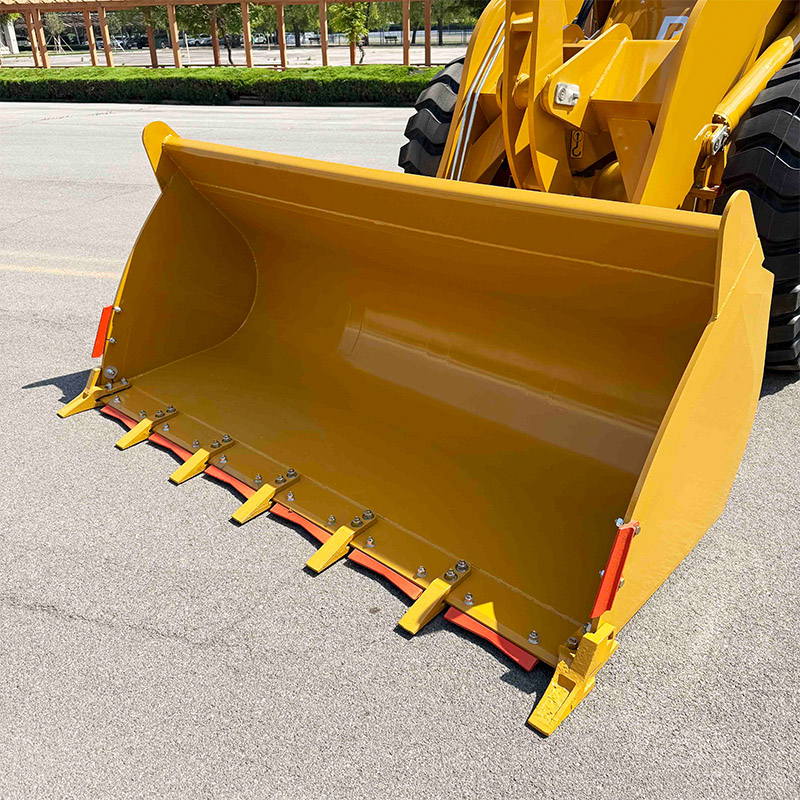

Bucket length. Deep. high(mm) | 2240*700*1100 |
Dourong(m²) | 1.8 |
Engine parameters | |
Rated power (kw) | 92KW |
Rated speed(r/min) | 2400 |
Number of cylinders | 6 |
version | 320 double high and low speeds |
Shifting gears | The first four and the last four |
Brake form | Air brakes |
Axles | 25 bridges |
Tire model | 17.5/25 |
Front wheel pressure(Map) | 0.33 |
Rear wheel pressure | 0.3 |
Steering system | |
version | Fully hydraulic steering |
Steering angle (° ) | 33.5 |
System operating pressure(Mpa) | 16 |
Refueling capacity | |
Fuel theory solvents (L) | 80 |
Theoretical volume of hydraulic fluid(L) | 80 |
Bridge single (L) | 16 |
Engine oil (L) | 6.5 |
Transmission gear oil(L) | 24 |
Braking system (L) | 3 |
Application scenarios：
Site Analysis：
Gas-oil assisted caliper brake system,Stable hill-climbing

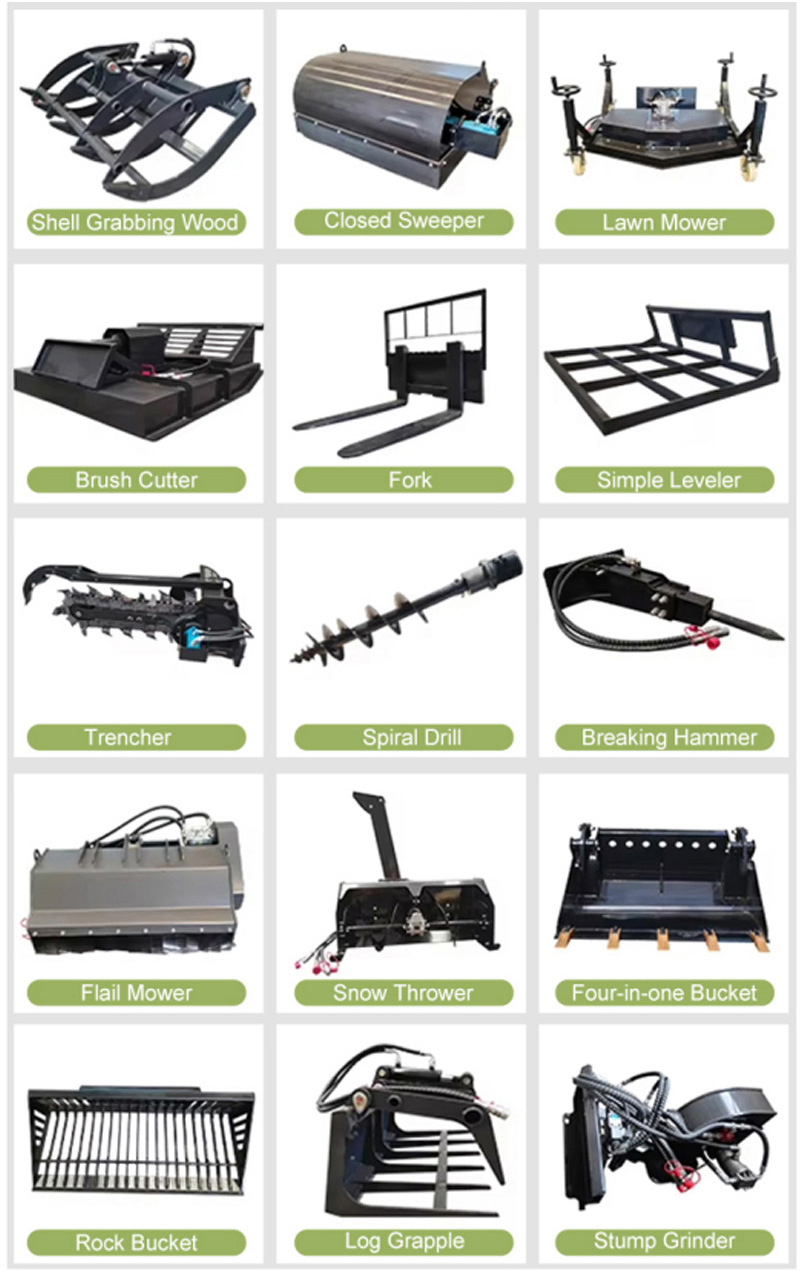

Product Accessories：
One machine for multiple uses, accessories for different applications
Our products sell over 20,000 units annually, both domestically and internationally, and are widely praised worldwide. We have over 1,000 professional sales and service personnel, and have established customer service teams in over 60 countries and regions.
