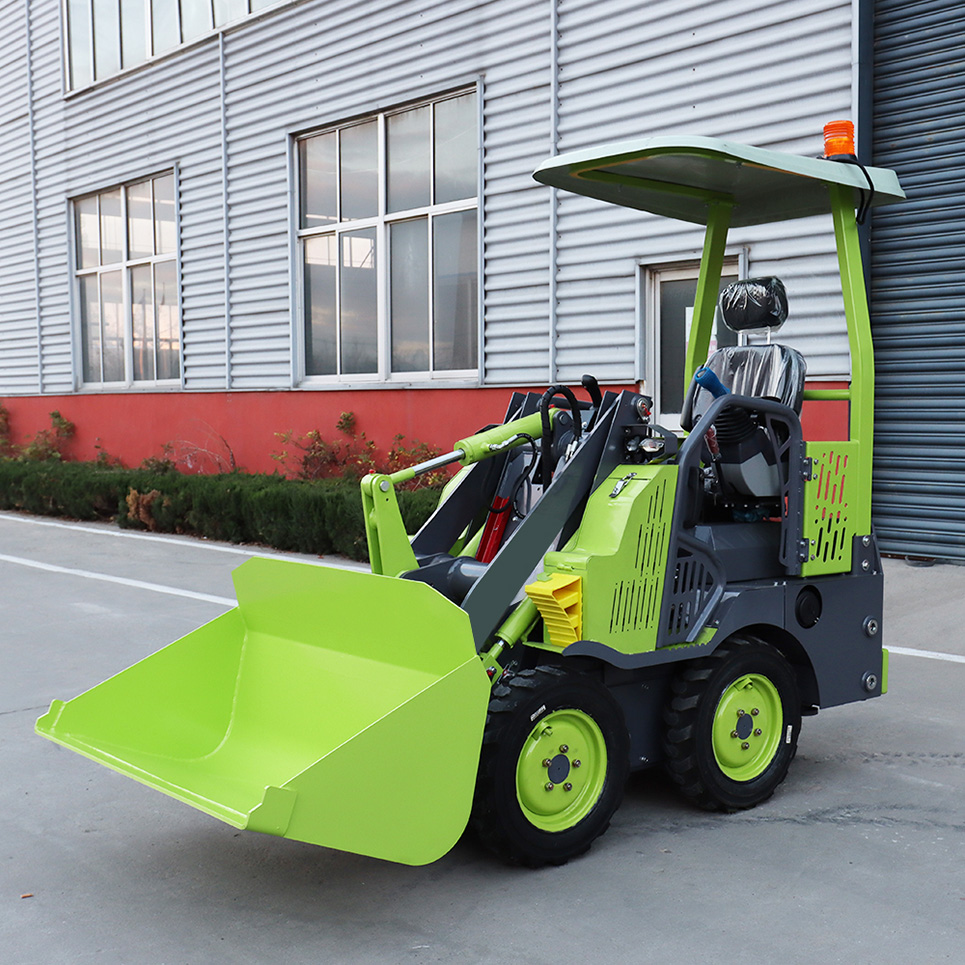

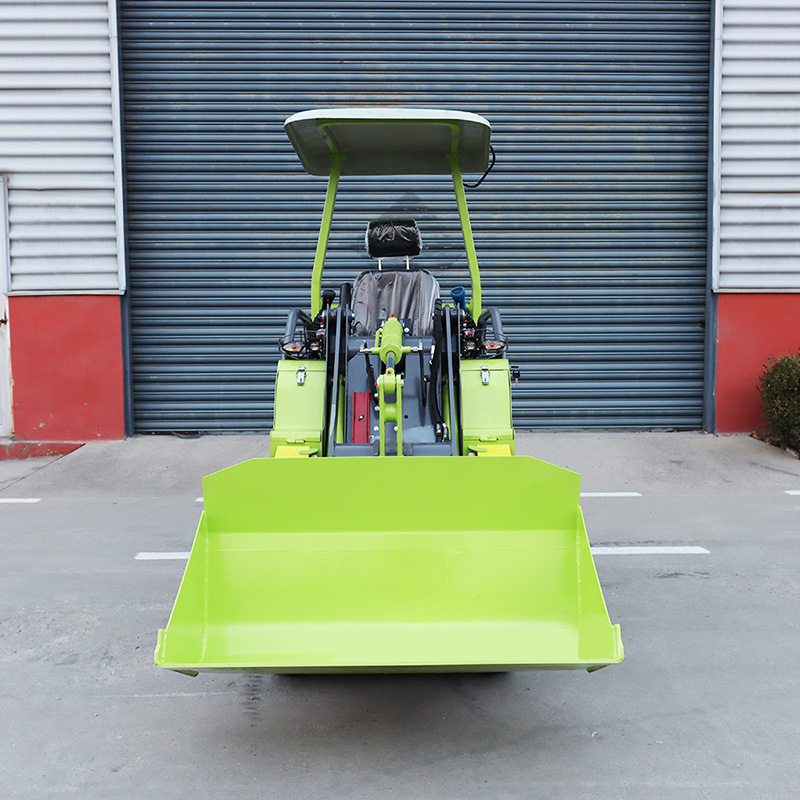

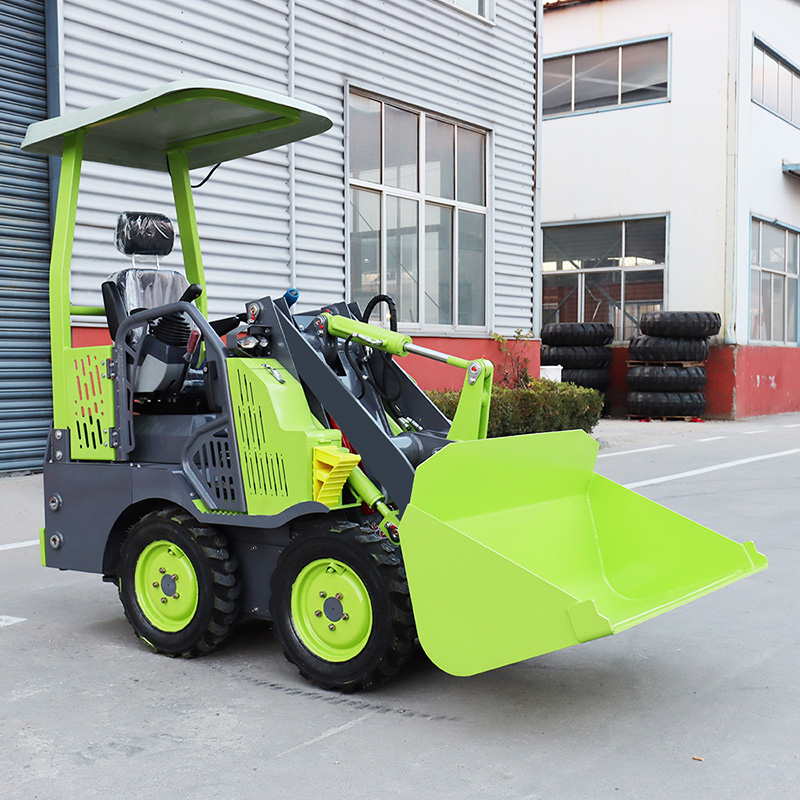

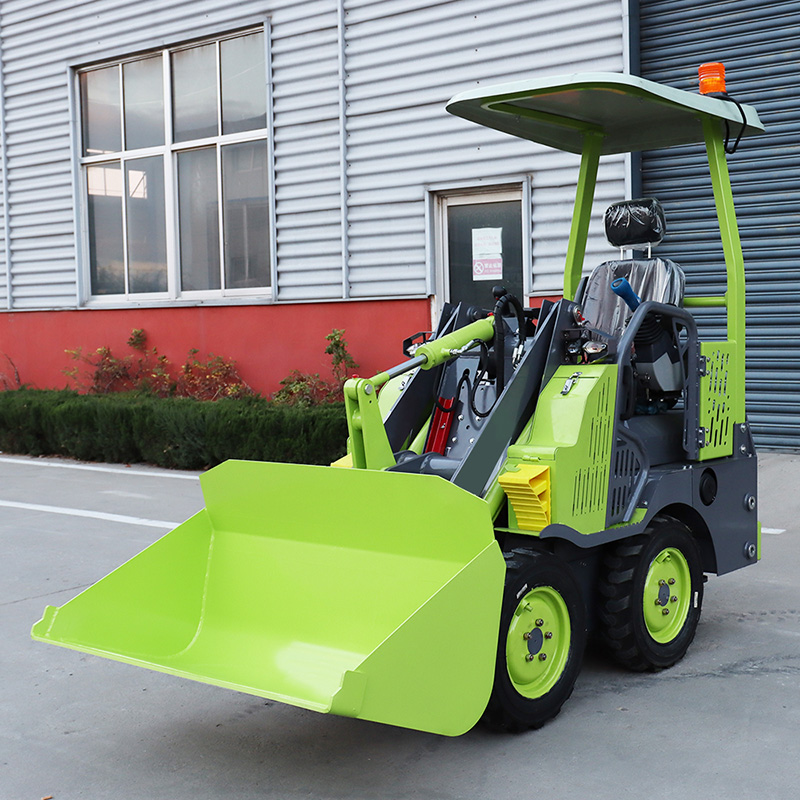

Mini Wheel Loader
Compact Size & Flexible Operation: Only 910mm wide, perfect for narrow spaces and tight job sites.
Optional Electric Engine: Eco-friendly 4KW battery option available to reduce emissions and fuel consumption.
Powerful & Reliable Performance: Equipped with Kubota D1105 18.2KW engine, naturally aspirated and built for durability.
Comfortable Driving Experience: Comes with soft seats, LED lights, and a modern console with USB and fuel/time display.
Multi-Terrain Capability: Strong-bearing tires and 30° climbing ability ensure adaptability across all terrains.
Versatility with Multiple Attachments: Supports buckets, forks, grapples, augers, and more—perfect for landscaping, transport, snow removal, and beyond.
The Compact Mini Wheel Loader with Kubota Engine is the perfect solution for operators working in space-constrained environments. Designed for flexibility and power, this mini loader features an optional 4KW battery-powered engine for low-emission performance, a compact body for narrow job sites, and ergonomic soft seats for comfortable driving. With an annual sales volume exceeding 20,000 units and trusted by users in over 60 countries, it’s ideal for individual farmers, small engineering teams, and eco-conscious contractors.
--Compact Size, is suitable for narrower working space.
--Optional engine, the battery (4KW) can be optional. --Comfortable driving, Equipped with the soft seats.

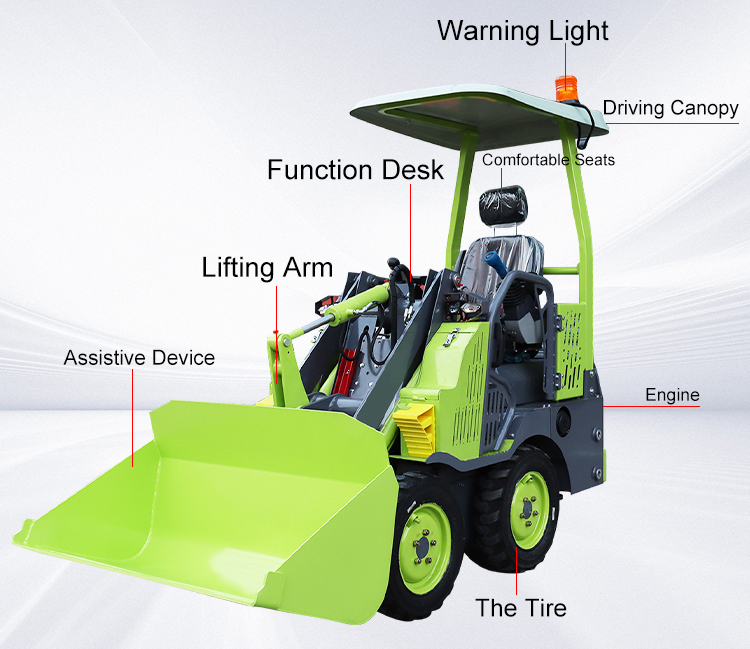

Details：

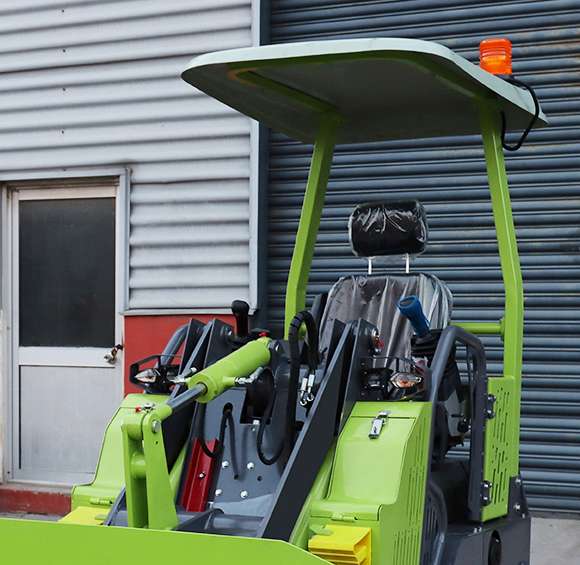

【Console】
LED lighting has high brightness and can work normally even at night, USB interface Fuel quantity and time display safety indication.

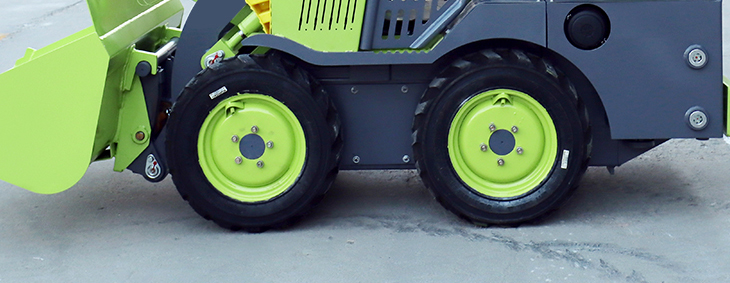

【tire】
Special tires,tooth groove design isnon-slip and durable, thickened tire wallis made of high-quality materials to improve work safety

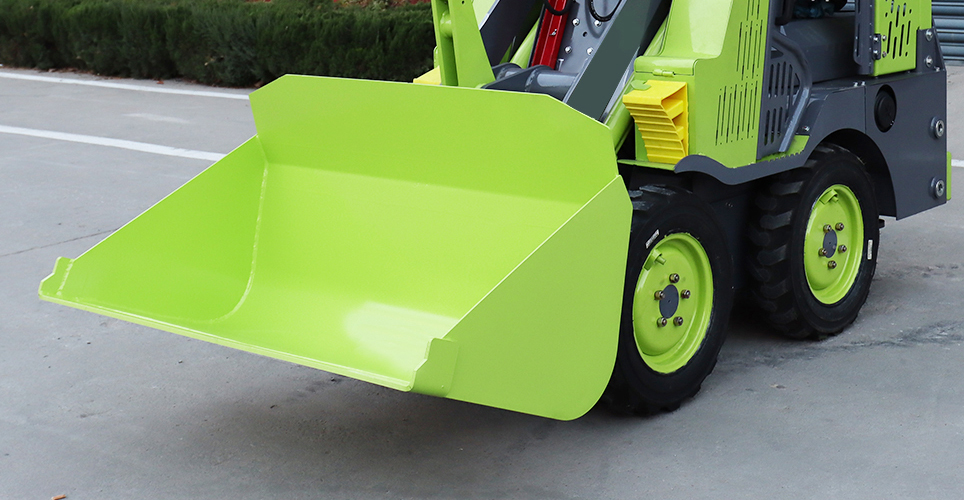

【Large Capacity Bucket】
Largerbucket,argrcapacity,moreloading, and improved work efficiency.
Parameter：
| Specification | Value |
Overall Dimensions (mm) | 2420 × 910 × 2080 |
Vehicle Weight (kg) | 1200 |
Wheelbase (mm) | 765 |
Front & Rear Track (mm) | 734 |
Minimum Ground Clearance (mm) | 140 |
Outermost Track (mm) | 735 |
Outermost Side of Vehicle (mm) | 1690 |
Tire Specifications | 5.70-12-4RR |
Engine Model | Kubota D1105 |
Engine Power (kW) | 18.2 |
Intake Method | Naturally Aspirated |
Rated Speed (rpm) | 3000 |
Maximum Speed (km/h) | 9 |
Maximum Unloading Height (mm) | 1835 |
Maximum Unloading Distance (mm) | 525 |
Bucket Capacity (m³) | 0.17 |
Maximum Climbing Angle (°) | 30 |
Application scenarios：
Site Analysis
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

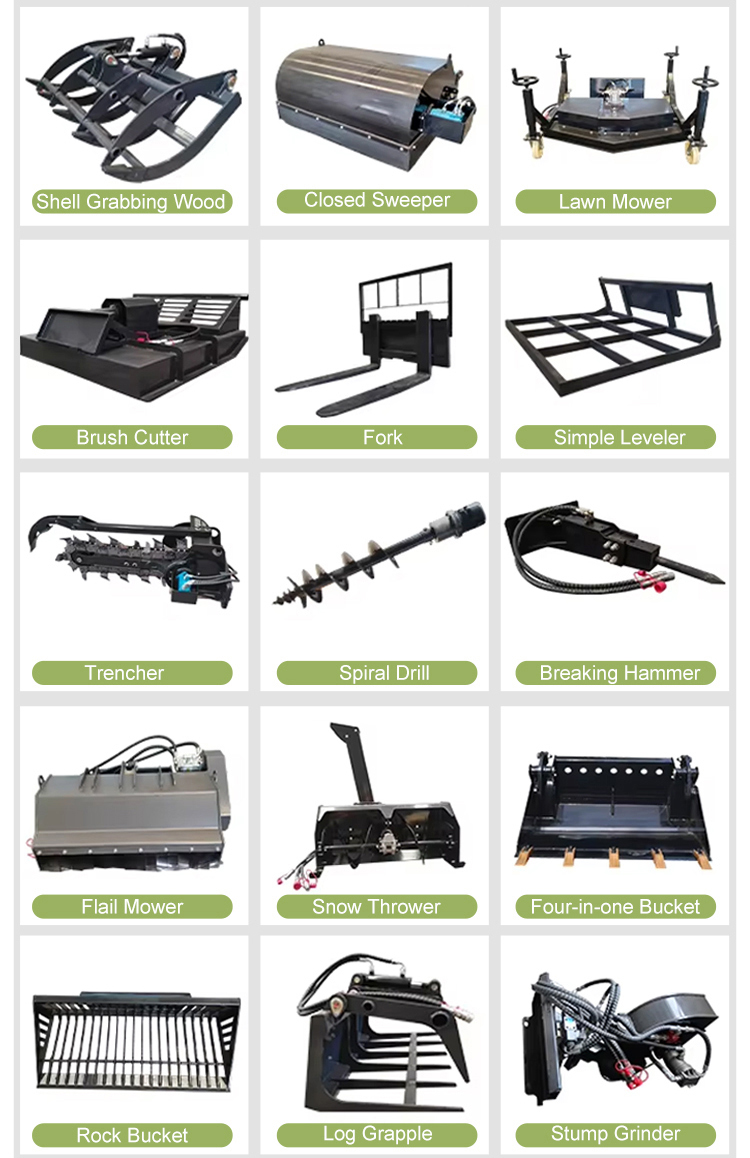

Product Accessories
(Versatility, one machine for multiple uses: Compact loaders are extremely versatile and can be equipped with a variety of attachments, such as buckets, forklifts, grapples, augers and brooms. This versatility enables them to handle a variety of tasks, from loading and transporting materials to landscaping and snow removal.)
Annual sales at home and abroad exceed 20,000 units, exported to all over the world, and widely praised! More than 1,000 professional sales and service personnel, more than 60 countries and regions, customer sales teams have been established
