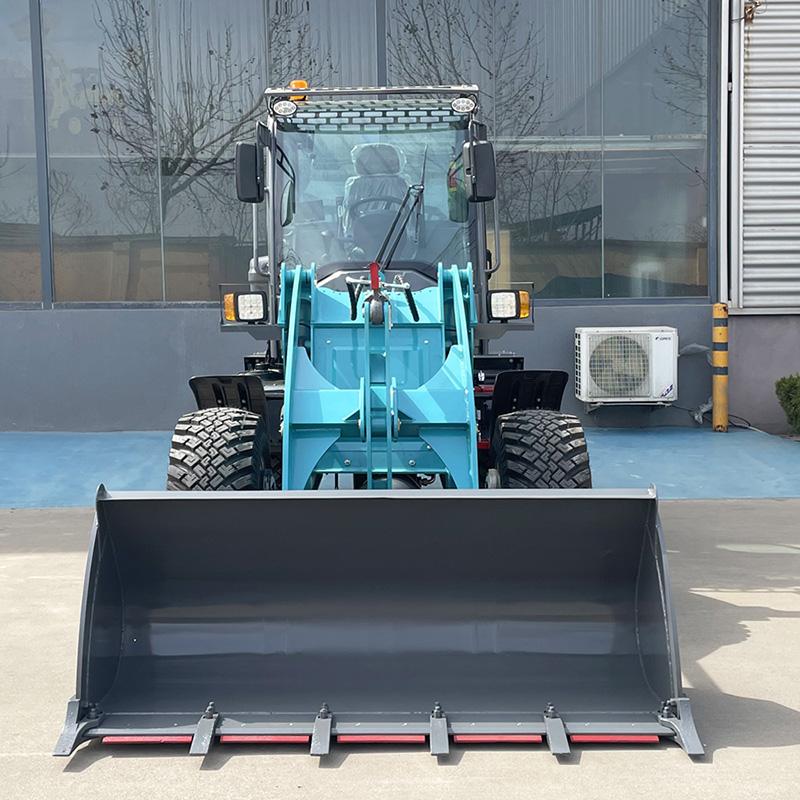

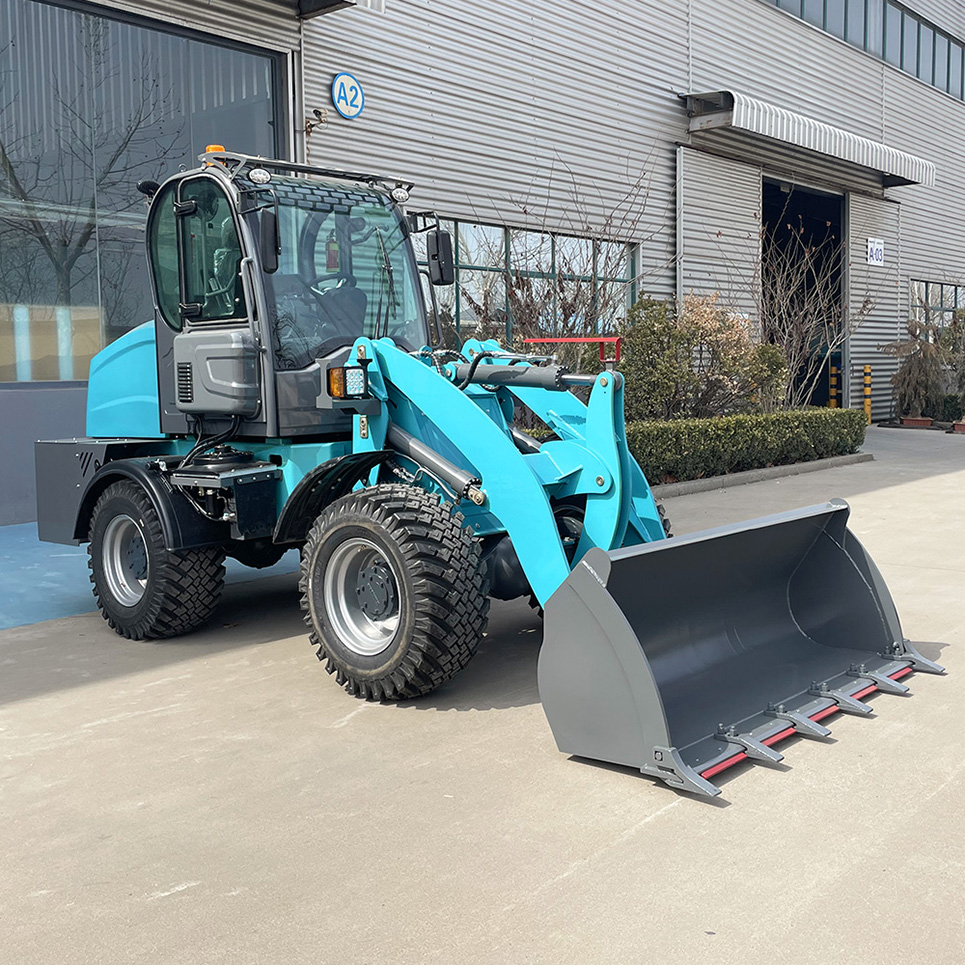

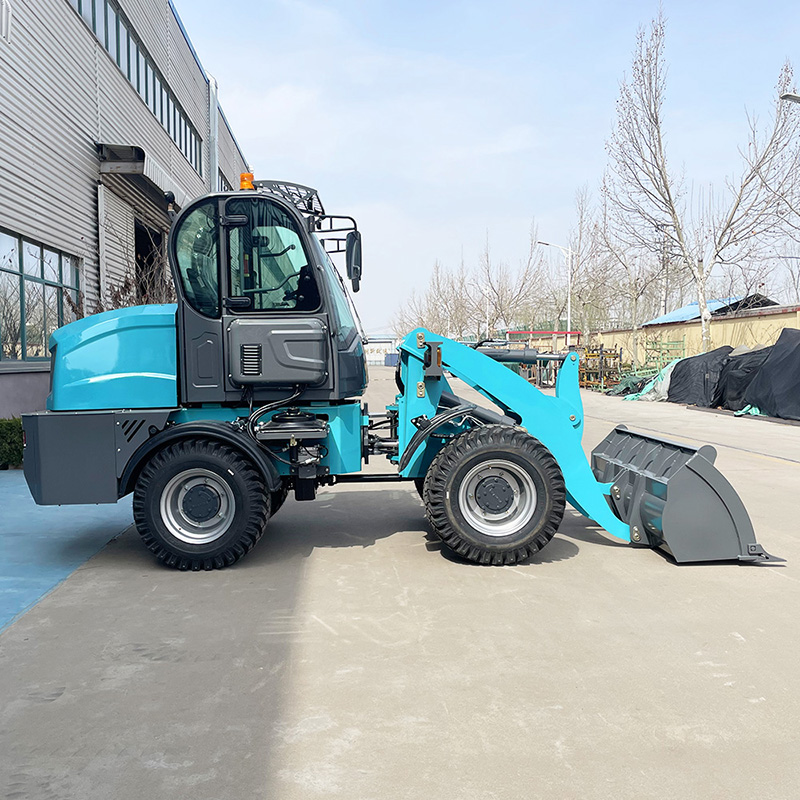

Heavy Duty Wheel Loader
Eco-Friendly & Quiet Operation: Zero-emission 45KW lead-acid battery for pollution-free performance, ideal for indoor and eco-sensitive environments.
High-Performance Loading & Lifting: 1500kg rated capacity, 0.7m² bucket, and 2570mm unloading height for efficient heavy-duty material handling.
Compact Design with Superior Maneuverability: Narrow wheelbase and ±35° steering angle enable tight-space operation without sacrificing stability.
Operator Comfort & Smart Control: Ergonomic cab with high-end seating, LED lighting, USB ports, and full hydraulic steering for smooth, fatigue-free operation.
Durable & Globally Trusted: Solid all-terrain tires + 15KW AC hydraulic system for reliability, backed by 20,000+ annual sales across 60+ countries.

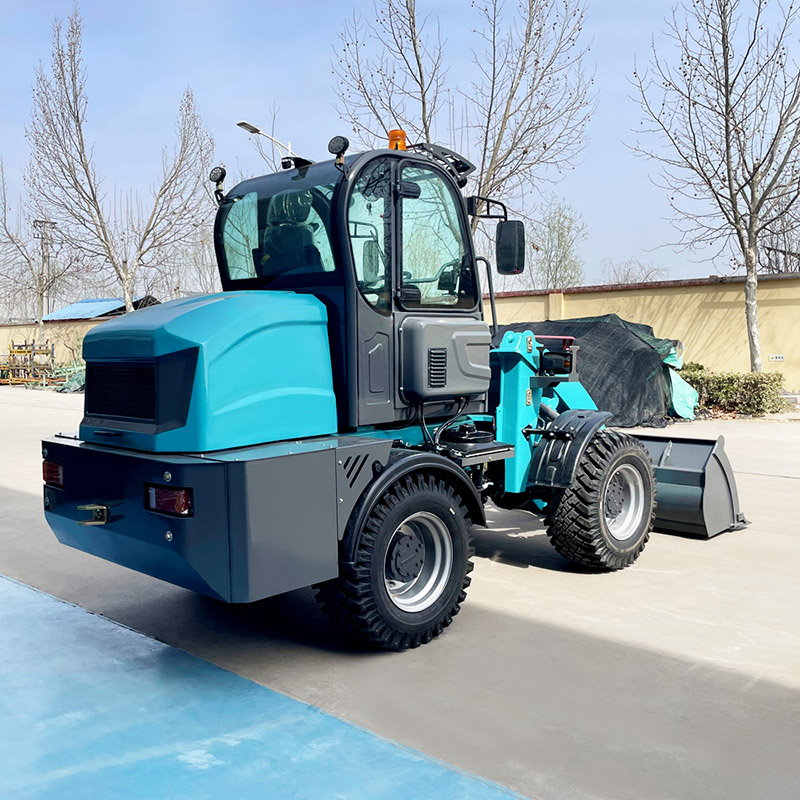

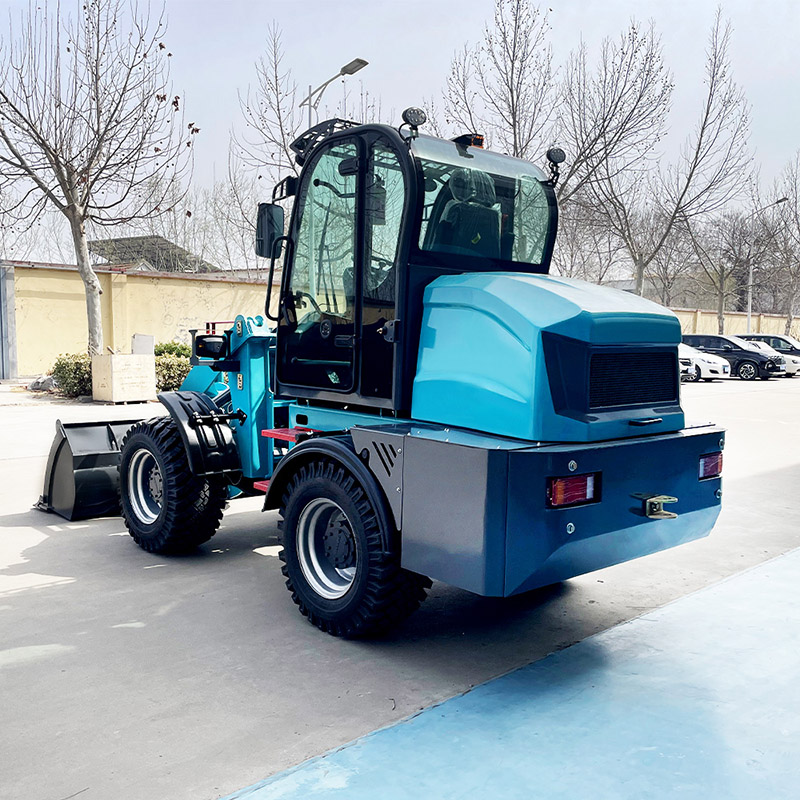

The Heavy-Duty Electric Wheel Loader – 1.5 Ton Capacity is purpose-built for handling both bulk and hard materials in demanding environments such as sand yards, ports, construction sites, and mines. With a compact yet powerful design, this zero-emission loader features a strong 45KW battery system, a lifting height of 3.27m, and a wide bucket for high-volume tasks. Combining a small turning radius, high breakout force, and excellent energy efficiency, it is ideal for operators requiring both heavy-load performance and flexible maneuverability.
Suitable for handling bulk materials and hard materials. It features moderatewheelbase, high breakout force, small turning radius, combination of heavy load and flexibility,wide range of operations,strong applicability, and is widely used in sand yards, ports, construction sites, mines and other occasions.

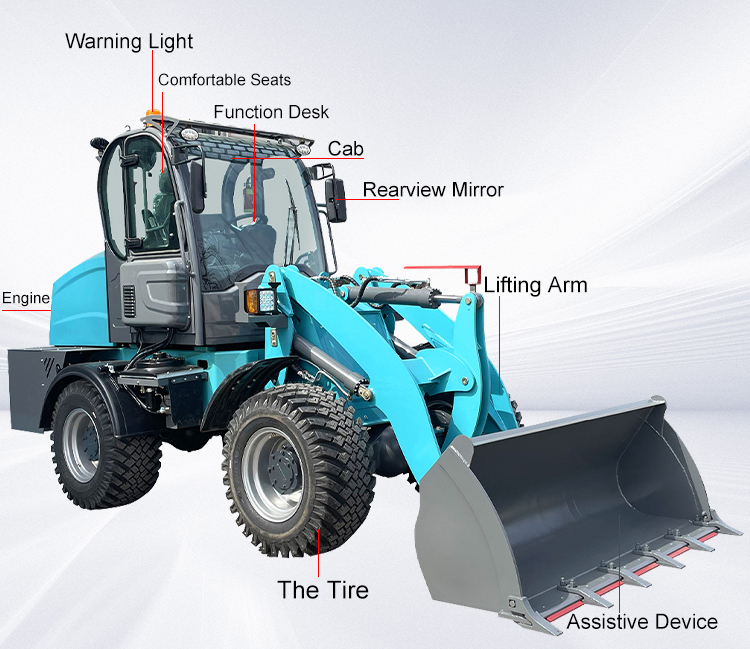

Details：

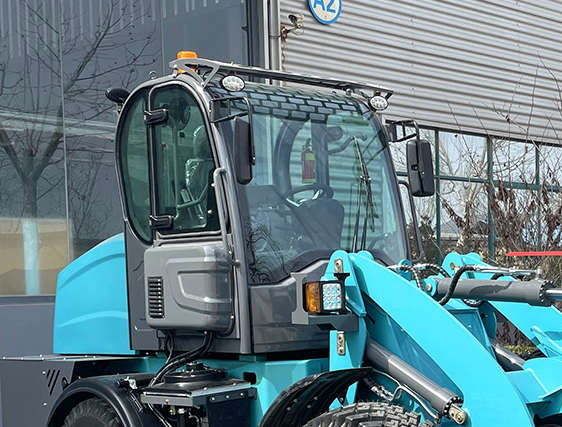

【Cab】
LED light, USB interface Fuel quantity and time display safety indication.High end seats Spacious and comfortable,
ergonomically designed with an auxiliary control lever.

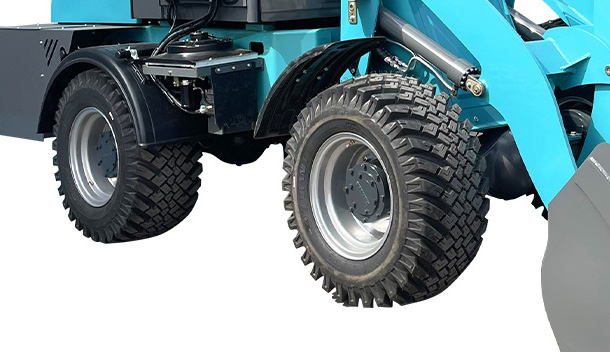

【Solid Tire】
Strong bearing capacity, suitable for all terrains

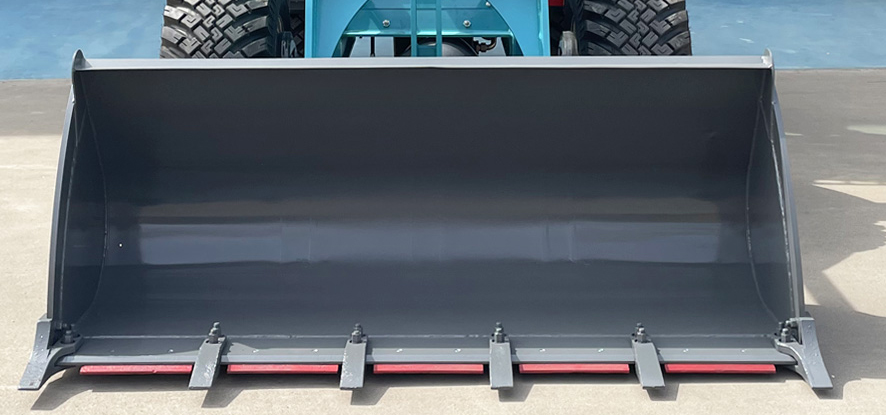

【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
Parameter：
| Specification | Value |
Rated working capacity (kg) | 1500 |
Machine weight(kg) | 4750 |
Bucket capacity (m²) | 0.7 |
Maximum steering angle | ±35° |
Minimum turning radius (mm) | 4440 |
Swing amplitude | 20 |
Three items and time (s) | 9 |
Working time (h) | 5 |
Gearbox model | 265 |
Driving speed (km/h) | Low speed 6 High speed 16 |
Unloading height (mm) | 2570 |
Lifting height (mm) | 3270 |
Machine size (LWH) (mm) | 5360*1970*2720 |
Unloading distance (mm) | 945 |
Bucket width (mm) | 1970 |
Wheelbase (mm) | 1975 |
Tread (mm) | 1510 |
Minimum ground clearance (mm) | 250 |
Battery model | TEV12-180 |
Battery type | Highperformancelead-acid maintenance-free type |
Number of battery packs (groups) | 20 |
Total battery capacity (KW) | 45 |
Rated voltage (V) | 120 |
Battery charging time (h) | 8 |
Electrical system voltage (V) | 12 |
Hydraulic system power supply form | AC |
Hydraulic system voltage (V) | 120 |
Hydraulic system power (KW) | 15 |
Hydraulic system displacement (ml/r) | 40 |
Hydraulic motor speed (r/min) | Low speed 800 High speed 2000 |
Hydraulic system pressure (mpa) | 16 |
Steering hydraulic system type | Full hydraulic steering |
Steering system pressure (mpa) | 14 |
Steering gear model | 5－250 |
Steering cylinder model | 50 *250mm |
Number of steering cylinders (pc) | 2 |
Travel system power supply form | AC |
Travel system voltage (V) | 120 |
Travel system power (KW) | 20 |
Number of travel motors | 1 |
Tire model | 15.5/60-18 |
Tire pressure (mpa) | 0.3 |
Number of tires | 4 |
Service brake | Hydraulic disc brake |
Parking brake | Manual caliper disc |
Application scenarios：
Site Analysis
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection.

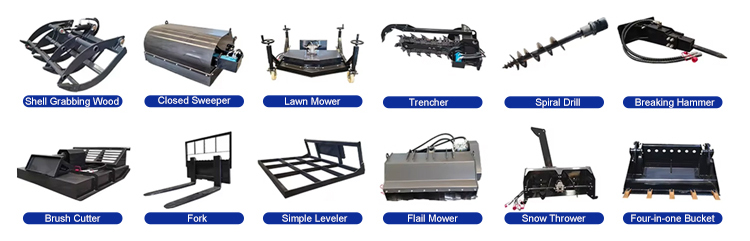

Product Accessories
(Versatility, one machine for multiple uses: Compact loaders are extremely versatile and can be equipped with a variety of attachments, such as buckets, forklifts, grapples, augers and brooms. )
We believe"Quality is the life of a corporate", and our strict quality control team is to provide every customers satisfied products.
Annual sales at home and abroad exceed 20,000 units, exported to all over the world, and widely praised! More than 1,000 professional sales and service personnel, more than 60 countries and regions, customer sales teams have been established.
