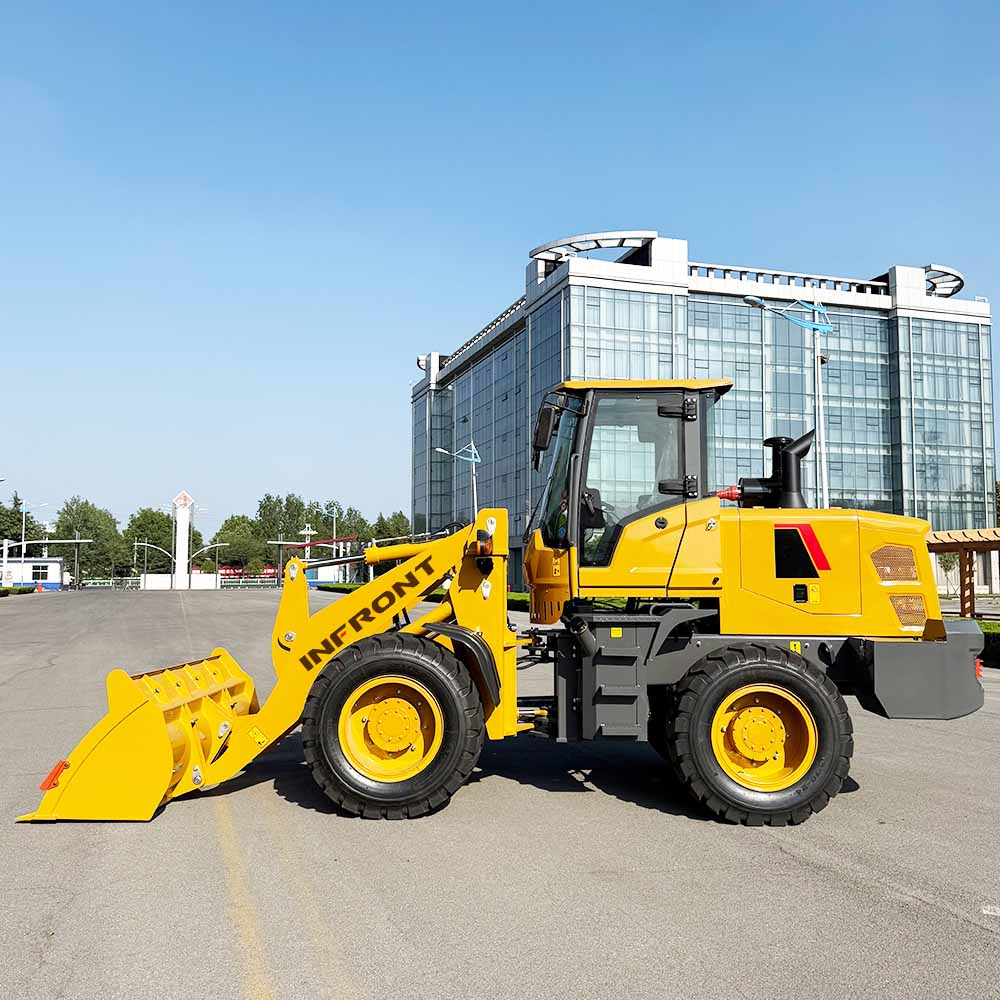

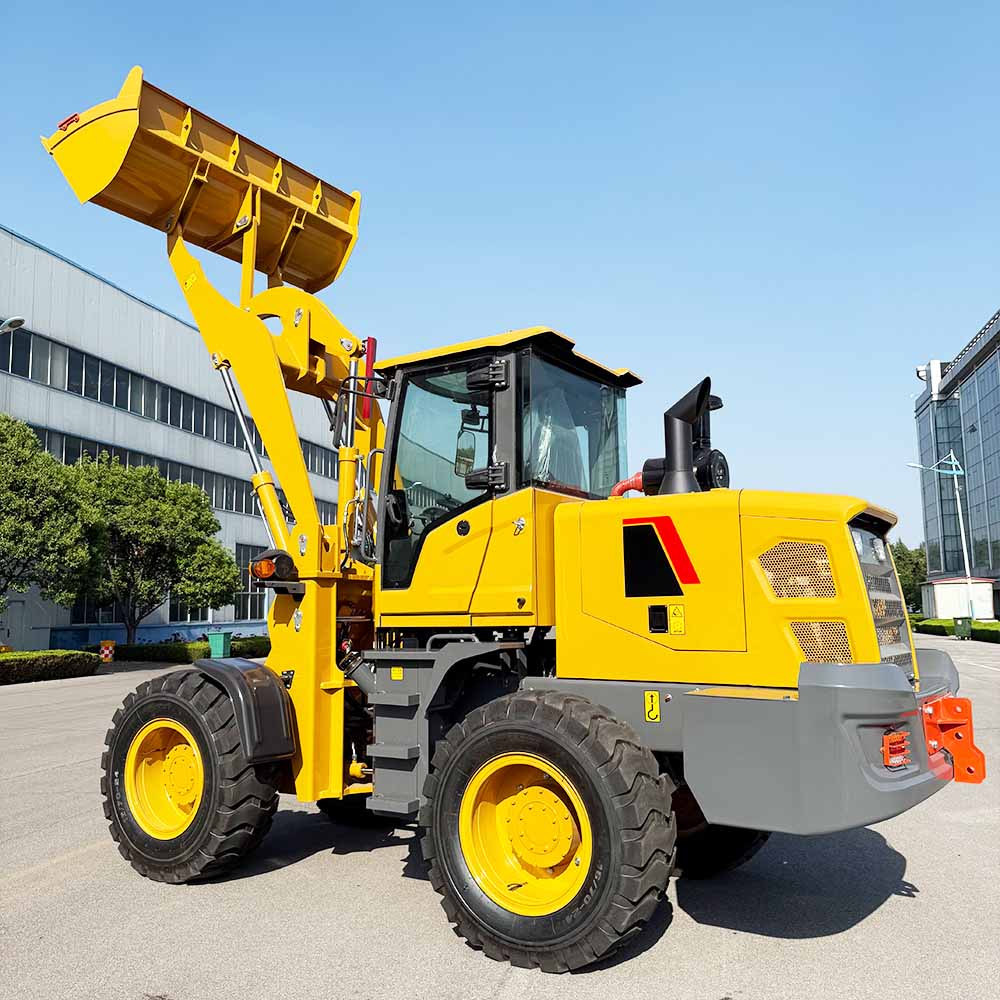

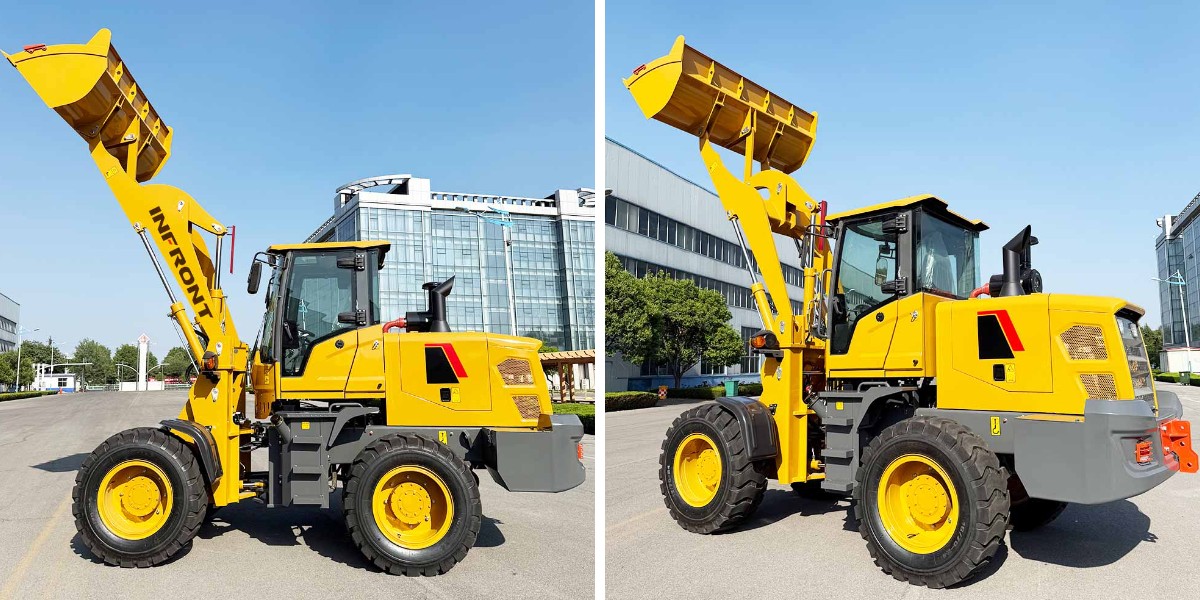

Efficient Loader
Fuel-powered engines are more adaptable to ambient temperature and humidity. They can start smoothly in freezing temperatures of -30°C using a preheated system. In dusty mines or muddy farmland, the fuel system is less likely to fail due to impurities clogging it. In contrast, the battery capacity of electric loaders drops by over 30% at low temperatures, and the circuit system is more sensitive to dust and moisture. Therefore, fuel-powered loaders offer significant reliability advantages in scenarios such as winter construction in northern China and operations during tropical rainy seasons.
Small loaders are an ideal choice for small and medium-sized construction companies due to their fast operating speed, high efficiency, small size, intuitive operation, diverse functions and high cost-effectiveness.

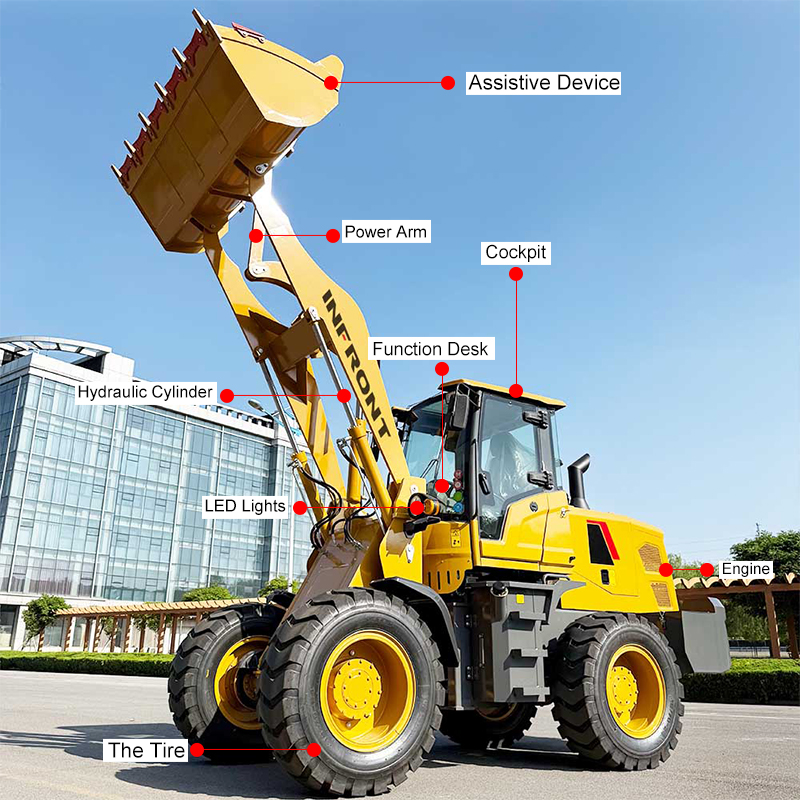

Product Details:

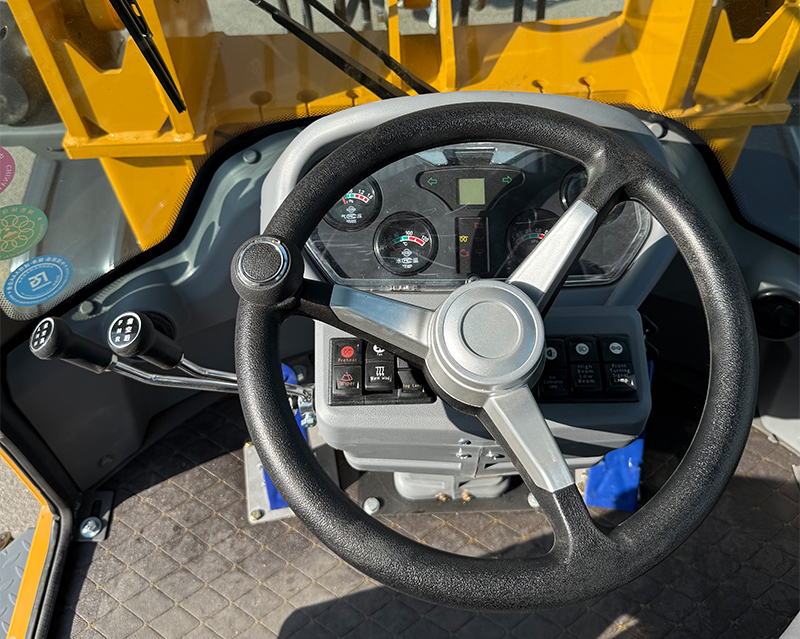

Multifunctional workbench
Multifunctional steering wheel, flexible steering and comfortable control

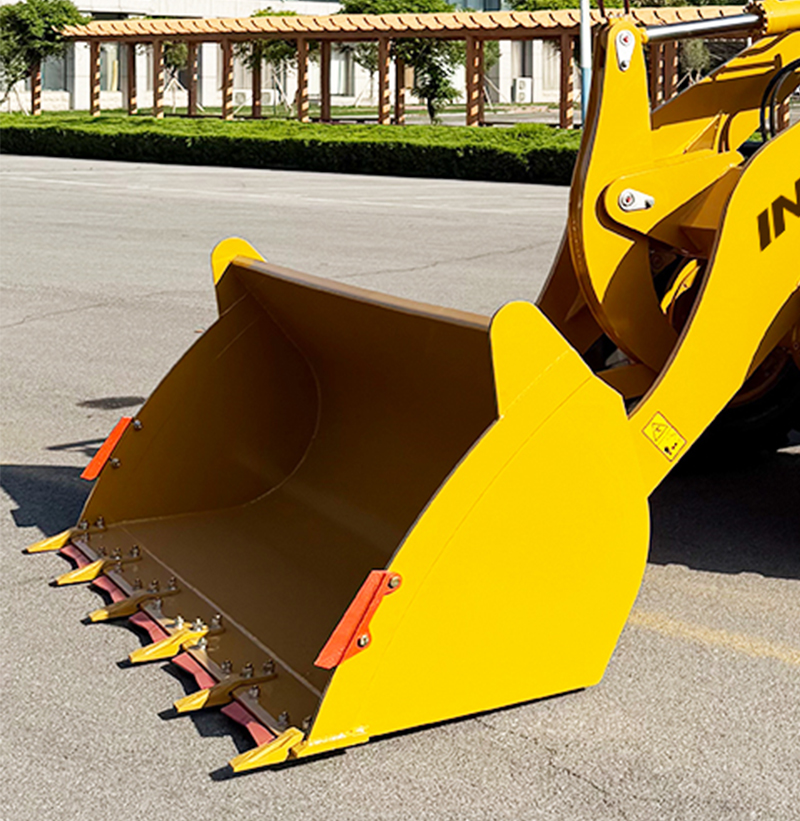

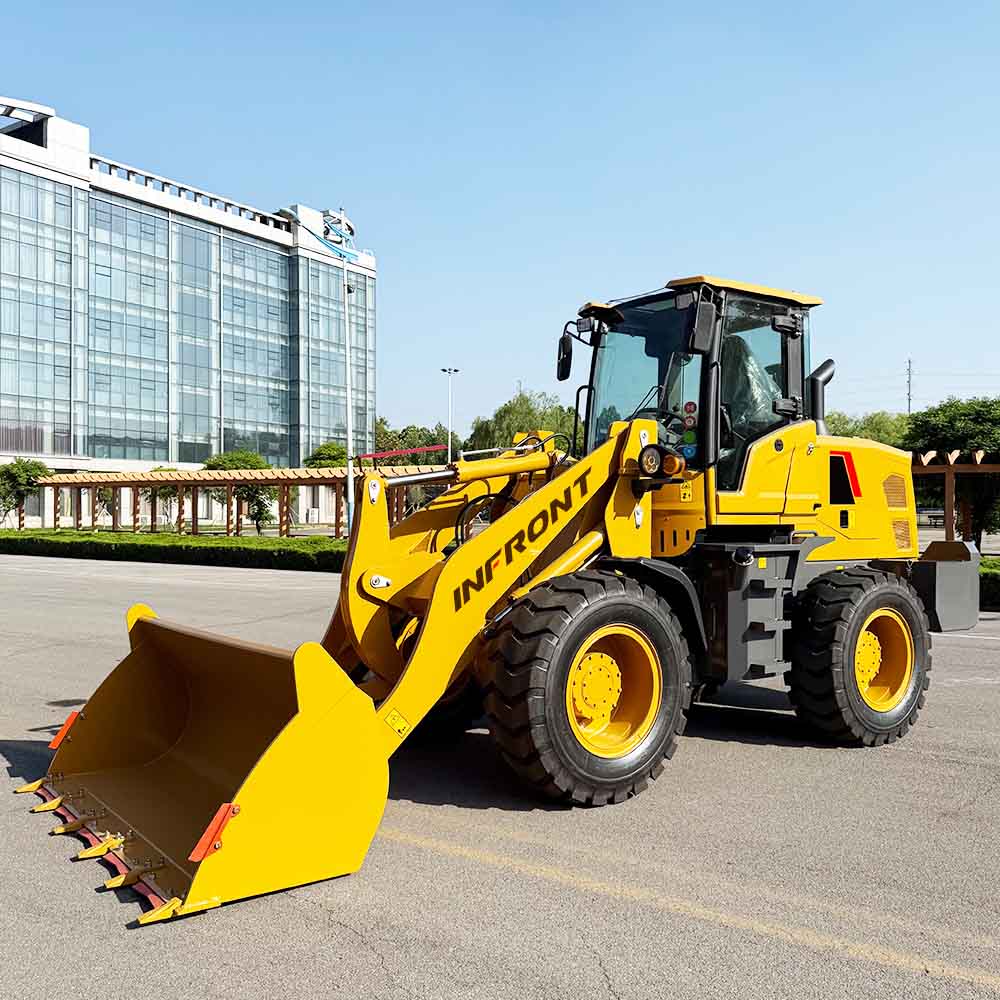

Large-capacity bucket
fast working speed and higher efficiency

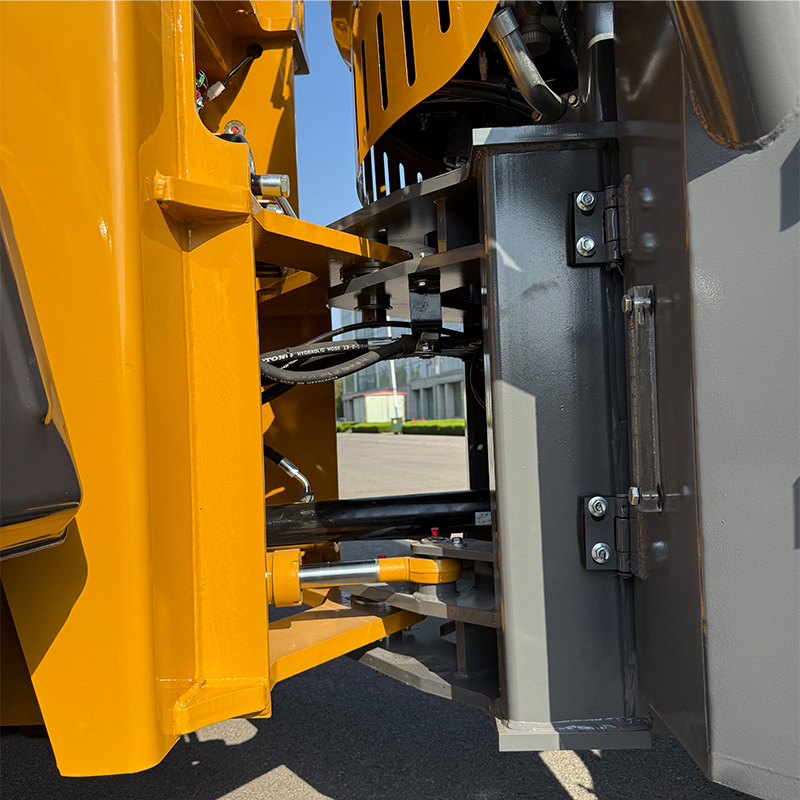

Hinge Point
The responsive, articulated steel ring frame and high-strength boom design provide optimized structure and stable operation.
Product Parameters:
Minimum turning radius | 5750 |
Theoretical gradeability (°) | 15 |
Maximum travel speed (km/h) | 32 |
Minimum travel speed (km/h) | 8 |
Maximum dump capacity (mm) | 3550 |
No-load lifting time (s) | ≤5 |
No-load lowering time (s) | ≤4 |
No-load dumping time (s) | ≤1.5 |
Sanhe (s) | ≤10.5 |
Wheelbase (mm) | 2550 |
Dumping distance (mm) | 800 |
Dumping angle (°) | 34.5 |
Body length (mm) | 6100 |
Body width (mm) | 2100 |
Body height (mm) | 2950 |
Minimum ground clearance (mm) | 380 |
Wheelbase (mm) | 1420 |
Rated load capacity (kg) | 2200 |
Machine weight (kg) | 5700 |
Bucket length and depth | 2200/600/900 |
Bucket capacity (n²) | 1.5 |
Maximum lifting force (kN) | 55 Max. |
Traction (kN) | 72 |
Combined Operating Conditions (kN) | 48 |
Manufacturer | Dongfanghong |
Rated Power (kW) | 85KW |
Rated Speed (rpm) | 2400 |
Number of Cylinders | 4 |
Number of Cylinders per Cylinder | 2 |
Maximum Torque (Nm/rpm) | 385Nm ≤ 1800r/min |
Displacement (L) | 4330 |
Bore and Stroke | 105 |
Version | 280 Dual High/Low Speed |
Gear | Front Four, Rear Four |
Brake Type | Air |
Axle | Large Rim |
Tire Size | 16/70-24 |
Front Wheel Pressure (Map) | 0.33 |
Rear Wheel Pressure (Map) | 0.3 |
Version | Full Hydraulic Steering |
Steering Angle (°) | 32.5 |
System Operation | 16 |
Theoretical Fuel and Solvent Volume (L) | 78 |
Theoretical Hydraulic Oil Volume | 78 |
Axle Capacity (L) | 14 |
Engine Oil (L) | 6.5 |
Transmission Oil | 24 |
Brake System (L) | 3 |
Application scenarios：
Site Analysis：
Split torque converter reduces overheating and allows for easy maintenance.

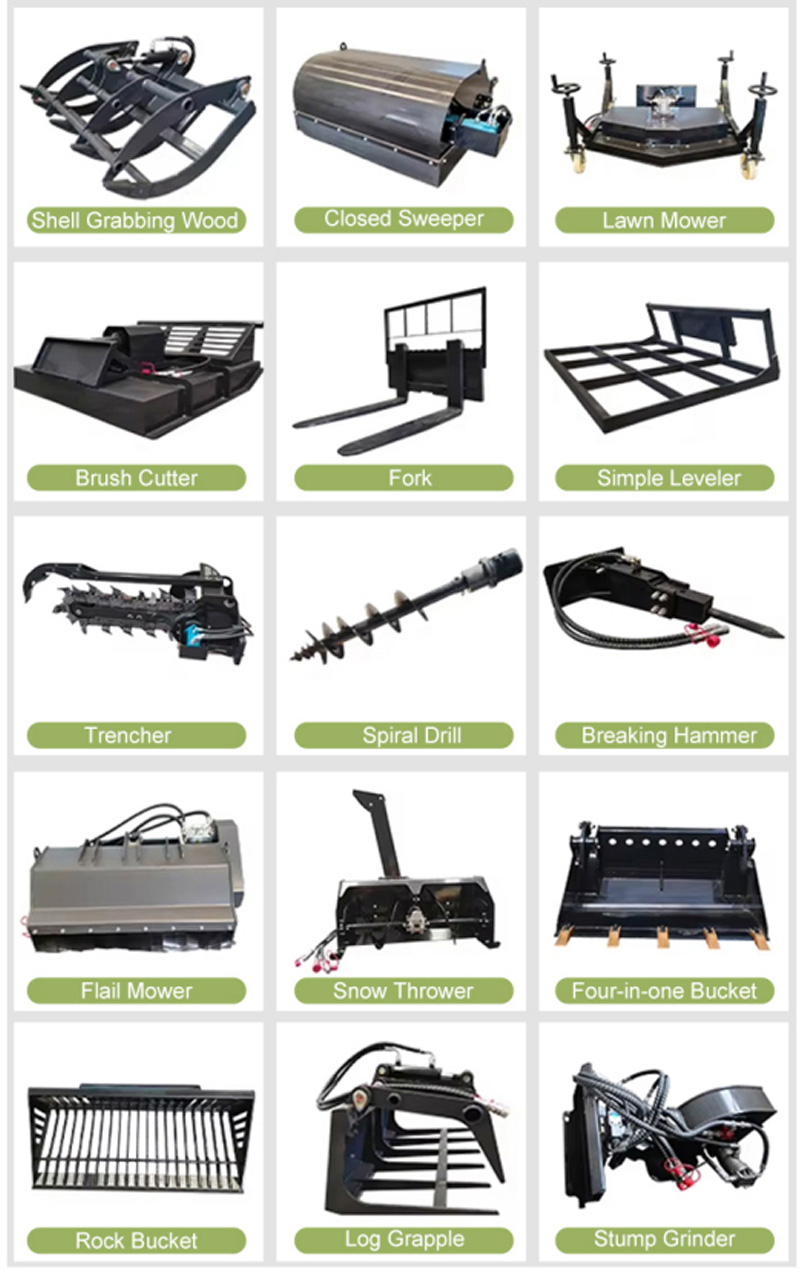

Product Accessories：
One machine for multiple uses, accessories for different applications
Our products sell over 20,000 units annually, both domestically and internationally, and are widely praised worldwide. We have over 1,000 professional sales and service personnel, and have established customer service teams in over 60 countries and regions.
