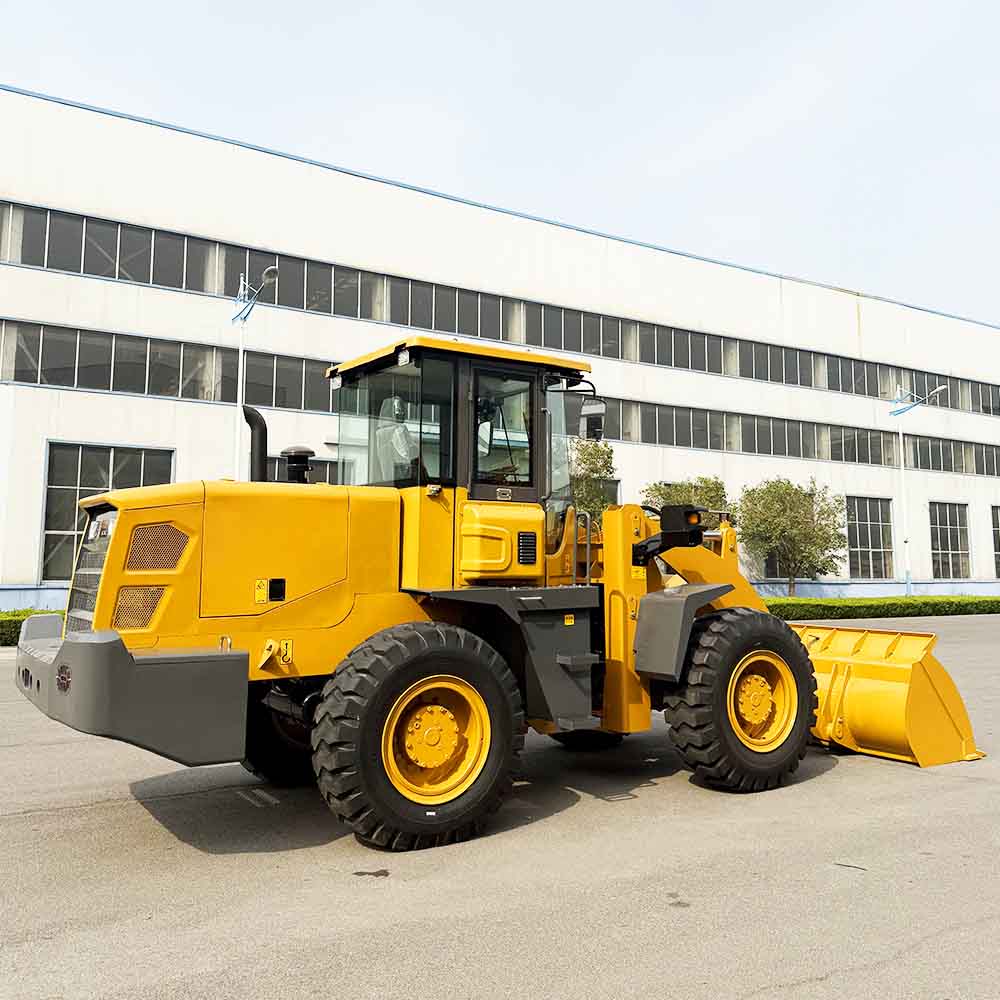

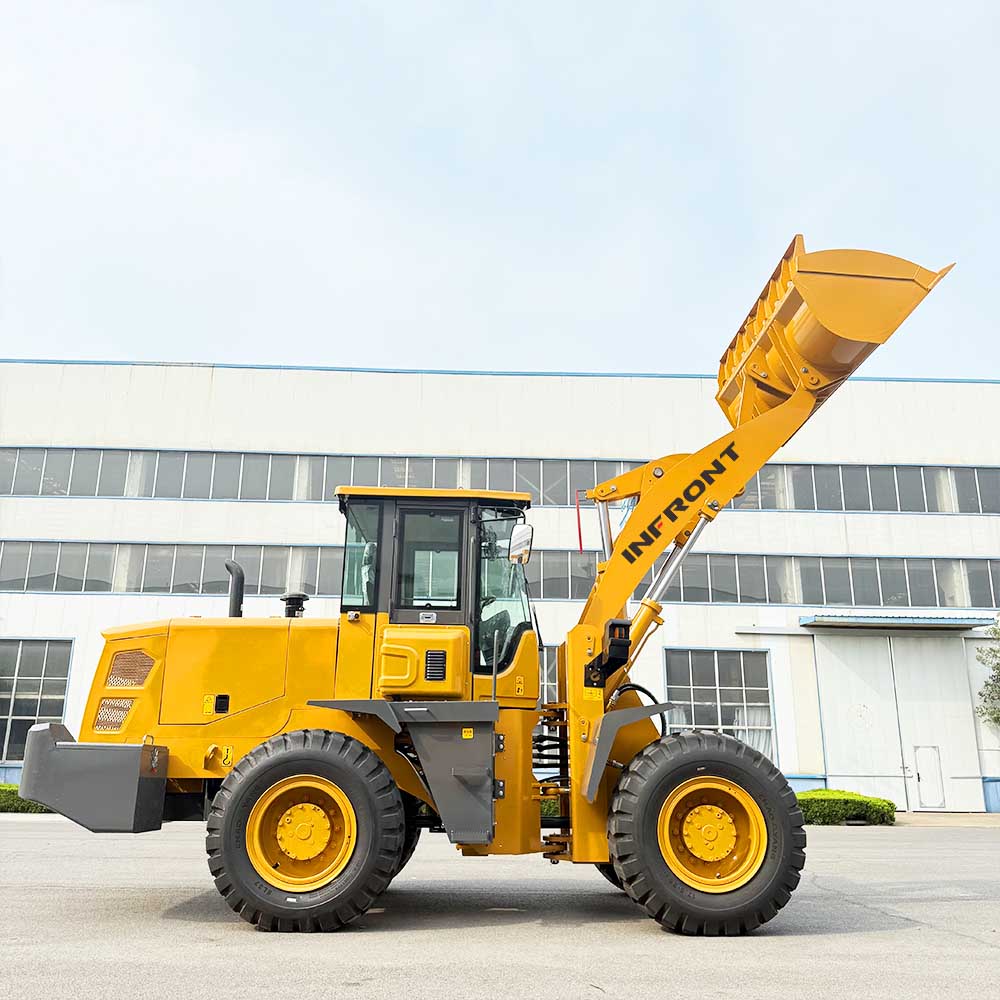

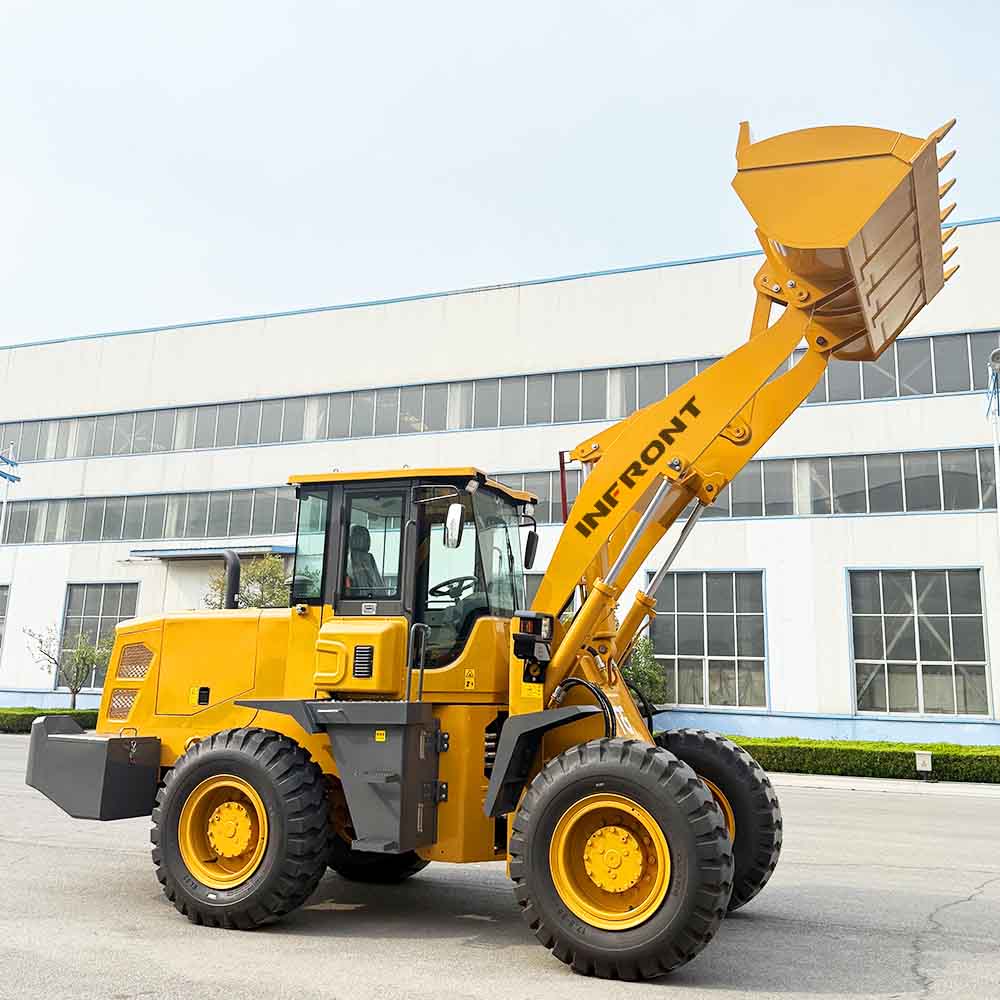

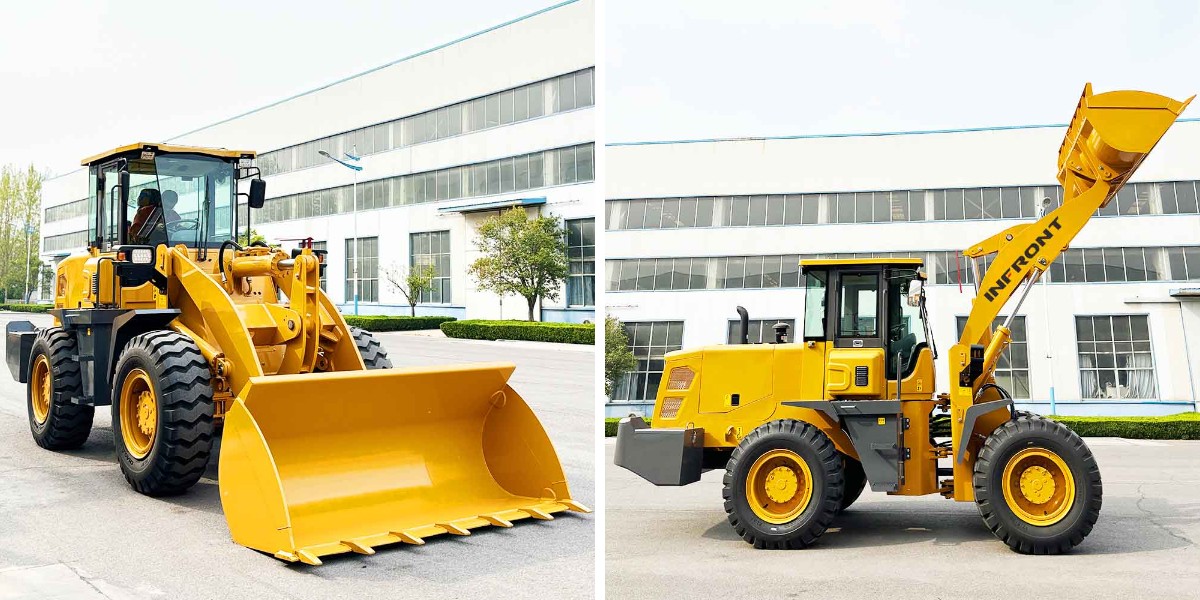

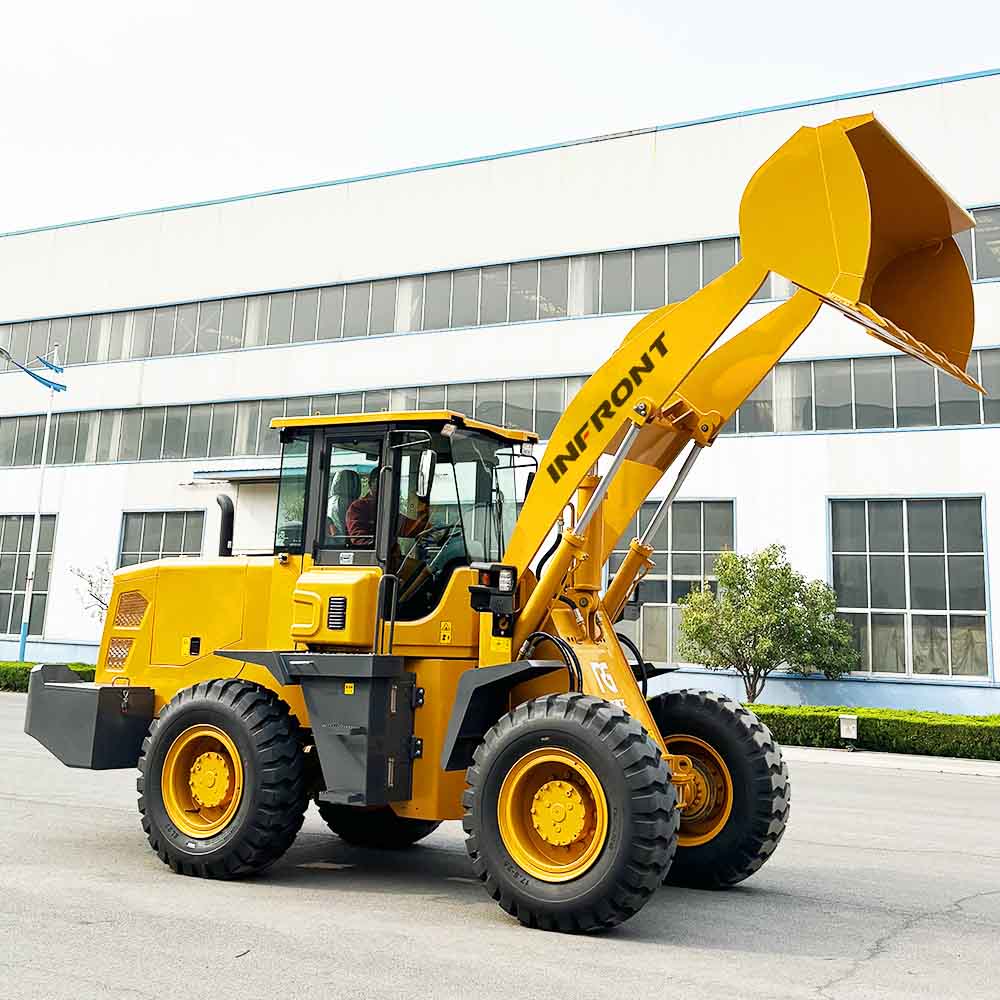

Compact wheel loader for sale
The stable power output characteristics of fuel loaders facilitate the installation of attachments such as breakers, log grapples, and snow pushers. For example, when operating in a forest, a fuel loader equipped with a log grapple can directly drive a hydraulic gripper to grab logs up to 50cm in diameter. Adding high-power attachments to electric models, on the other hand, requires additional battery and motor upgrades, increasing modification costs by over 20%. This flexibility enables rapid switching between operating modes to meet the diverse needs of agriculture, forestry, and municipal services.
● Large horsepower diesel engine for power output
● We specializes in building a world class small and medium-sized loader R & D base and become the leader of small loaders worldwide.
● The products are renowned internationally for their good performance, moderate price and excellent service, and are exported to Asia, Africa and Europe.

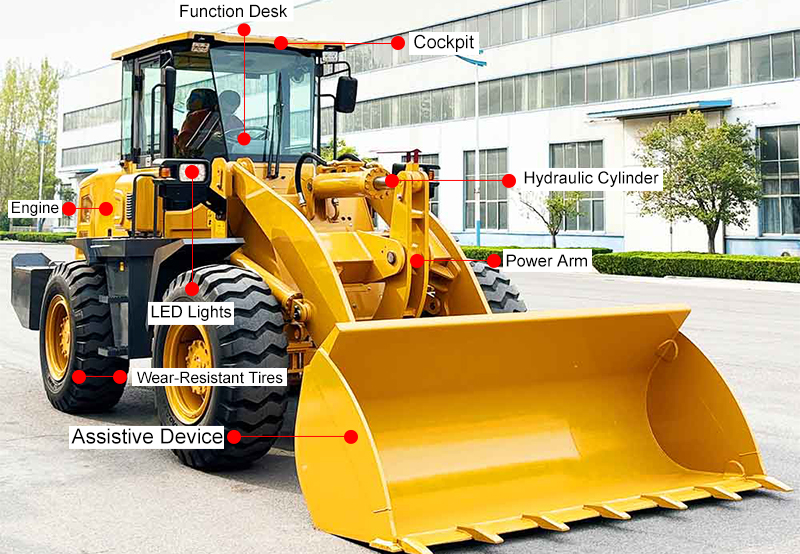

Product Details：

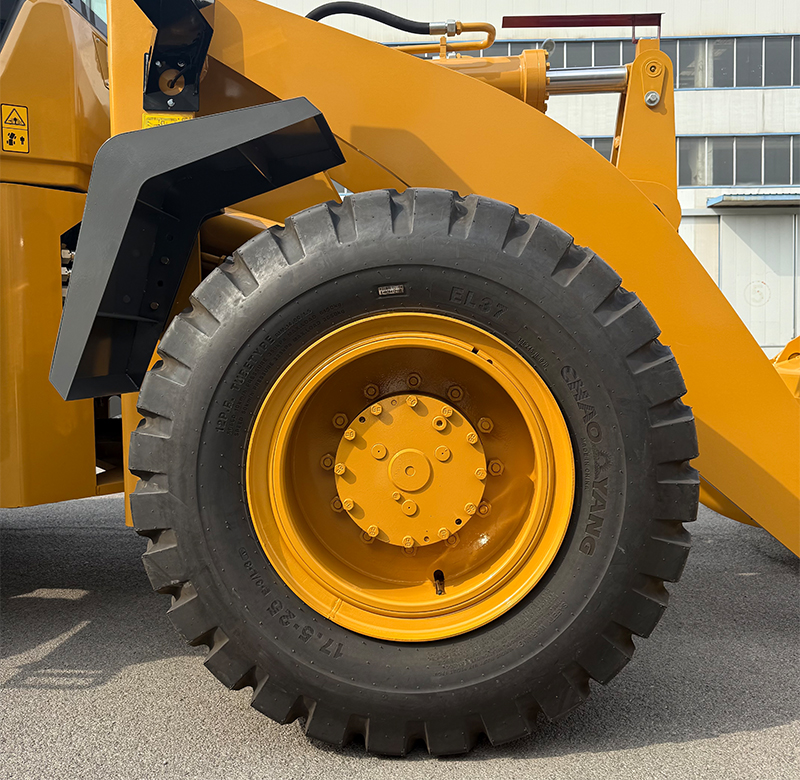

【Engineering vehicle tires】
Strong wear resistance and excellent safety performance
【Hydraulic system】
Safe, high-pressure double seals

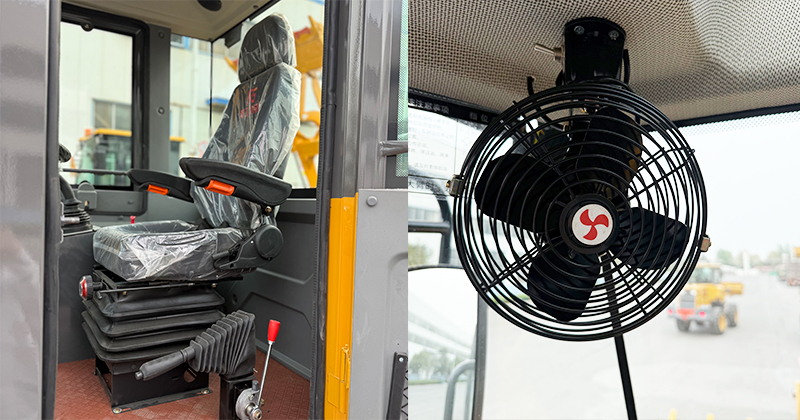

【Cab】
The spacious cab and excellent visibility provide safer and more comfortable operation.

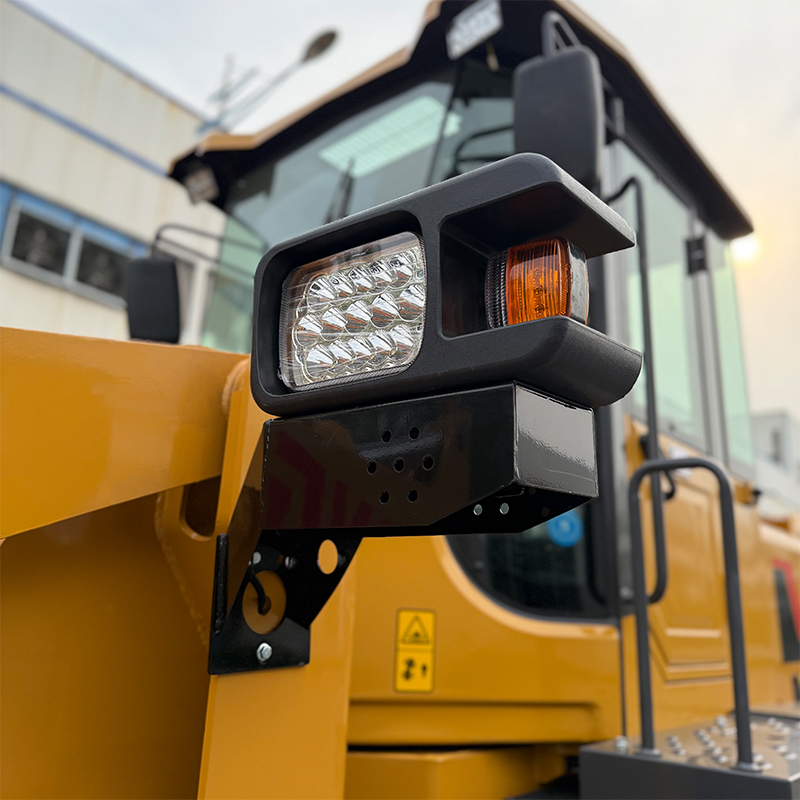

【Headlights】
LED lighting throughout the machine ensures clearer and safer nighttime operation.

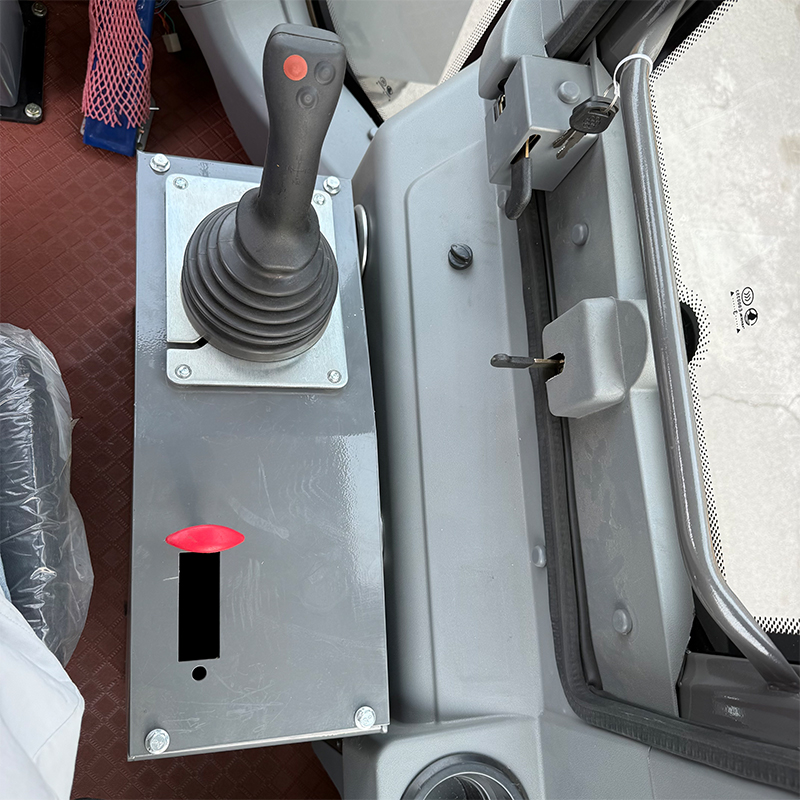

【Joystick】
Hydraulic joysticks ensure easy operation, and the electronically controlled drive system is also available.
Parameter：
Machine Parameters | |
Theoretical Climbing Angle (°) | 15° |
Maximum Travel Speed (km/h) | 38 |
Minimum Travel Speed (km/h) | 8 |
Maximum Dump Height (mm) | 3210 |
No-Load Lifting Time (s) | 65.2 |
No-Load Lowering Time (s) | ≤3.3 |
No-Load Dumping Time (s) | ≤1.1 |
Sum of Three Items (s) | ≤9.5 |
Wheelbase (mm) | 2850 |
Dumping Distance (mm) | 1000 |
Body Length (mm) | 7380 |
Body Width (mm) | 24 80 |
Ride Height (mm) | 3050 |
Minimum Ground Clearance (mm) | 360 |
Wheelbase (mm) | 1800 |
Rated Load Capacity (kg) | 3000 |
Machine Weight (kg) | 10,000 |
Bucket Capacity (m²) | 1.7 |
Dumping Angle (°) | 35 |
Engine Specifications | |
Manufacturer | Deutz |
Rated Power (kW) | 92 |
Rated Speed (rpm) | 2400 |
Number of Cylinders | 6 |
Transmission System Specifications | |
Type | 315+428 |
Speed | Front 4 rear, 2 rear |
Brake type | Air brakes |
Axle | 30mm side axle |
Tire size | 17.5/25mm |
Front tire pressure (MPa) | 0.33 |
Rear tire pressure (MPa) | 0.3 |
Steering system | |
Type | Fully hydraulic steering |
Steering angle (°) | 35 |
System operating pressure (MPa) | 16 |
Refueling capacity | |
Theoretical fuel volume (L) | 142L |
Theoretical hydraulic oil volume (L) | 150L |
Axle diameter (D) | 16 |
Engine oil (LD) | 6.5 |
Transmission oil (L) | 24 |
Brake system (D) | 3 |
Application scenarios：
Site Analysis：
Loaders are earthmoving machines widely used in highway, railway, construction, hydropower, port, and mining projects.

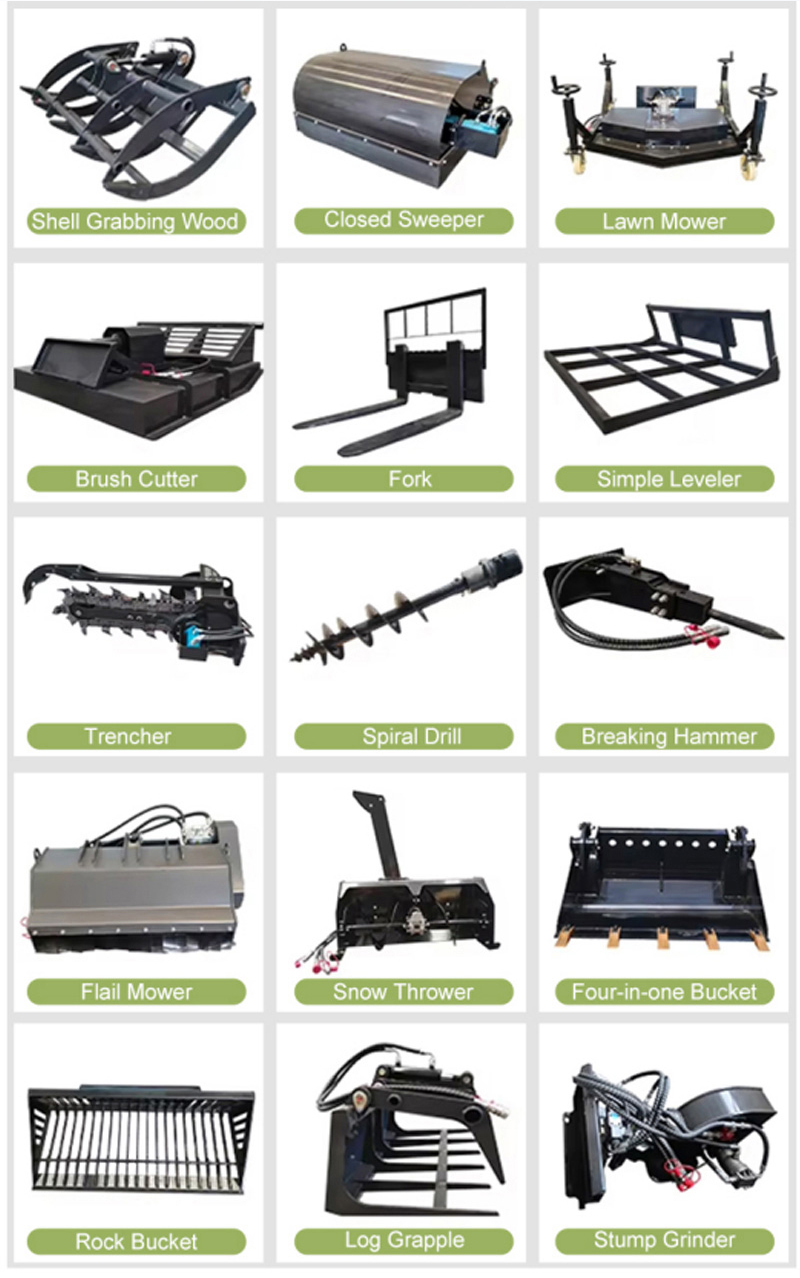

Product Accessories：
Over 50 different attachments are available for different jobs and can also be customized to suit the customer's job requirements.
Our products sell over 20,000 units annually, both domestically and internationally, and are widely praised worldwide. We have over 1,000 professional sales and service personnel, and have established customer service teams in over 60 countries and regions.
