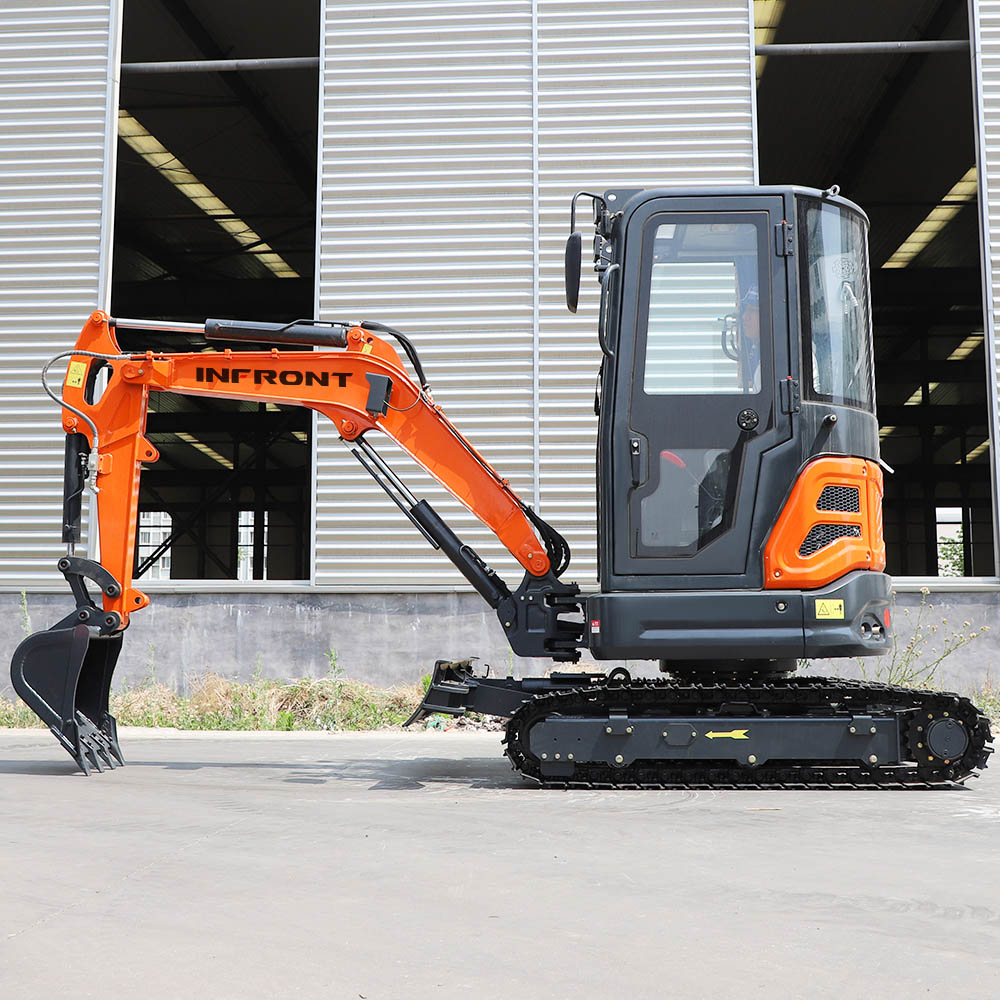

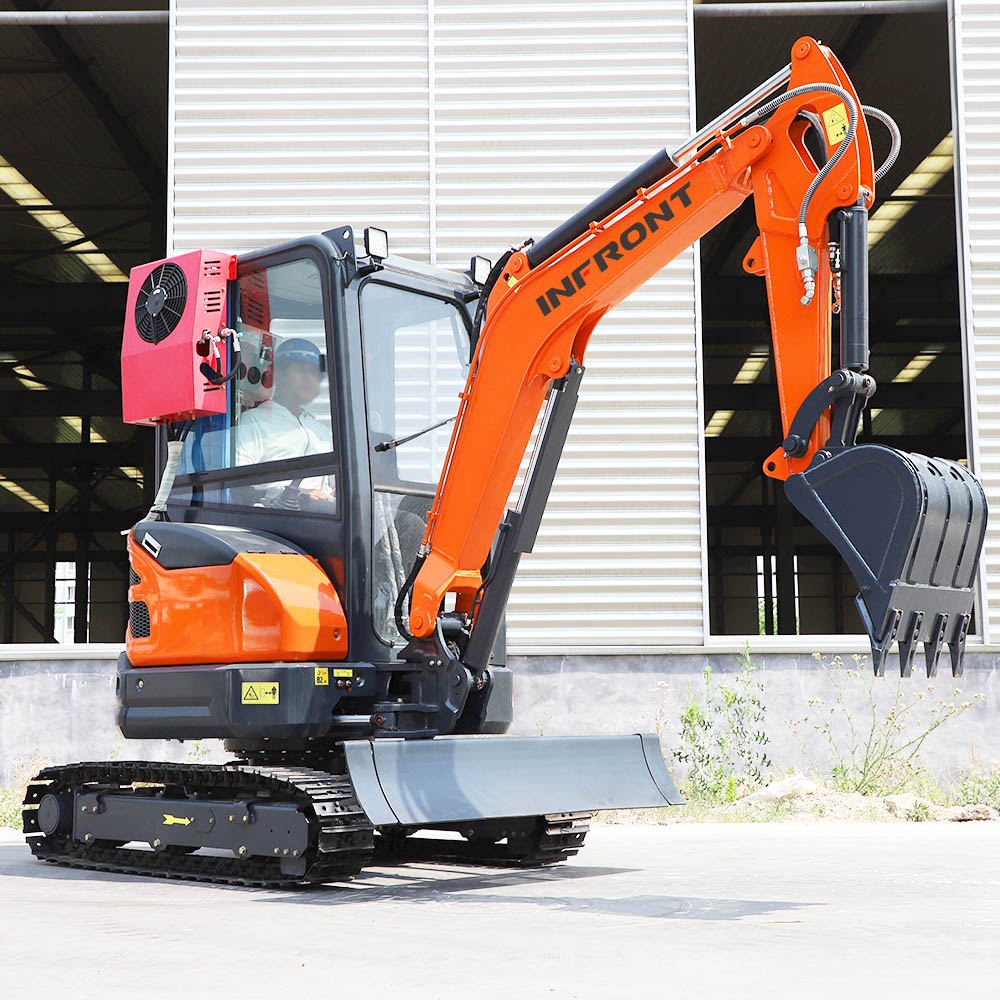

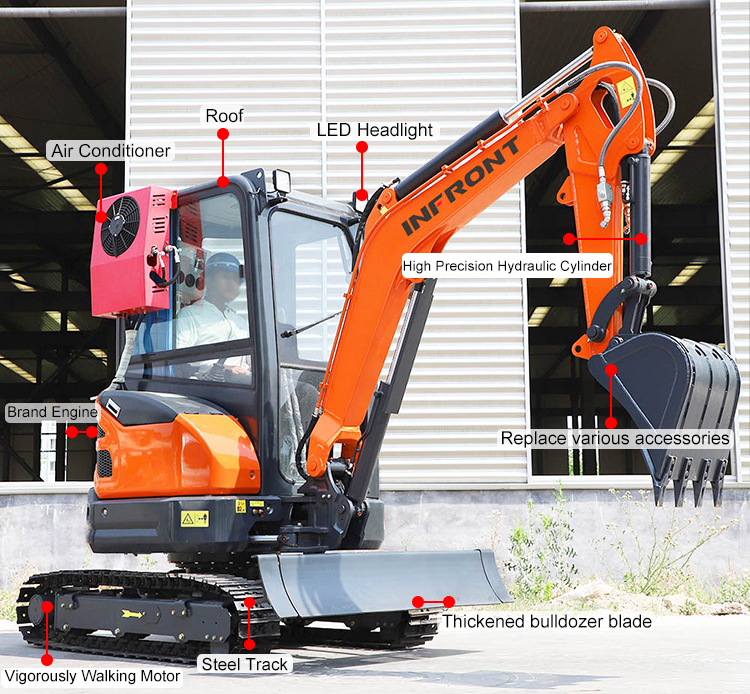

2.5 T Excavator
① Fully hydraulic control ensures smoother machine operation. Pilot operation makes machine operation simpler.
② The machine can be equipped with a driver's cab and cabin: air conditioning, sound system, etc. can be added. Provide you with the most comfortable experience.
③ The oil cylinder is located above the excavator arm to protect it from bumps during operation.

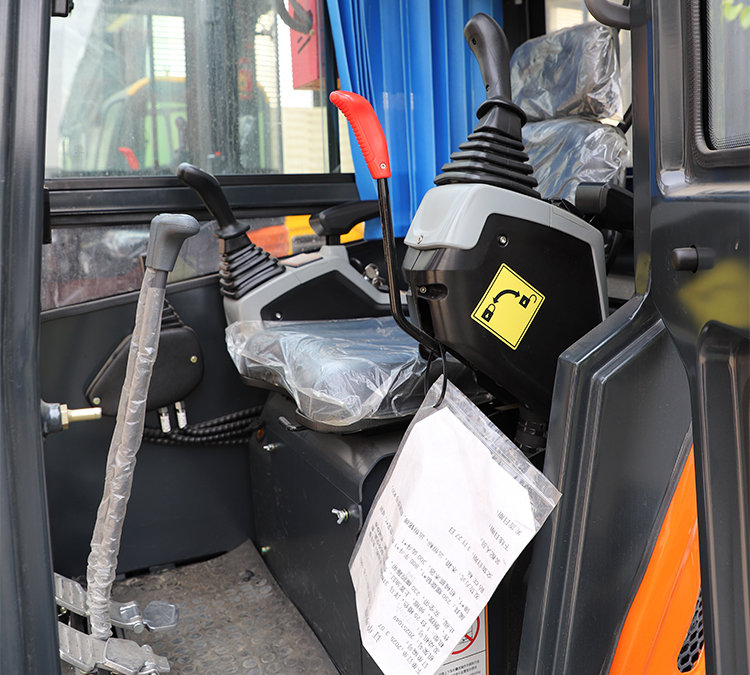

④ The control box can be flipped up, increasing the space for getting on and off the vehicle, and also facilitating maintenance and upkeep.

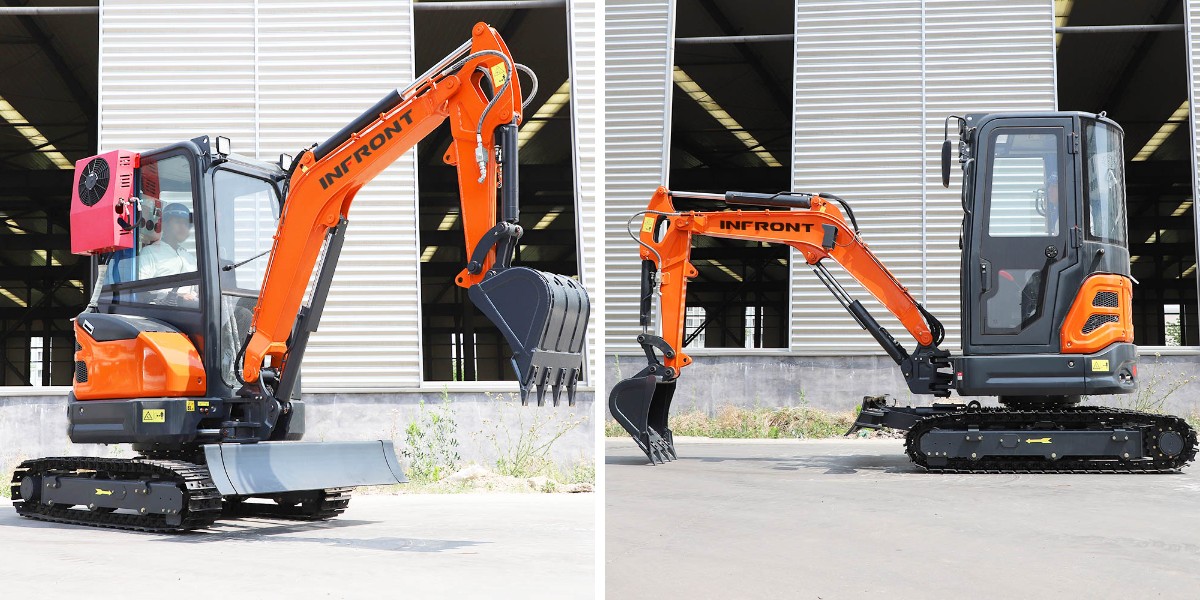

Arm side swing function: The excavator arm can be controlled by hydraulic pressure to swing left and right.
The excavator track is designed with thickened tracks and the chassis can be extended and retracted.
High-quality brake valves to increase the service life of the machine.
Product Details
①Excavator seats are designed with operator comfort, safety and productivity in mind.

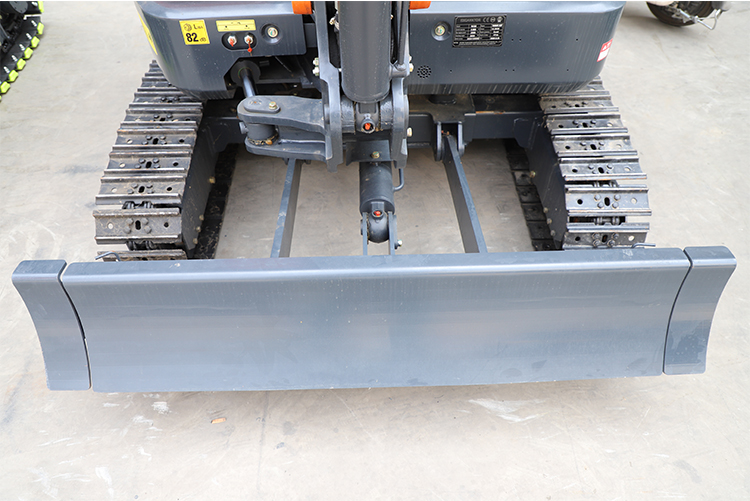

②When backfilling trenches or foundation pits, the bulldozer can efficiently flatten the loose soil and improve backfill efficiency.

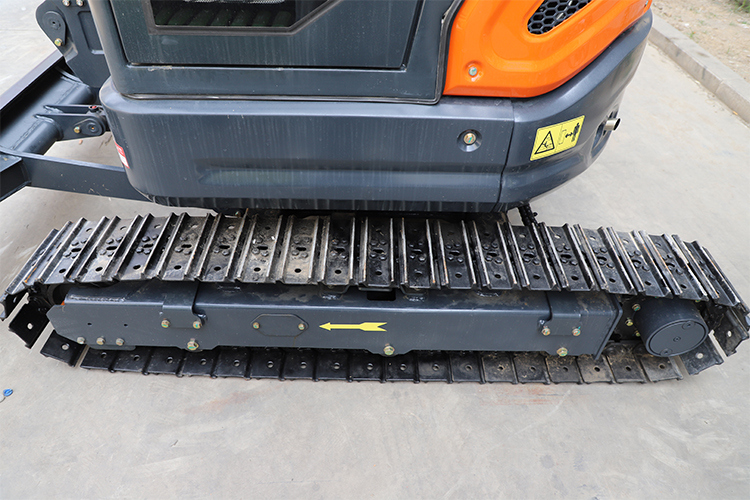

③Rubber track Lightweight, low vibration, strong adhesion, good adaptability, and does not damage the road surface.
Product Parameter
SPECIFICATION | |
Operating weight | 2200kg |
Weight with cabsteel tracks | 2420kg |
Bucket capacity | 0.068m3 |
Working device form | Backhoe |
Fuel tank capacity | 2OL |
Track Material | rubber |
Track Model | 230*48*82 |
Crawler tension device | Butter oil cylinder |
Ground pressure kPa | 26.5kPa |
ENGINE | |
Model | Yanmar 3TNV80F |
Displacement | 1.267L |
Engine power/rpm | 14.6/ 2400(16.1/2300)kw/r (PS/rpm) |
Max. torque | 67.4±1800100N.m/r/min |
Engine oil capacity | 3.4L |
SPEED/DIGGINGFORCE | |
Maximum walking speed | 2-3.8km/h |
Swing speed | 9.5rpm |
Max. Grade ability | 30° |
Bucket digging force | 20kN |
Bucket arm digging force | 13.5kN |
Maximum tractive force | 23kN |
HYDRAULICSYSTEM | |
Pumptype | Piston pump |
Pressure Mpa | 24.5MPaMPa |
Displacement | 67.2L/min |
Rotary hydraulic motor | Piston motor |
Walking hydraulic motor | Piston motor |
HYDRAULIC SYSTEM | |
Hydraulic manifold valve | Load Sensing Valves |
Hydraulic oil tank capacity | 18L |
MAIN DIMENSION | |
Wheel base | 1500mm |
Track length | 1940mm |
Upper chassis ground clearance | 220mm |
Counter weight turning radius | 670mm |
Chassis width | 1300/1500mm |
Track width | 230mm |
Track height | 50mm |
Transportation length | 4100mm |
Total height | 2440mm |
OPERATING RANGE | |
Max.digging radius on ground | 4520mm |
Max. digging radius | 4400mm |
Max. digging depth | 2410mm |
Max. digging height | 4190mm |
Max. dumping height | 2880mm |
Maximum vertical digging depth | 1930mm |
Minimum turning radius | 2130mm |
Maximum Lift Of Dozer blade | 260mm |
Maximum depth Of Dozer blade | 300mm |
boom right offset angle | 50°mm |
boom left offset angle | 65°mm |
Application scenarios
Suitable for a variety of occasions Excellent performance and easy start-up.
Site Analysis
High efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

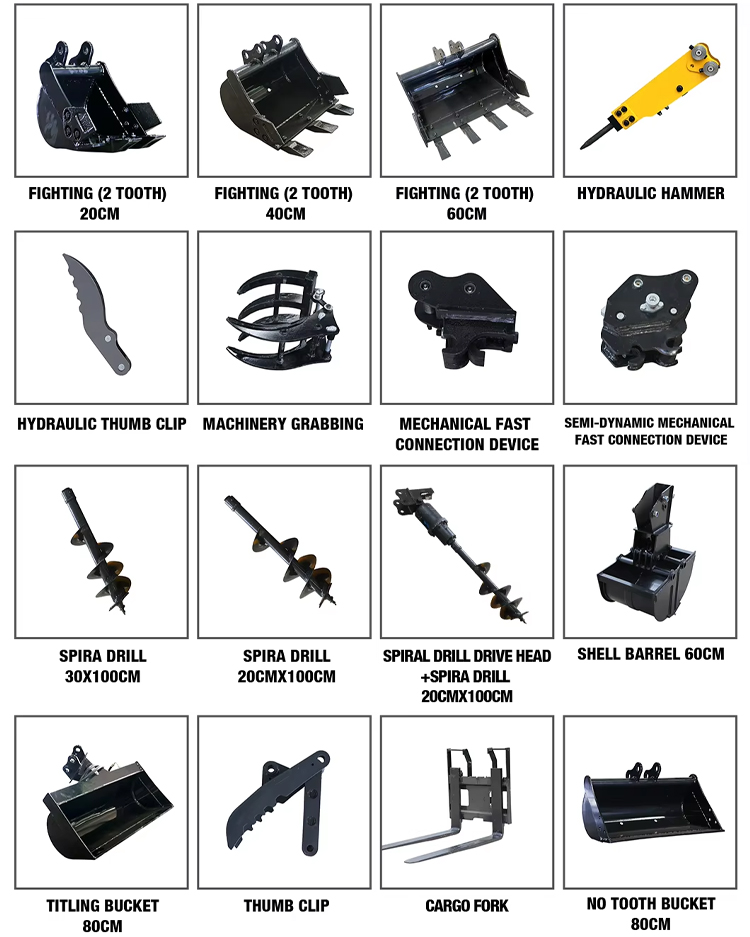

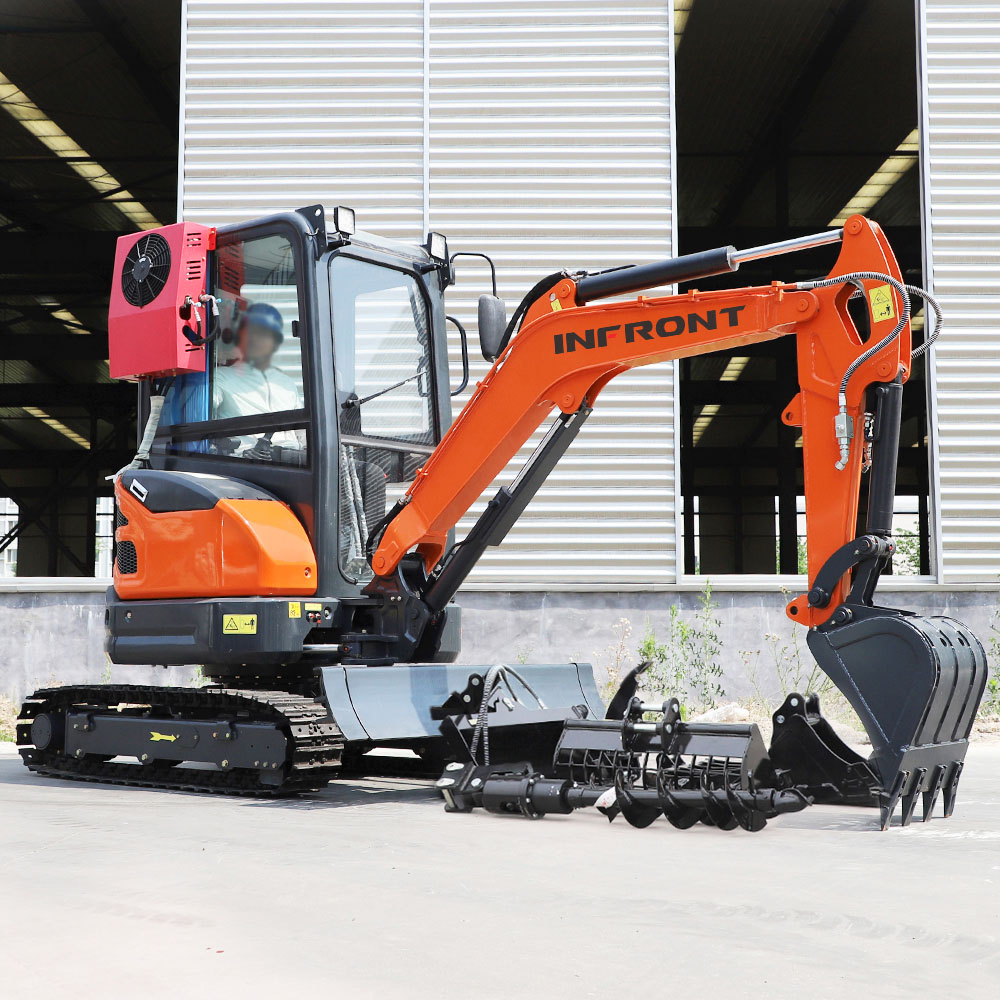

Product Accessories
(Versatility, one machine for multiple uses: Compact loaders are extremely versatile and can be equipped with a variety of attachments, such as buckets, forklifts, grapples, augers and brooms. This versatility enables them to handle a variety of tasks, from loading and transporting materials to landscaping and snow removal.)
