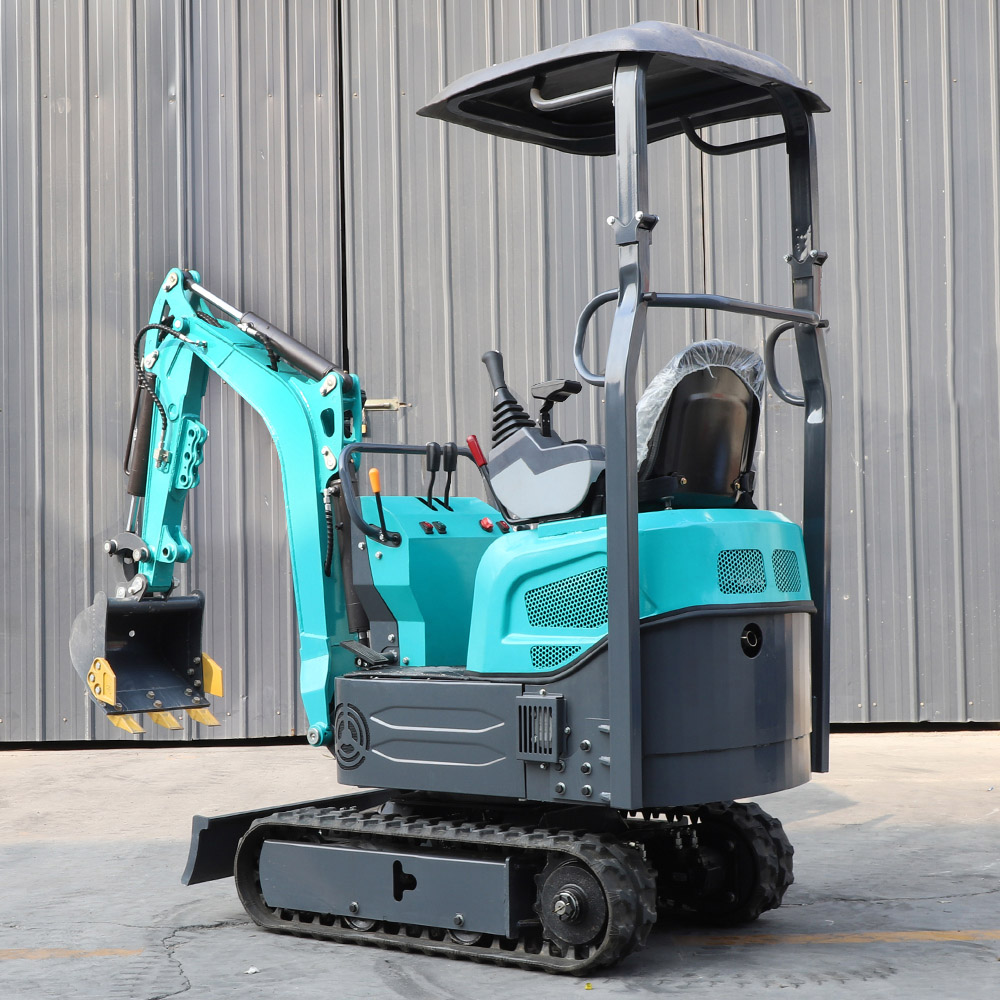

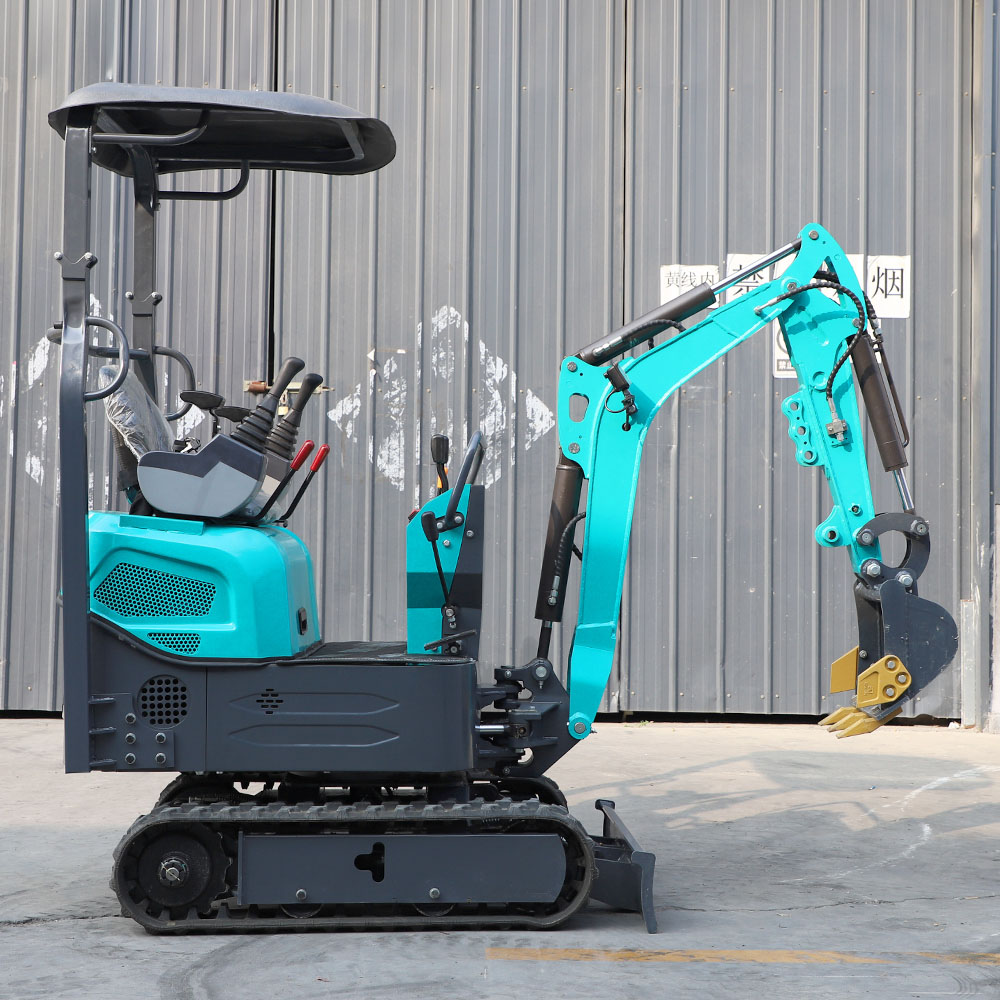

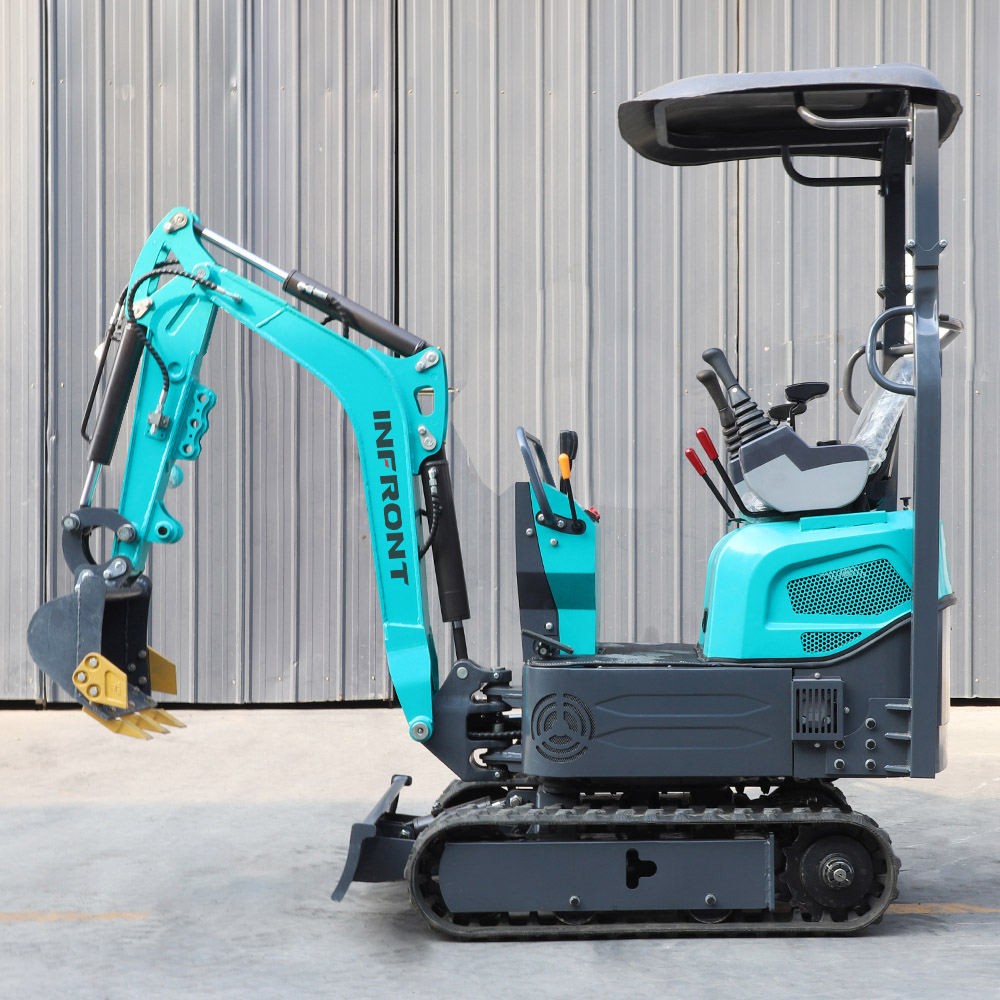

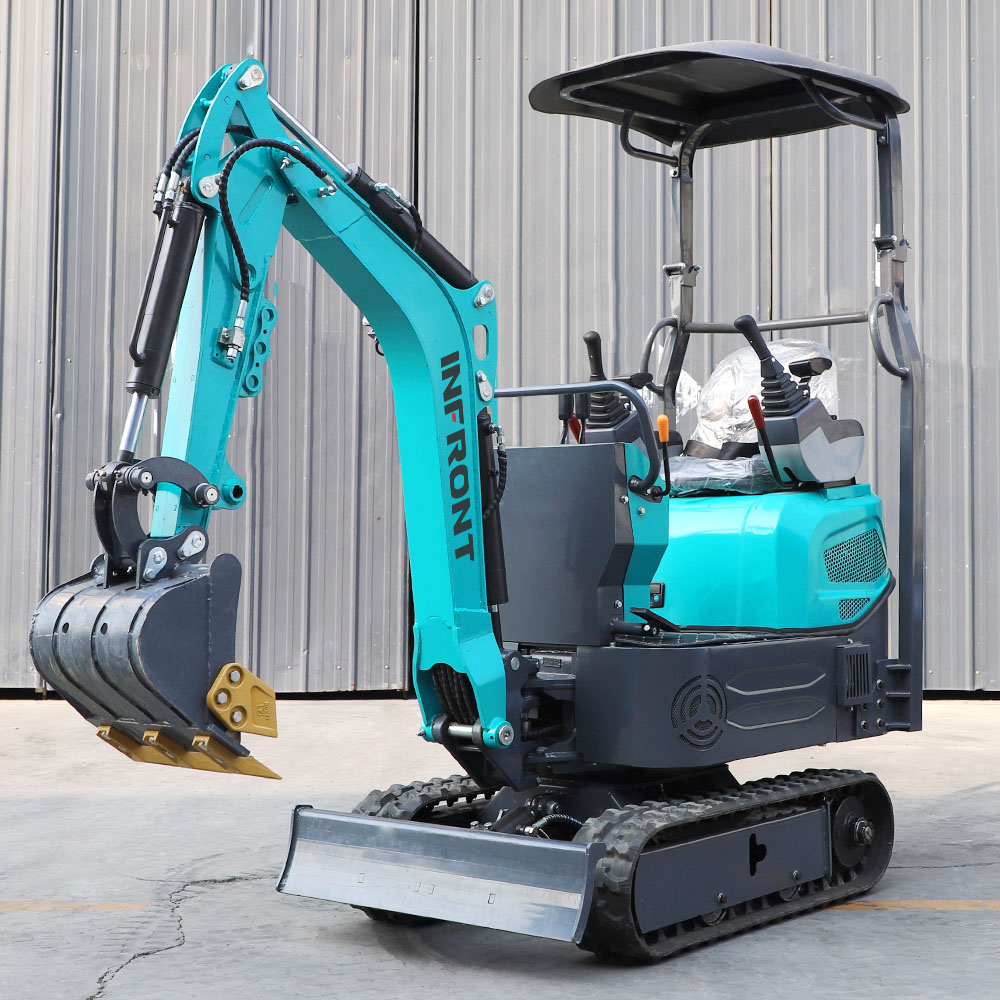

1.2 Ton excavator
It integrates efficient digging
• Adopting advanced design concepts and manufacturing processes,
• Flexible steering and stable travelling.
Innovation in human-machine interaction
• Handle design that complies with ISO 10218 ergonomics standards
• Operation force reduced by 40% (only 3-5N trigger force required)
The 1.2-ton excavator has become the first choice for small-scale projects due to its flexible shape, low cost and versatility. It is especially suitable for the "capillary" construction needs in urbanization construction and is a cost-effective choice for engineering contractors, farmers or municipal departments.

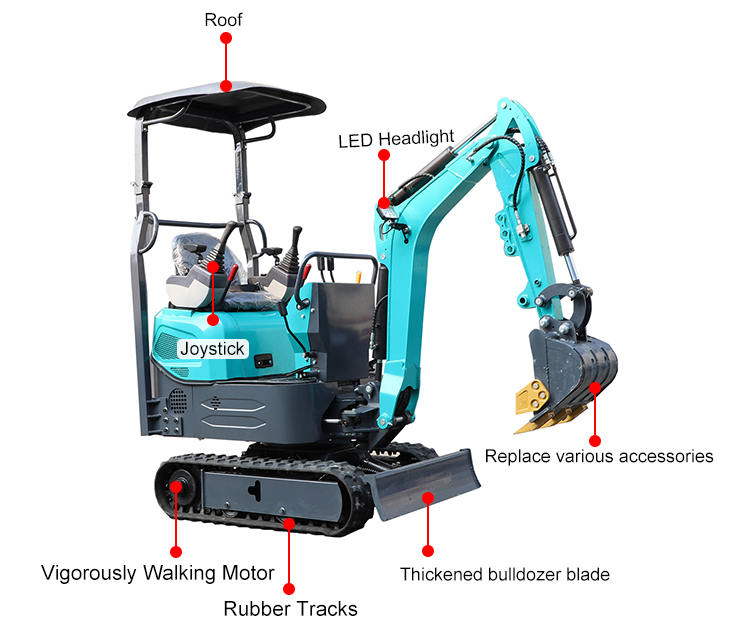

Product Details：

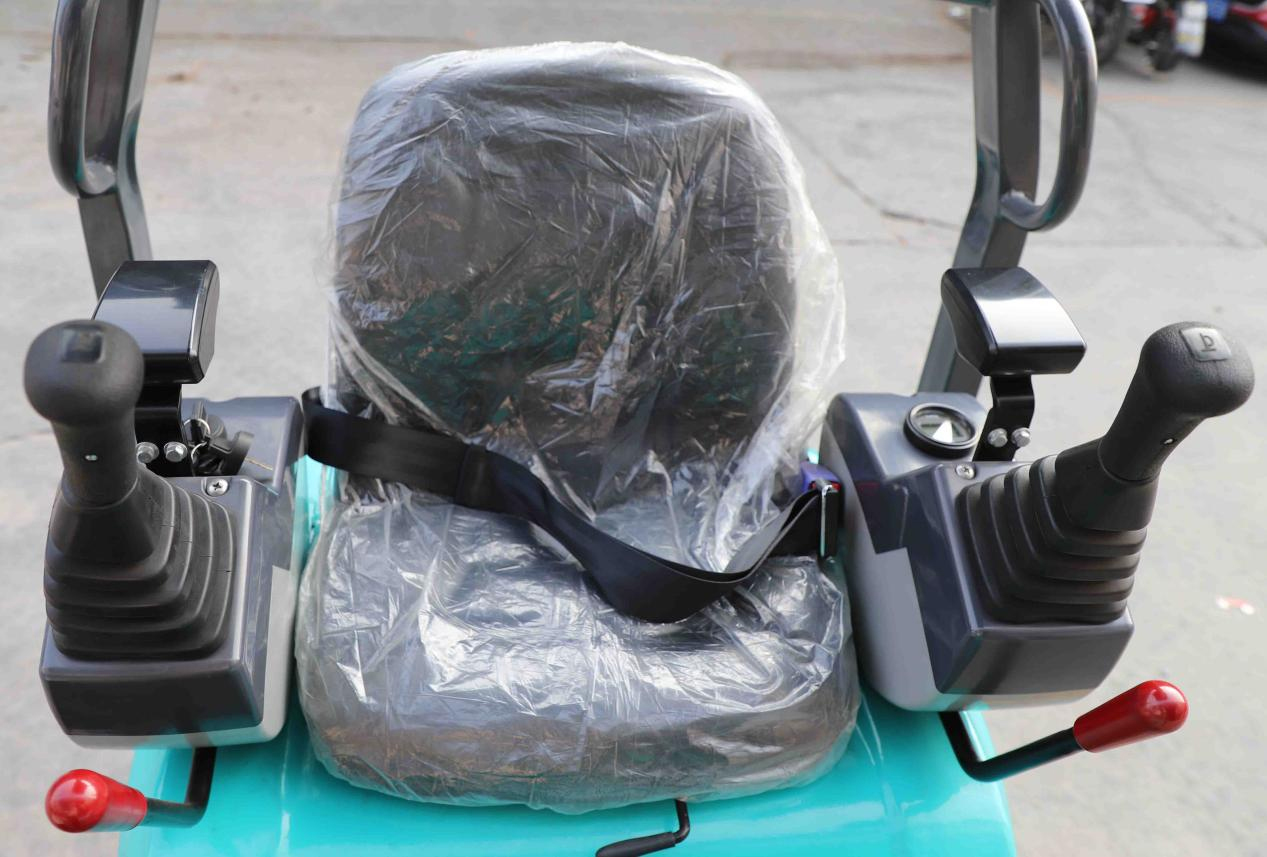

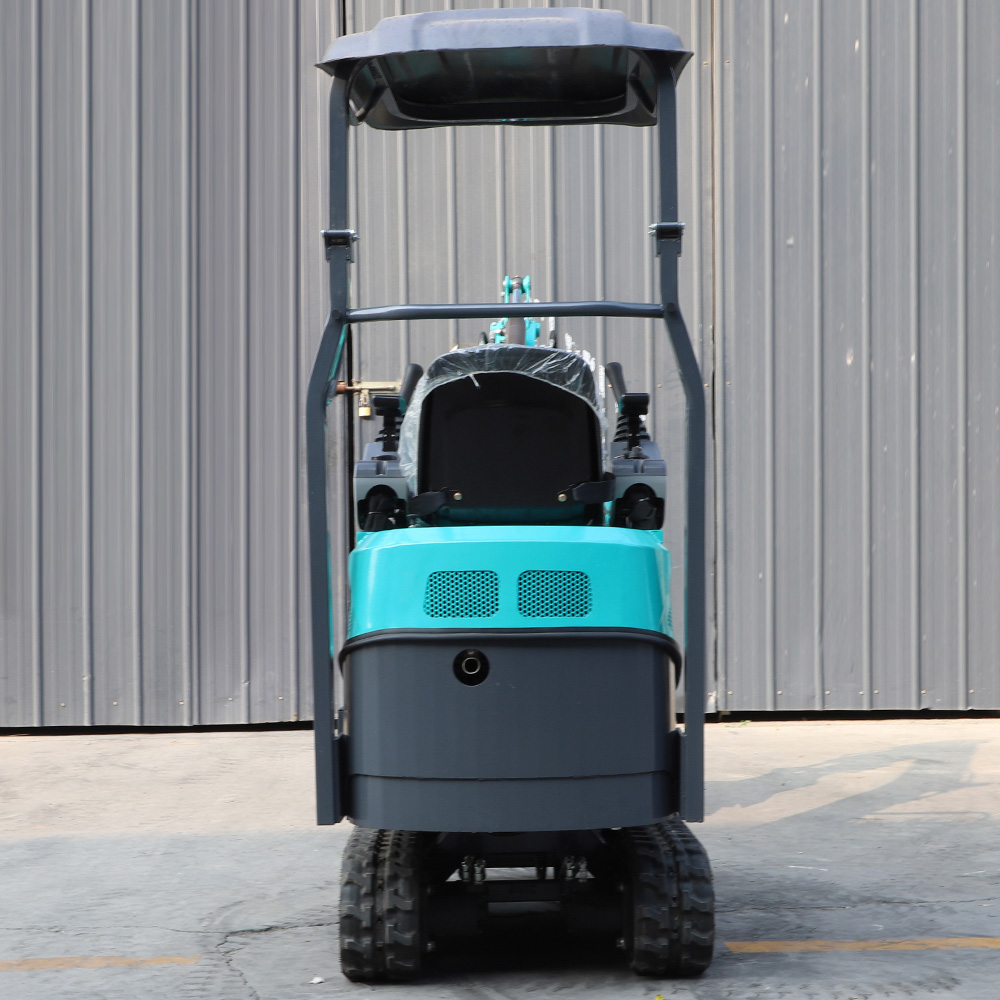

High end seats Spacious and comfortable:
Human-like design chair, equipped with slides and armrests.

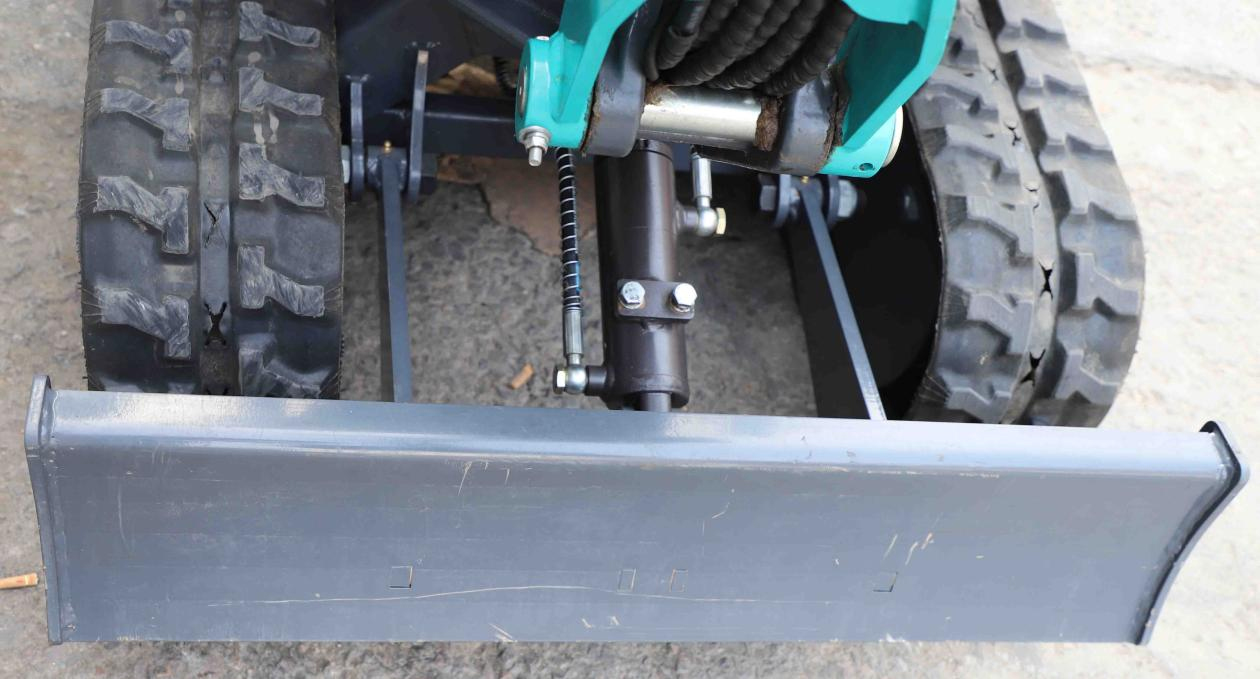

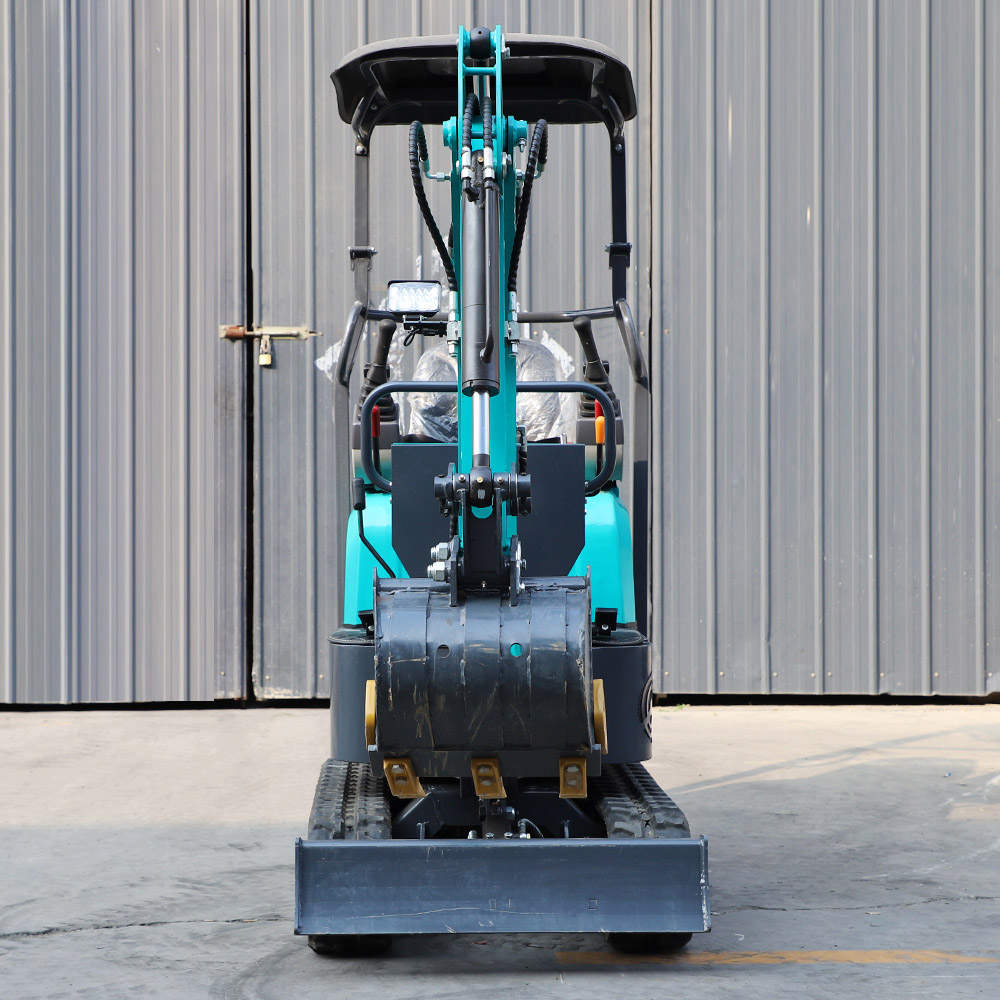

Bulldozer shovel Thick, high quality, and long service life:
Suitable for leveling the site, stacking materials, and backfilling operations. Stabilizing the body during
climbing/uphill/ lifting/spinning Is safer.

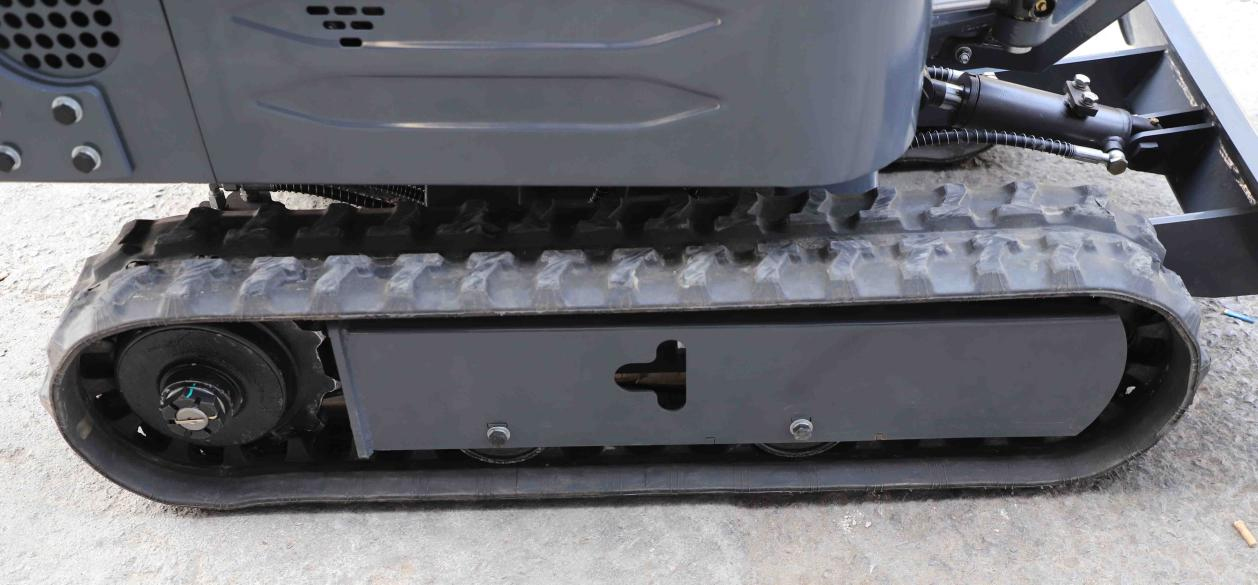

Non-slip rubber track:
Deepen anti-slip lines, suitable for a variety of complex terrain
Parameter：
LTEM |
Operating Weight:1200KG |
Engine:Koop/Briggs & Stratton EPA EPA |
Hydraulic pump type:Dual hydraulic pump |
Rated power:7KW |
Working pressure:16Mpa |
Travel speed:2.2KM/h |
Slewing speed:13r/min |
Bucket capacity:0.025m² |
Fuel tank capacity:5L/10L |
Gradability:30 degrees |
Ground pressure:20kpa |
Arm digging force:4.6KN |
Bucket digging force:7.2KN |
MAIN DIMENSIONS |
Total length:2876mm |
Total width:850mm |
Total height (seat):1535mm |
Total height (carport):2200mm |
Counterweight ground clearance:385mm |
Minimum ground clearance:132mm |
Tail turning radius:800mm |
Track ground length:900mm |
Track length:1233mm |
Track gauge:670mm |
Track width:840mm |
Track shoe width:180mm |
MAIN DIMENSIONS |
Maximum digging height:2550mm |
Maximum dumping height:1687mm |
Maximum vertical arm digging depth:1626mm |
Maximum digging distance:3077mm |
Maximum digging distance at ground level:2992mm |

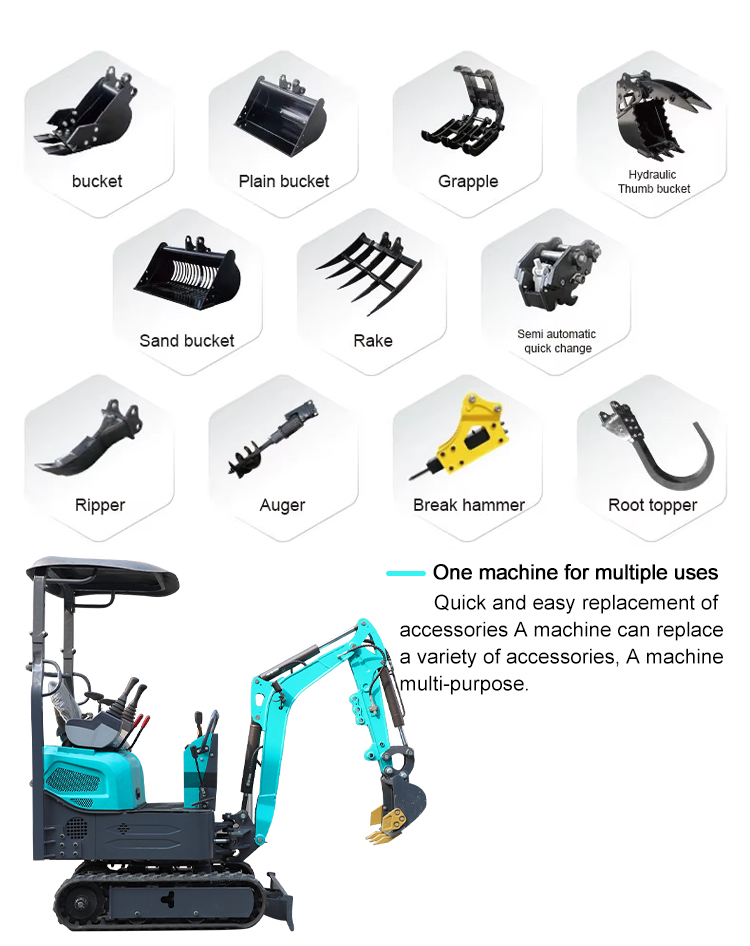

Product Accessories：
(Versatility, one machine for multiple uses: Compact loaders are extremely versatile and can be equipped with a variety of attachments, such as buckets, forklifts, grapples, augers and brooms. This versatility enables them to handle a variety of tasks, from loading and transporting materials to landscaping and snow removal.)
Application scenarios：
Suitable for a variety of occasions, excellent performance and easy start-up.
Comprehensive Parts Supply:
Whatever excavator parts you require, we've got you covered. From engines to tracks, from hydraulic systems to drill heads, our extensive range of accessories ensures your excavator remains in optimal condition.
Annual sales at home and abroad exceed 20,000 units, exported to all over the world, and widely praised! More than 1,000 professional sales and service personnel, more than 60 countries and regions, customer sales teams have been established
