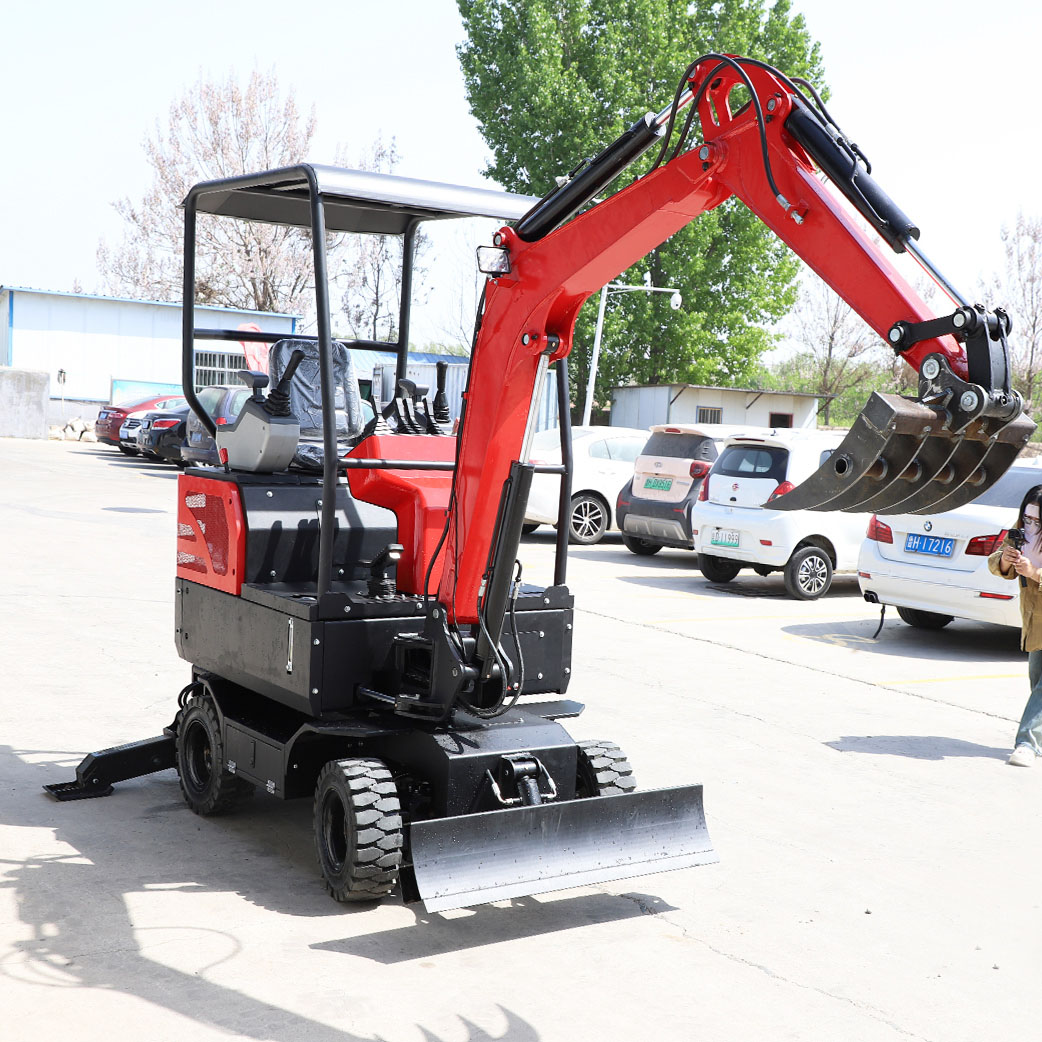

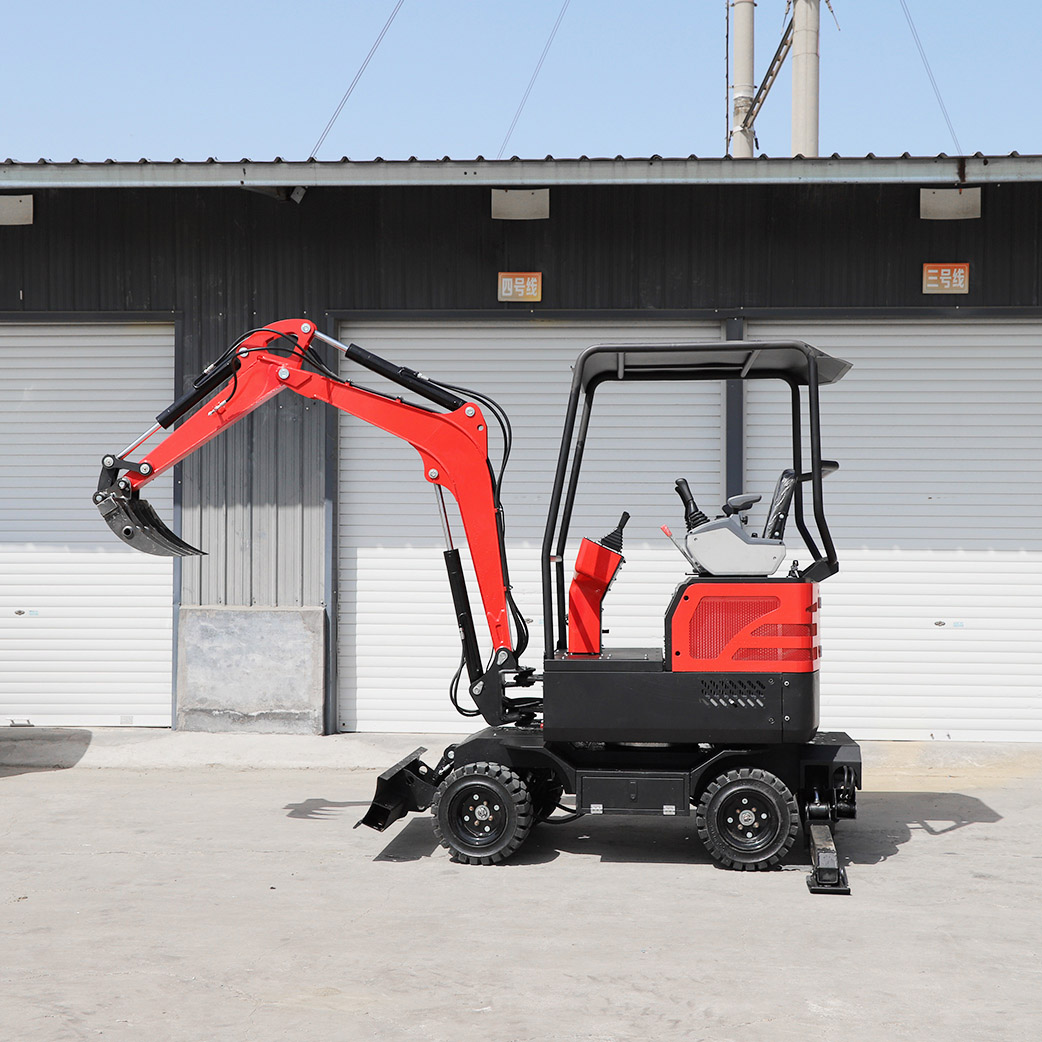

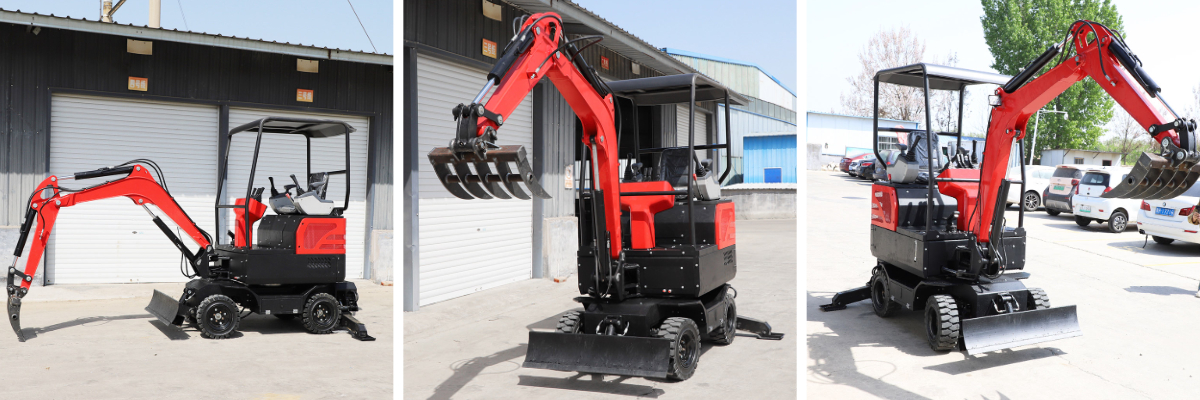

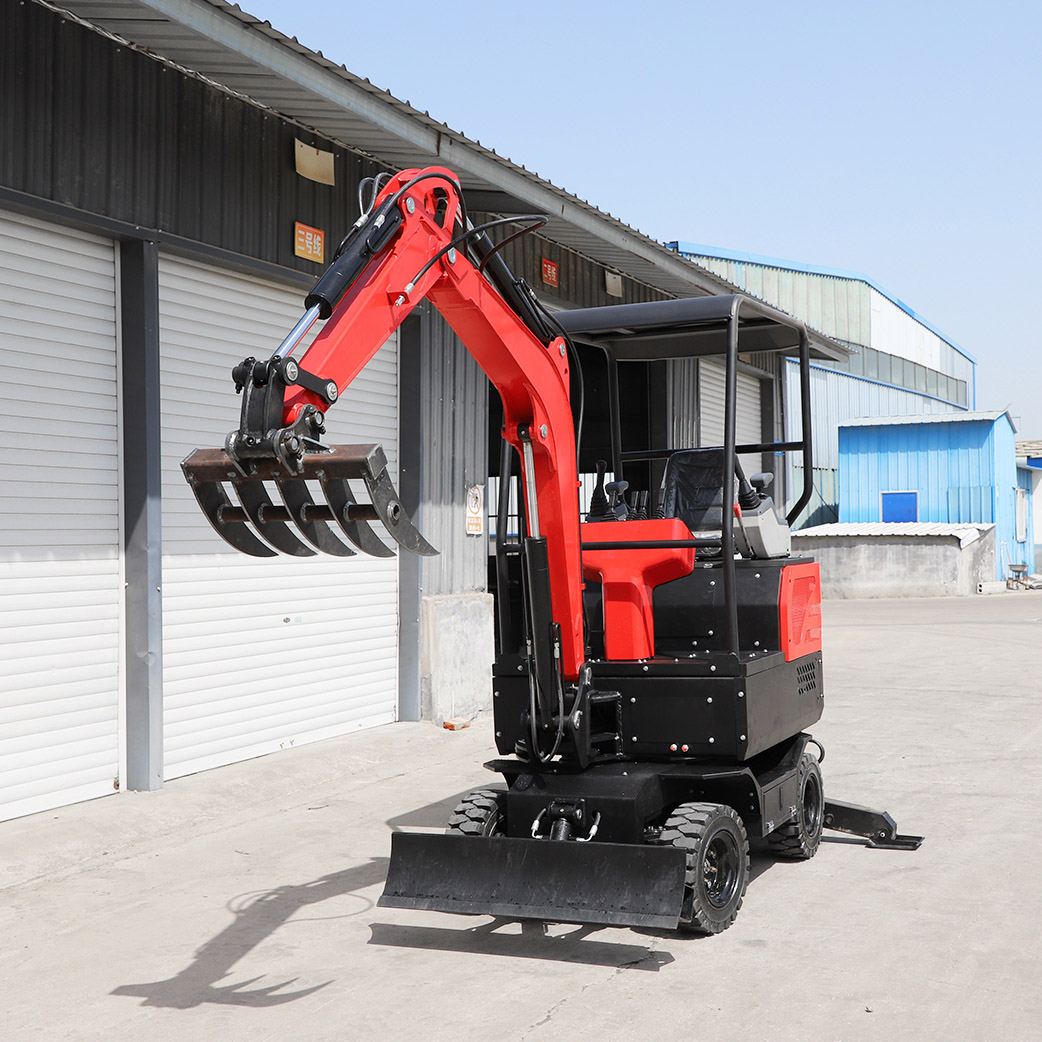

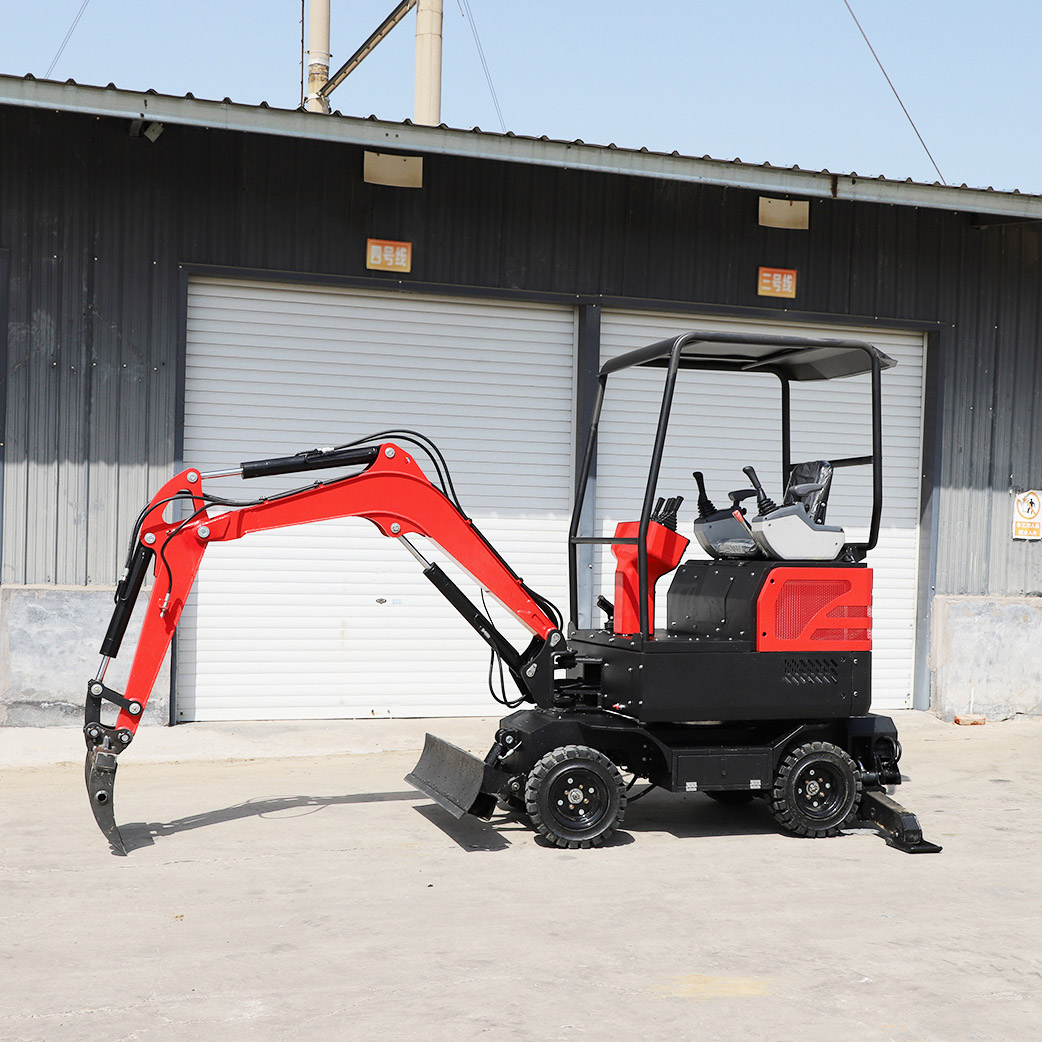

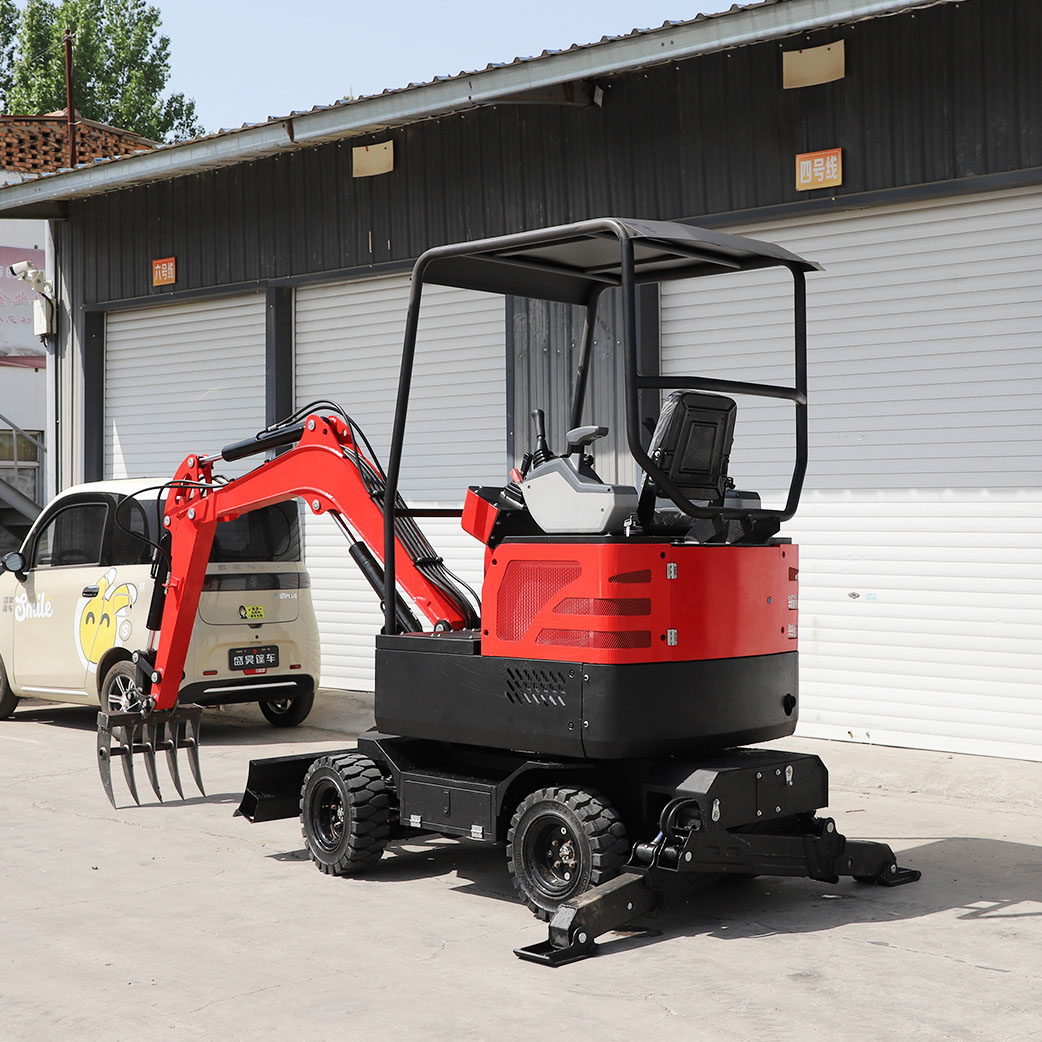

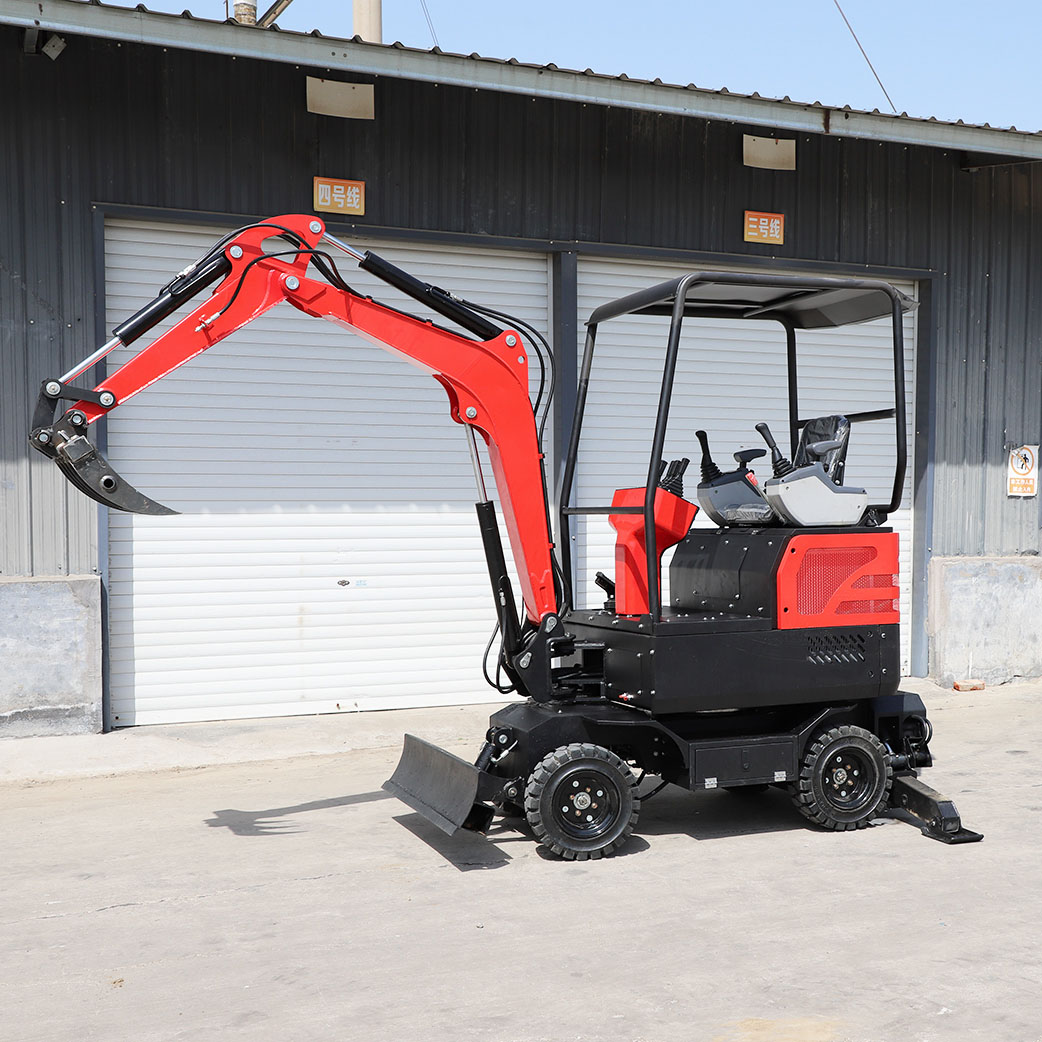

2 Ton Mini Excavator
1. The driving position is spacious and easy to operate.
2. Integrated walking motor to reduce collisions.
3. Swing the suspension rod for easy work near the edge.
4. Professional cylinder with good sealing and stable connection.
5. Arm triangle reinforcement plate enhances structural strength.
6. Cast steel integrated counterweight to prevent collision and ensure stable operation.
Small excavators have a compact gantry that allows for easy passage through narrow passages and doors, a small turning radius, adjustable bulldozers, easy disassembly of simple sheds, 360 degree rotation, high fusion, high performance, small size, light weight, good transportation performance, low fuel consumption, stable performance, safety and reliability, flexible and convenient operation, and a wide range of applications.

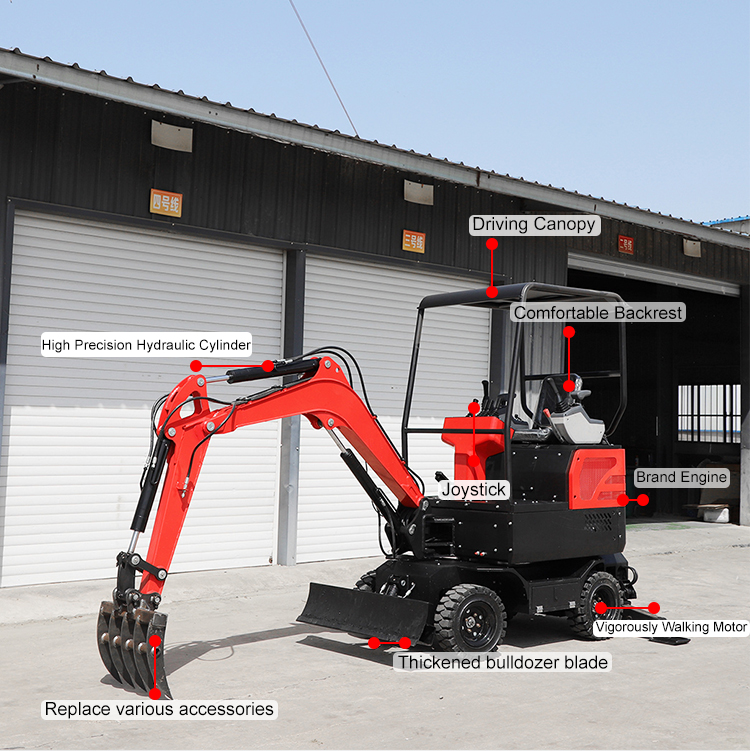

Product Details

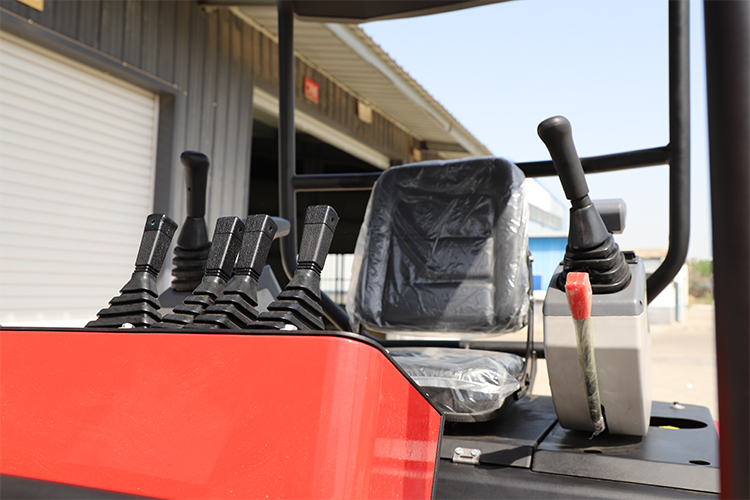

【Comfortable tables and chairs】
Spacious driving space,ergonomic seats,suitable for long-term work.

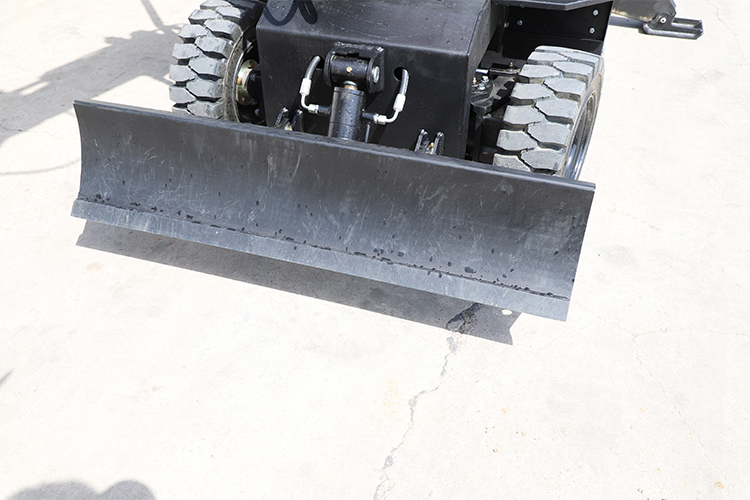

【Bulldozer Shovel Thick】
high quality, and long service life.Suitable for leveling the site, stacking materials, and backfilling operations.

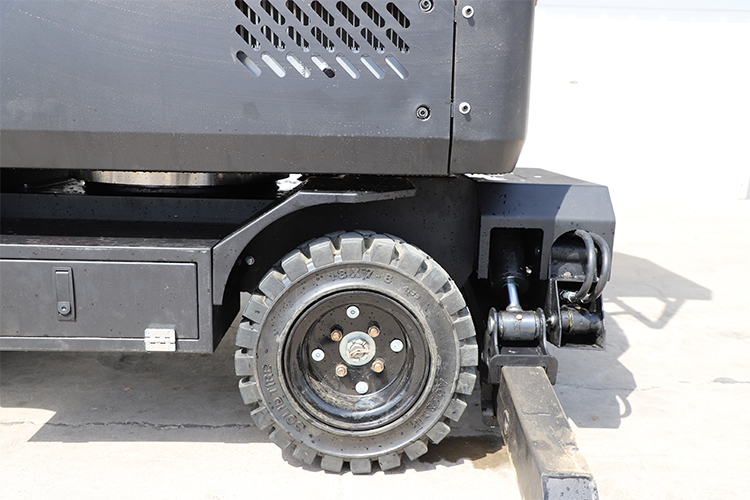

【Solid Tires】
Strong bearing capacity, suitable for all terrains
Product Parameter
Equipment Parameters | |
Rated Working load | 200KG |
Rising Force (boom) | 18.5KN |
Rising Force (bucket) | 11KN |
Maximum Travel Speed | 8km/h |
Bucket capacity | 0.04m² |
Weight | |
Machine Weight | 1750KG |
Transport Weight | 1800KG |
Hydraulic System | |
Hydraulic Oil Tank | 25L |
Maximum Pump Displacement | 29L/min |
Engine Parameters | |
Manufacturer | Changchai 390 |
Fuel | Diesel |
Cooling Method | Water-cooled |
Power | 28.5KW |
Torque | 117Nm |
Number Of Cylinders | 3 |
Speed At Maximum Torque | 1820 |
Fuel Tank | 15L |
Operation Mode | |
Equipment Steering | Travel forward and backward control |
Rear Outriggers | Rocker switch switching, travel push rod control |
Front Assist Device | Foot valve forward and backward control |
Overall Dimensions | |
Length*Width*Height | 3570*1100*2470 |

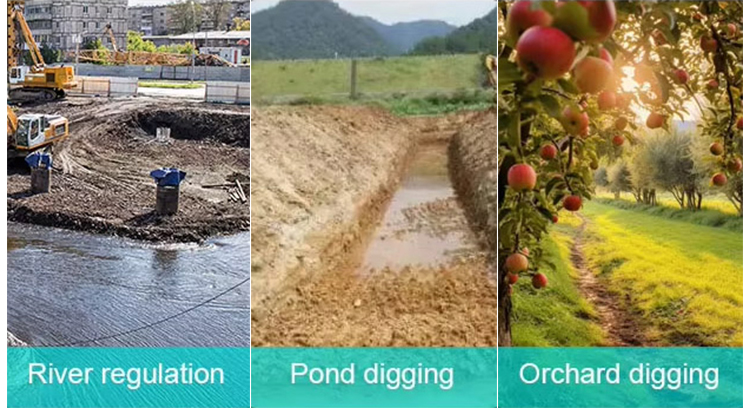

Application scenarios
Excellent performance and easy start-up.
Site Analysis
This product supports customization, and the engine, accessories, color and other configurations can be customized to meet your needs.

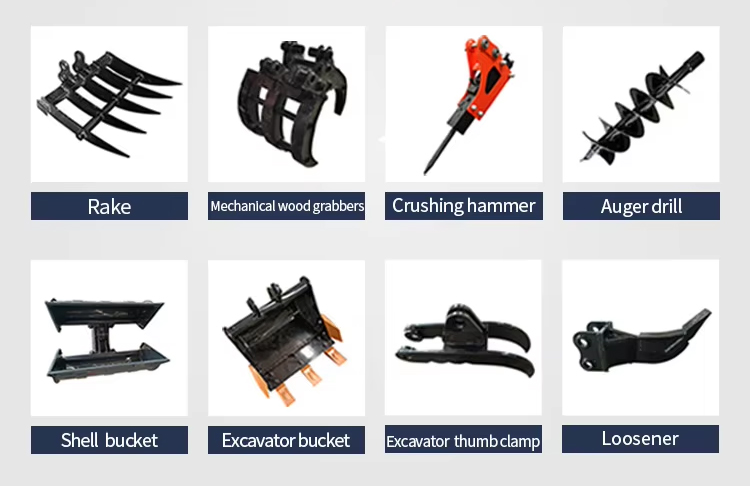

Product Accessories
Multifunctional, with quick swapping of accessories.
With over 20 years of experience in OEM/ODM of earthmoving machinery, we are committed to becoming a leading brand both domestically and internationally.
