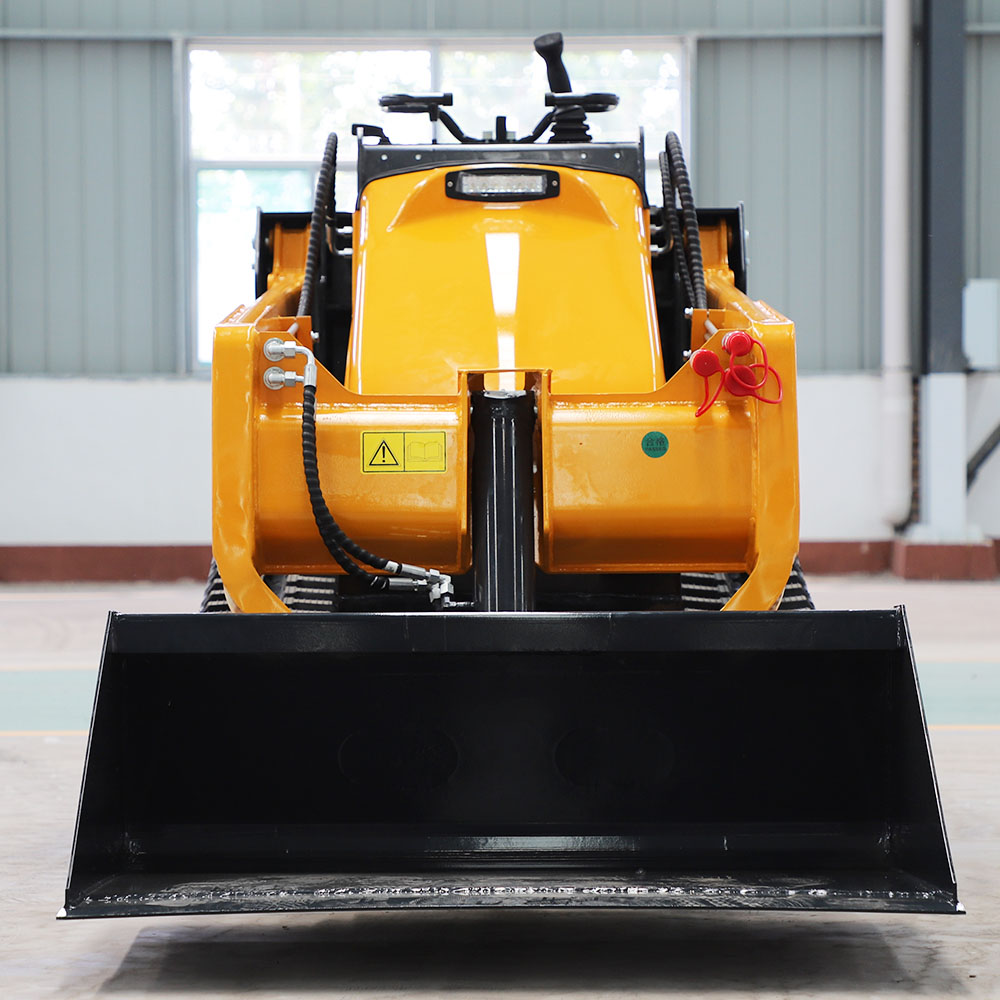

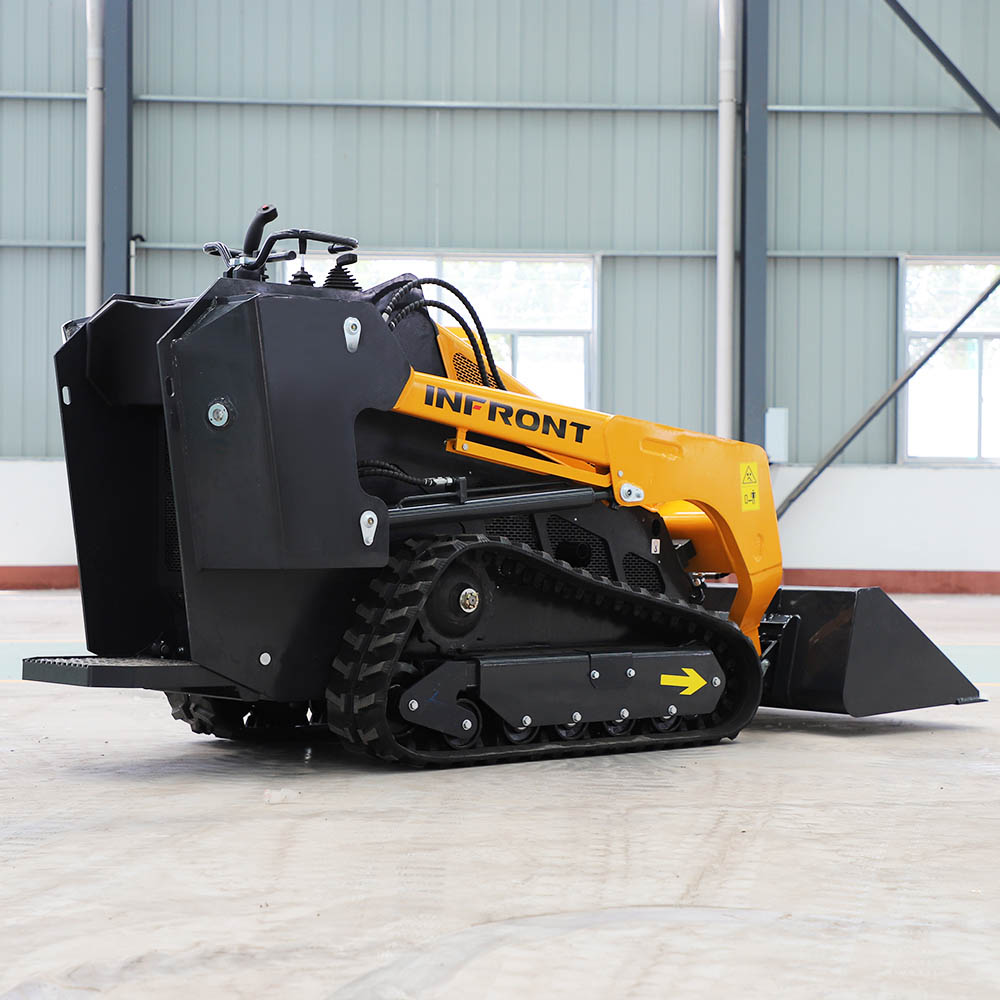

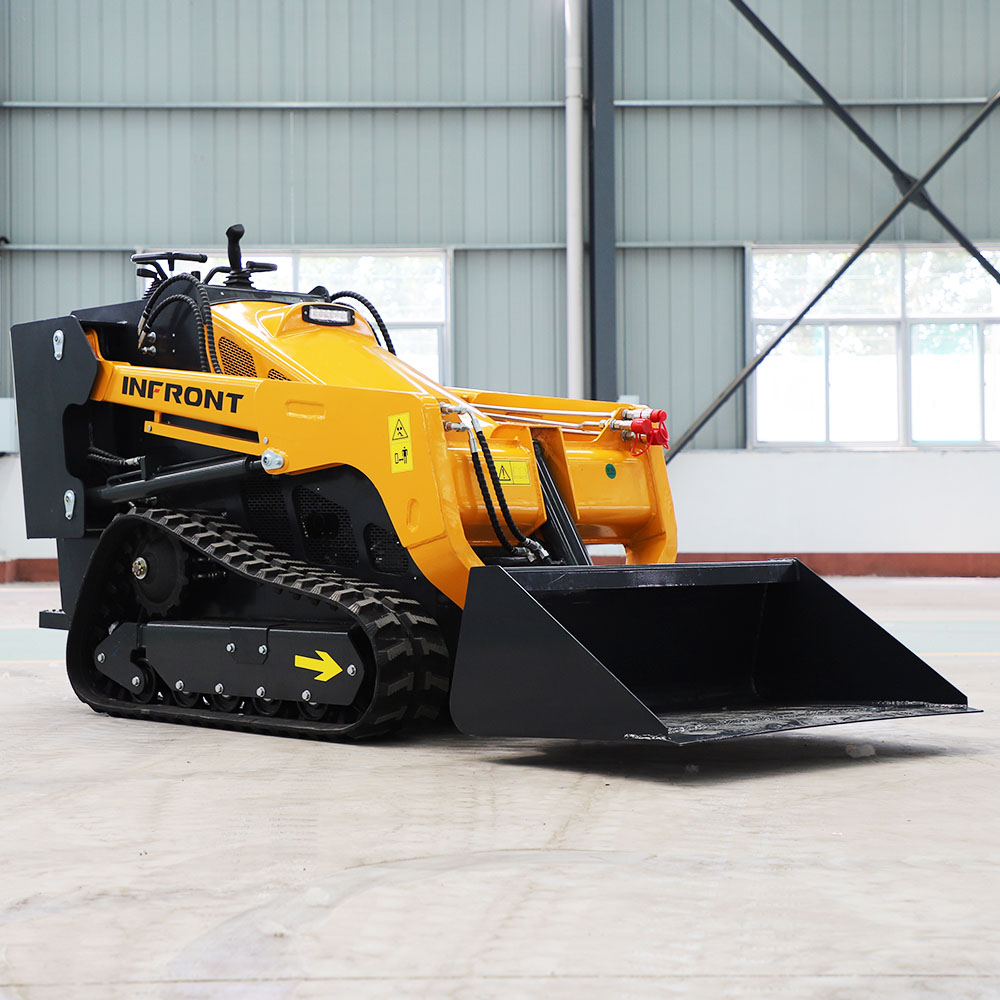

Loader with compact dimensions can easily drive through narrow passages and doors.
Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
○Details：

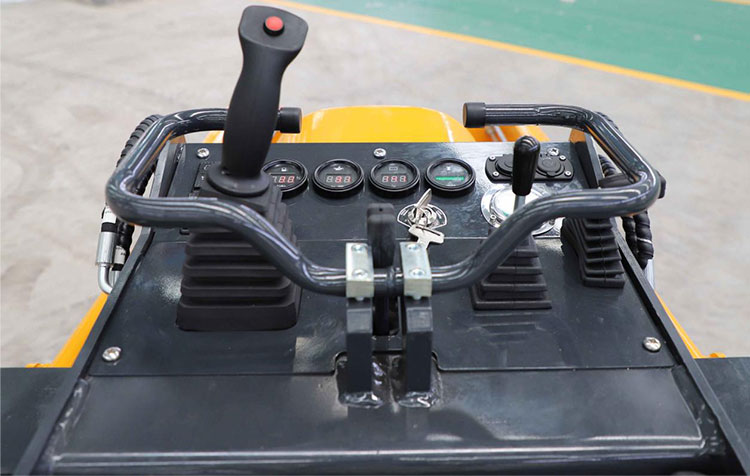

①【Console】
Crawler skid steer loaders require frequent tool changes (e.g., switching from bucket to breaker or grab), and equipment status monitoring during operation. The highly integrated control panel eliminates the need for drivers to frequently switch operating positions or tools.

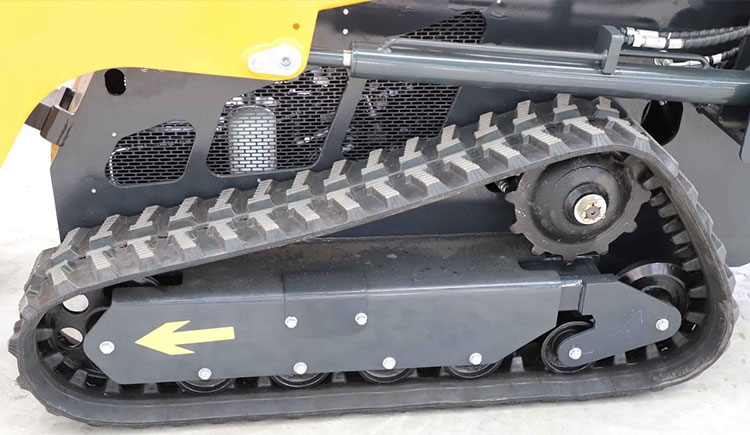

②【Triangular crawler】
The triangular crawler's "continuous ground support" feature (no tire-type single-point support gap) ensures more uniform friction between the crawler and the ground when operating on gentle slopes of 30°-35°, making it less likely for the machine to tilt due to "unilateral tire slip." When faced with 15-20cm high shoulders and gravel piles, the triangular crawler can easily cross them through the "progressive climbing" of the track shoes, making it more stable than traditional tires (which are prone to getting stuck due to excessive force on a single tread).

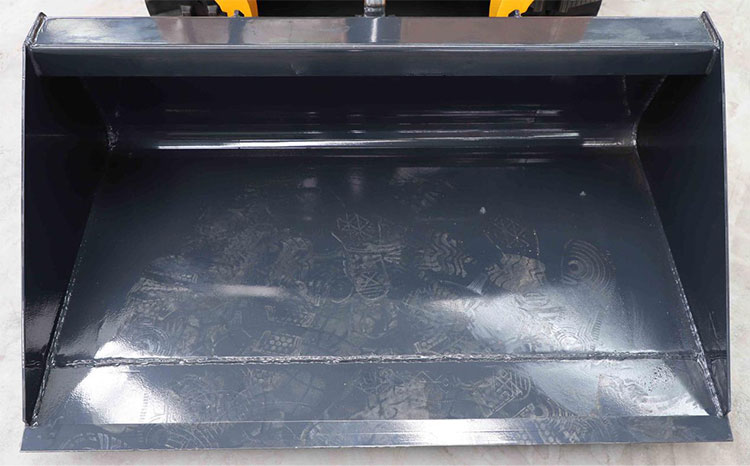

③【Bucket】
The bucket connects to the skid steer loader via a "quick connector" (mechanical/hydraulic) without the need for bolt removal. A single operator can switch between the bucket and other attachments (such as a breaker or forks) in just 1-2 minutes. For example, on a construction site, the bucket can be used for earthwork in the morning and the breaker can be used for concrete crushing in the afternoon. This significantly improves tool switching efficiency without the need for specialized maintenance personnel.
○Parameter | |
Machine length (A) | 2621mm |
Machine length (excluding bucket and pedals) (B) | 2010mm |
Track length (C) | 1300.5mm |
Wheel width (D) | 871mm |
Bucket maximum ground clearance (E) | 94mm |
Bucket tilt angle to the ground (F) | 24° |
Bucket maximum tilt distance to the ground (G) | 1726mm |
Maximum pin height (H):2219mm | 2219mm |
Maximum working height (1) | 2927mm |
Maximum working angle (1) | 94° |
Maximum pin limit distance (K) | 66mm |
Bucket maximum tilt angle (L) | 35 |
Bucket maximum tilt distance (M) | 595mm |
Operating platform total height (N) | 1438mm |
Forward tilt maximum angle (O) | 23° |
Frame maximum passing height (P) | 168mm |
Bucket width (O) | 1060mm |
Forward turning radius (R) | 1455mm |
Frame total width including tracks (S) | 990mm |
Frame total width excluding tracks (T) | 912mm |
Operating space distance (U) | 490mm |
Engine rated power | 18.2kw,25HP |
Engine Speed | 3600rpm |
Noise | <95Db |
Hydraulic system | |
Pressure | 17Mpa |
Working time raised | 4s |
Dumping site | 1.3 |
Workload | 480Kg |
Bucket capacity | 0.13m3 |
Maximum lifting force | 450 Kg |
Travel speed | 0-7.9Km/h |
Machine weight | 1600kg |
○Application scenarios：
Construction
Municipal engineering
Agricultural operations
Mining/construction sites
Landscaping and gardening
Food handling
