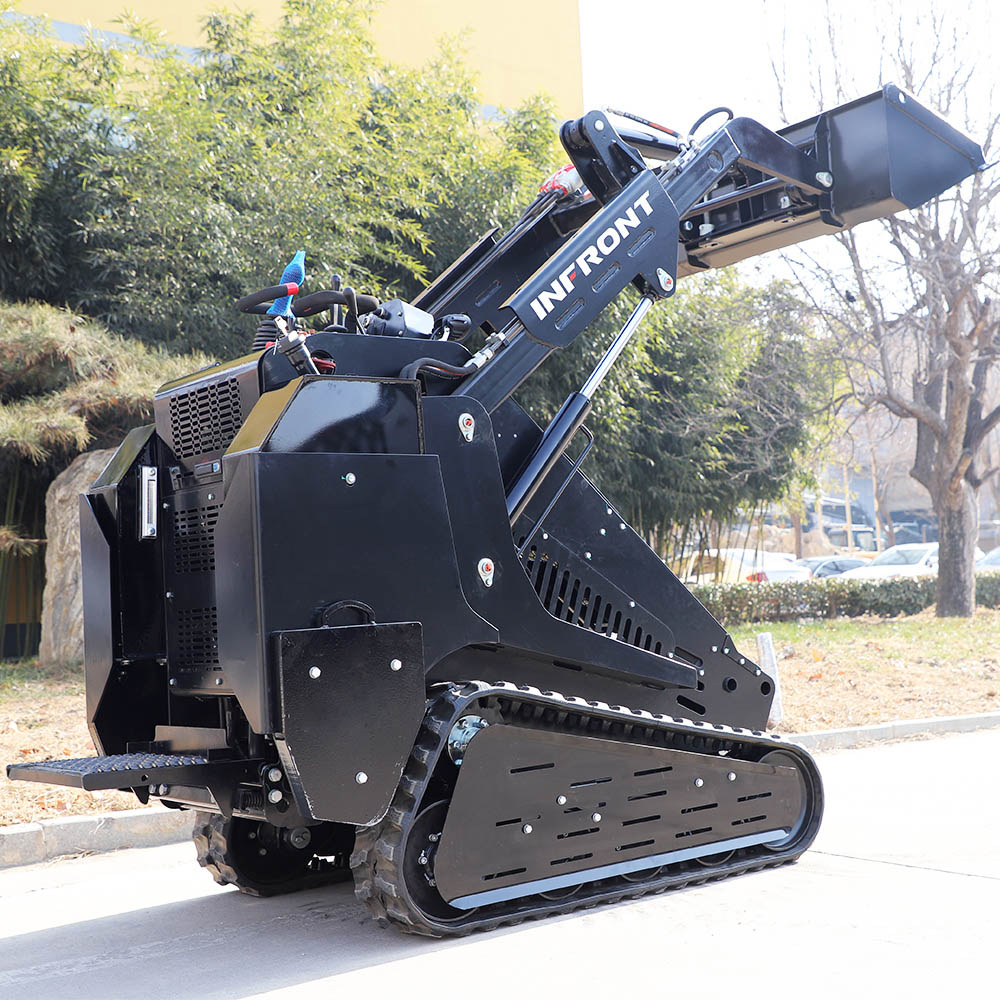

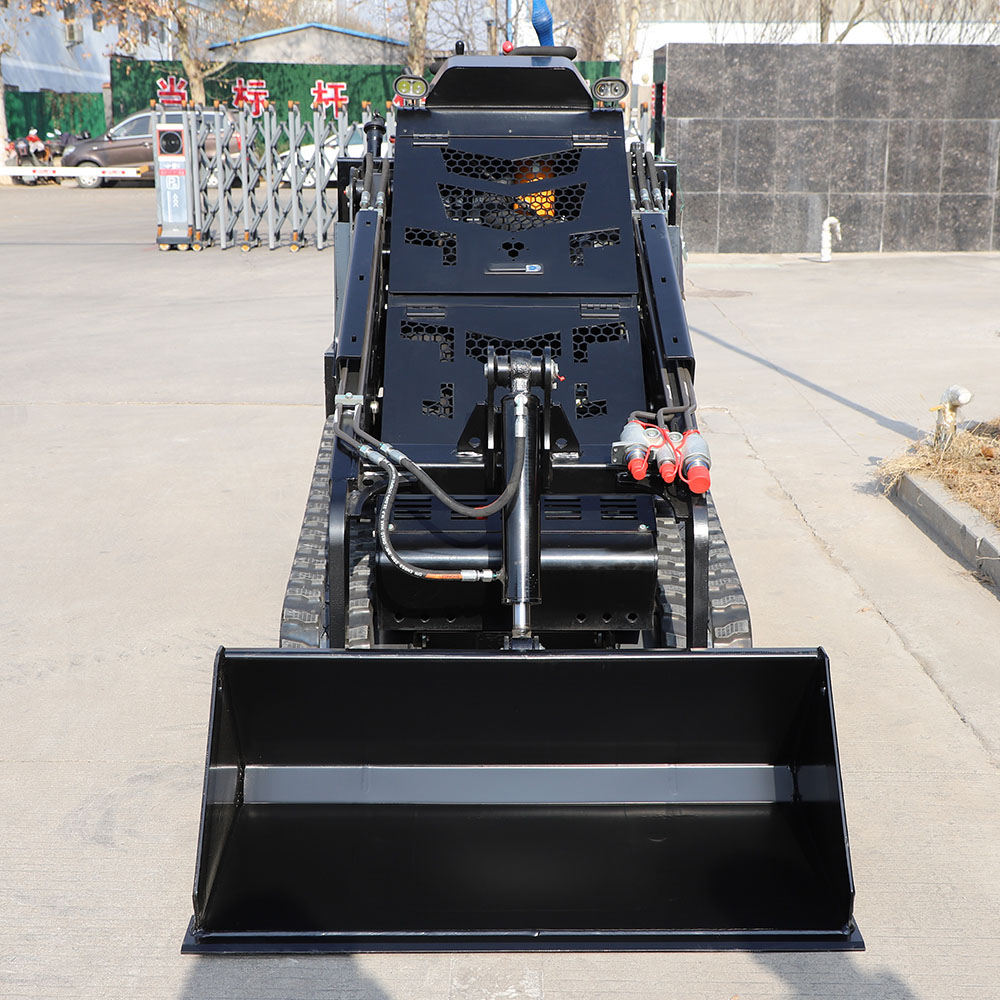

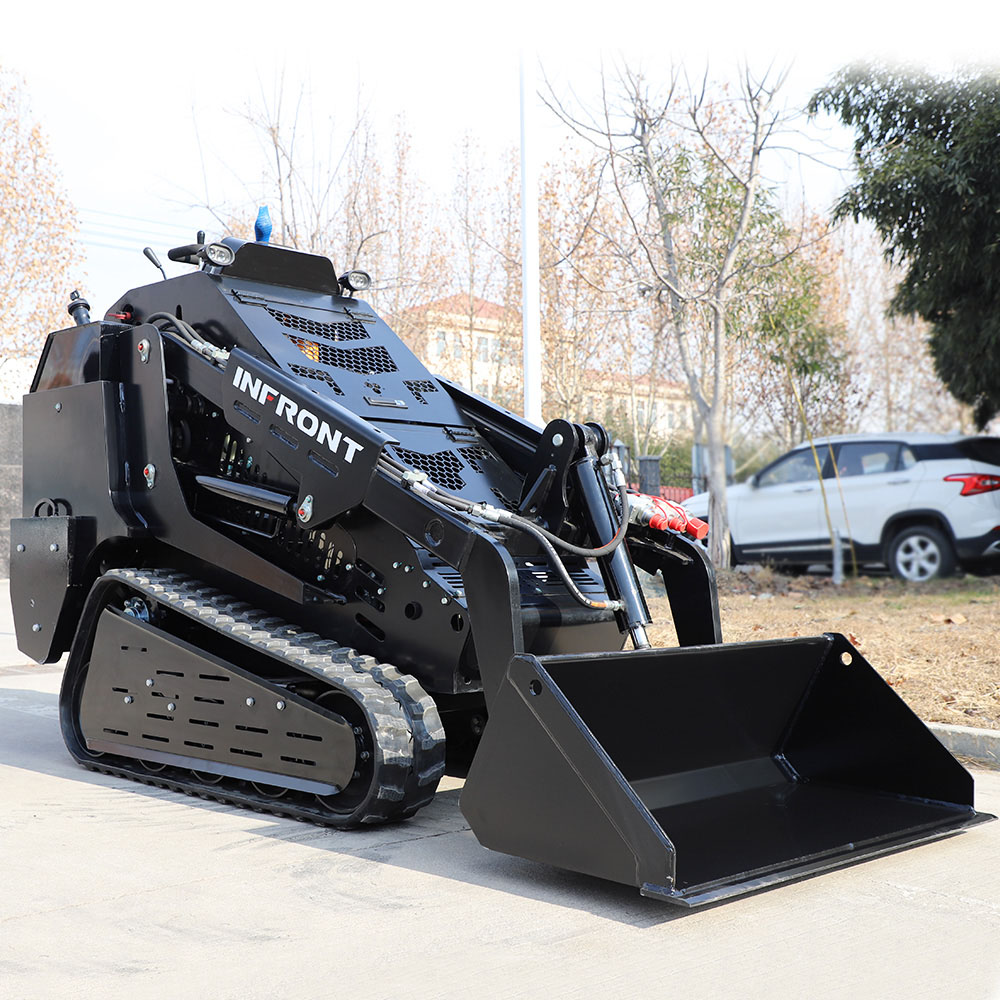

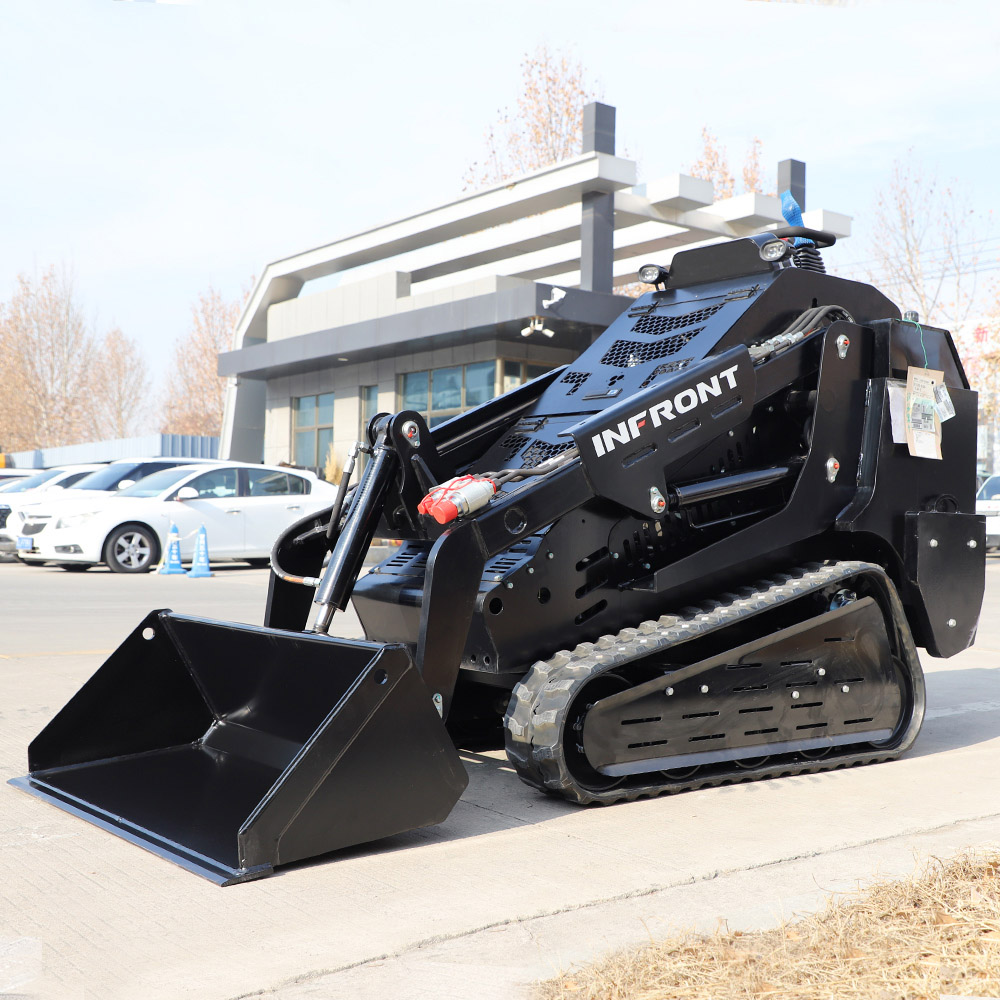

Cheap skid steer loader for sale
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.

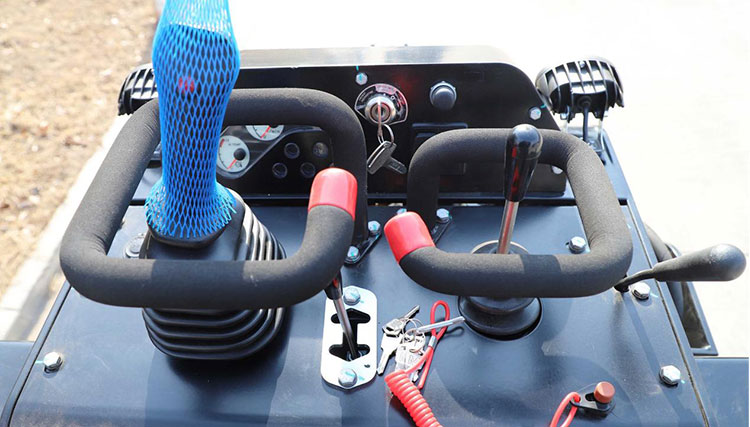

①【Console】
The operation time of crawler skid steer loader is often several hours. The humanized design of the control panel can reduce the operator's fatigue and improve the stability of long-term operation.

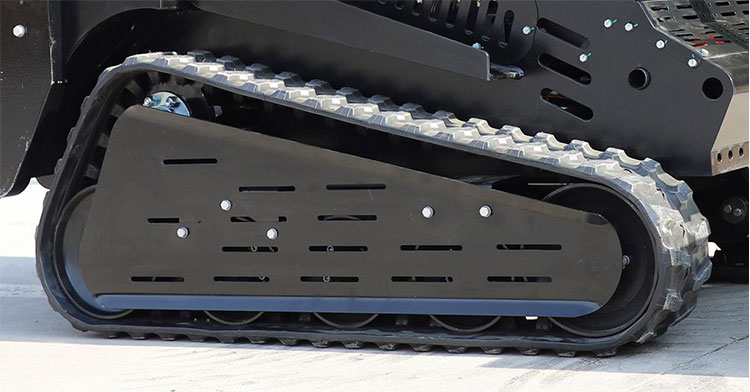

②【Triangular crawler】
The core advantage of skid steer loaders is their 360° turning capability. They are often used in narrow areas such as indoor areas, tunnels, old residential areas, and workshops. The triangular crawler structure perfectly matches this feature, avoiding the problem of full-size crawler tracks with large turning radius and easy scratching.

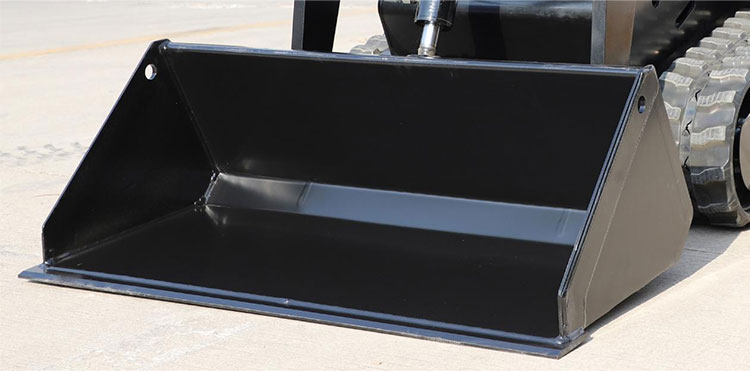

③【Bucket】
The loader bucket optimizes the efficiency of the entire process of "loading - lifting - unloading" through detailed design, especially for "small batch, high-frequency" operation scenarios (such as municipal maintenance and garden maintenance), and is more suitable than the traditional small excavator bucket.
○Parameter： | |
Max working height | 2420 mm |
Max pin height | 2099 mm |
Max dump height | 1617 mm |
The highest point discharge distance | 615 mm |
Bucket swing angle | 79° |
Bucket unloading angle | 36° |
Opening-closing angle | 43° |
Angle of departure | 30° |
Total height | 1607 mm |
The height from the ground | 300 mm |
Wheelbase | 1065 mm |
No bucket length | 2200 mm |
Total width | 1033 mm |
Bucket width | 1140 mm |
Total length (L) (with bucket) | 2752 mm |
Turning radius (R) | 2198 mm |
Model | Kubota D1105-EF02 |
Rated power | 18.2KW/25HP |
Rotating speed | 3000 |
Load weight (kg) | 300 Kg |
Bucket capacity | 0.14 m3 |
Max liftingpower | 1258Kg |
Speed | 0-8Km/h |
Operating weight | 1775kg |
Main pumpQty | 2+1 |
Flow of main pump | 67.2L/min |
ValveQty | 2 |
○Application scenarios：Shoveling gravel; Trash removal; Agricultural operations; Mines/construction sites; Short-distance ore transport; Feed handling
