Biggest skid steer
Sturdy and durable - key components are made of high-strength materials and have been rigorously tested to ensure that the equipment can still operate stably under harsh working conditions.
Agile & Powerful: Compact size with robust performance for tight spaces
Multi-Functional: Quick-change attachments handle digging, lifting,sweeping, etc.
○Details：

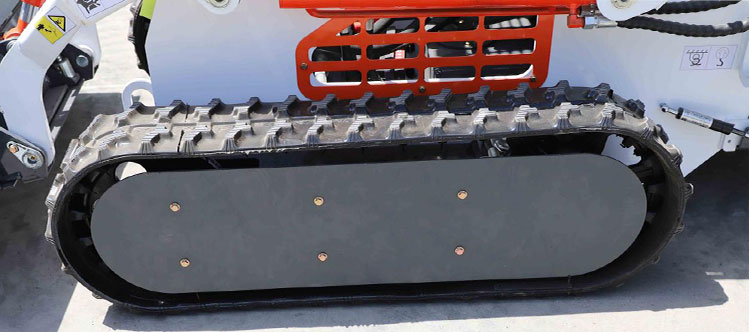

①【Track】
Upgraded thickened track,non-slip and durable
②【Solid Tire】
Strong bearing capacity, suitable for all terra

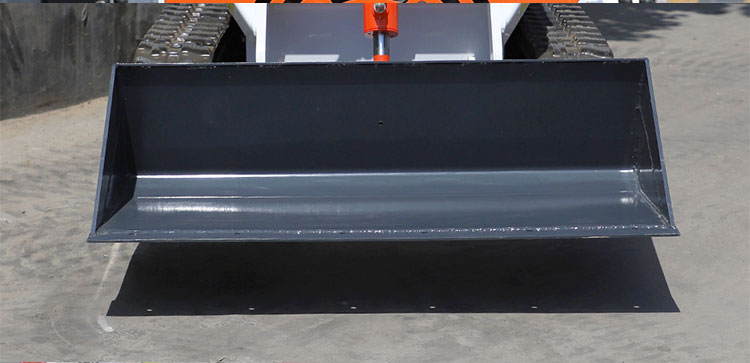

③【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
○Parameter | |
Max working height | 2100 mm |
Max pin height | 1880 mm |
Max Dumping height | 1480mm |
Max Dumping distance | 430 mm |
Max Dumping Angle | 30° |
Rollback of bucket on ground | 25° |
Departure angle | 27° |
Total height | 1270mm |
Ground clearance | 110 mm |
Wheel base | 760 mm |
Overallength without bucket | 1782mm |
Total width | 810mm |
Bucket width | 1090 mm |
Total length with bucket | 2285 mm |
Turn radius forward turning | 1300 mm |
Overall length without the bucket after | 1570 mm |
folding the pedal | |
Engine | |
Rated Power (KW) | 18.2KW(23HP) |
Rotating speed (rpm) | 3600 |
Noise(Db) | ≤95 |
Hydraulic System | |
Pressure (Mpa) | 17 |
Working Time (s) | |
Raise | 4 |
Dump | 1.3 |
Lower | 3.2 |
Operating Load | 280 Kg |
Bucket Capacity | 0.13 m² |
Max Lifing Force | 458Kg |
Travel Speed | 0-5.5Km/h |
Operating Weight | 880 Kg |
○Application scenarios：
Green belt maintenance
Land tillage
Storage and stacking
Storage and stacking
Fruit and vegetable loading and unloading
Road sweeping
