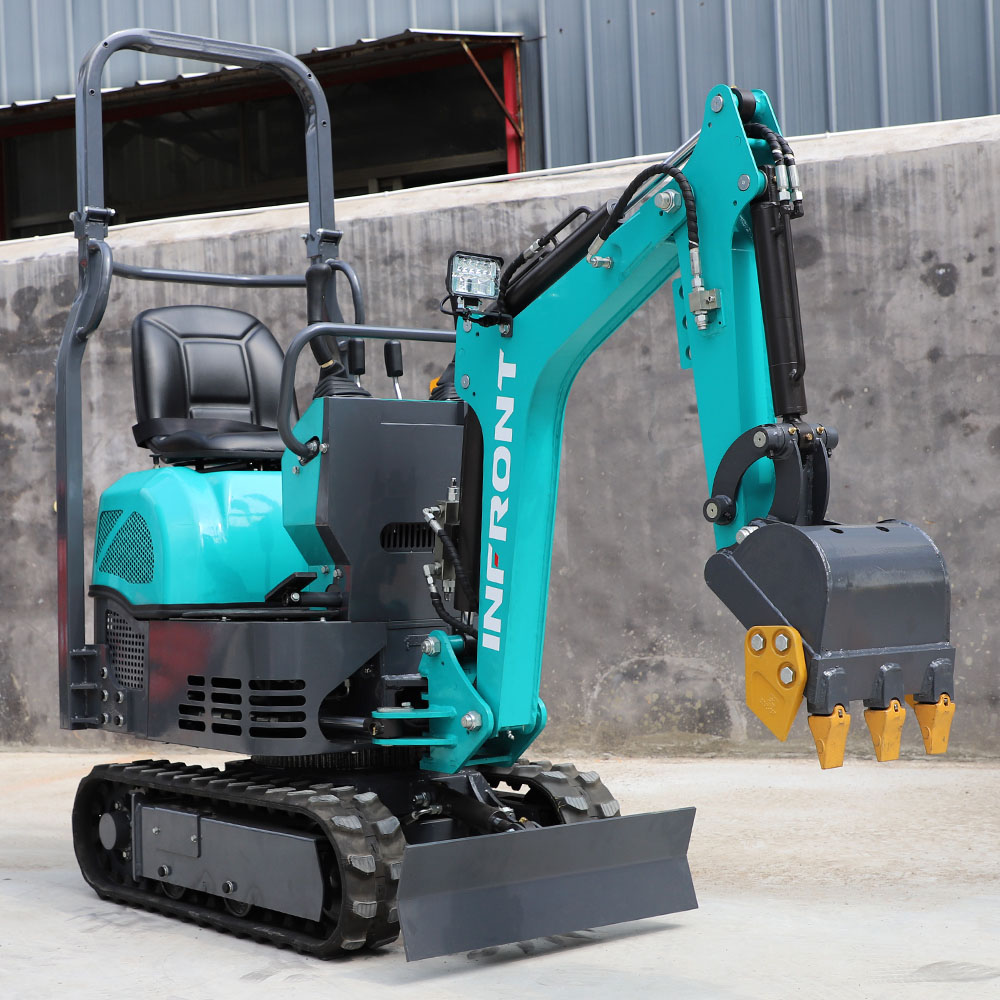

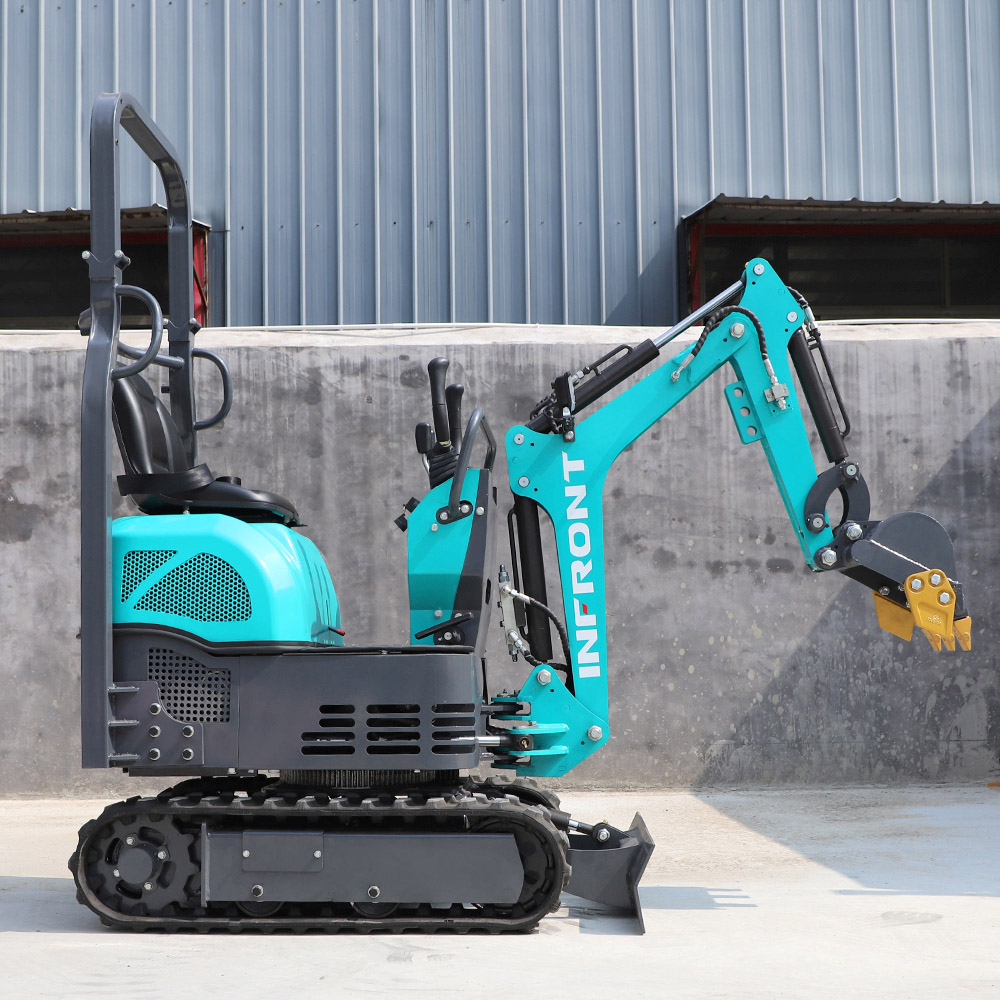

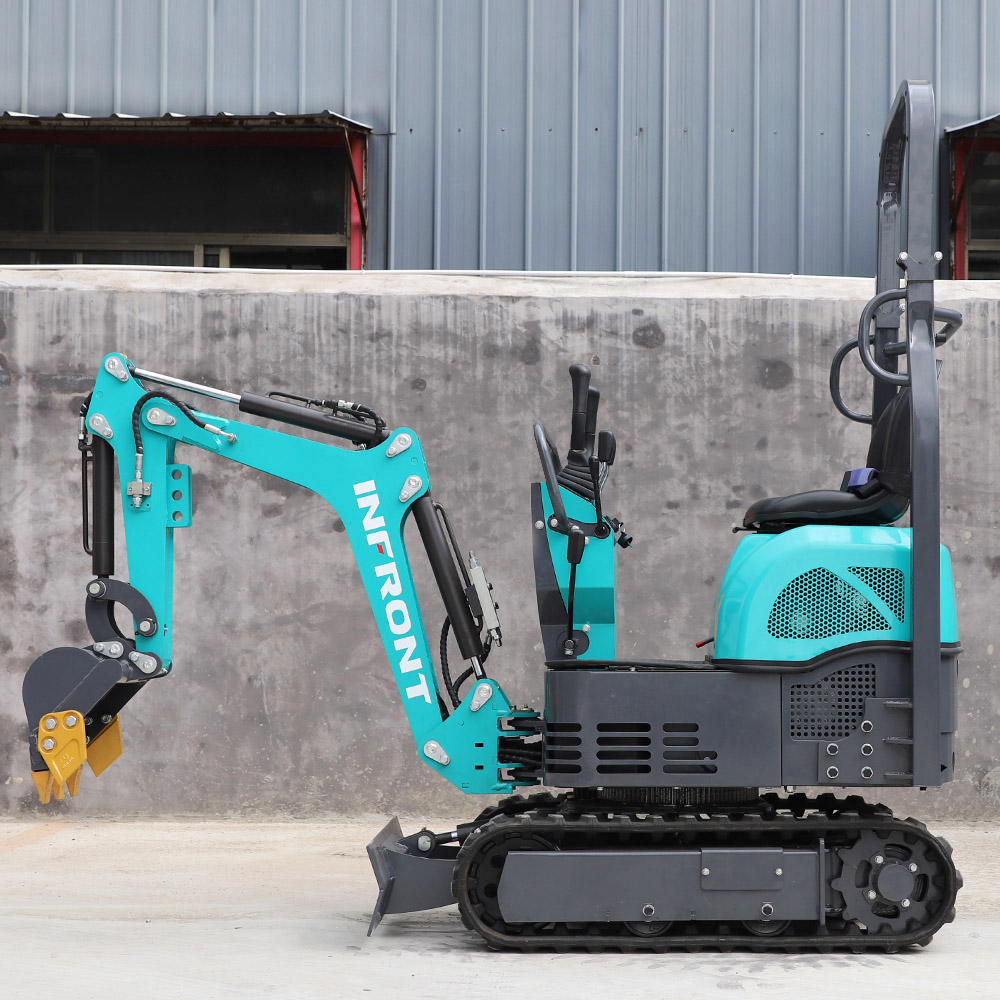

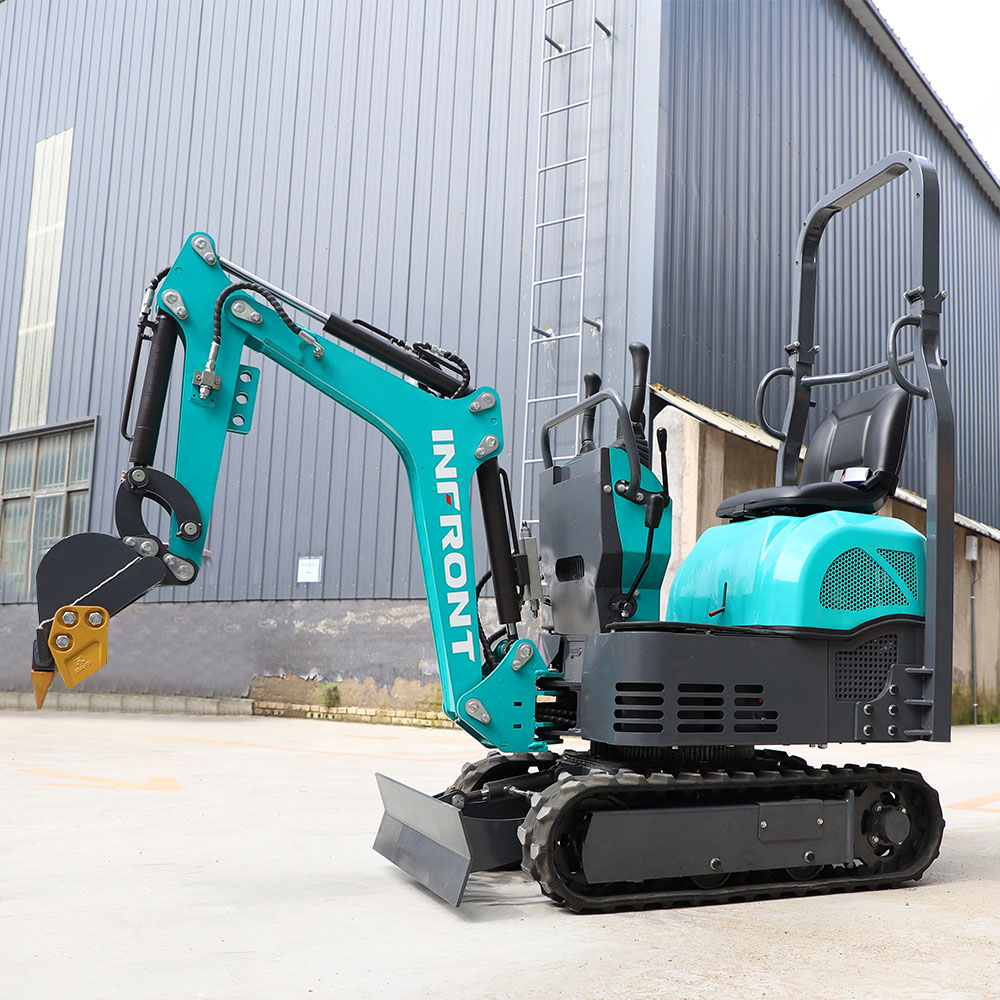

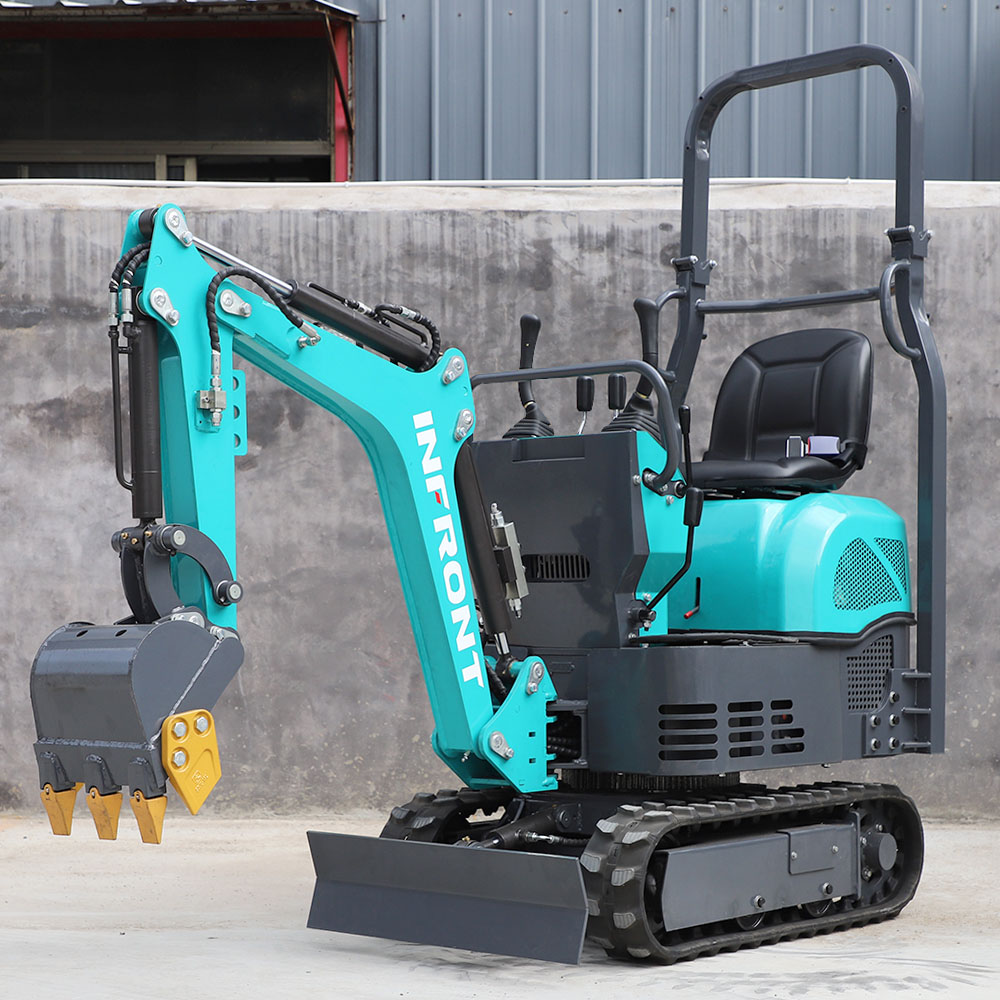

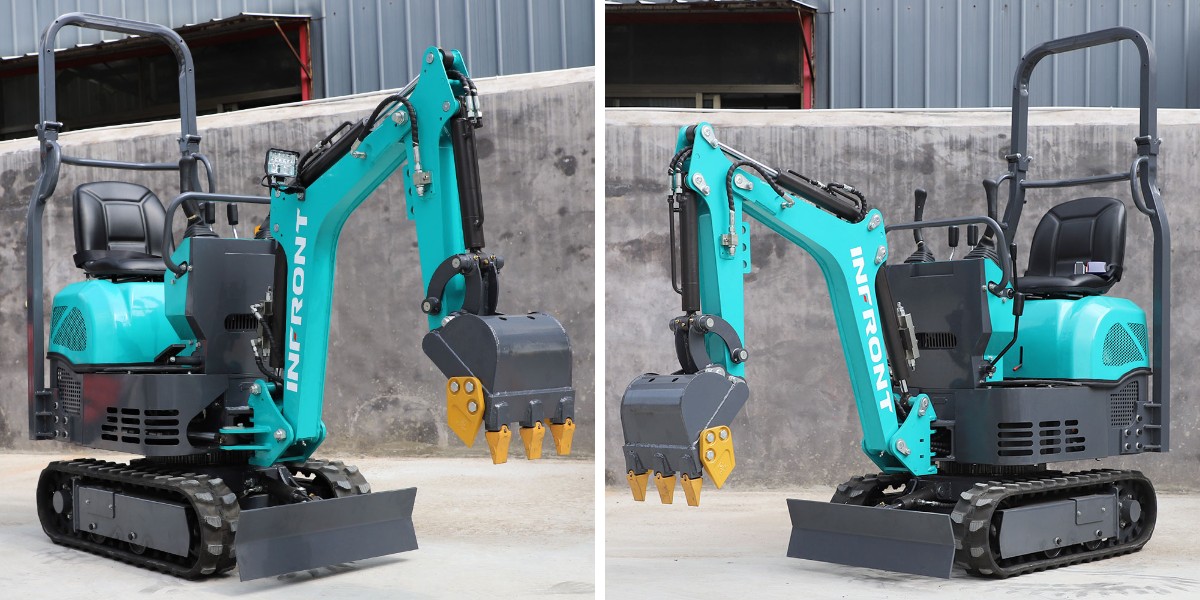

0.8 Ton Excavator
The standard configuration of this excavator includes the boom side swing function.
This machine This machine is equipped with a plunger motor with high and low speed functions. Low speed can provide more powerful power when the excavator is climbing, high speed is suitable for normal driving.
The 0.8 Ton Excavator is a flexible, lightweight, efficient and energy-saving mini excavator.
High working efficiency: The radius of rotation is small. In the case of limited working space, the operator does not need to consider obstacles on the construction site to hinder the rotation of the excavator, so that the operator can focus on the operation of the bucket, which greatly improves the work effectiveness.

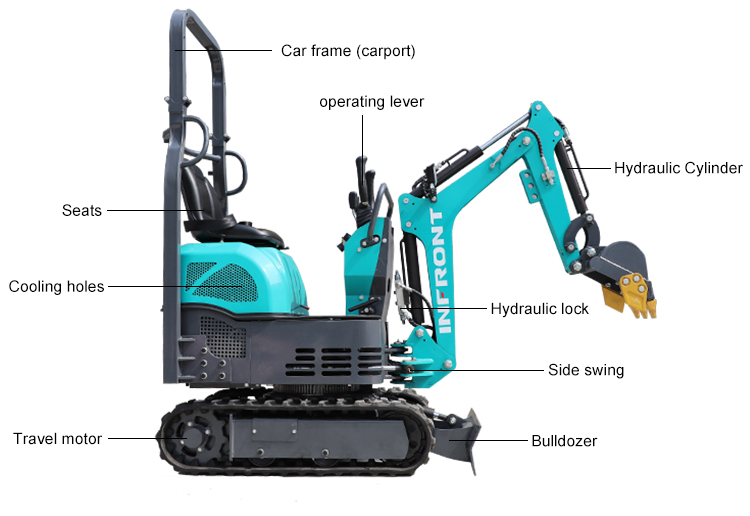

Product Details

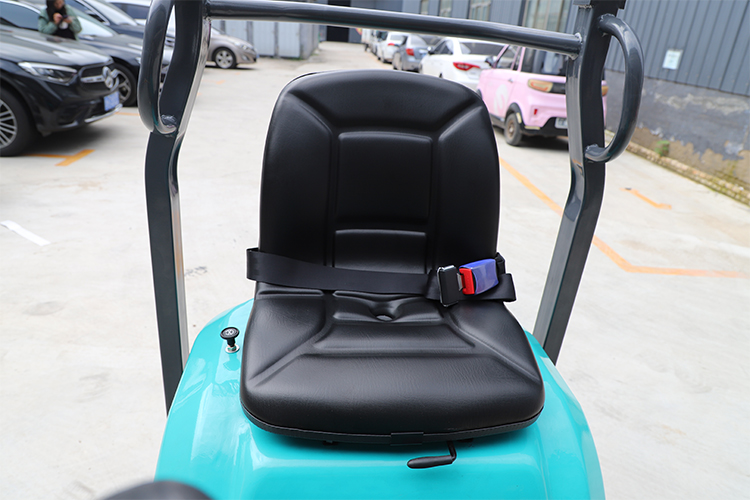

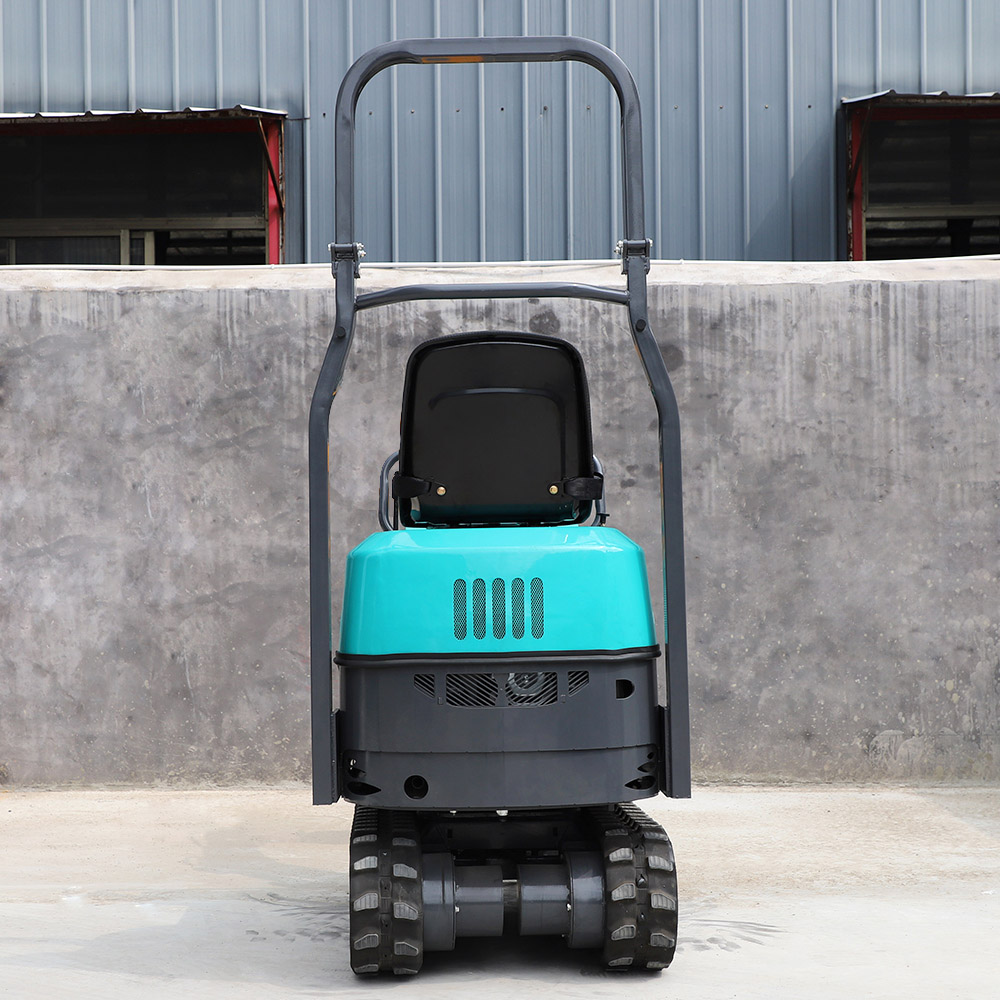

Shock-absorbing seats
Cold-cured polyurethane high-rebound sponge has strong rebound ability and good shock absorption effect.

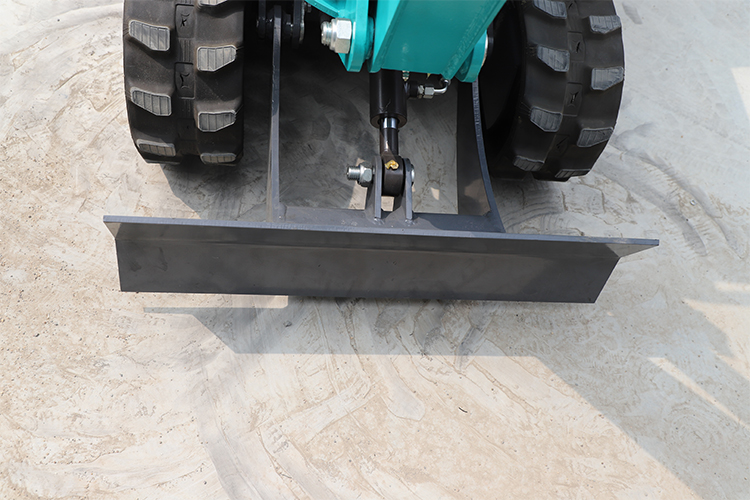

Bulldozer shovel Thick, high quality, and long service life.Suitable for leveling the site, stacking materials, and backfilling operations. Stabilizing the body during climbing/uphill/ lifting/spinning Is safer.

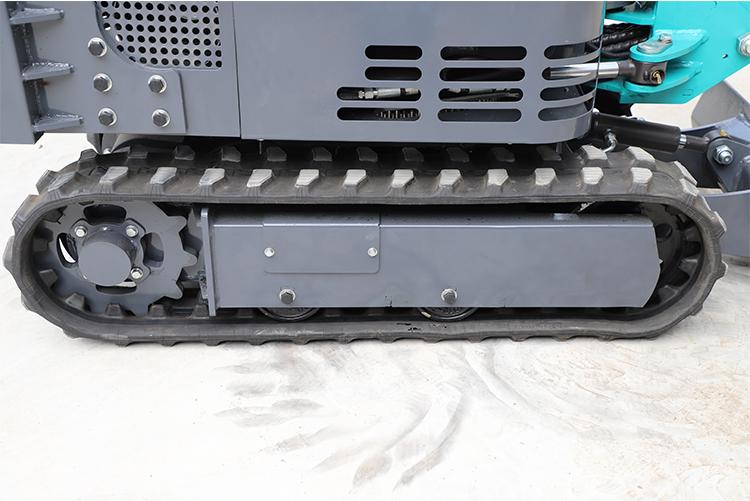

Travel motor
Cold-cured polyurethane high-rebound sponge has strong rebound ability and good shock absorption effect.
Product Parameter
Rated power | 6.5KW |
Bucket capacity | 0.013m² |
Engine model | Gasoline engine |
Operating weight | 620KG |
Maximum digging force | 8KN |
Pump type | Double gear pump |
Set working pressure | 25Mpa |
Slewingspeed | 7Rpm |
Travel speed | 3Km/h |
Gradeability | 25° |
Side swing angle | 70° left and right |
Maximum digging distance | 2100mm |
Maximum digging depth | 1200mm |
Maximum digging height | 1350mm |
Maximum dumping height | 1300mm |
Track width (carport installation) | 690 (800)mm |
Total height (carport installation) | 1300 (2080) mm |
Total length | 2330mm |
Track ground contact length | 1140mm |
Outer diameter of wooden box packaging | 2450*800*1500mm |
Application scenarios
Site Analysis
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

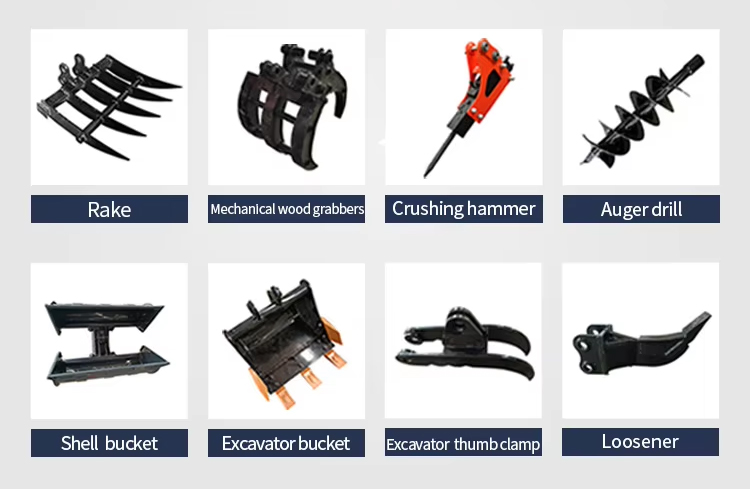

Product Accessories
Various accessories available
In 2015, it obtained LS09001 quality management system certification, National III certification, European CE quality certification, and Euro 5 emission certification.
