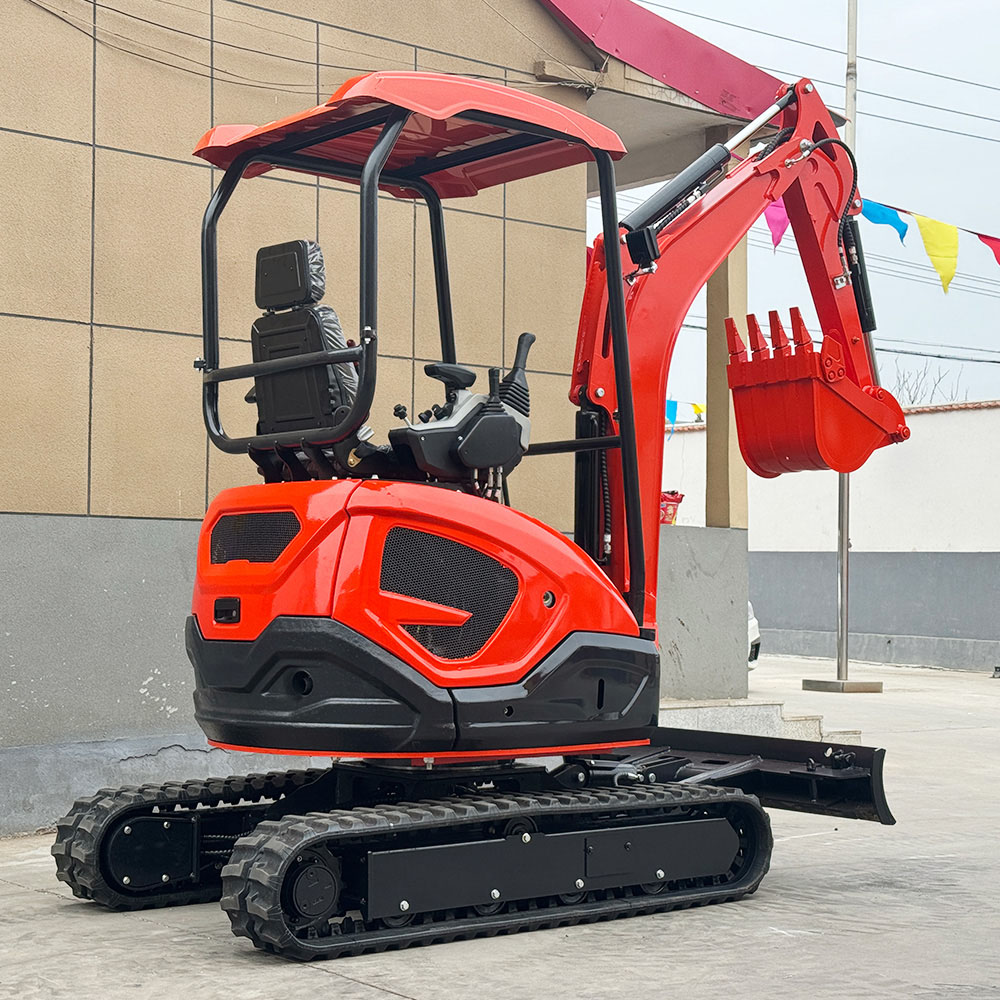

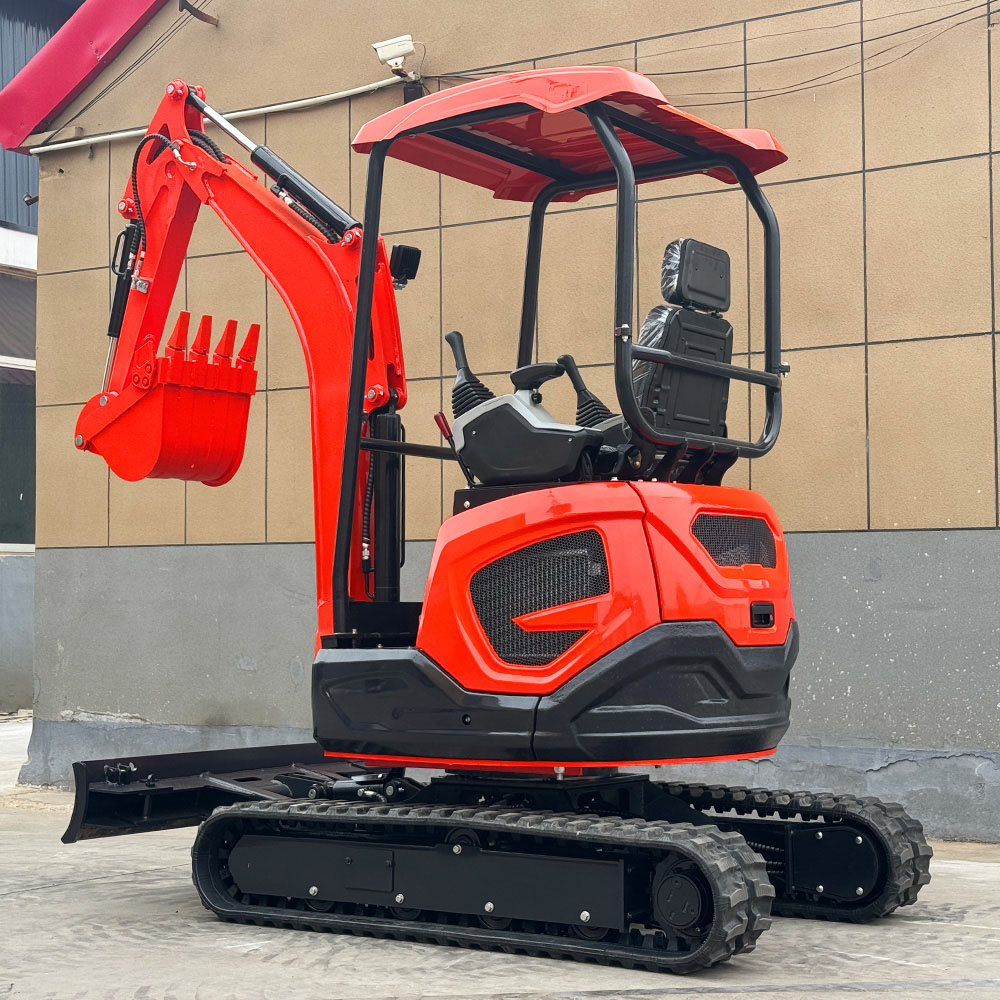

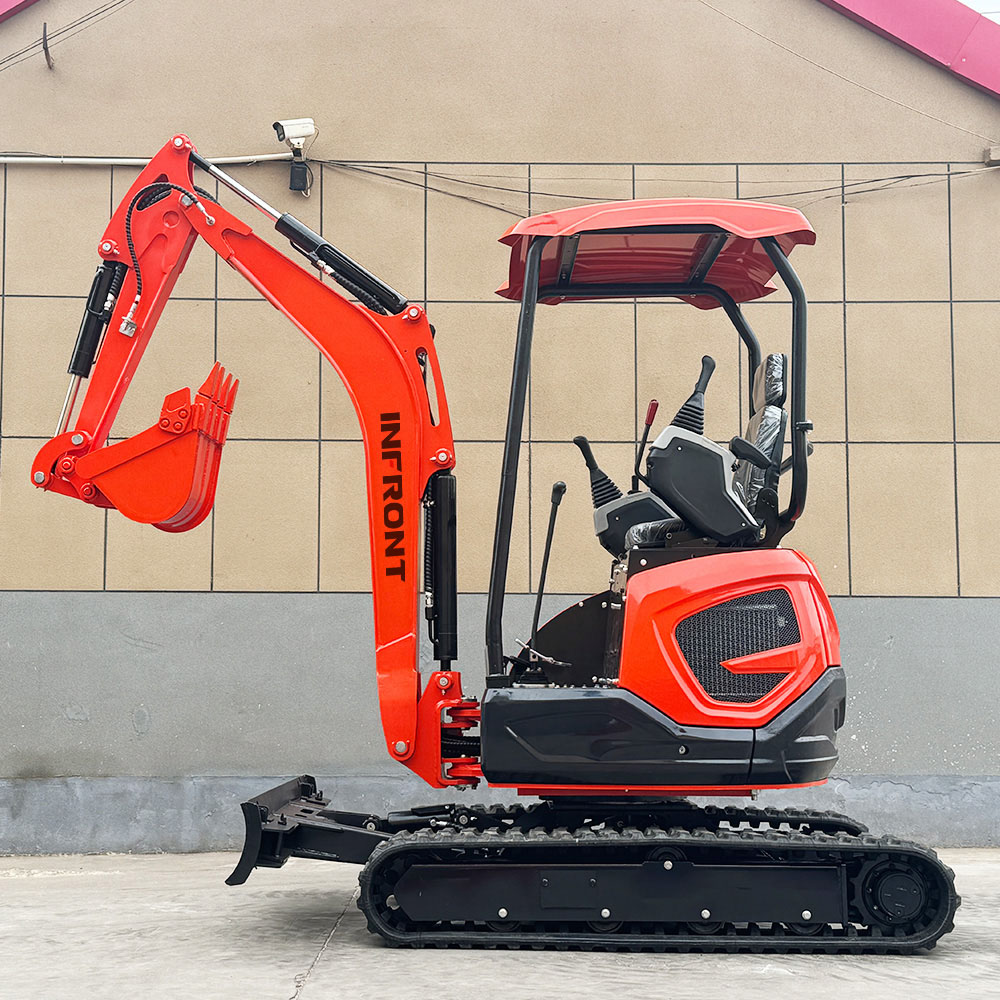

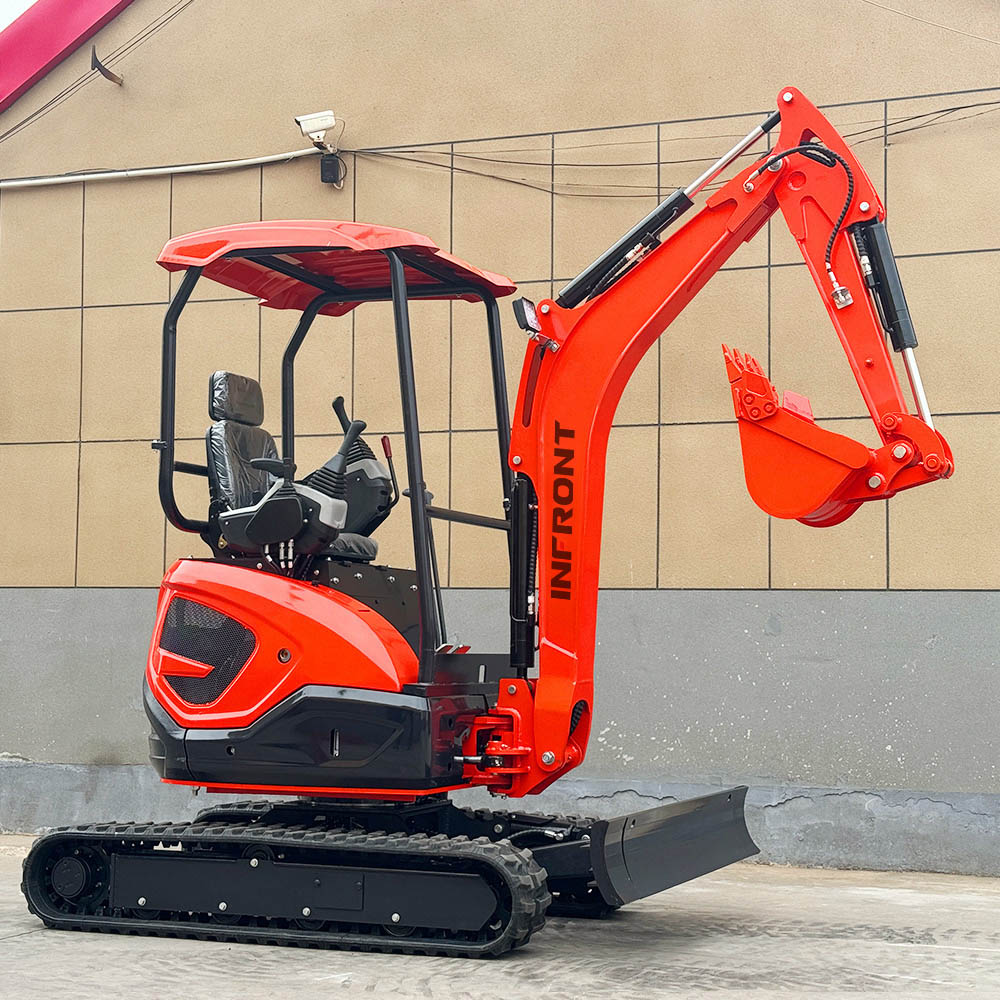

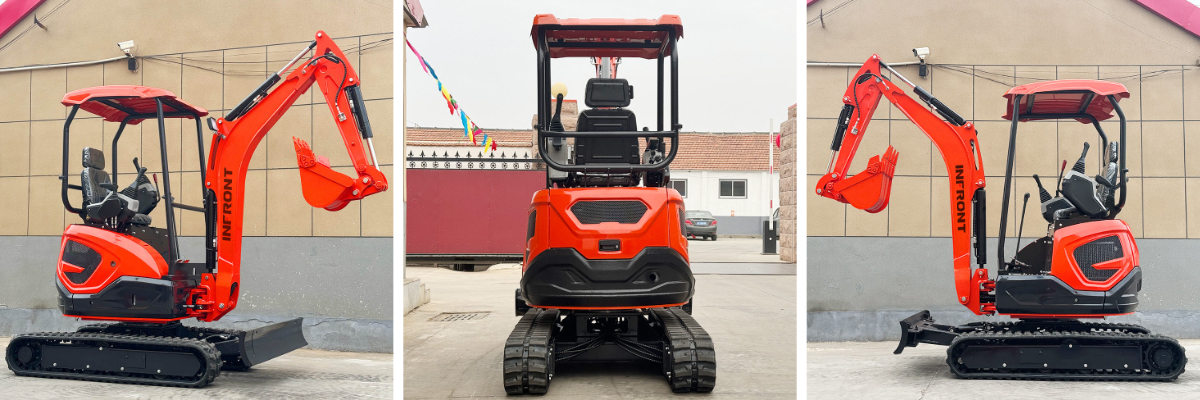

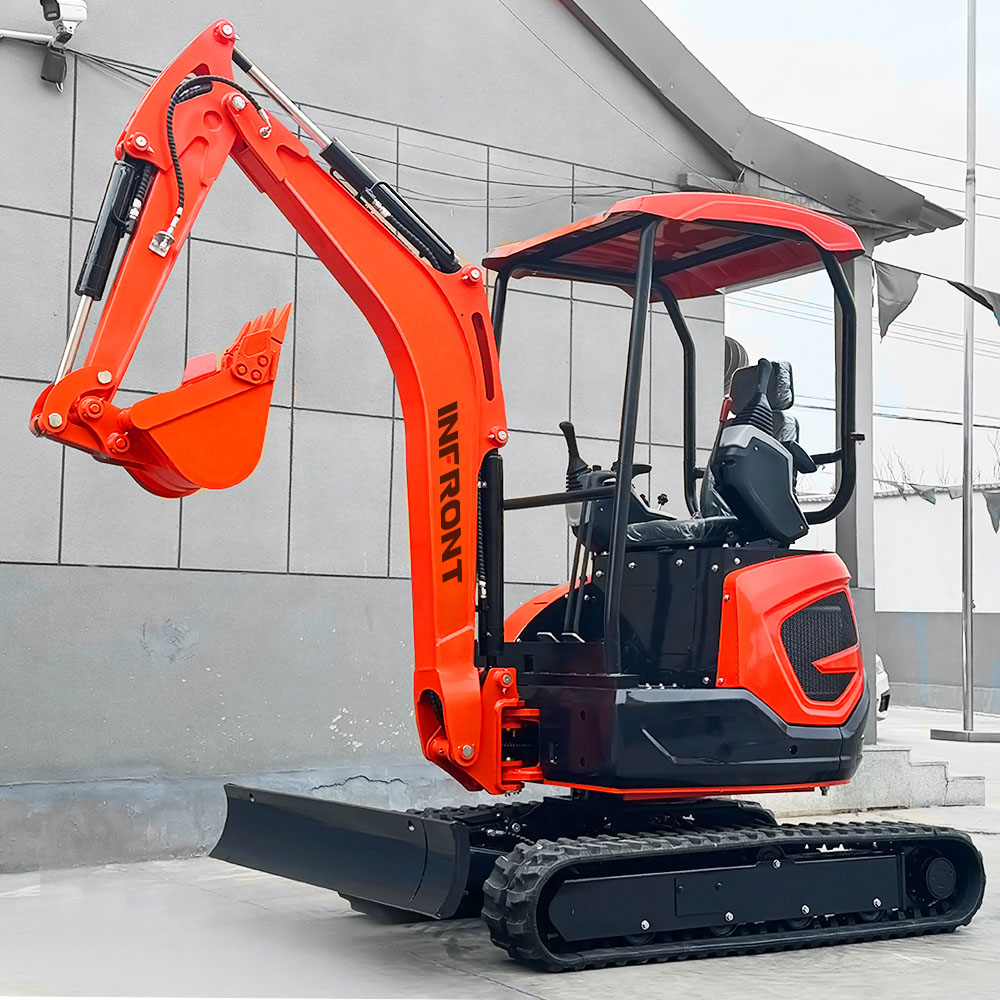

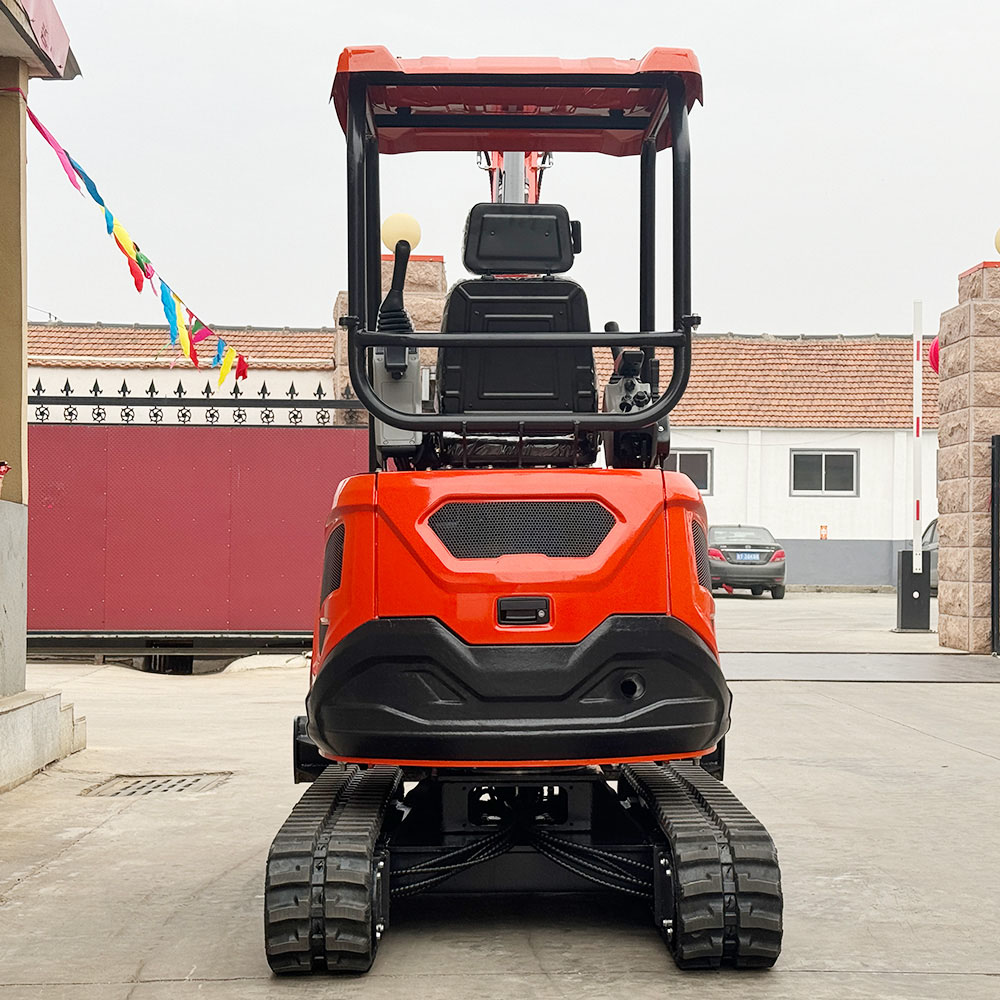

2.5 Ton Excavator
Hydraulic pump upgrade: The standard configuration uses Parker's high-flow load feedback triple hydraulic pump. The excavation efficiency is 30% higher than that of the traditional double hydraulic pump, the excavation torque output is increased by 8KN, and the pump body pressure resistance reaches 25MPA. The service life of the triple hydraulic pump is 2-3 times that of the double hydraulic pump. The ultra-large flow output of 35 liters per minute can meet the use requirements of various large hydraulic attachments.
Optional: Taifeng load feedback plunger pump

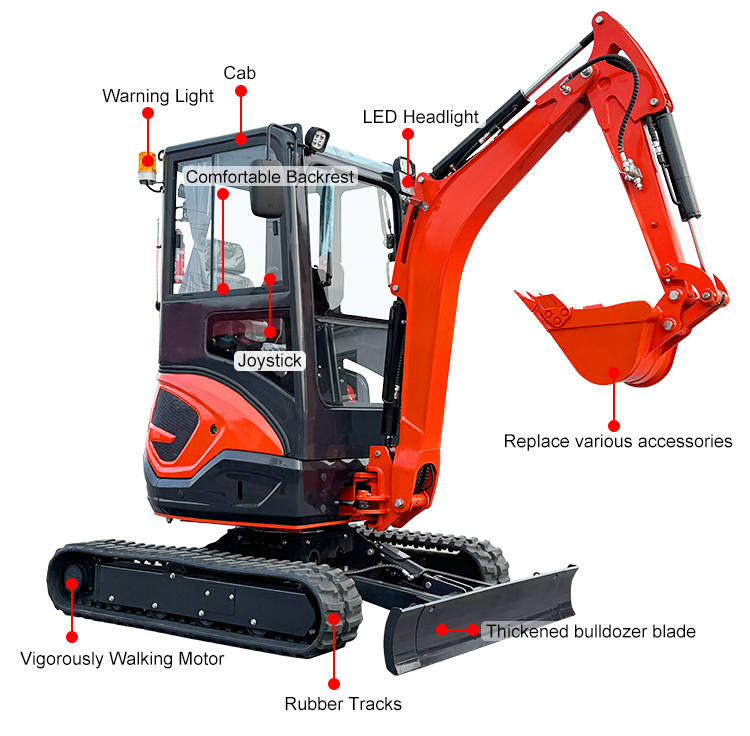

Tailless body design: Taifeng load-sensitive multi-way valve, smoother control, more accurate flow matching, smoother compound action, increased 100 kg cast steel counterweight, and 1.8-meter-long chassis, 25 cm wide track, so that the chassis stability is higher and the operation is smoother during excavator operation. It adopts a pull-up boom design structure, and the boom cylinder is located behind the boom to protect the cylinder from being bumped. Tailless fuselage design, more flexible construction in narrow working conditions
Slewing motor: Standard American Danfoss plunger swing motor with automatic parking function, smoother swing speed, and service life 3-5 times that of domestic swing motors
Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs. The operator area is spacious and laid out to provide comfort and ease of operation. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
Product Details：

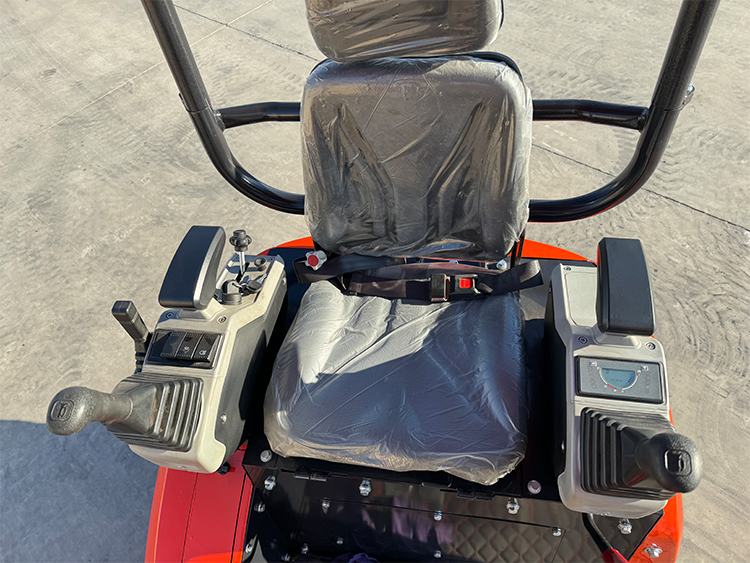

①The seat surface is mostly made of wear-resistant, oil-proof and waterproof materials (such as PVC artificial leather and high-strength fabrics), which can resist the erosion of oil, mud and dust commonly encountered in the workplace and are easy to clean.

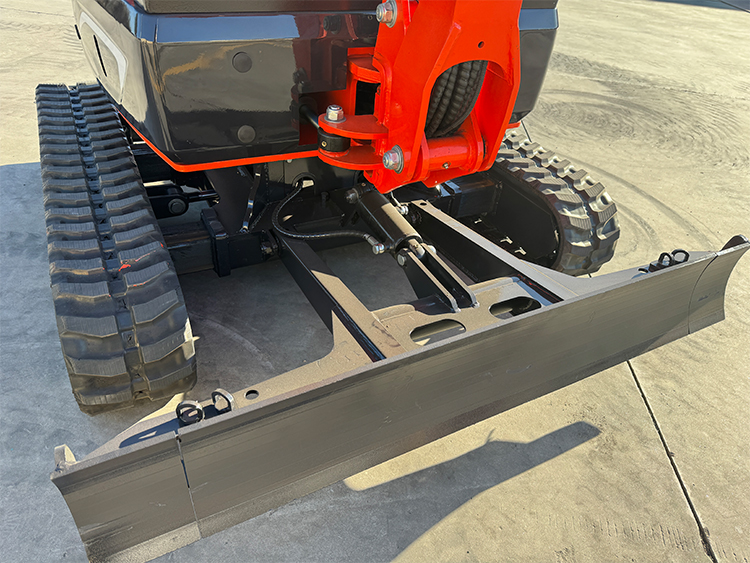

②When digging deeper holes, the bulldozer can be used to stabilize the machine body and improve digging accuracy.

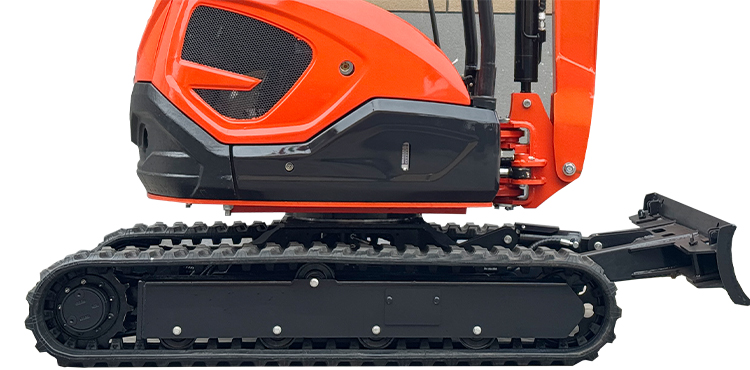

③Rubber track Lightweight, low vibration, strong adhesion, good adaptability, and does not damage the road surface
Product Parameter：
Engine | Kubota D1105/ Changchai 390 |
Bucket capacity | 0.06m3 |
Track width | 250mm |
Track length | 1800mm |
Bucket width | 40cm |
Digging height | 3388mm |
Digging depth | 2600mm |
Unloading height | 2673mm |
Height of the whole car | 2290mm |
Machine width | 1300mm |
Ground clearance | 420mm |
Wheel base | 1050mm |
Chassis width | 1300mm |
Chassis length | 2150mm |
Ground excavation radius | 4163mm |
Turning radius | 756mm |
Lifting height of dozer shovel | 450mm |
Shovel height | 22cm |
Cab wooden box size | 2800*1400*2500 |

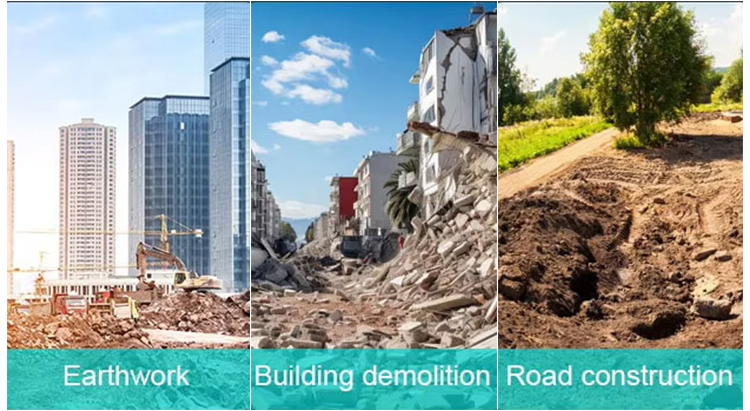

Application scenarios：
Suitable for engineering construction, agricultural orchards, house decoration, indoor crushing, etc.
Site Analysis
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.
Product Accessories
Support Multi-Function Operation, Cabin,Air conditioning,Swing boom , Telescopic crawler track function can be optional.

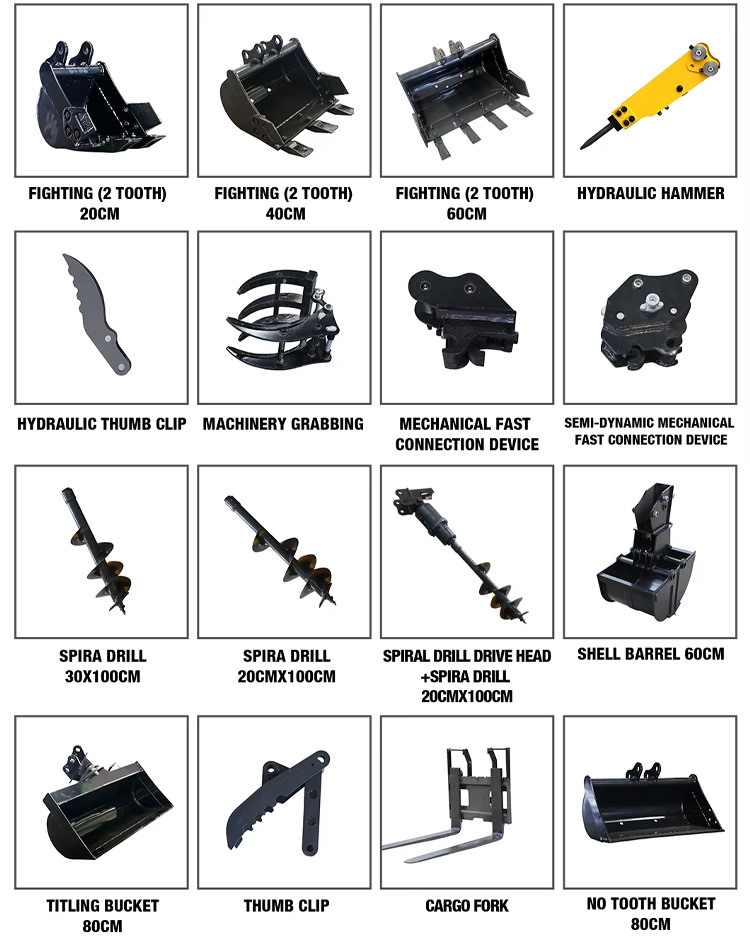

Use our Quick coupler(quick hitch) can add the attachment tools like: driller auger, hydraulic breaker hammer, trailer,20cm--100cm bucket, rake,gripper, wood grab and so on.
