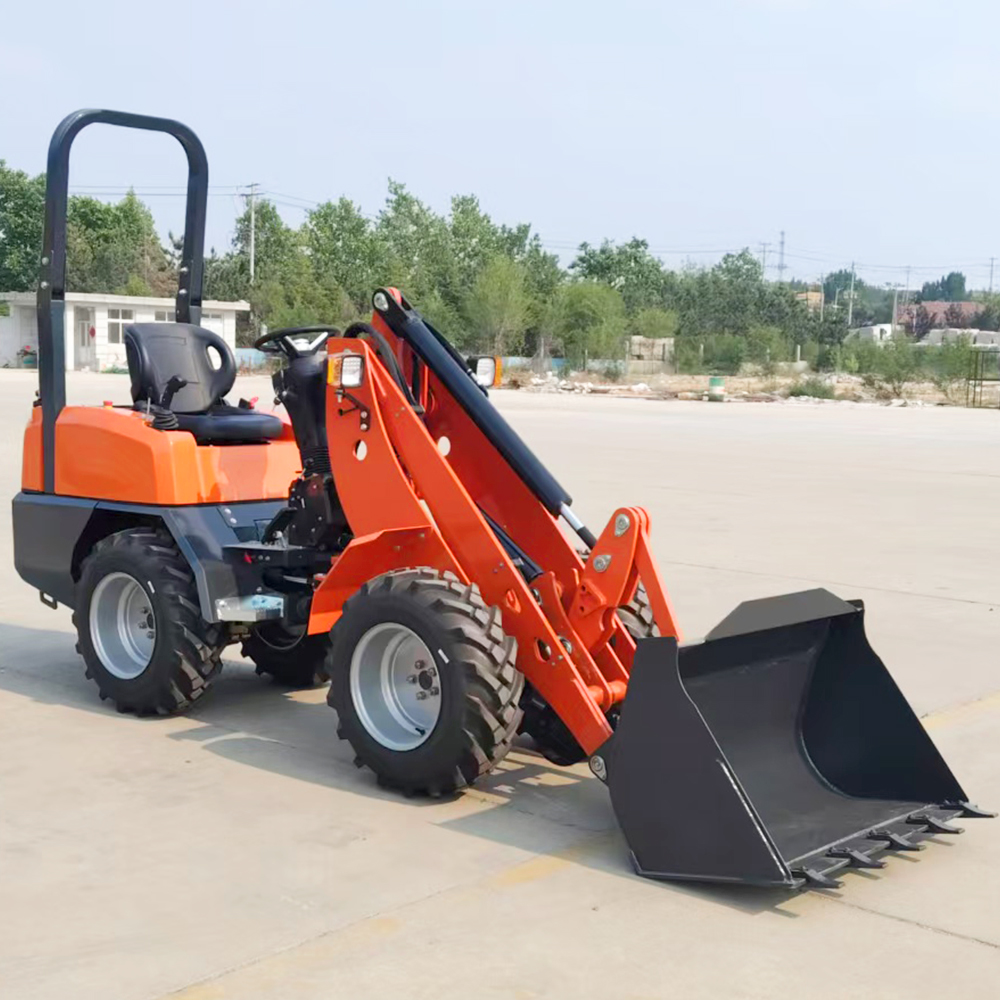

Skidsteer price
Product features:
Powerful power - using high-performance engine, stable power output, adapting to high-intensity operation requirements.
Flexible and maneuverable - compact design, zero turning radius, can operate freely in narrow spaces,
improving construction efficiency.
Multifunctional accessories - supports quick replacement of buckets, breaker hammers, sweepers, fork arms and other accessories, realizing "one machine for multiple uses".
Intelligent control - humanized cab design, some models are equipped with intelligent hydraulic system and
electronic control technology, making operation
more convenient.
○Details：

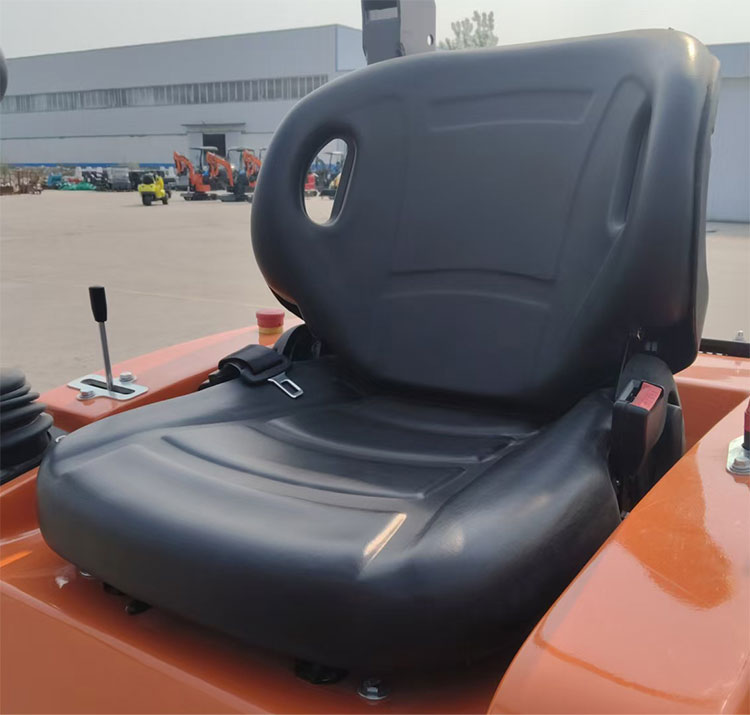

①【Comfortable Backrest】
The surface is mostly made of tear-resistant PVC or mesh. PVC is waterproof and oil-proof (suitable for oily environments on construction sites), mesh is breathable and sweat-wicking (avoids sitting for a long time in the summer), and the material is scratch-resistant with a service life of up to 3-5 years.

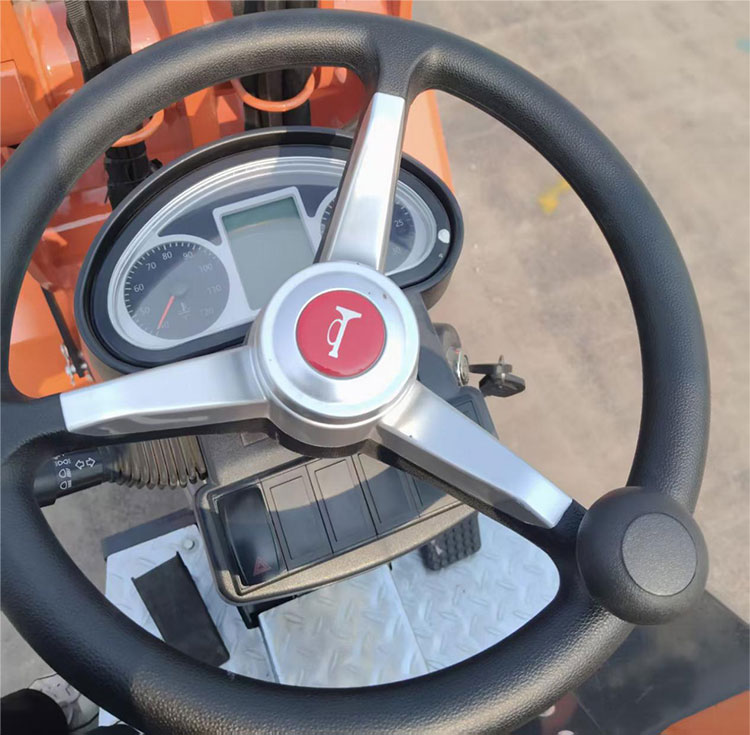

②【Console】
The height and angle of the control handle match the seat posture (the handle is ≤15cm away from the seat armrest). The driver can operate it with his arms hanging naturally, avoiding raising his hands or bending over for long periods of time; commonly used buttons (such as emergency stop and attachment switching) are within the reach of fingertips, without the need for large body movements, reducing strain on the waist, back and arm muscles.

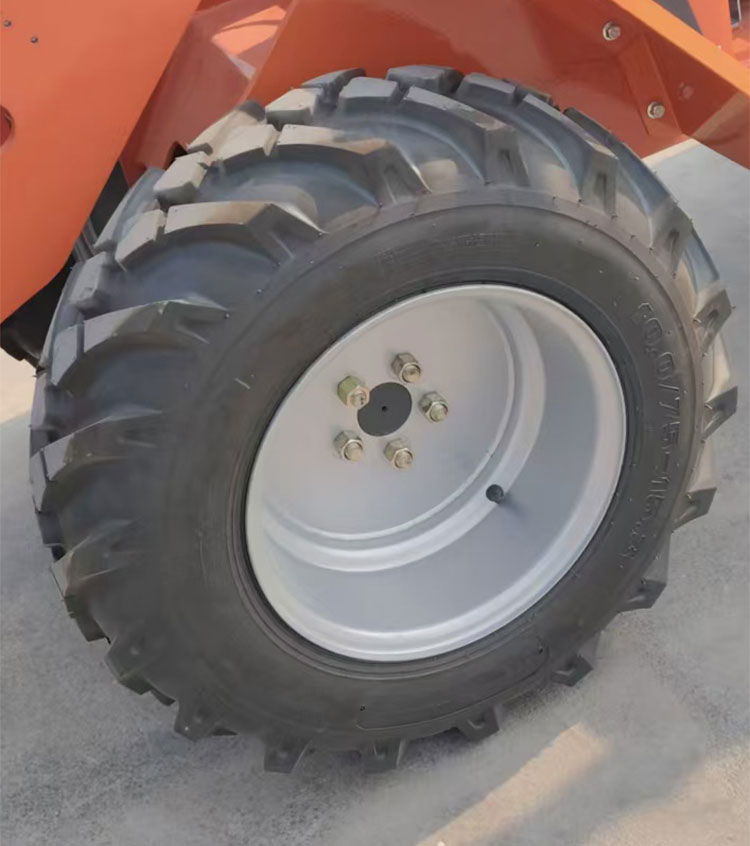

③【Solid Tire】
Strong bearing capacity, suitable for all terrains

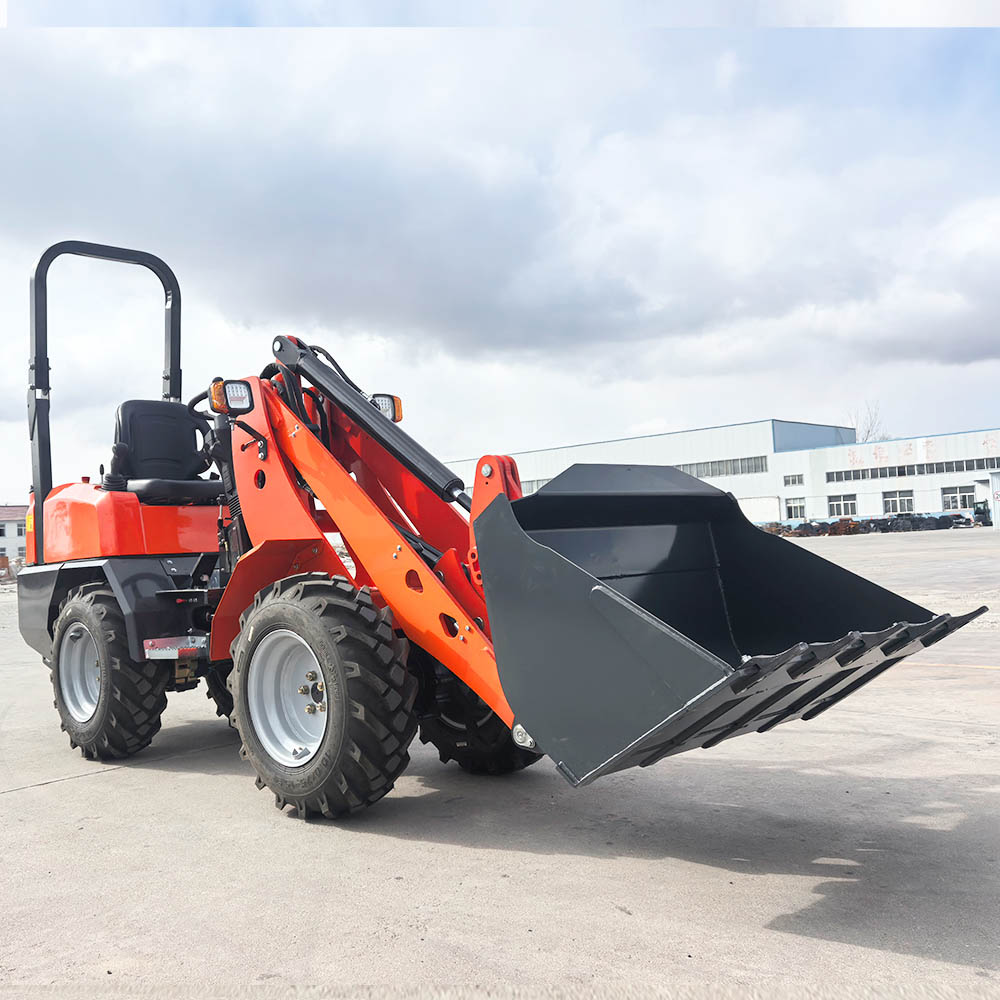

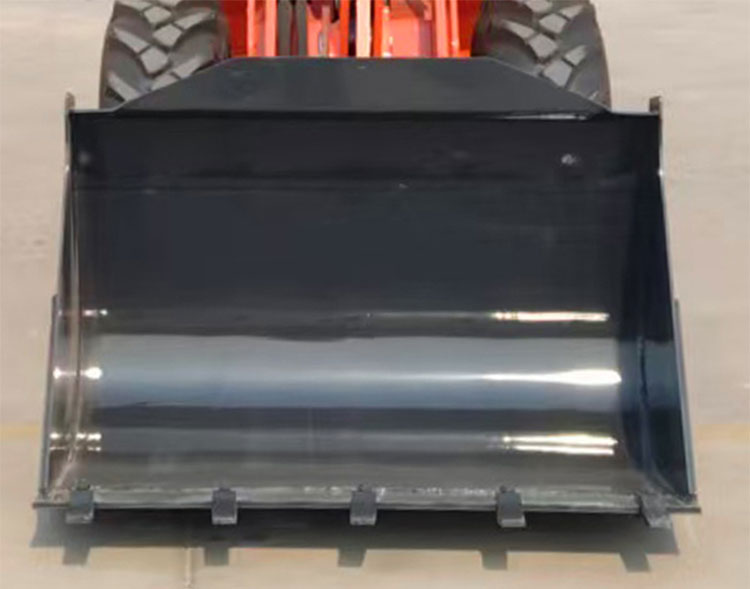

④【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
○Parameter： | |
Total length of the vehicle | 4300 mm |
Total length of the vehicle (excluding bucket) | 3500mm |
Center of the front axle of the big arm (center of the front wheel) | 625mm |
Wheelbase | 1550mm |
Rear suspension length | 1145mm |
Total height | 2500 mm |
Seat height | 1220mm |
Total working height | 3720 mm |
Maximum, bucket fulcrum height | 2950mm |
Empty loading height | 2670mm |
Unloading height | 2090mm |
Safety distance | 410mm |
Total width of the vehicle | 1040mm |
Wheel center width | 780mm |
Ground clearance | 235mm |
Total maximum radius of vehicle turning outside | 2780mm |
Vehicle turning outside radius | 2400mm |
Inner turning radius of the vehicle body | 1343mm |
Articulated turning angle | 45° |
Maximum height, bucket retracting angle | 51° |
Maximum height, bucket unloading angle | 45° |
Lowest point, bucket retracting angle | 51° |
Tire specifications | 10.0/75-15.3 (400/60-15.5 optional) |
Operating weight | 2000KG |
Tipping load | 850KG |
Rated load | 1000KG |
Hydraulic oil tank capacity | 30L |
Diesel tank capacity | 30L |
Gradability | 30% |
○Application scenarios：Small foundation excavation; Snow removal; Feed handling; Equipment maintenance assistance; Small mine cleaning; Plant material transfer
