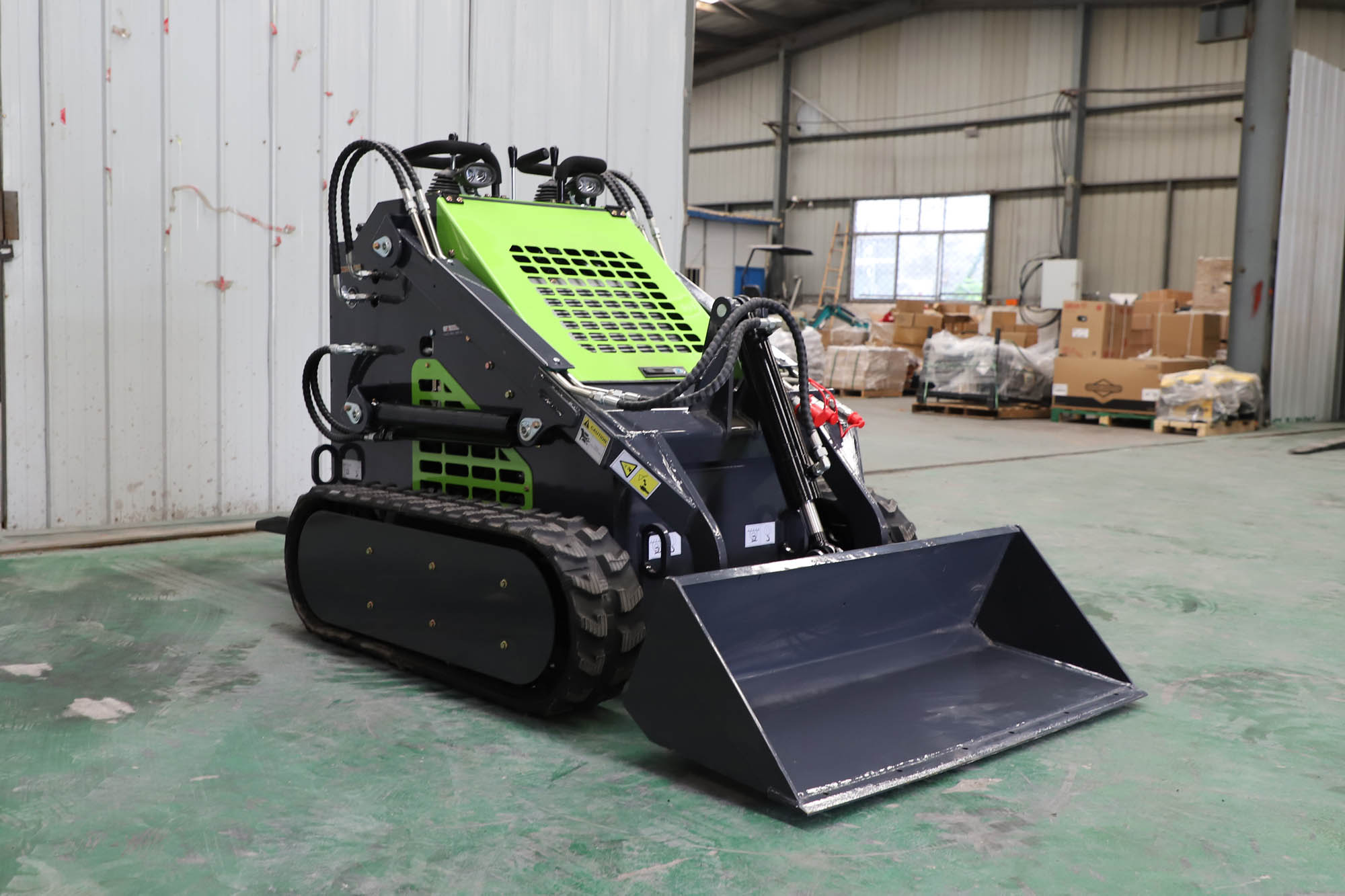

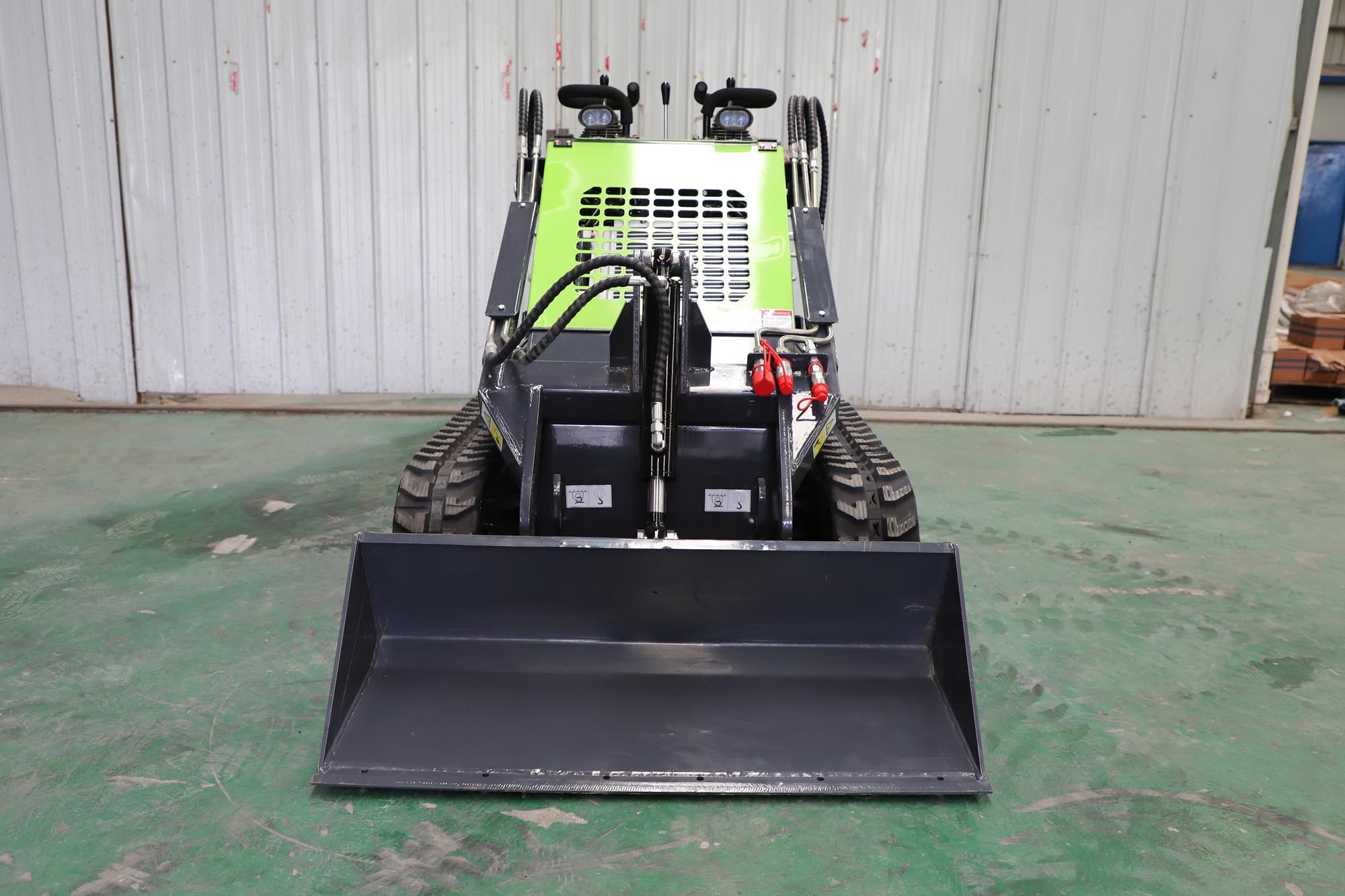

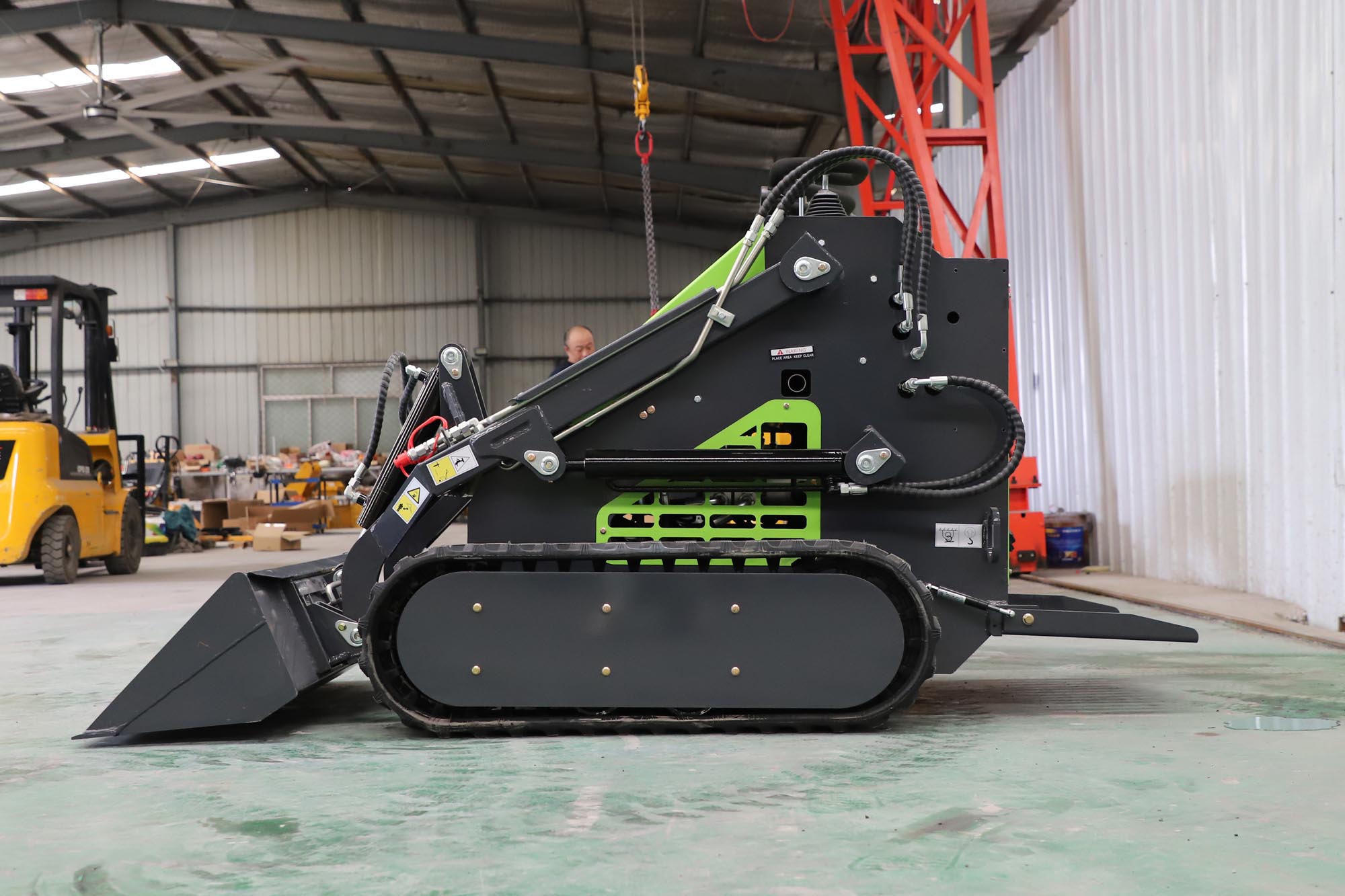

Chinese skid steer
Sturdy and durable - key components are made of high-strength materials and have been rigorously tested to ensure that the equipment can still operate stably under harsh working conditions.
Agile & Powerful: Compact size with robust performance for tight spaces
Multi-Functional: Quick-change attachments handle digging, lifting,sweeping, etc.
○Details：

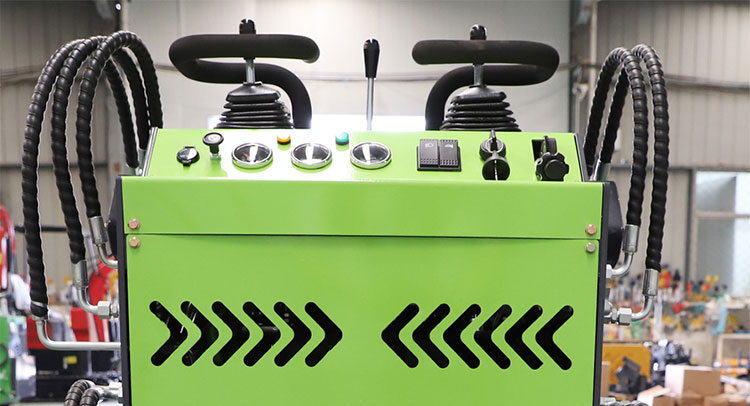

①【operating table】
The operating console is equipped with a "two-hand operation confirmation button". When starting the bucket, walking and other actions, both hands must be triggered at the same time to prevent one person from accidentally touching the handle and causing accidental movement of the equipment; it also integrates an "emergency stop button" (red mushroom head design, reach distance ≤30cm). In the event of an emergency (such as track jamming, ground collapse), the hydraulic and travel power can be instantly cut off, and the braking response time is ≤0.5 seconds.

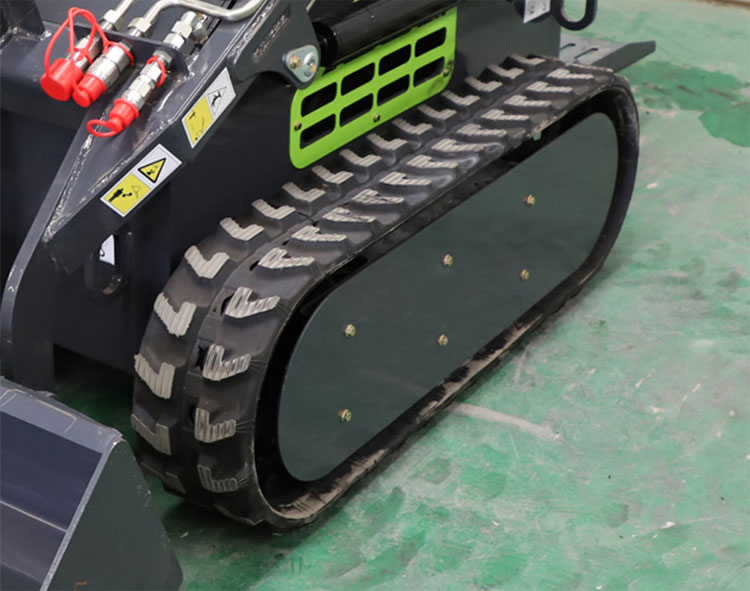

②【Track】
The skid steer loader crawler is designed with low ground pressure, strong ground adhesion and high structur
○Application scenarios：
al adaptability, making it perfect for soft and rugged scenes that wheeled models cannot handle.

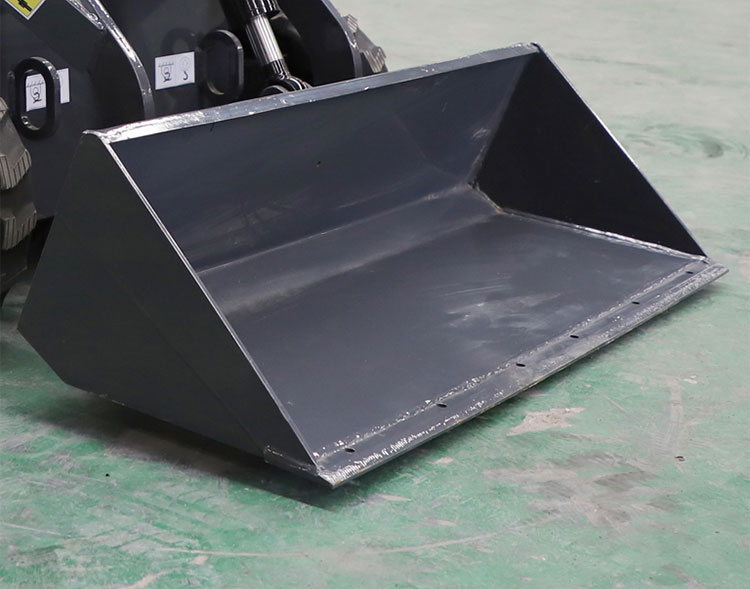

③【Bucket】
The crawler skid steer loader bucket is designed around the core advantages of crawler models: low ground pressure, high stability, and adaptability to rough/soft sites. It offers differentiated features in terms of operational adaptability, structural strength, functional flexibility, and efficiency matching.
○Parameter | |
Max working height | 2100 mm |
Max pin height | 1880 mm |
Max Dumping height | 1480mm |
Max Dumping distance | 430 mm |
Max Dumping Angle | 30° |
Rollback of bucket on ground | 25° |
Departure angle | 27° |
Total height | 1270mm |
Ground clearance | 110 mm |
Wheel base | 760 mm |
Overallength without bucket | 1782mm |
Total width | 810mm |
Bucket width | 1090 mm |
Total length with bucket | 2285 mm |
Turn radius forward turning | 1300 mm |
Overall length without the bucket after | 1570 mm |
folding the pedal | |
Engine | |
Rated Power (KW) | 18.2KW(23HP) |
Rotating speed (rpm) | 3600 |
Noise(Db) | ≤95 |
Hydraulic System | |
Pressure (Mpa) | 17 |
Working Time (s) | |
Raise | 4 |
Dump | 1.3 |
Lower | 3.2 |
Operating Load | 280 Kg |
Bucket Capacity | 0.13 m² |
Max Lifing Force | 458Kg |
Travel Speed | 0-5.5Km/h |
Operating Weight | 880 Kg |
○Application scenarios：
Orchard operations
Farmland operations
Municipal maintenance
Emergency rescue
Mine auxiliary operations
Construction waste recycling
