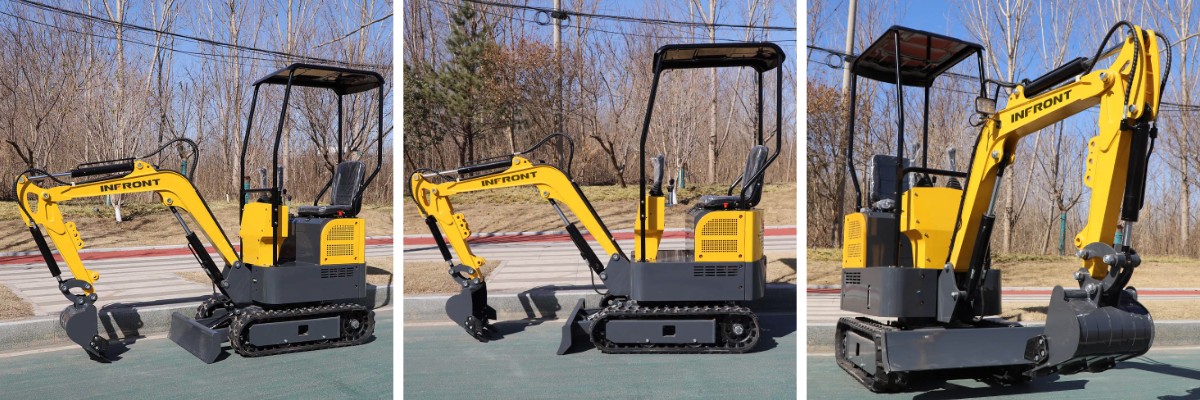

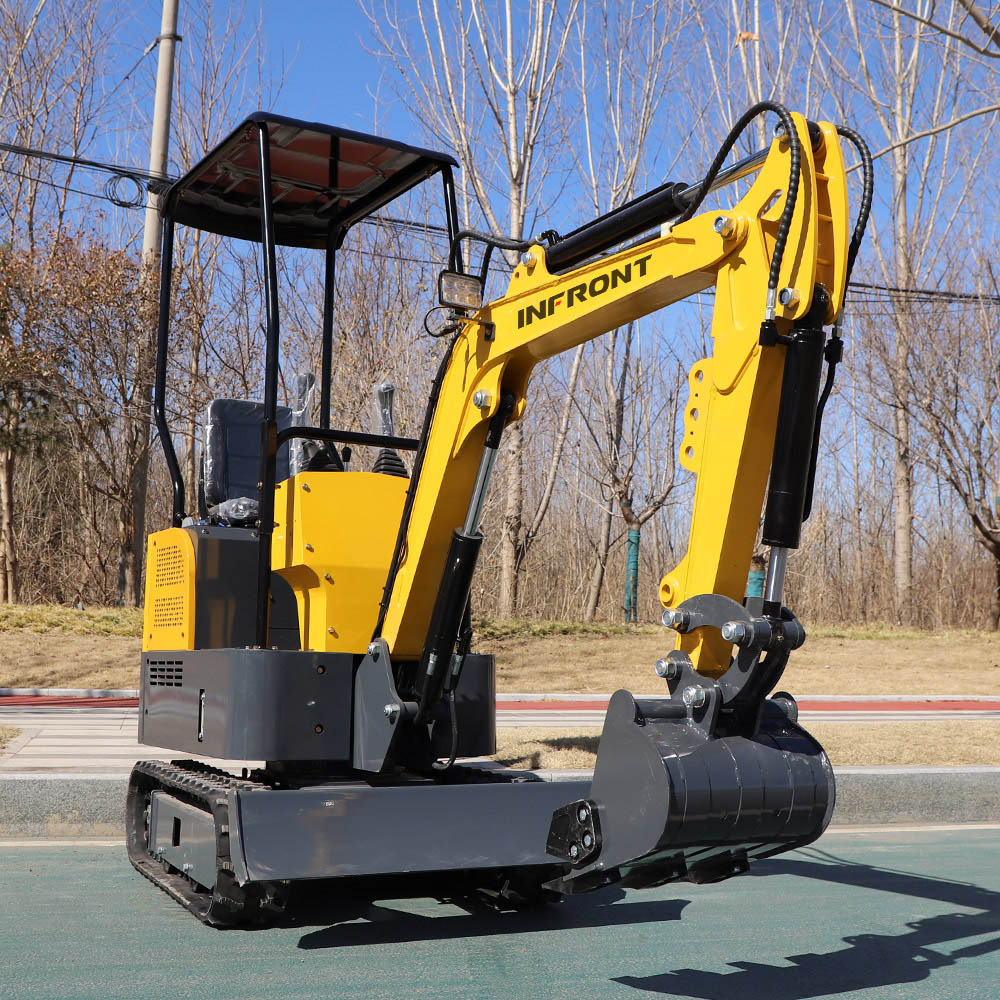

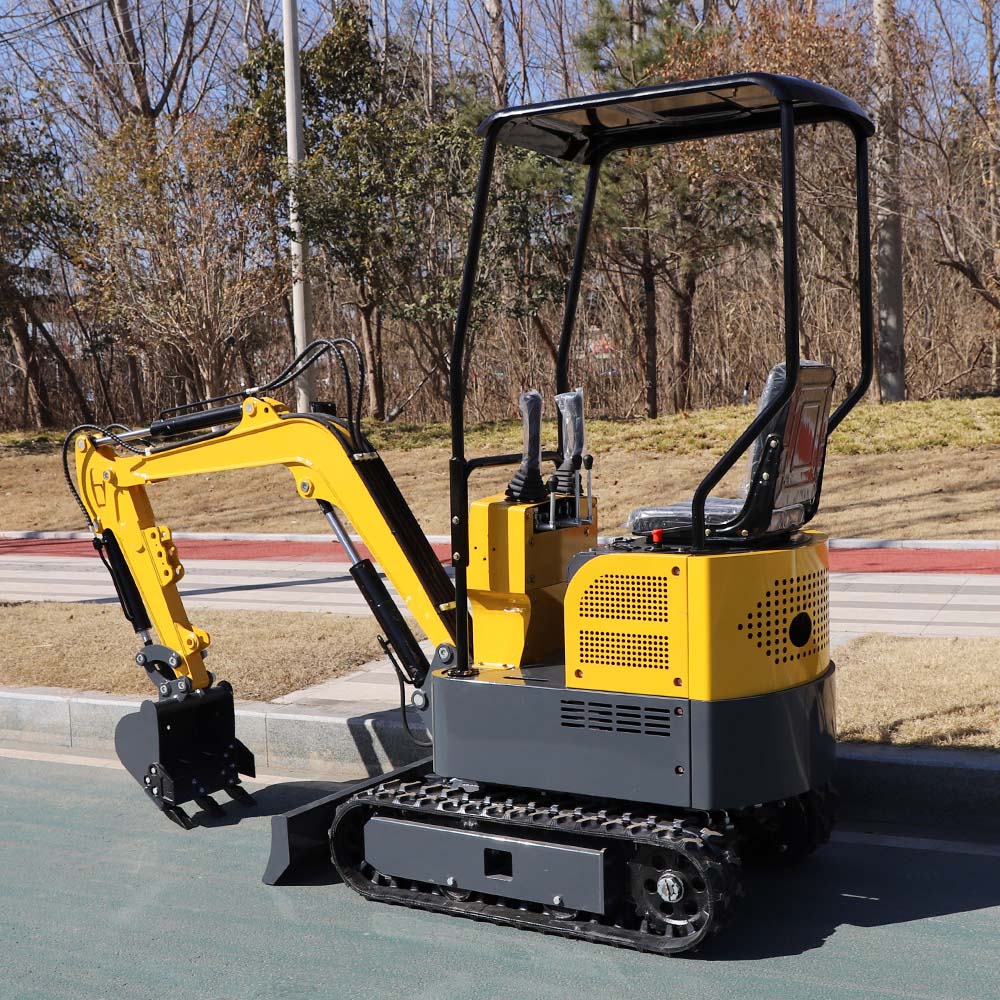

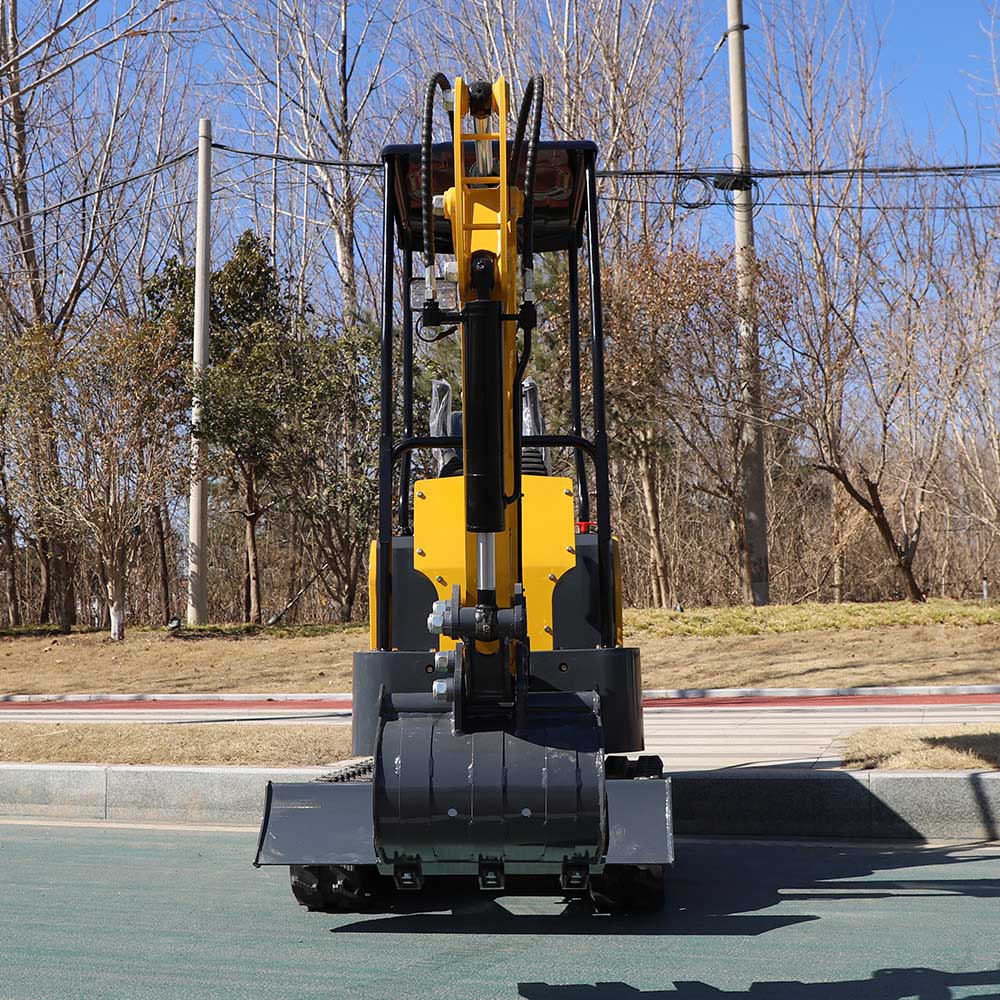

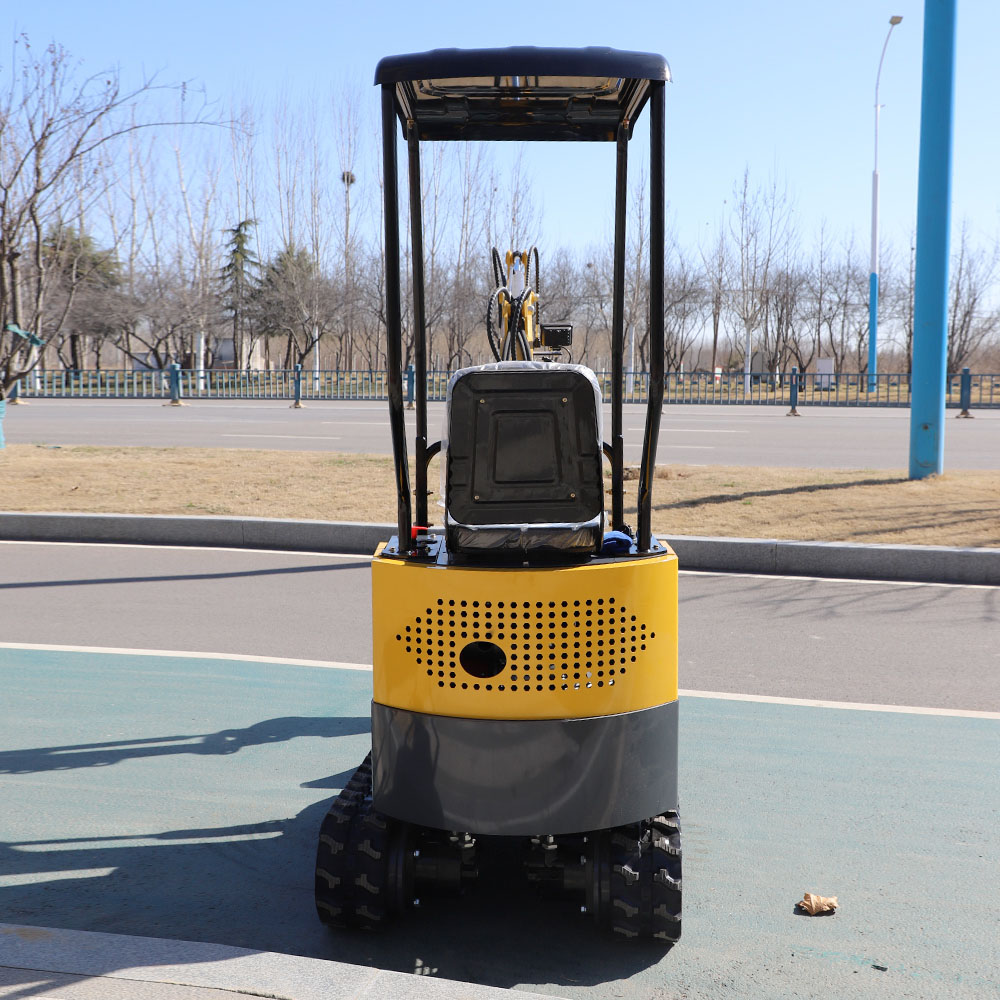

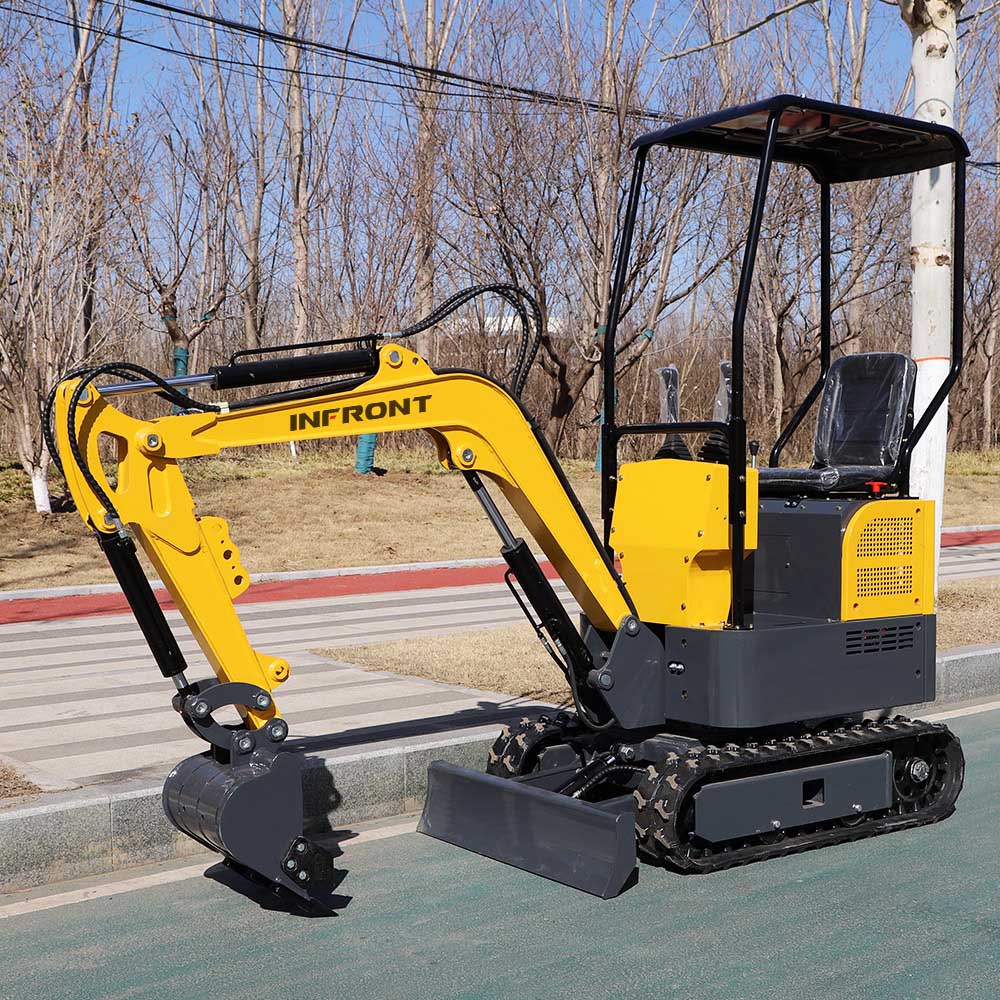

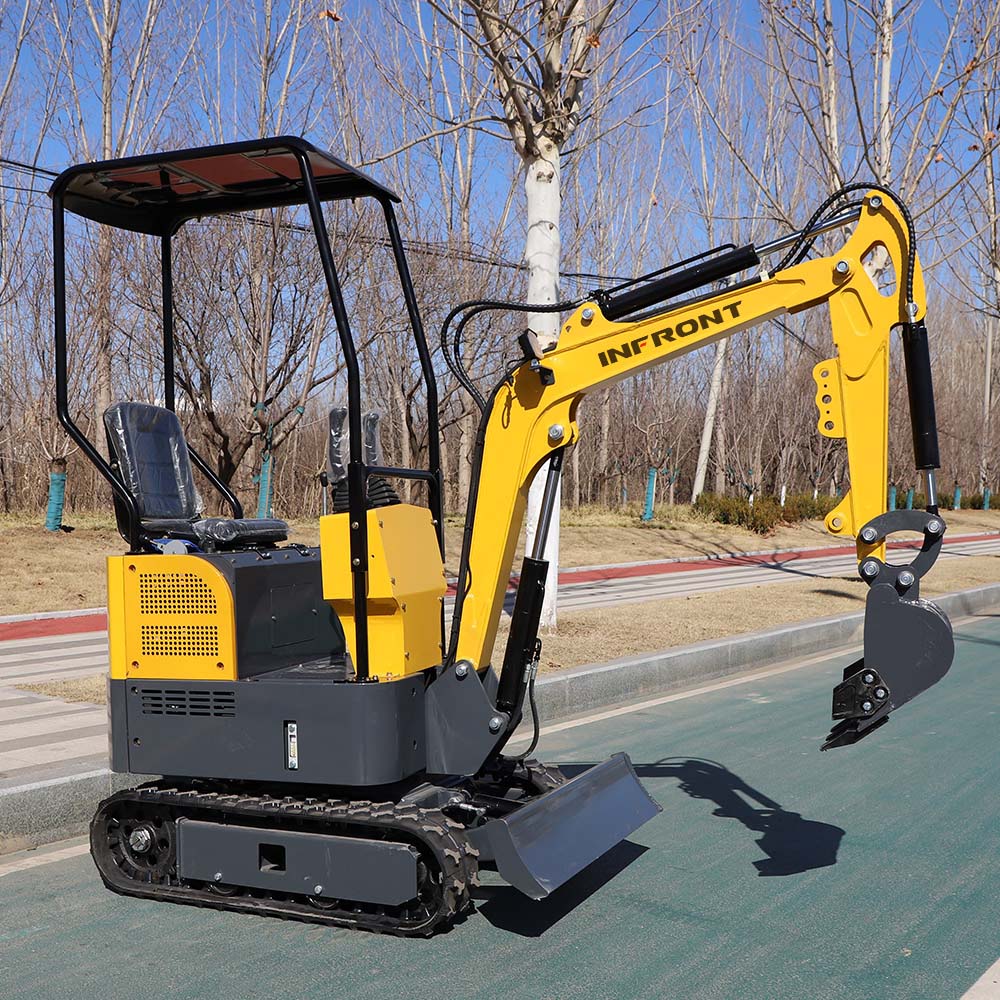

1.2 Ton Mini Excavator
1.2 Ton Mini Excavator features powerful engine, extended service life, low noise, low emissions, low fuel consumption, and easy maintenance. Its performance, noise level and emissions all comply with European standards. Different devices and functions can be customized according to your needs and requirements.
1.2 Ton Mini Excavator is a flexible, efficient and compact small hydraulic excavator.
Imported Yanmar engine, powerful and reliable performance. Meet to the china 3 emission standards, saving fuel 30% than last generation.

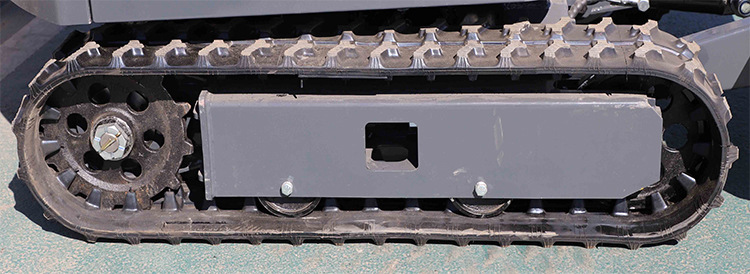

Import Germany Rexroth system3, stable performance. Equipped with reinforced walking device and famous tires.
The small excavator is convenient moving, fast travelling speed, Can be quickly disassembled when required.
In confined spaces like backyards, orchards, or indoor demolition projects, heavy machinery often proves ineffective. This 1.2 Ton Mini Excavator is designed for professionals seeking ultimate flexibility and powerful performance. Whether you need to clear ditches, level land, or perform heavy-duty demolition work, this 1.2 Ton Mini Excavator delivers surprisingly strong digging power within its compact 1.2-ton frame.
Key Selling Points
1. Ultra-narrow Design, Unafraid of Confined Spaces
This 1.2 Ton Mini Excavator features an optimized width, easily navigating narrow passages or doorways up to 1 meter wide. For urban landscaping, basement construction, and other similar scenarios, this 1.2 Ton Mini Excavator is the best choice for replacing manual labor and improving efficiency.
2. Powerful Engine, Meeting Stringent Standards
We've equipped this 1.2 Ton Mini Excavator with a power unit that meets [EPA/Euro 5] emission standards. Not only does it operate with extremely low noise, but it also boasts excellent fuel economy. High torque output ensures that this 1.2 Ton Mini Excavator maintains a stable digging rhythm even when facing hard soil or rocks.

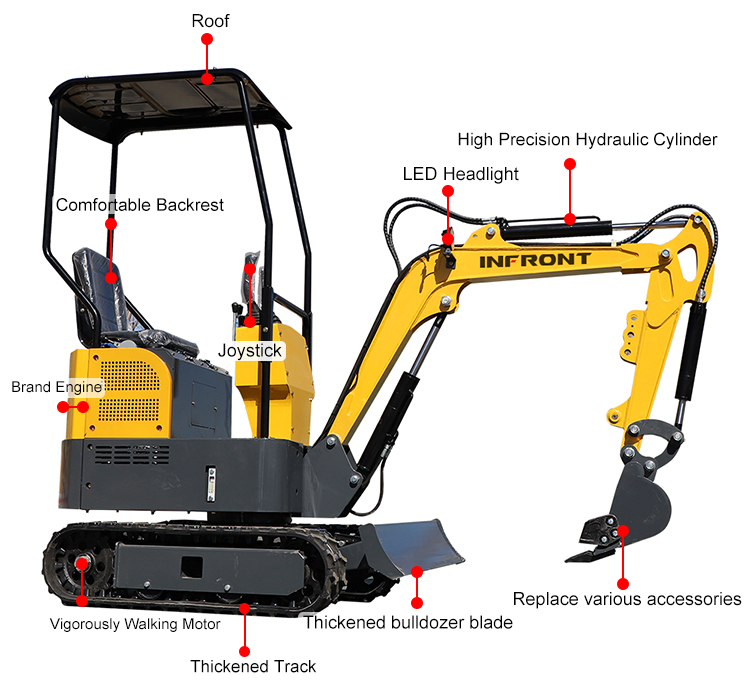

3. Robust Structure, Durable and Long-Lasting

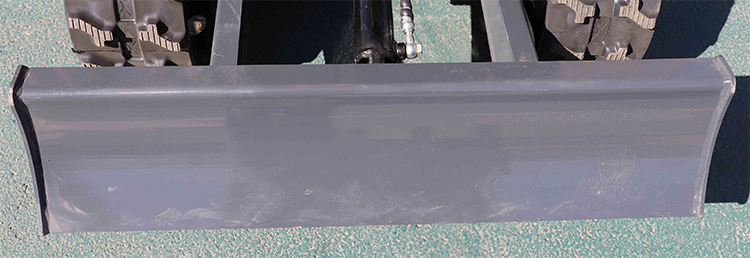

Although named the 1.2 Ton Mini Excavator, its materials are of the highest quality. Featuring a thickened bulldozer blade and reinforced boom, the hydraulic system has undergone tens of thousands of pressure tests to ensure no oil leaks or jamming under prolonged, high-load operation.
4. Versatile and Easily Accessorized
This 1.2 Ton Mini Excavator is more than just digging! You can quickly attach augers, hydraulic breakers, log grapples, or rakes. One 1.2 Ton Mini Excavator can cover everything from farm fencing installation to municipal road breaking.
Product Parameter
Engine(customized) | Yipu 192/KOOP (Euro 5 and Briggs & Stratton optional) |
Power | 8kw/7.6kw/13.5PH |
Hydraulic cylinder,pump,valve(cus tomized) | Warranty 1 years |
Bucket capacity | 0.03CBM |
Rotation speed | 11r/min |
Overall dimension(L*W*H) | 2870mm+950mm*2030mm/2285mm(with shed) |
Crawler groumding length | 1200mm |
Crawler width | 180mm |
Max digging height | 2580mm |
Max discharge height | 1745mm |
Max digging depth | 1700mm |
Max digging radius | 3030mm |
Mini turning radius | 1290mm |
Platform clearance to groumd | 370mm |
Swing angle | 360° |
Climbing gradient | 30° |
Bulldozer Max depth | 170mm |
Bulldozer Max raising height | 240mm |
Walking speed | 2.5km/h |
Bucket digging force | 11.5KN |
Hydraulic system press | 16MPa |
Application scenarios
Farms and Orchards: Equipped with an auger for quick drilling and fencing, or with a ripper to break up hardened soil, it's an efficient helper for fruit tree planting.
Municipal and Demolition: With a breaker attached, it can easily demolish concrete roads or interior walls; its compact 1.2-ton body allows it to fit into elevators and indoor spaces.
Landscape and Gardening: Use the grabber to move timber and stones, or a rake to clear surface weeds and gravel, creating exquisite gardens.
Pipeline and Trenching: With a narrow bucket, it can precisely dig trenches for fiber optic cables and water pipes, allowing the 1.2 Ton Mini Excavator to maneuver effortlessly in confined spaces.
Rapid Attachment Change: With quick-change couplings, attachments can be switched in under one minute, ensuring this 1.2 Ton Mini Excavator is always ready.
Site Analysis
Powerful force,long service life,low noise,low emision,low fuel consumption,easy maintenance. Performance,noise and emissions are up to European standards.Different devices and features are tailored to your needs and requirements.

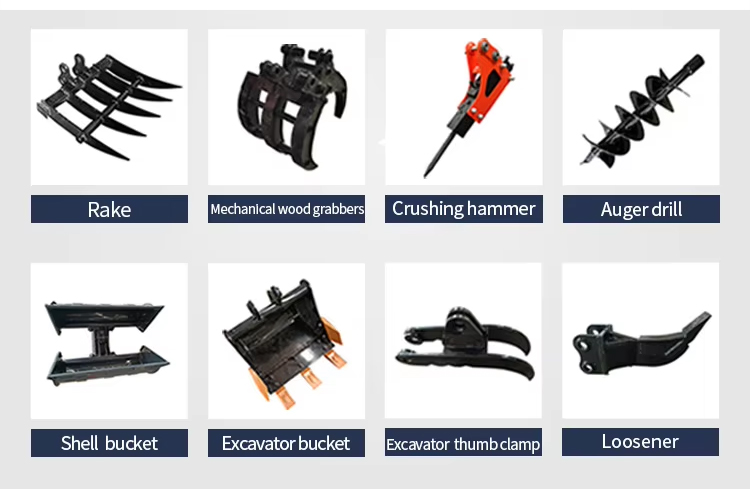

Product Accessories
(Versatility, one machine for multiple uses: Compact loaders are extremely versatile and can be equipped with a variety of attachments, such as buckets, forklifts, grapples, augers and brooms. This versatility enables them to handle a variety of tasks, from loading and transporting materials to landscaping and snow removal.)
Annual sales at home and abroad exceed 20,000 units, exported to all over the world, and widely praised! More than 1,000 professional sales and service personnel, more than 60 countries and regions, customer sales teams have been established.
