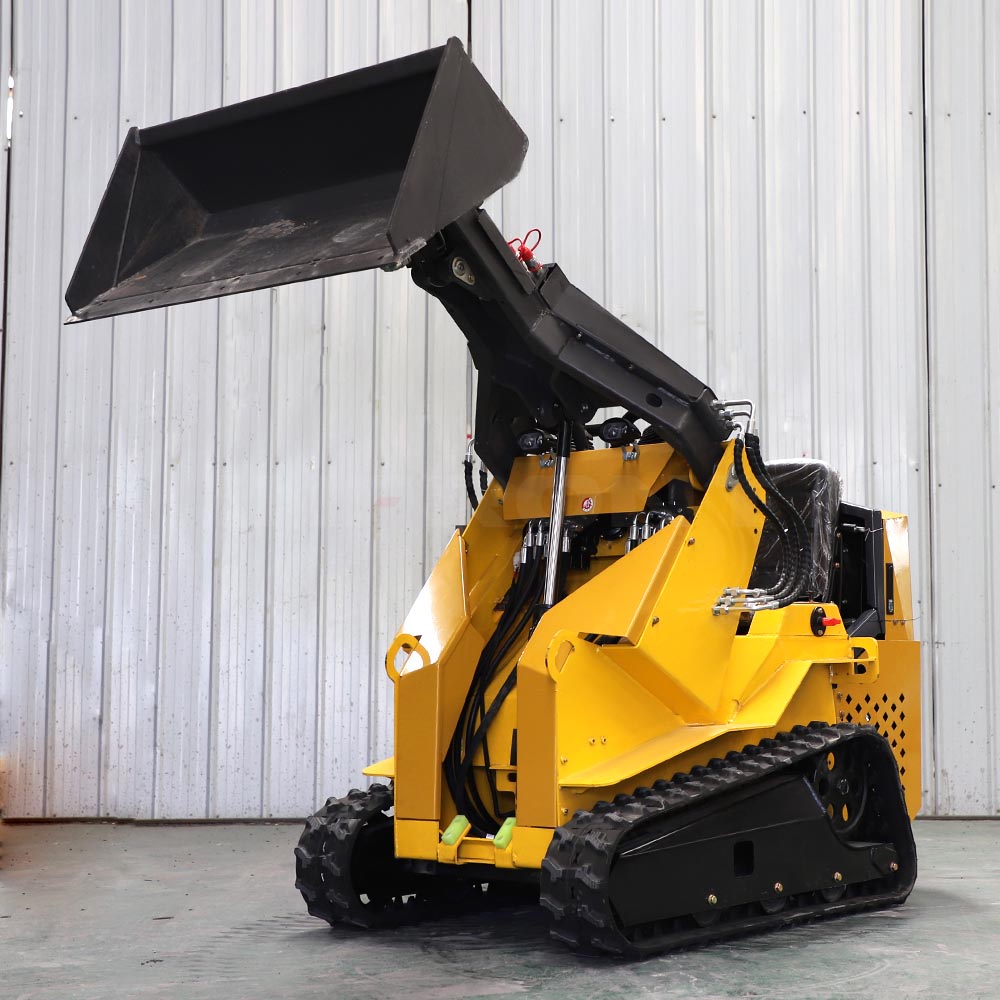

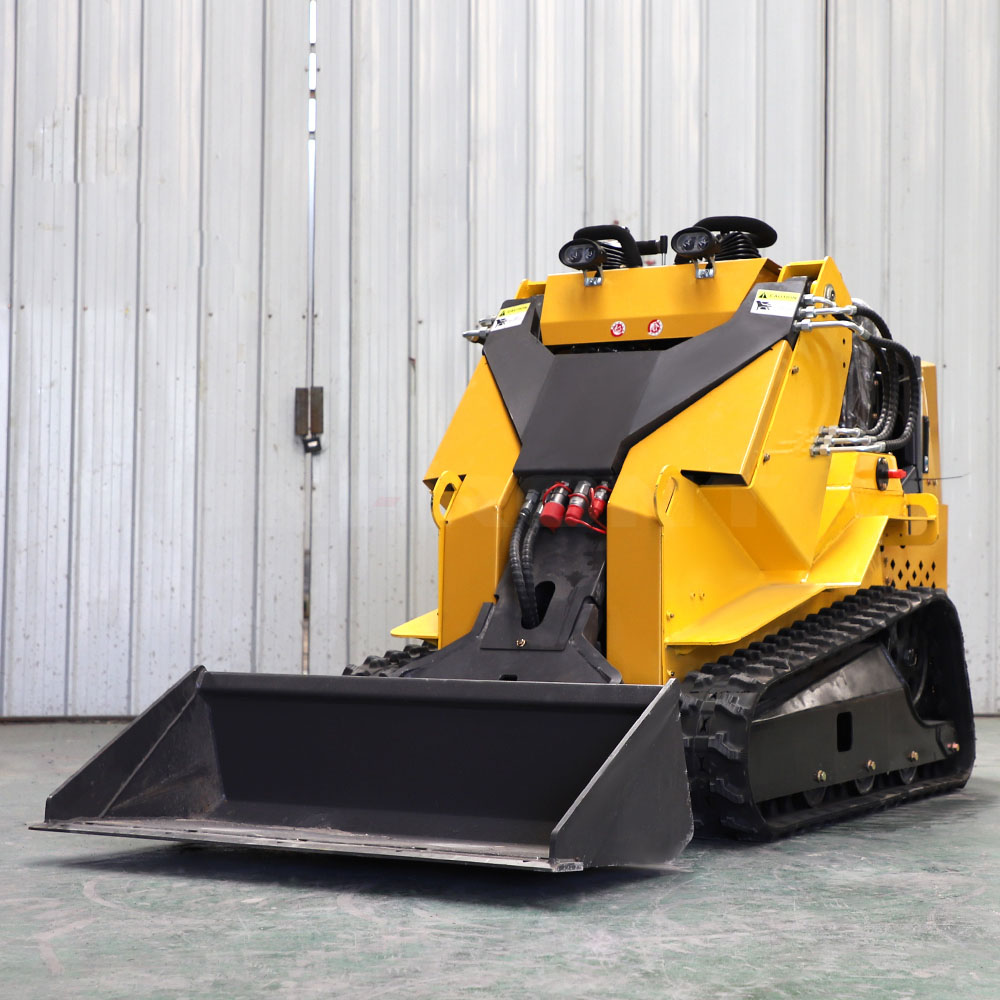

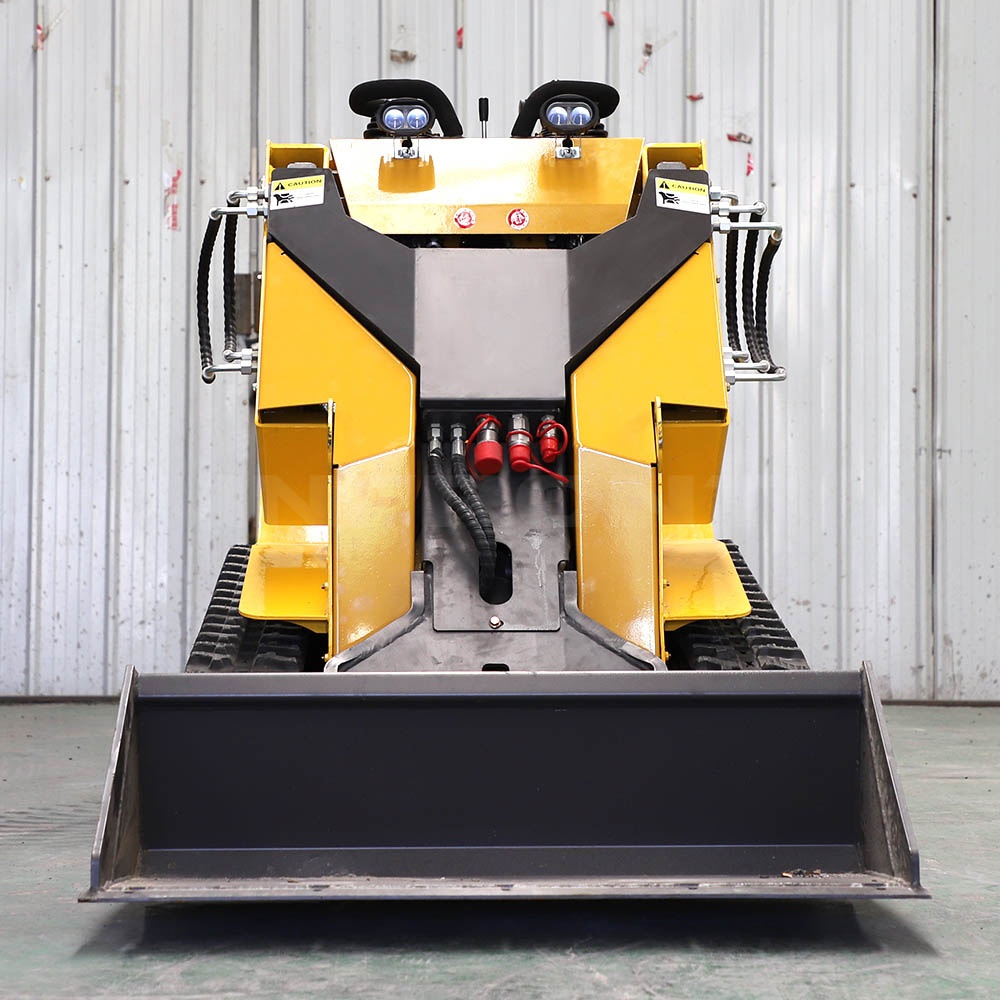

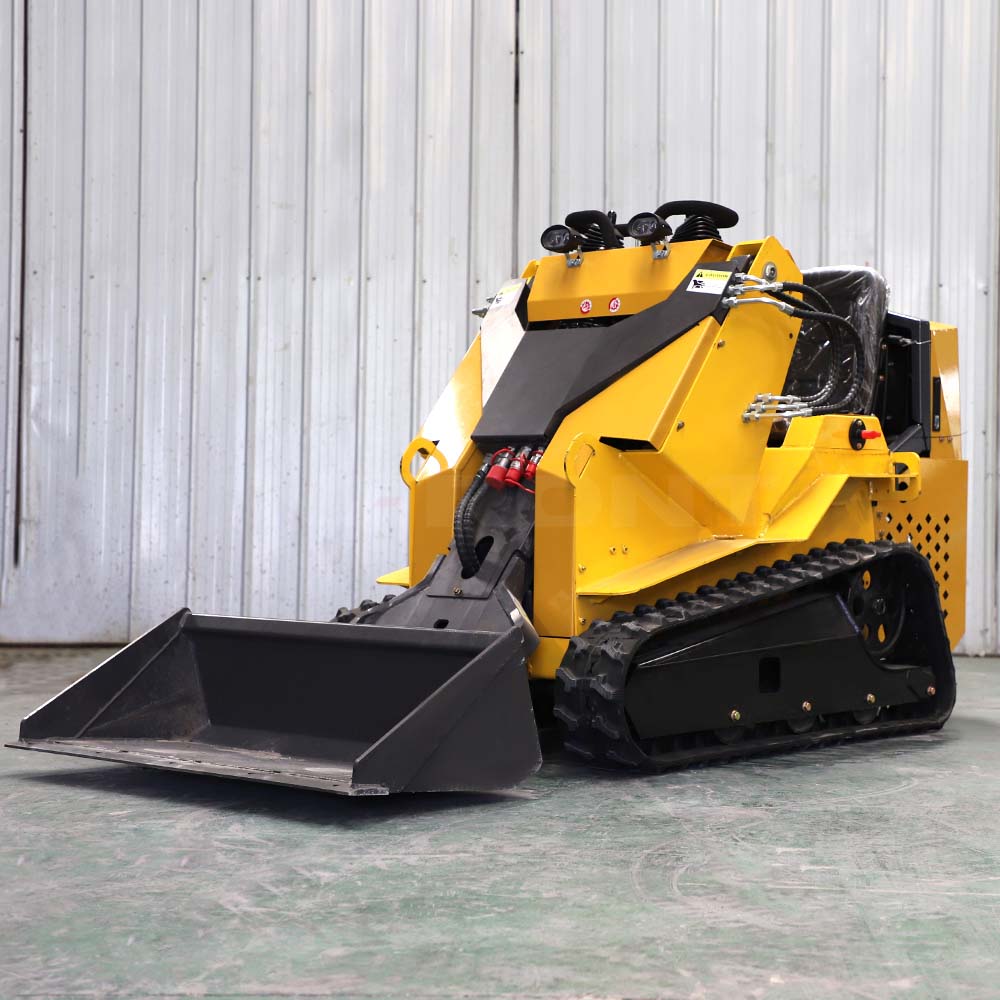

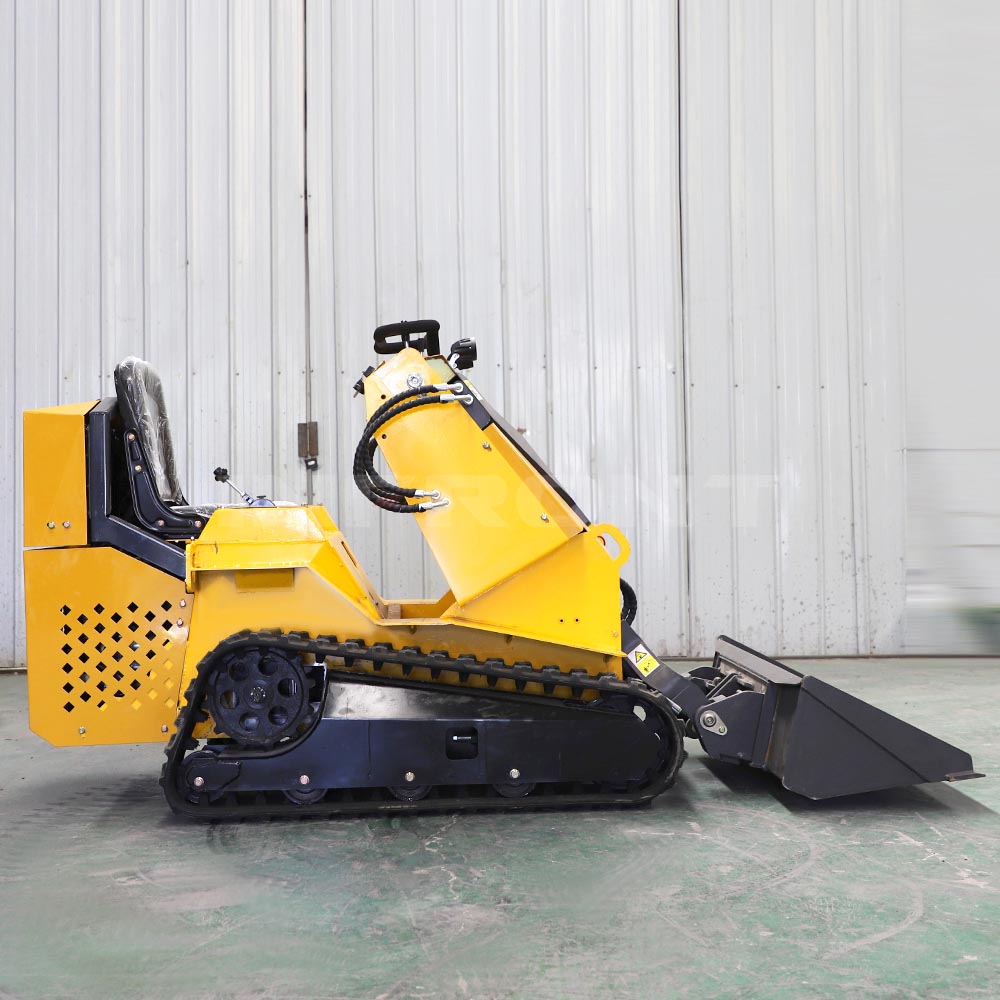

Mini Skid Steer Loader
1. Powerful Hydraulic Lifting Capacity
Our skid steer loader boasts remarkable operating efficiency. It supports flexible on-site steering, a core design that makes the machine exceptionally agile while working in narrow and confined spaces. Thanks to the universal modular structure, operators can quickly replace and attach various working devices within minutes to adapt to diverse construction and operation requirements. Both wheeled skid steer loaders and tracked skid steer loaders in our product line inherit this high-efficiency design, greatly improving the overall working progress for contractors and project teams.
Why Choose This Skid Steer Loader?
1. All-Terrain Capability
As a reliable tracked skid steer loaders model, this mini skid steer loader for Sale adopts heavy-duty high-strength rubber tracks and a scientific low ground pressure design. The well-designed running structure enables the whole skid steer loader to travel steadily on muddy wetlands, loose sandy terrain and soft lawn surfaces. It will not sink or slip during operation, and effectively avoids scratching or damaging the ground, delivering superior all-terrain adaptability for various complex working environments.
2. Ultra-Compact Size
Our compact skid steer loader boasts an ultra-compact body structure. It can flexibly pass through narrow gates, cramped side yards and narrow indoor passageways with ease. Compared with bulky traditional large loaders, this lightweight mini skid steer loaders can reach many restricted working areas that large machinery cannot access. It is undoubtedly the ideal equipment for space-limited construction and maintenance scenarios.
3. Multi-Functional Attachment Center
This mini skid steer loader for sale comes with a universal standard quick-change interface, a classic configuration of professional skid steer loader. Users can conveniently install and replace dozens of different functional attachments. Optional accessories include 4-in-1 buckets, rotary tillers, forklifts and crushers. With rich expandable functions, the machine realizes multi-purpose operation and becomes a highly versatile piece of engineering equipment.
4. Comfortable Standing Operation
This series of tracked skid steer loaders is fitted with a rear standing operating platform. Matched with humanized ergonomic control handles, the layout brings a broad field of vision and simple operation experience. Operators can maintain a comfortable posture while working, which greatly relieves physical fatigue even during long-hour continuous work.
Details：

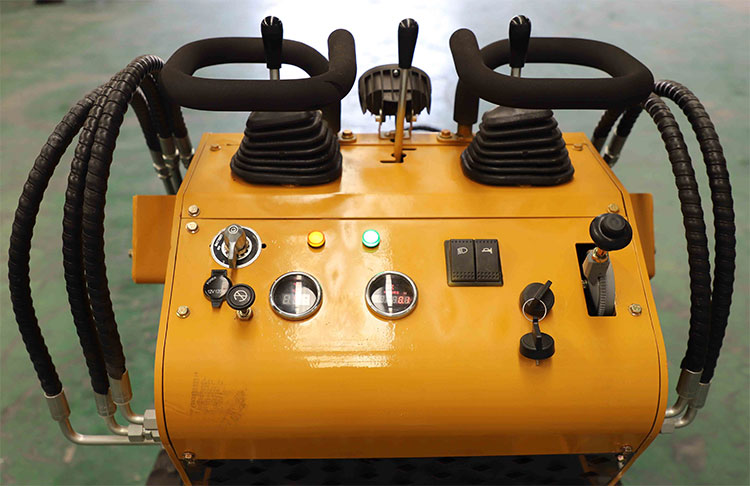

1. Console
LED light, USB interface Fuel quantity and time display
safety indication
2. Triangular crawler
Strong bearing capacity, suitable for all terrains

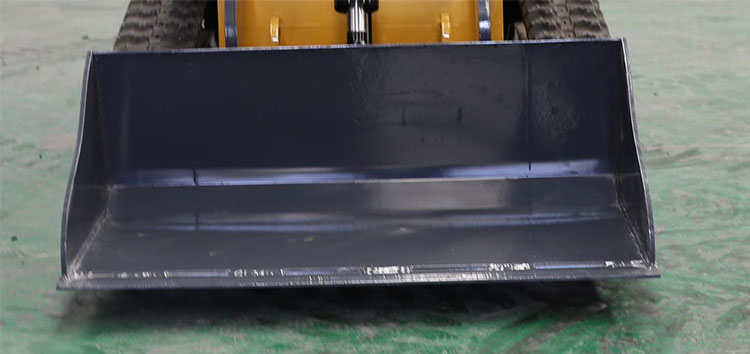

3. Bucket
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
○Parameter | |
Rated Load Capacity | 238 kg |
Bucket Volume | 0.13 m3 |
Maximum Lifting Force | 600 kg |
Speed of Work | 0-4.2 km/h |
Preset Pressure | 18.5 Mpa |
Lifting time | 47 s |
Fall Time | 32s |
Tipping Time | 4.6s |
Gradeability | 30% |
Working Weight | 755-780kg |
Engine | Briggs & Stratton/RATO/KOOP |
Type | Petrol / diesel |
Output Power | 13.5HP/15HP/11.7HP |
Fuel Consumption | ≤3.8, <4.2, ≤2.3 |
Star Mode | Electric Start |
Fuel Tank | 6.6L,6.7L, 5.5L |
Engine oil | 1.1L, 1.1L, 1.6L |
Hydraulic Tank | 23L |

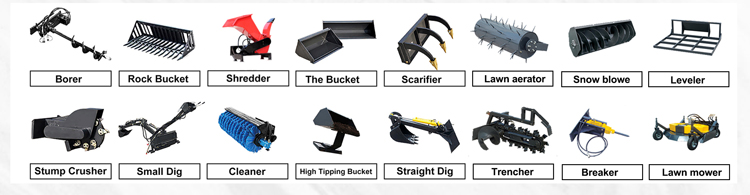

Versatile Attachments: Turn Your Mini Skid Steer Loader into an "All-Around Money-Making Tool"
1. Construction & Demolition
Hydraulic Breaker: Powerfully demolishes concrete floors, walls, and hard rock.
Auger: Quickly drills precise tree pits or fence post holes.
Trencher: Efficiently excavates trenches for pipelines, making laying fiber optic cables and water pipes easier.
Ripper: Breaks up hardened soil and gravel surfaces.
2. Landscaping & Leveling
4-in-1 Bucket: Combines loading, bulldozing, clamping, and leveling in one unit.
Leveller: Smooths the land like an "ironer," an essential tool before laying lawns.
Sweeper: Quickly removes road dust, snow, and construction debris.
3. Lawn Mower: Provides incredibly efficient large-area trimming of weeds and shrubs, clearing wasteland.
4. Material Handling:
Forklift: Precisely moves pallets, stone, or building materials like a forklift.
Grapple: Easily grabs and stacks logs, branches, or irregular scrap materials.
Snow Blade: A winter snow removal essential, ensuring unobstructed roads.
5.Precision Digging:
Backhoe: Enables skid steer loaders to function as mini excavators, precisely digging holes.
Standard Bucket: Meets daily bulk loading and transfer needs.
○Application scenarios：Factory basements; roadbed construction; urban sidewalks; floods and earthquakes; waste disposal stations; muddy fields
