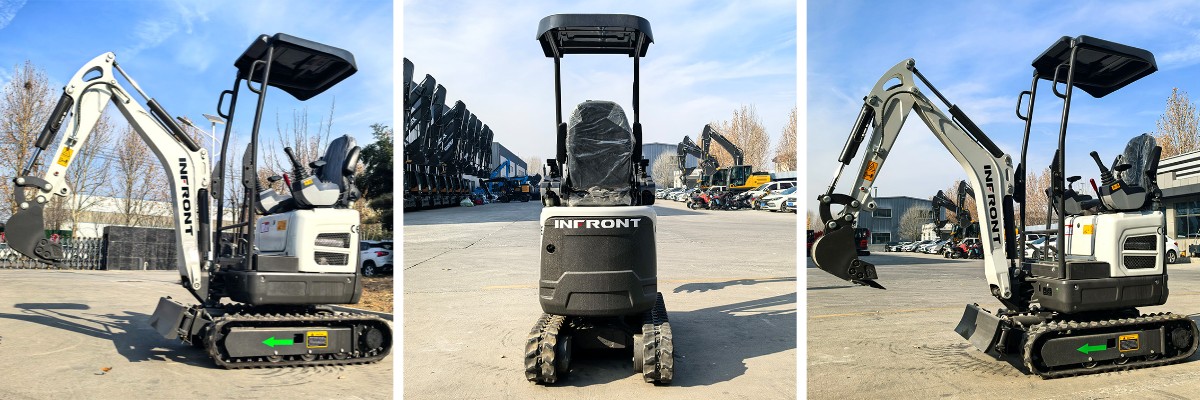

Mini Excavator 1.2 Ton

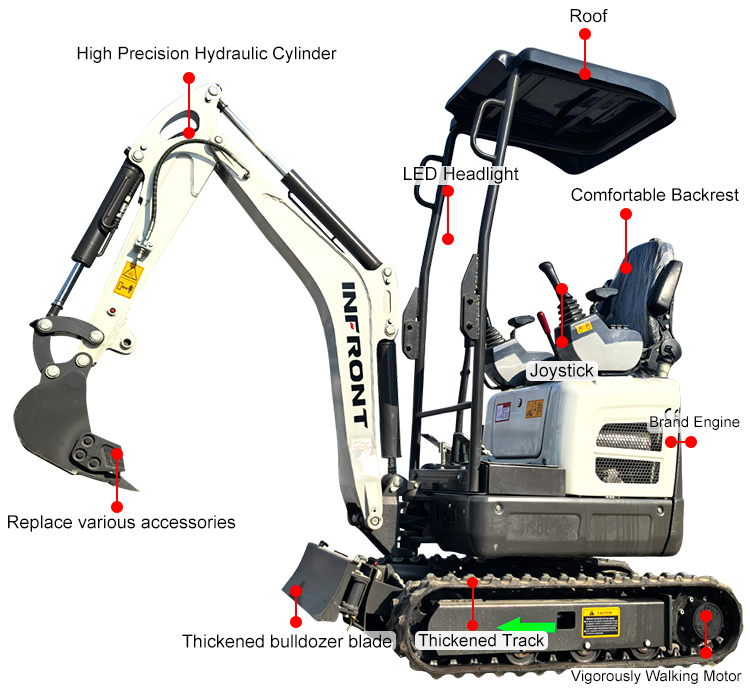

Machine Features
Powerful force, long service life, low noise, low emission, low fuel consumption, easy maintenance.Performance, noise and emissions are up to European standards.Different devices and features are tailored to your needs and requirements.
Imported Yanmar engine, powerful and reliable performance. Meet to the china 3 emission standards, saving fuel 30% than last generation.
Import Germany Rexroth system3, stable performance. Equipped with reinforced walking device and famous tires.
The small excavator is convenient moving, fast travelling speed, Can be quickly disassembled when required.
Product Details

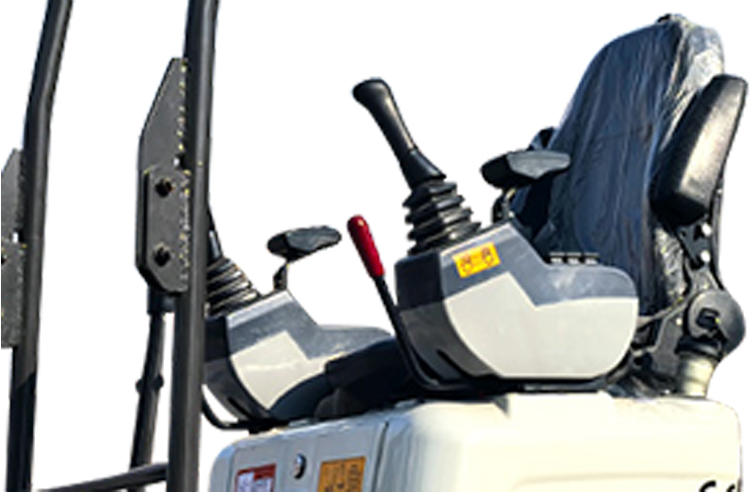

High end seats Spacious and comfortable, ergonomically designed with an auxiliary control lever.

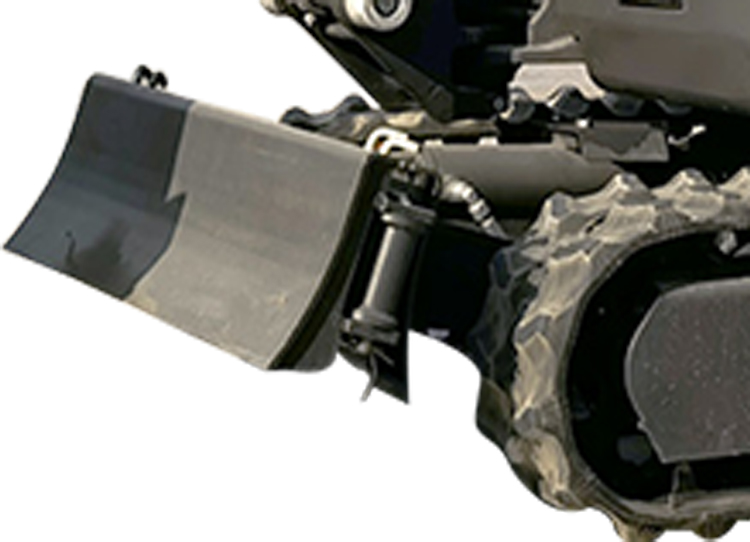

Bulldozer shovel Thick, high quality, and long service life.Suitable for leveling the site, stacking materials, and
backfilling operations. Stabilizing the body during climbing/uphill/ lifting/spinning Is safer.

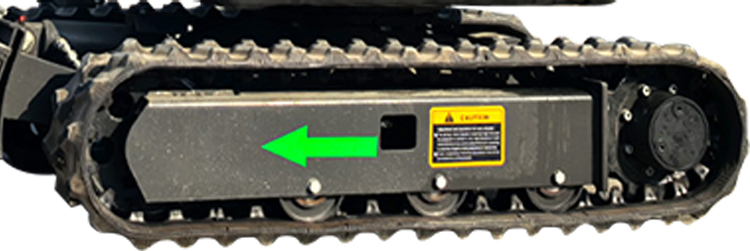

Rubber track
Lightweight, low vibration, strong adhesion, good adaptability, and does not damage the road surface.
Product Parameter
Engine(customized) | Yipu 192/KOOP (Euro 5 and Briggs & Stratton optional) |
Power | 8kw/7.6kw/13.5PH |
Hydraulic cylinder,pump,valve(cus tomized) | Warranty 1 years |
Bucket capacity | 0.03CBM |
Rotation speed | 11r/min |
Overall dimension(L*W*H) | 2870mm+950mm*2030mm/2285mm(with shed) |
Crawler groumding length | 1200mm |
Crawler width | 180mm |
Max digging height | 2580mm |
Max discharge height | 1745mm |
Max digging depth | 1700mm |
Max digging radius | 3030mm |
Mini turning radius | 1290mm |
Platform clearance to groumd | 370mm |
Swing angle | 360° |
Climbing gradient | 30° |
Bulldozer Max depth | 170mm |
Bulldozer Max raising height | 240mm |
Walking speed | 2.5km/h |
Bucket digging force | 11.5KN |
Hydraulic system press | 16MPa |
Application scenarios
Site Analysis
Optional functions such as cab, air conditioning, rocker arm, tracks, and telescopic tracks can quickly improve work efficiency.

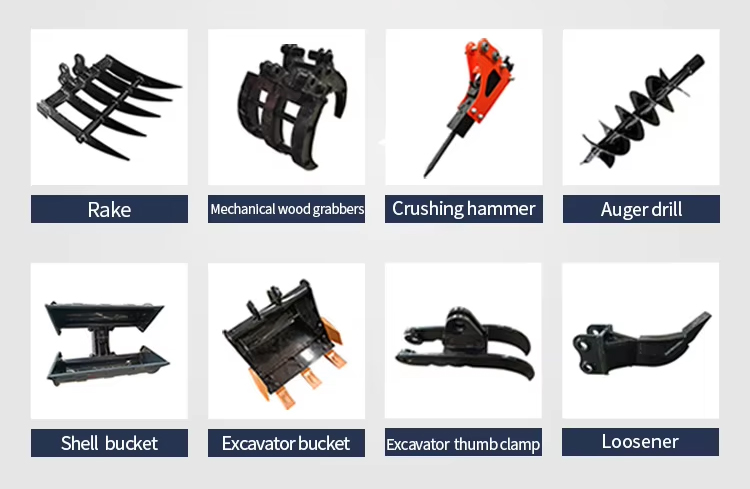

Multiple assistive devices,Support customization
All accessories are available for purchase here. For versatile operation, use our quick couplers (quick connectors) to add drills, hammers, trailers, 20cm/100cm buckets, rakes, clamps, wood clamps, and more.
We are a small machinery manufacturer in China, SGS certified, and a strong and reliable company. You can choose any type of excavator, mower, loader, forklift, or other equipment you require, and we support a variety of customization options. We look forward to working with you.
