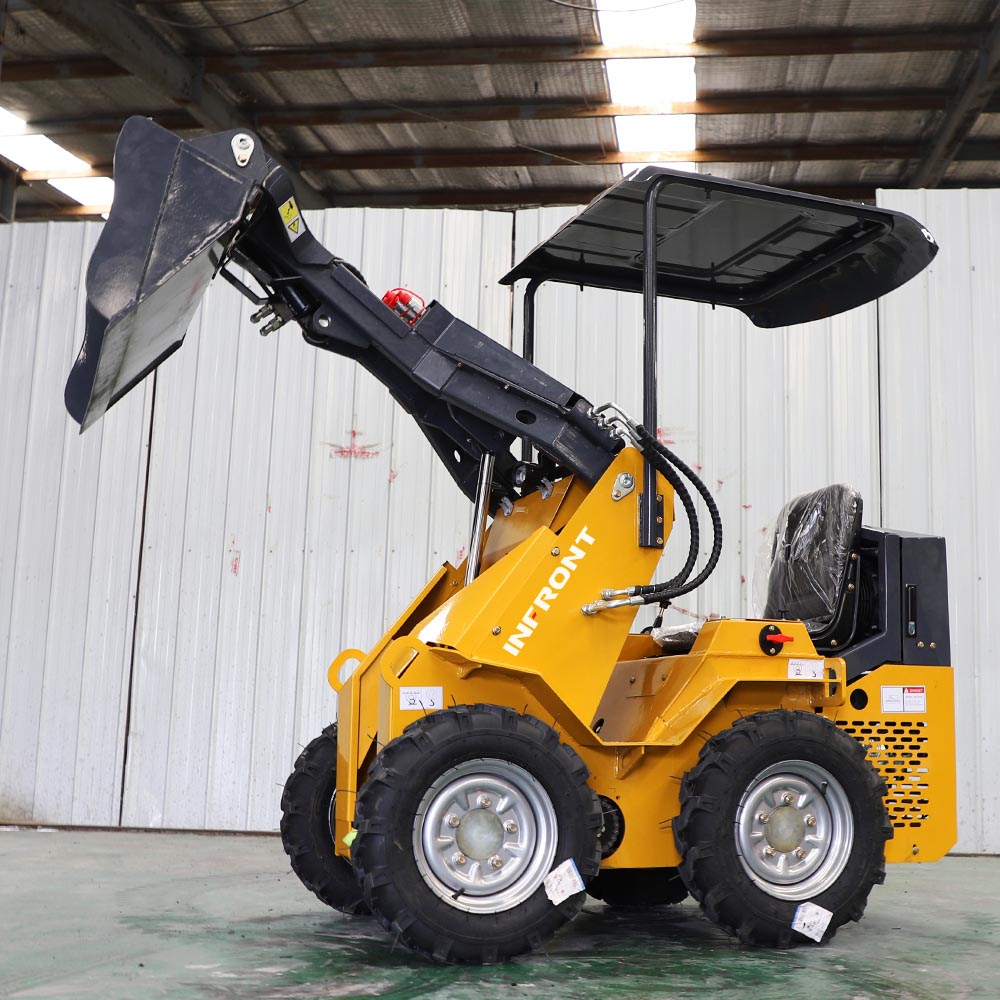

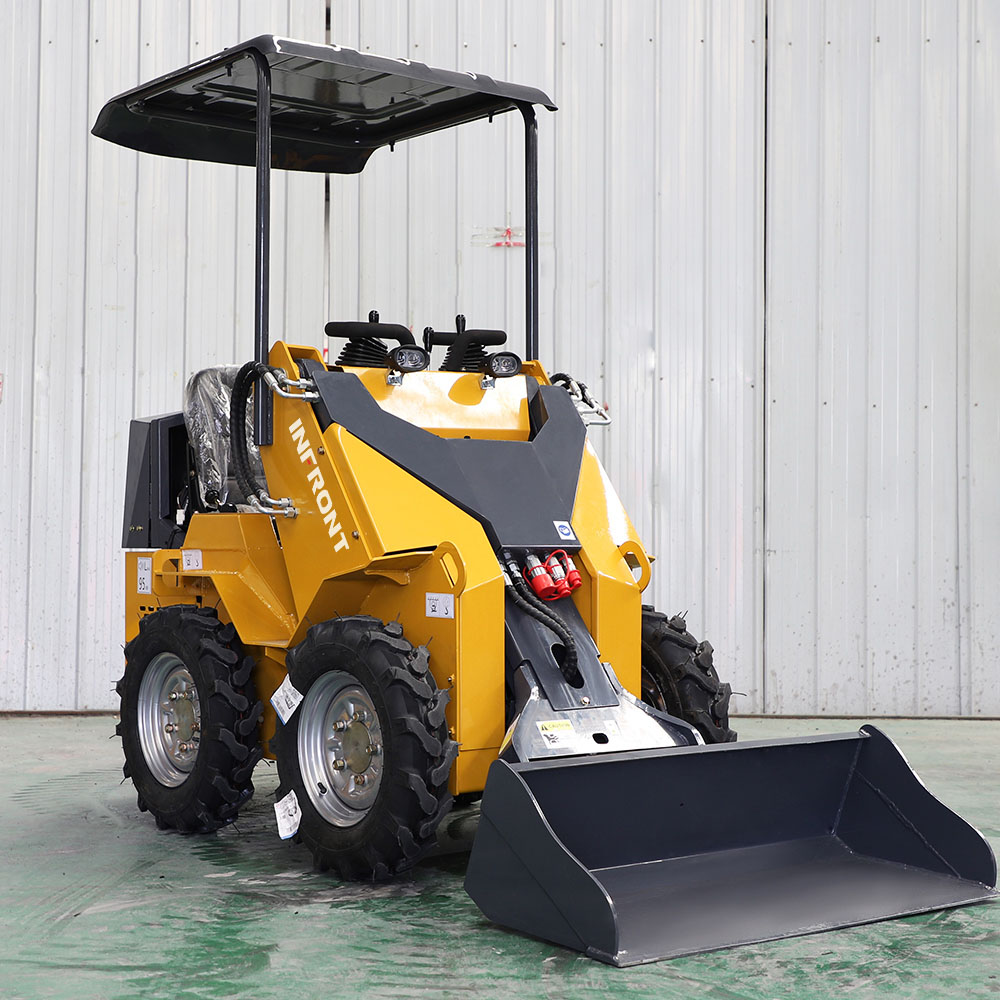

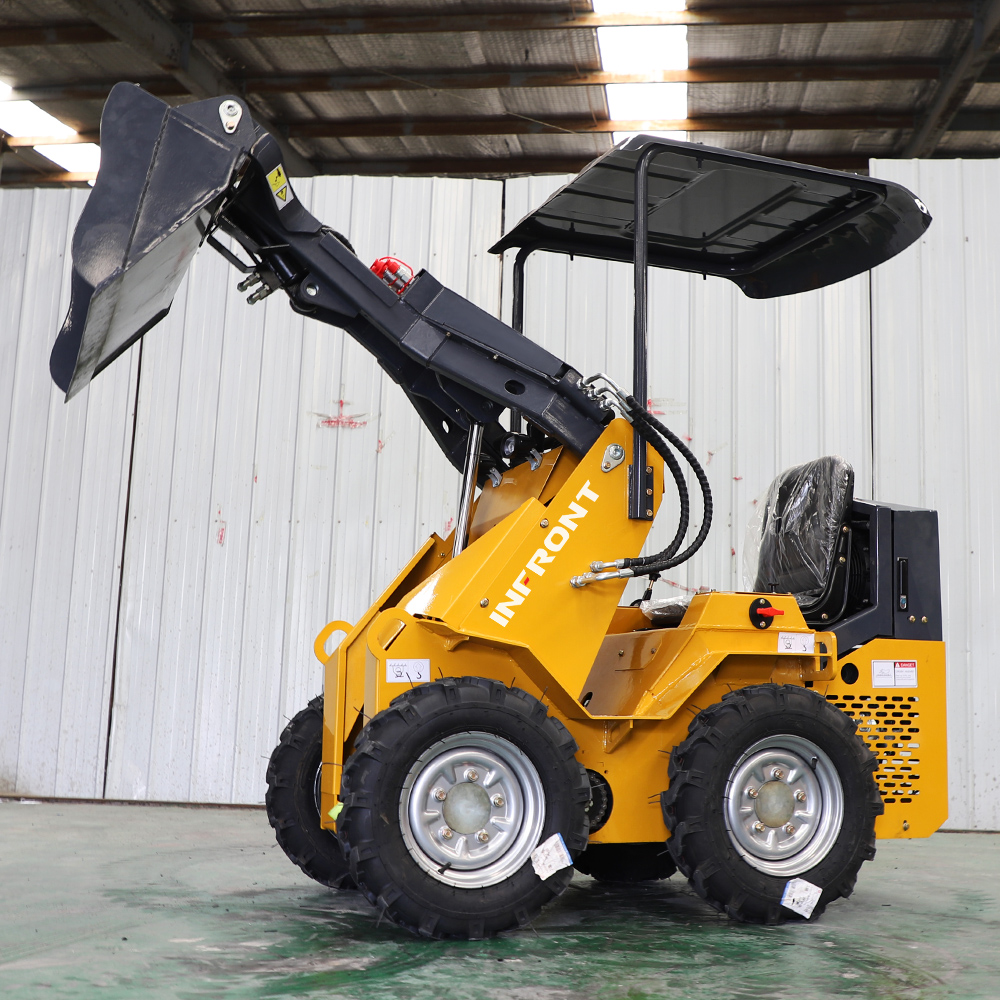

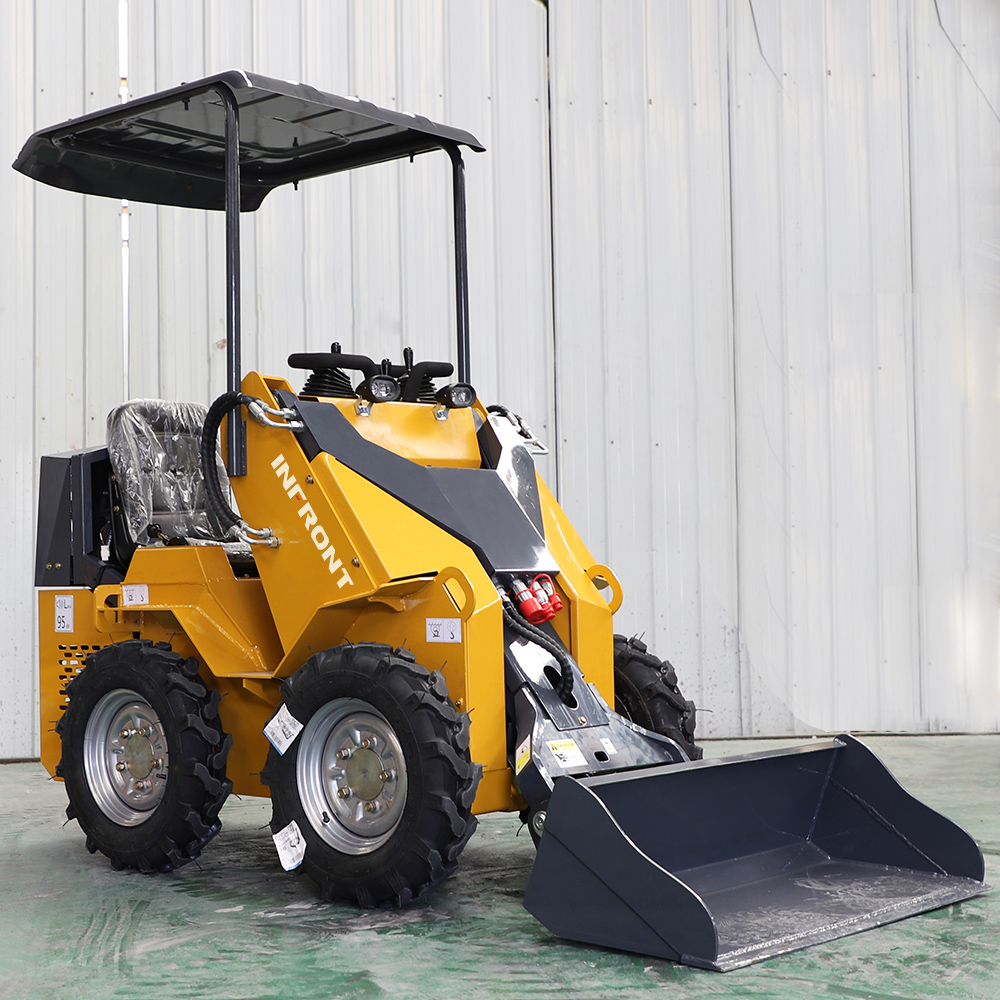

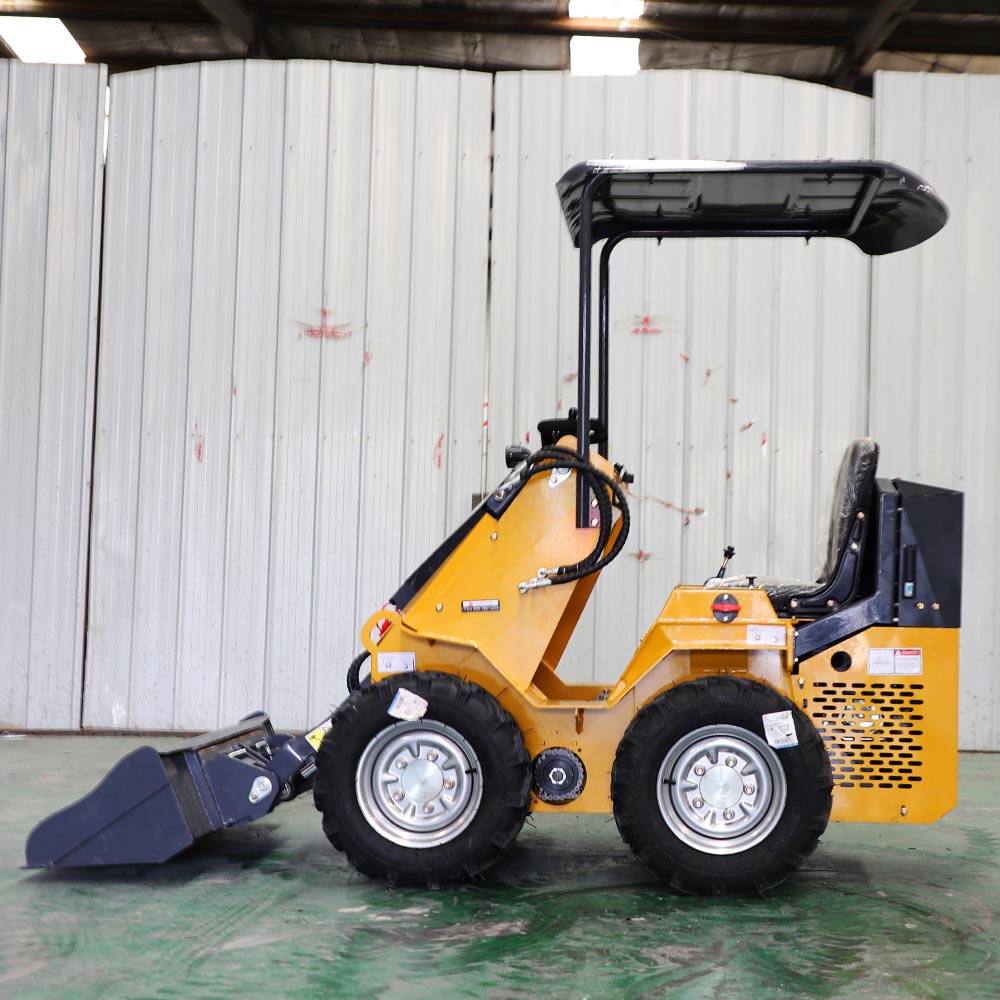

Quick attach for skid steer
Low Ground Pressure: Small loaders exert less ground pressure than larger machines, which can be beneficial for working on sensitive surfaces or soft ground conditions without causing damage.
Agile & Powerful: Compact size with robust performance for tight spaces
Multi-Functional: Quick-change attachments handle digging,lifting, sweeping,etc.
All-Terrain Ready: Enhanced traction for rough/sloped surfaces
Operator-Friendly: Intuitive controls with excellent visibility
Low Maintenance: Durable construction with easy service access
Perfect for construction,landscaping, agriculture,and industrial tasks.
○Details：

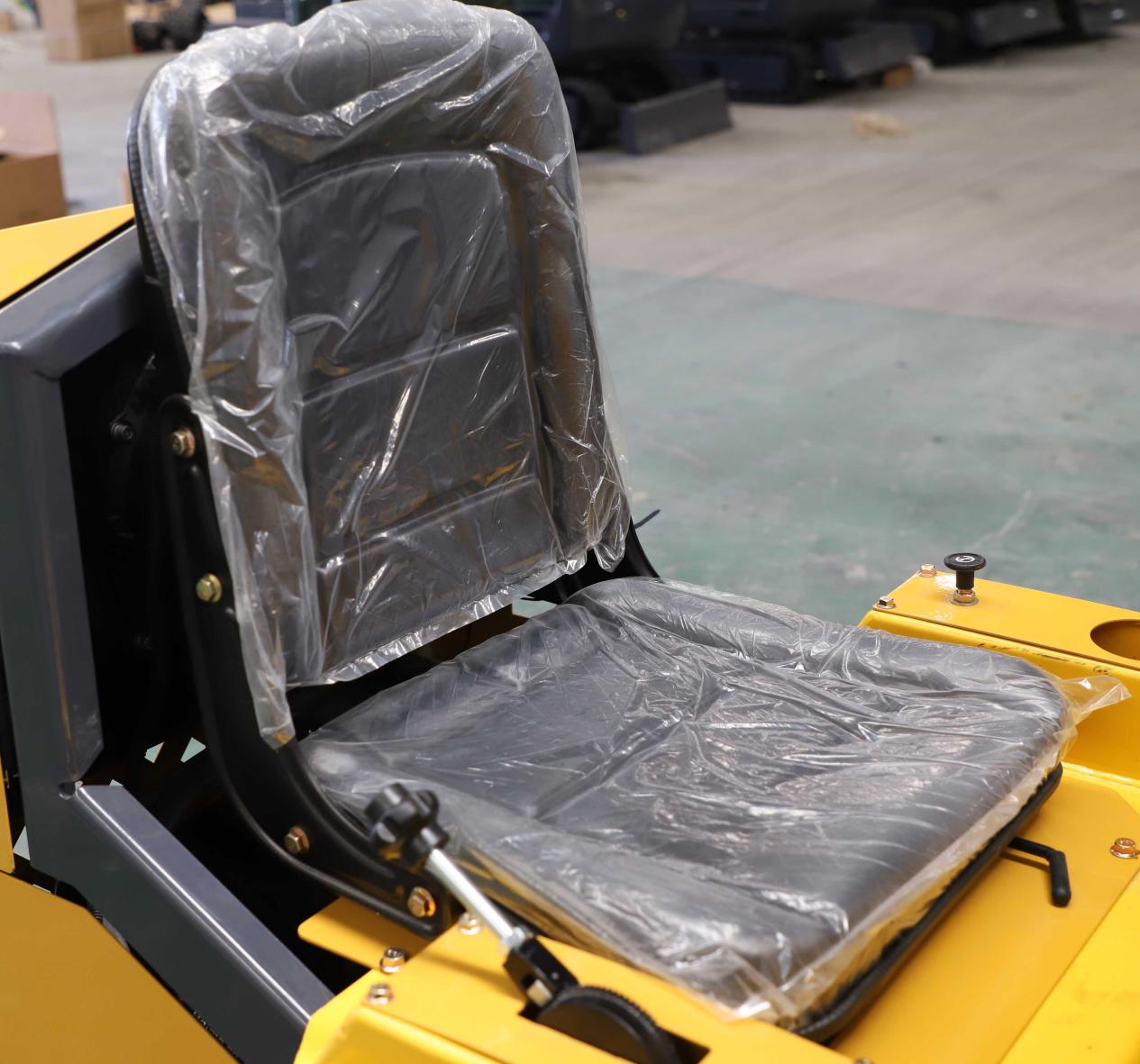

①【Comfortable Backrest】
High end seats Spacious and comfortable,
ergonomically designed with an auxiliary control lever.

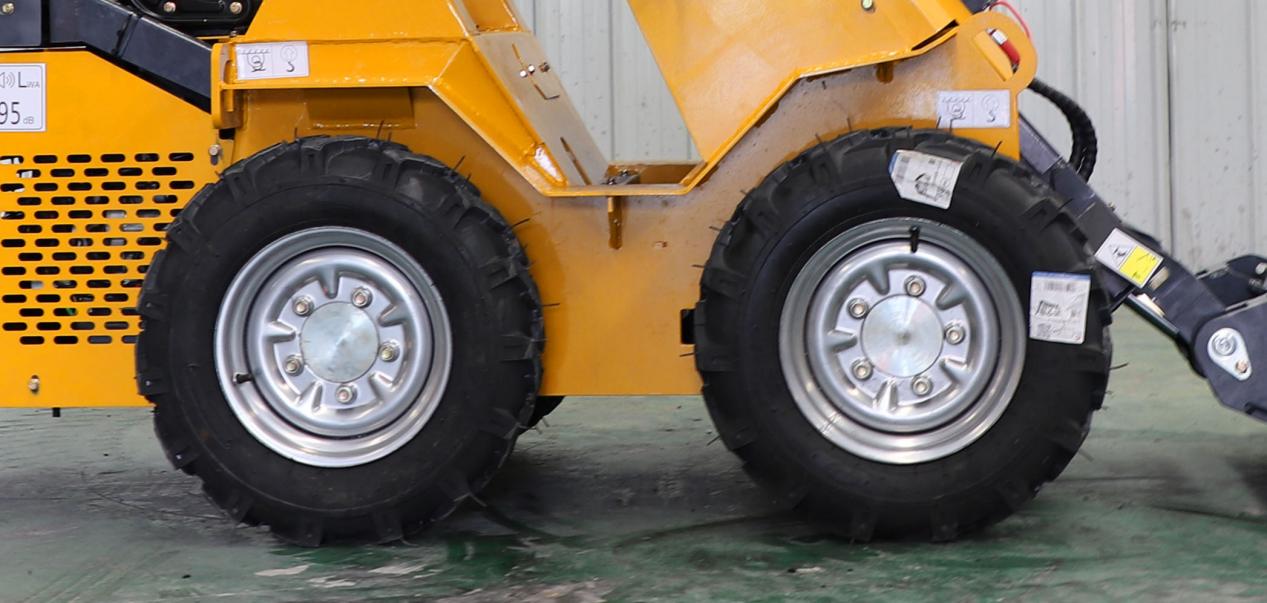

②【Solid Tire】
Strong bearing capacity, suitable for all terrains

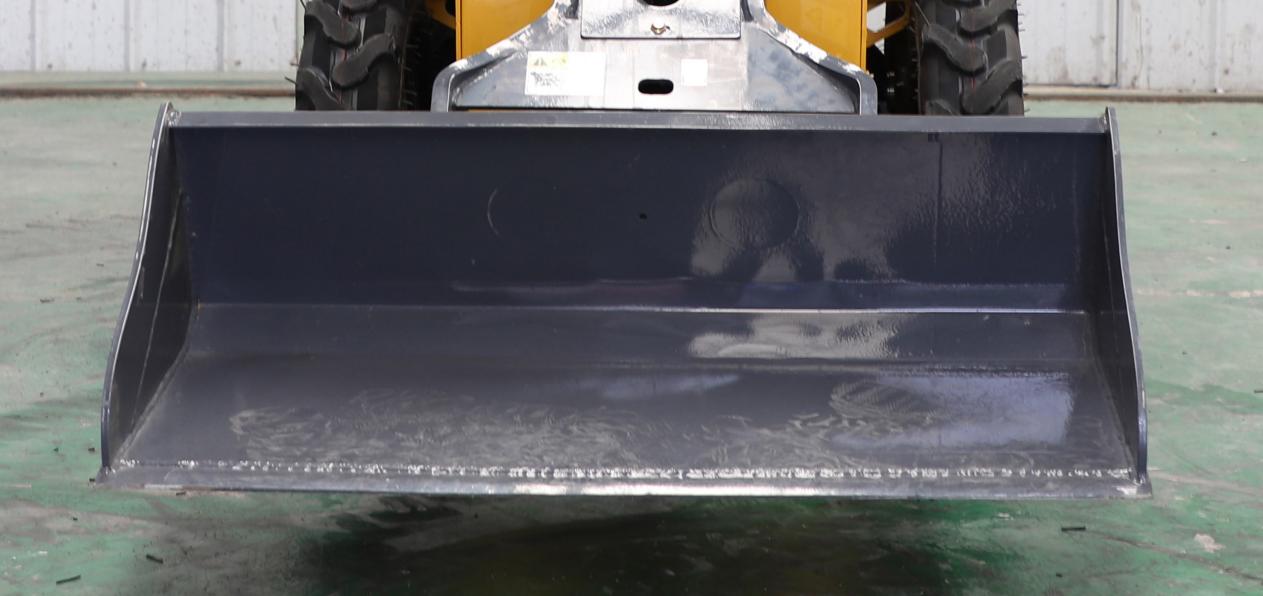

③【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.

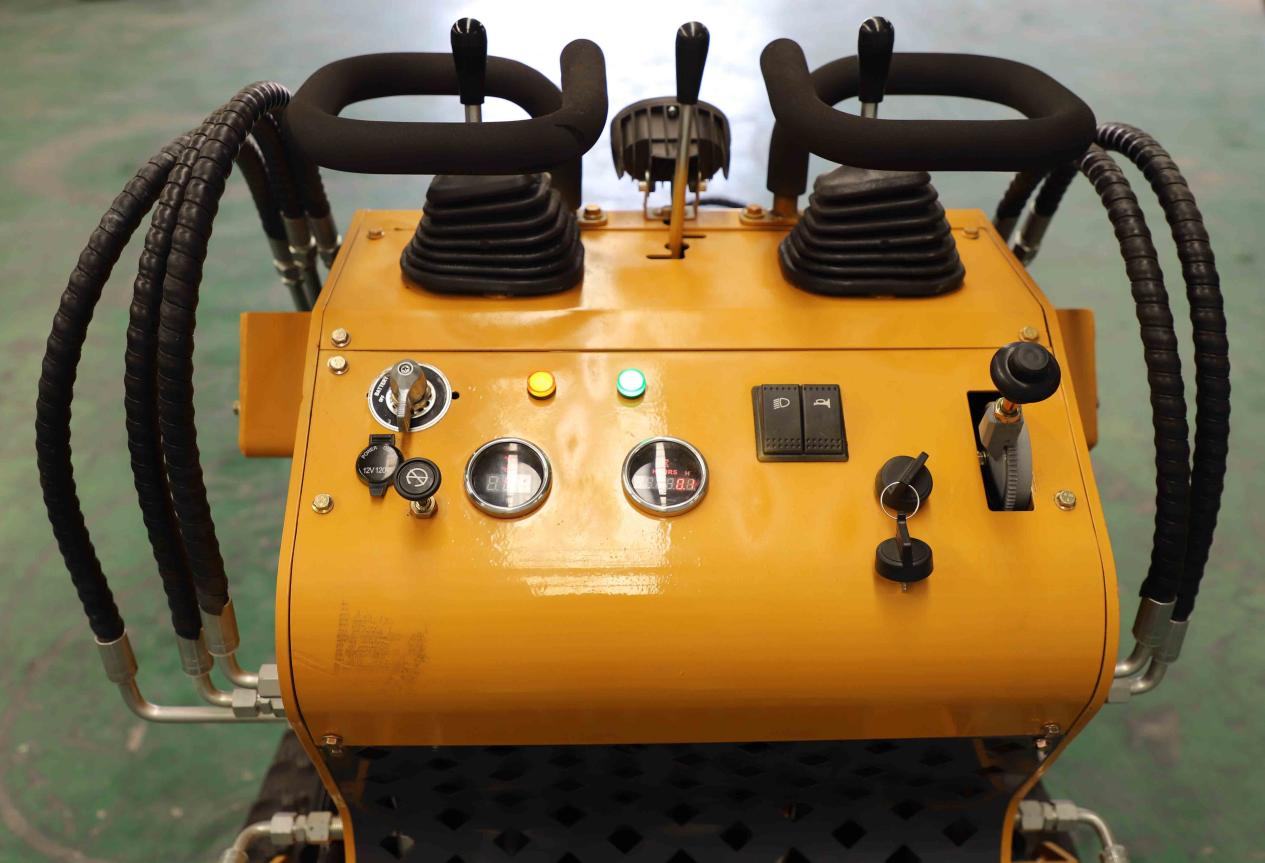

④【Console】
Prevent engine overheating,and prolong engine life
○Parameter | |
Rated Load Capacity | 238 kg |
Bucket Volume | 0.13 m3 |
Maximum Lifting Force | 600 kg |
Speed of Work | 0-4.2 km/h |
Preset Pressure | 18.5 Mpa |
Lifting time | 47 s |
Fall Time | 32s |
Tipping Time | 4.6s |
Gradeability | 30% |
Working Weight | 755-780kg |
Engine | Briggs &Stratton/RATO/KOOP |
Type | Petrol / diesel |
Output Power | 13.5HP/15HP/11.7HP |
Fuel Consumption | ≤3.8, <4.2, ≤2.3 |
Star Mode | Electric Start |
Fuel Tank | 6.6L,6.7L, 5.5L |
Engine oil | 1.1L, 1.1L, 1.6L |
Hydraulic Tank | 23L |
○Application scenarios：Material handling、Road sweeping、Pasture manure removal、Material transfer in factories、Woodland timber removal、Ground leveling

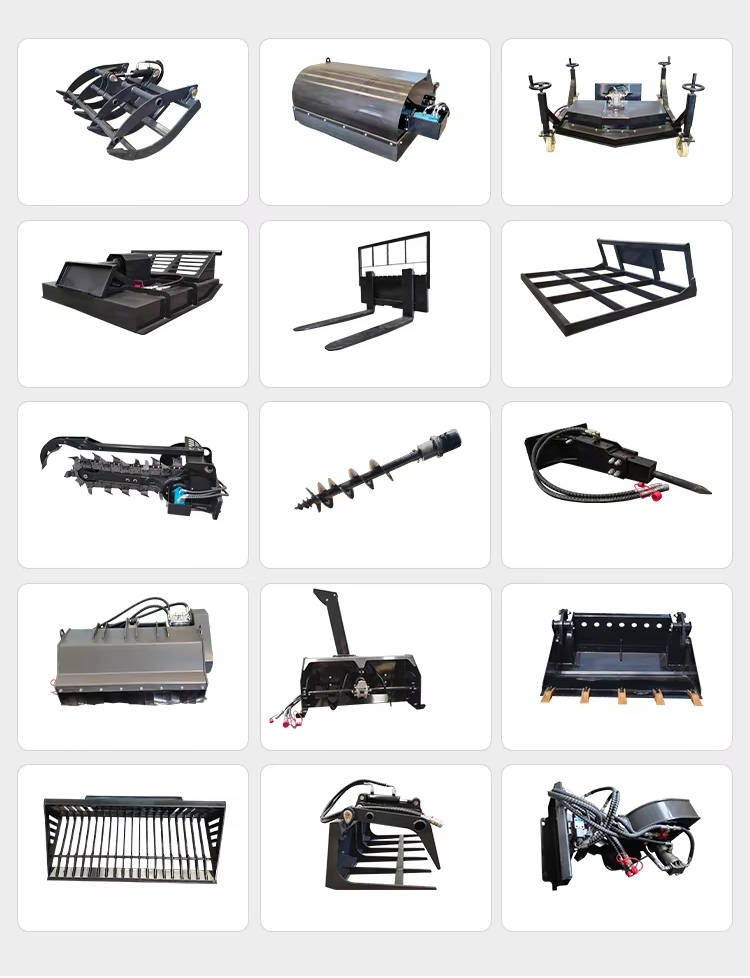

The core advantages of multifunctional assistive devices：The core advantage of skid steer loaders is that they can be used for multiple purposes. Multifunctional tools are the key to achieving this advantage. Through the quick-switching design, the equipment can be transformed from a single loading tool to an operating platform suitable for multiple scenarios such as construction, agriculture, municipal administration, and mining.
