New new holland skid steer
Cost-Effective: Small loaders are generally more affordable to purchase or rent than larger loaders, making them a cost-effective choice for small contractors, landscapers, or rental companies.
Fuel Efficiency: Many modern small loaders are equipped with fuel-efficient engines and advanced hydraulic systems, resulting in lower operating costs and reduced environmental impact.
○Details：

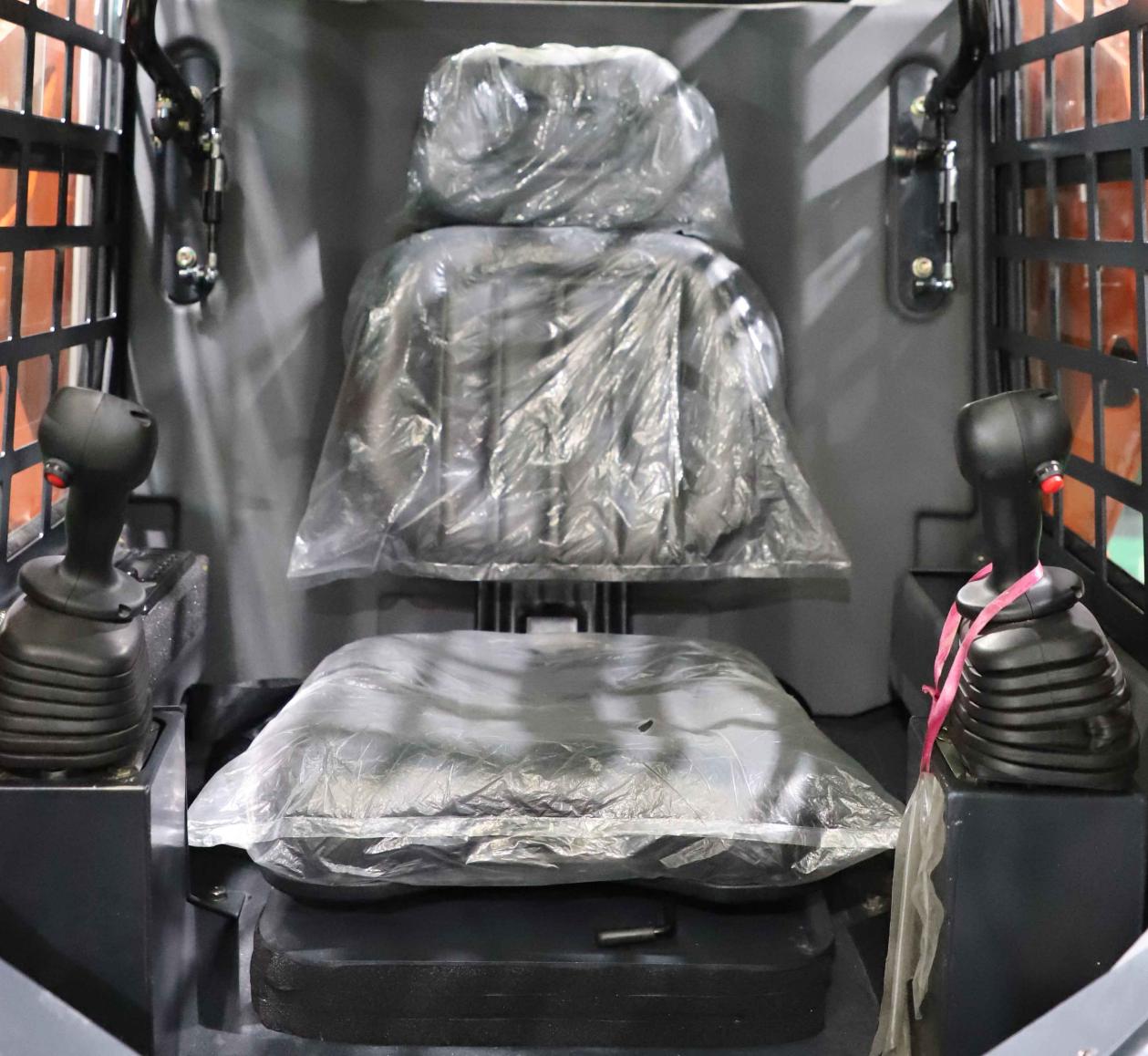

①【Comfortable Backrest】
Aiming at the characteristics of skid steer loaders, which require multiple operating movements and a fixed sitting posture, the seat improves comfort through ergonomic details.

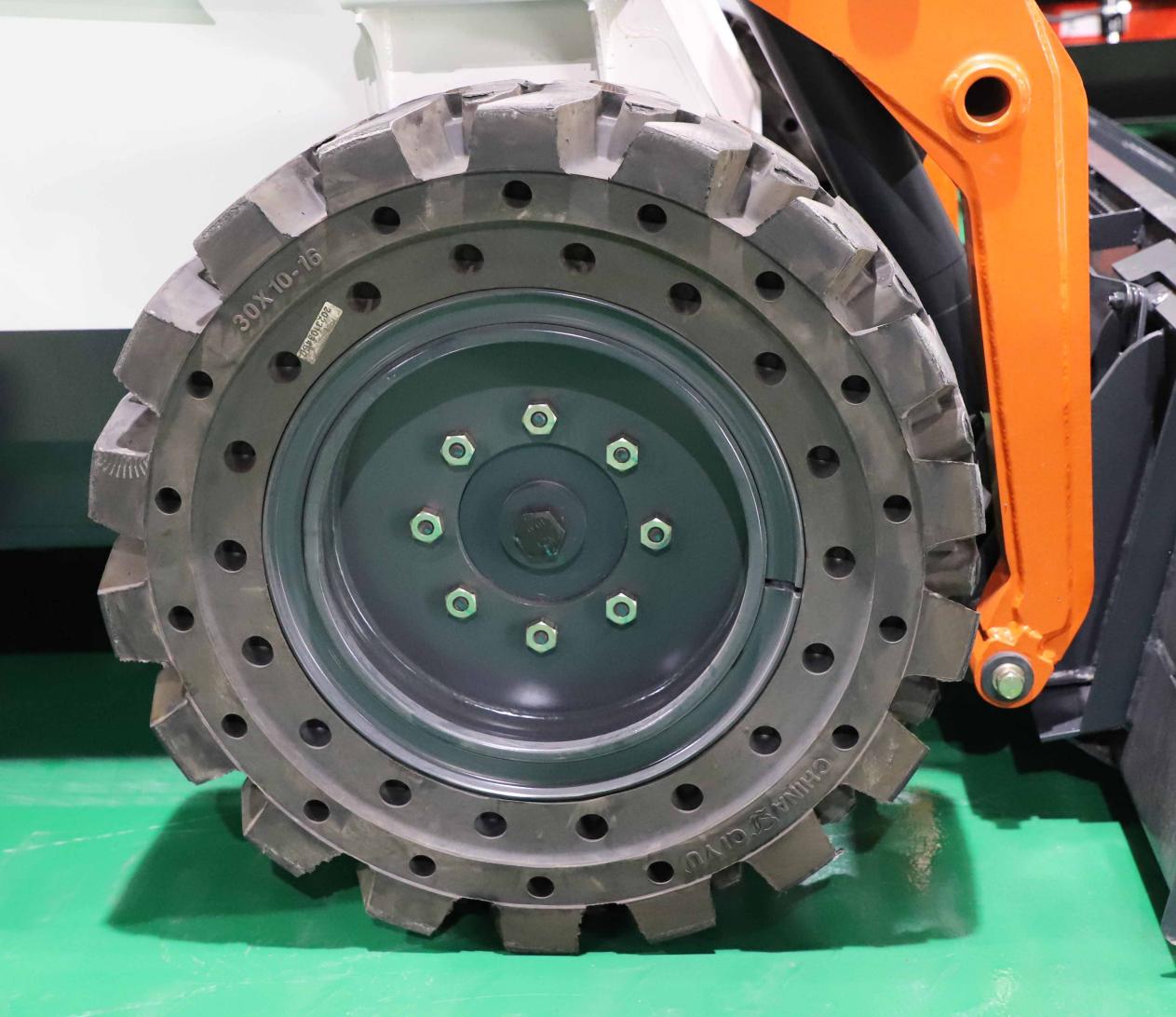

②【Solid Tire】
Strong bearing capacity, suitable for all terrains

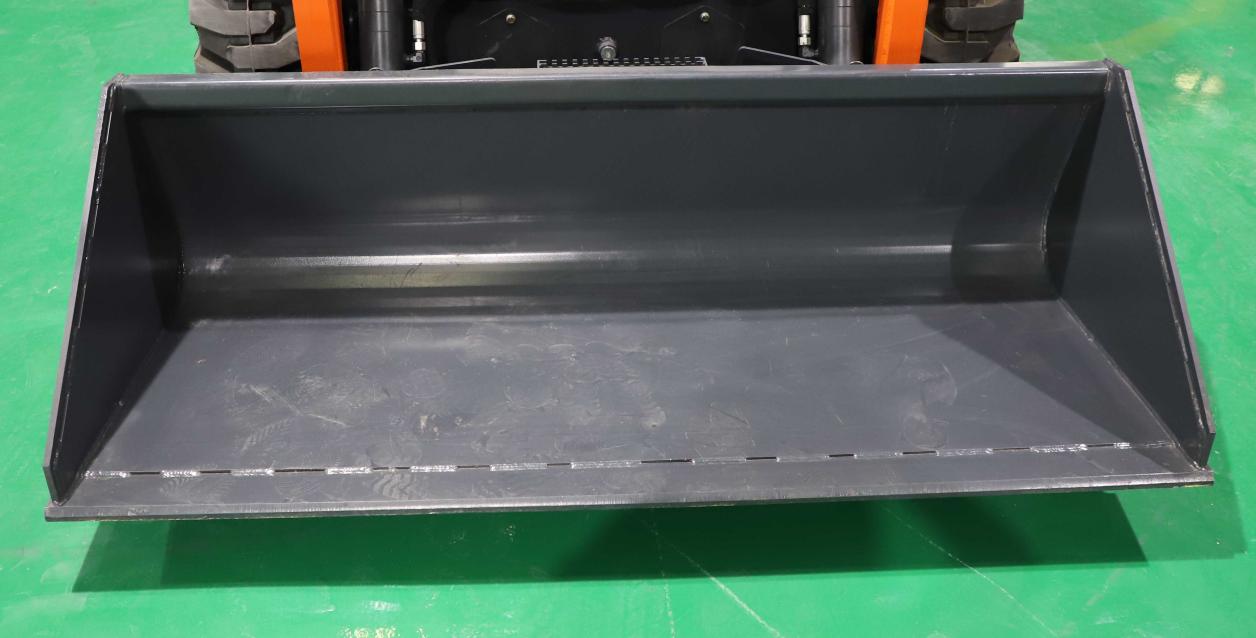

③【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
○Parameter： | |
Rated Working Load | 894kg |
Boom Force | 1784kg |
Bucket Force | 1873kg |
Maximum Travel Speed | 10.5km/h |
Manufacturer/Model | Yanma/4TNV88 |
Fuel | Diesel |
Cooling Method | Water-cooled |
Power | 35.5 kW |
Torque | 140.4 Nm |
Number Of Cylinders | 4 |
Displacement | 2190 ml |
Engine Coolant | Propylene glycol/water mixture |
Fuel Tank | 90L |
Chain Box | Continuously variable tandem piston pump, driving the left and right hydrostatic motors |
Operation Mode | Direction and speed are controlled by the left and right handles |
Maximum Operating Height | 3861mm |
Crane Height (With Air Conditioning) | 2275mm |
Departure Angle | 21° |
Ground Clearance | 168mm |
Wheelbase | 1082mm |
Length (Without Bucket) | 2657mm |
Operating Weight (Standard Tubeless Tires) | 2673kg |
Transport Weight | 2429kg |
Travel System Pressure | 28MP |
Maximum Pump Capacity | 64.4L/min |
Length (With Standard Bucket) | 3374mm |
Maximum Bucket Retraction Angle On Flat Ground | 24° |
Dumping Height (With Standard Bucket) | 2301mm |
Maximum Bucket Pin Height | 3002mm |
Loading Distance At Maximum Dumping Height | 767mm |
Dumping Angle At Maximum Height | 43° |
Dumping Angle At Maximum Height | 94° |
Standard Bucket Width | 1727mm |
Swing Radius (With Standard Bucket) | 2048mm |
Track | 1375mm |
Body Width | 1633mm |
○Application scenarios：Construction、Municipal maintenance、Agriculture、Industrial applications、Landscaping and mining、Interior demolition
