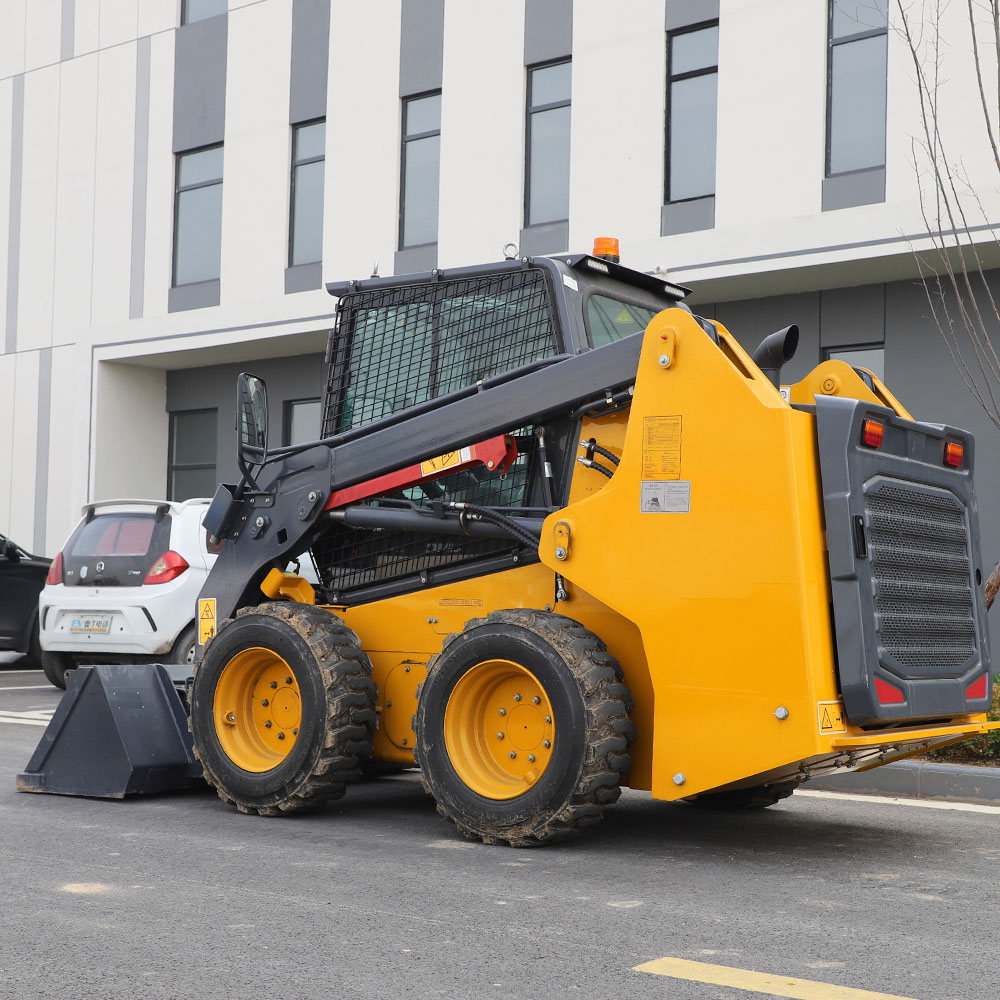

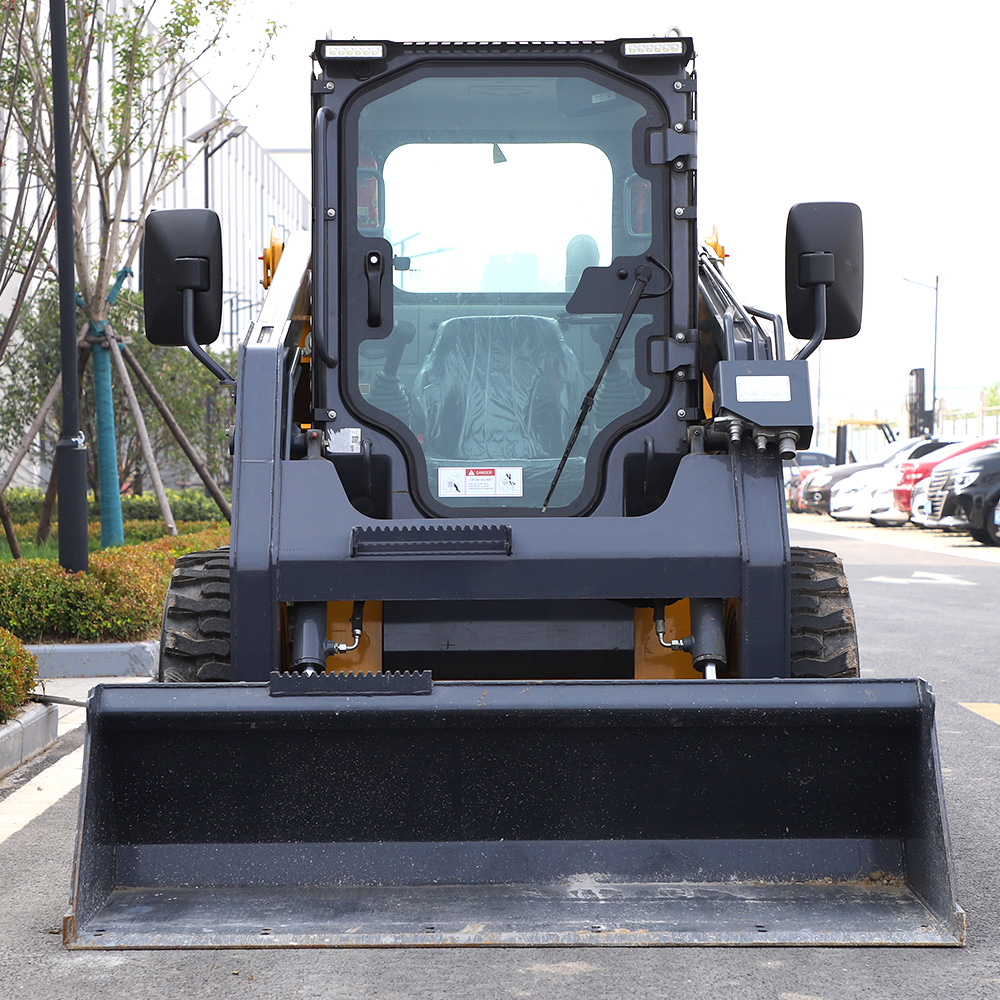

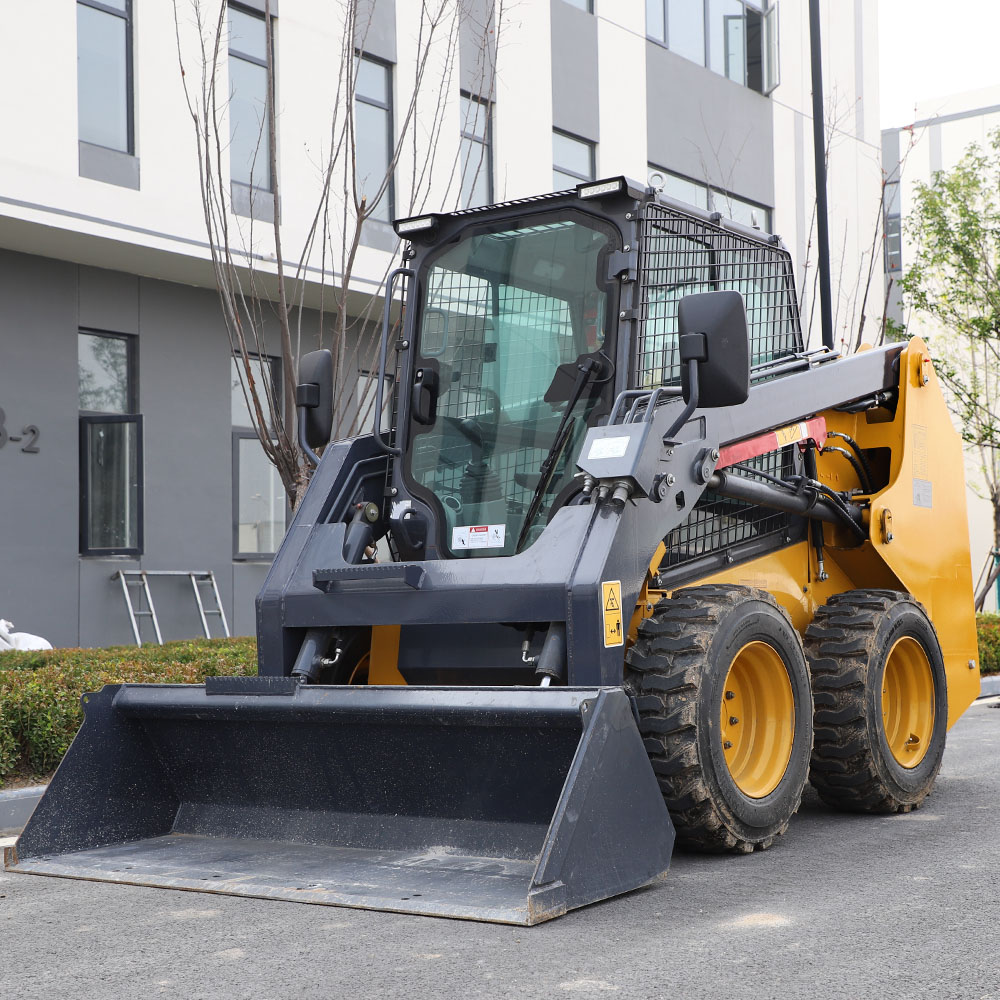

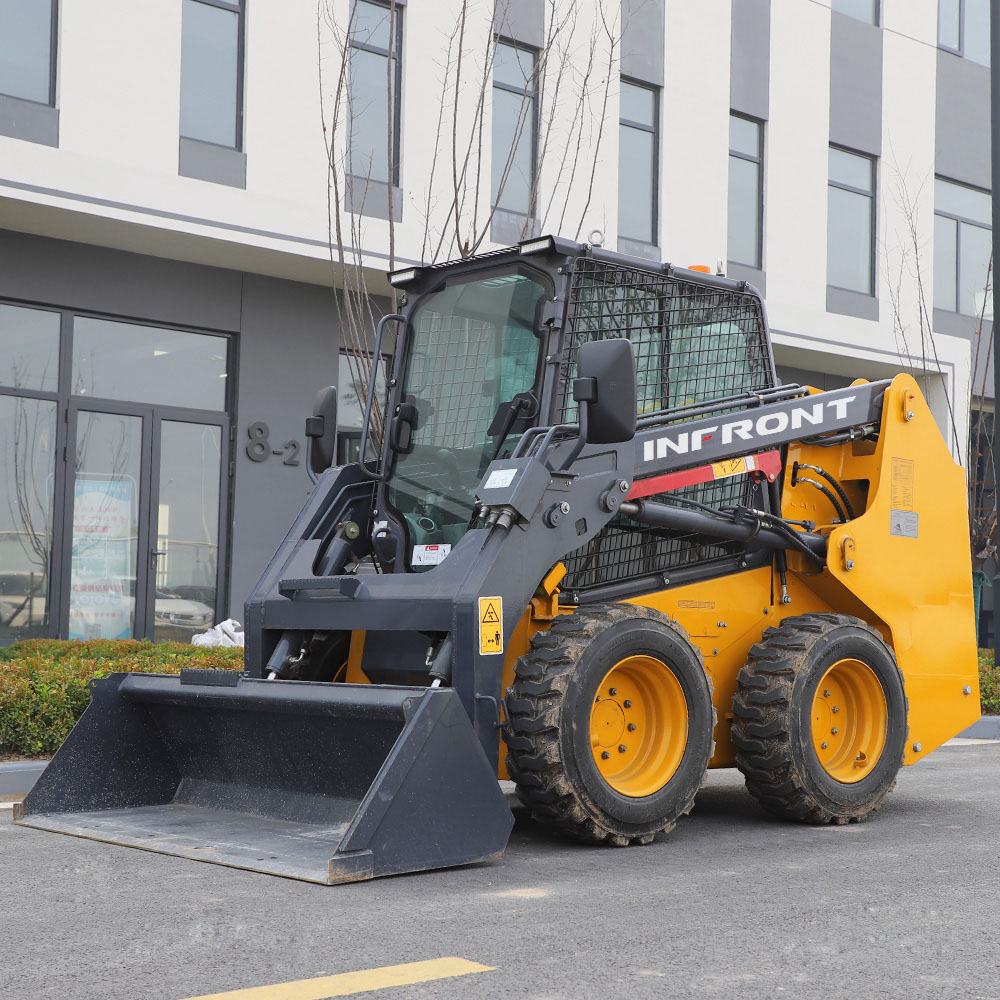

Compact Skid Steer Loader
Multi-terrain Capability: Small loaders are designed to operate efficiently on various terrains, including uneven or rough surfaces. They often have rugged tires or tracks that provide excellent traction and stability.
A skid steer loader is a flexible and compact piece of engineering machinery that requires no additional steering mechanism. It can achieve 360° steering on the spot by using the speed difference between the left and right wheels. Its minimum turning radius is close to the width of the machine body, making it suitable for operations in narrow sites (such as factories, indoor warehouses, and alleys).
○Details：

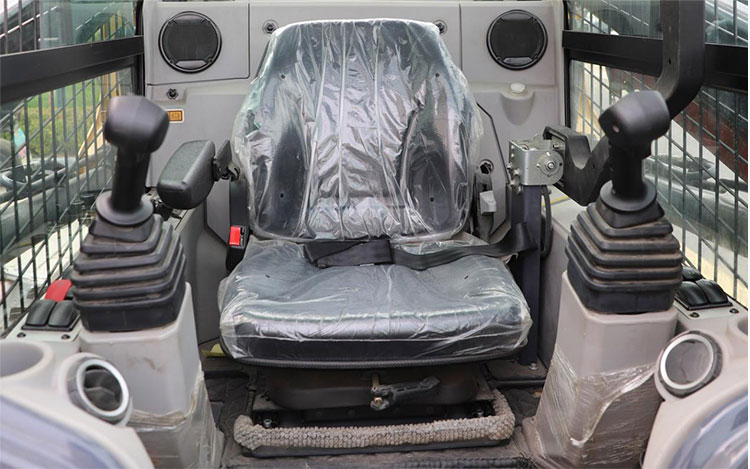

①【Comfortable Backrest】
Skid steer loaders often operate on muddy and rugged terrain (such as construction sites and pastures), and the machine body is subject to severe bumps. The seat has a double shock-absorbing design to absorb the impact.

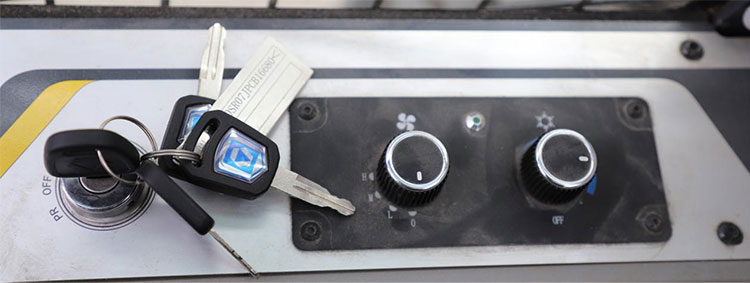

②【Console】
Pilot-operated control, sensitive response.
Adjustable control parameters to adapt to different working conditions

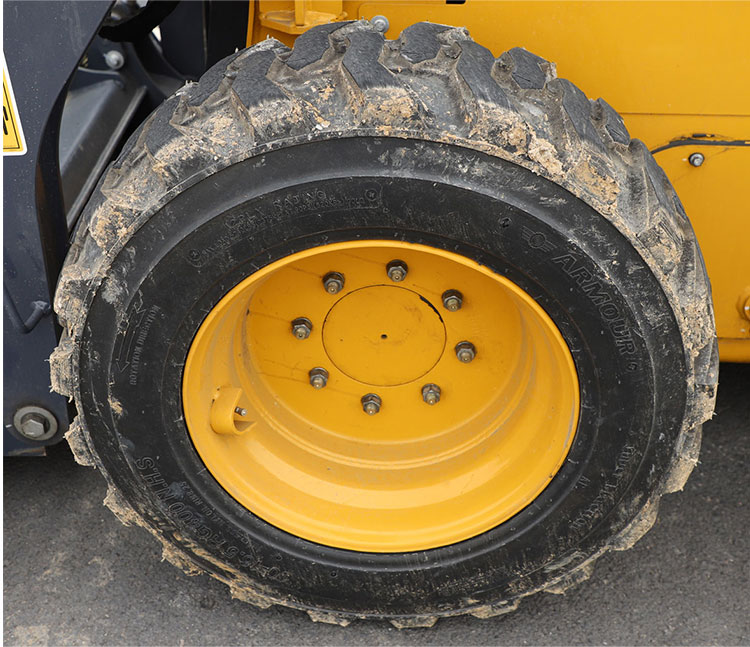

③【Solid Tire】
Strong bearing capacity, suitable for all terrains

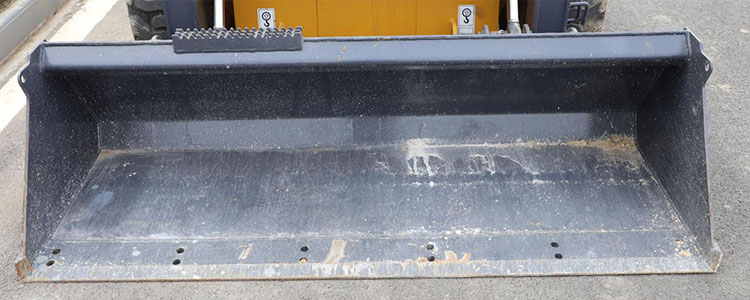

④【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
○Parameter： | |
Rated load | 890Kg |
Tipping load | ≥1780Kg |
Operational mass | 2880±3%Kg |
Maximum traction | 225KN |
Maximum digging force | 225KN |
Maximum lifting force | 1780Kg |
Model | Cummins HFC4DA1-2C3 |
Rated power | 36.8KW |
Rated speed | 2200rpm |
Cooling method | water cooling |
Emission standard | National III |
Operation method | pilot hydraulic control & multi-function electronic control |
Tyre standard | 10-10.5 |
Maximum speed | 12Km/h |
Flow | 55L/min |
Pressure | 21Mpa |
Maximum operating height | 3790mm |
Bucket pin height | 3020mm |
Cab roof height | 2095±5%mm |
Bucket ground horizontal length | 3450±5%mm |
Bucket Pin horizontal length | 2700±5%mm |
Tail length | 1160±5%mm |
Wheelbase | 1079mm |
Ground clearance | 185±2%mm |
Departure angle | 22±2mm |
Maximum horizontal distance of bucket bottom | 2846±5%mm |
Maximum unloading height | 2384±5%mm |
Bucket ground retraction angle | 27±2mm |
Unloading distance | 520±1%mm |
Unloading angle | 43+±2mm |
Width | 1640±2%mm |
Wheelbase | 1370mm |
Bucket width | 1800±2%mm |
Front turning radius with bucket | 1970±5%mm |
Rear turning radius | 1790mm |
Front turning radius without bucket | 1215mm |
Bucket capacity | 0.4m² |
Diesel tank capacity | 80L |
Hydraulic oil tank capacity | 46L |

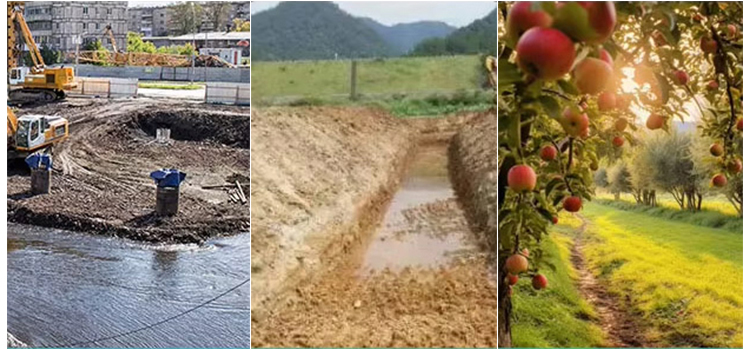

○Application scenarios：Small building construction、Site leveling and foundation treatment、Landscaping and gardening、Industrial plant operations、Disaster relief、Military and infrastructure support
