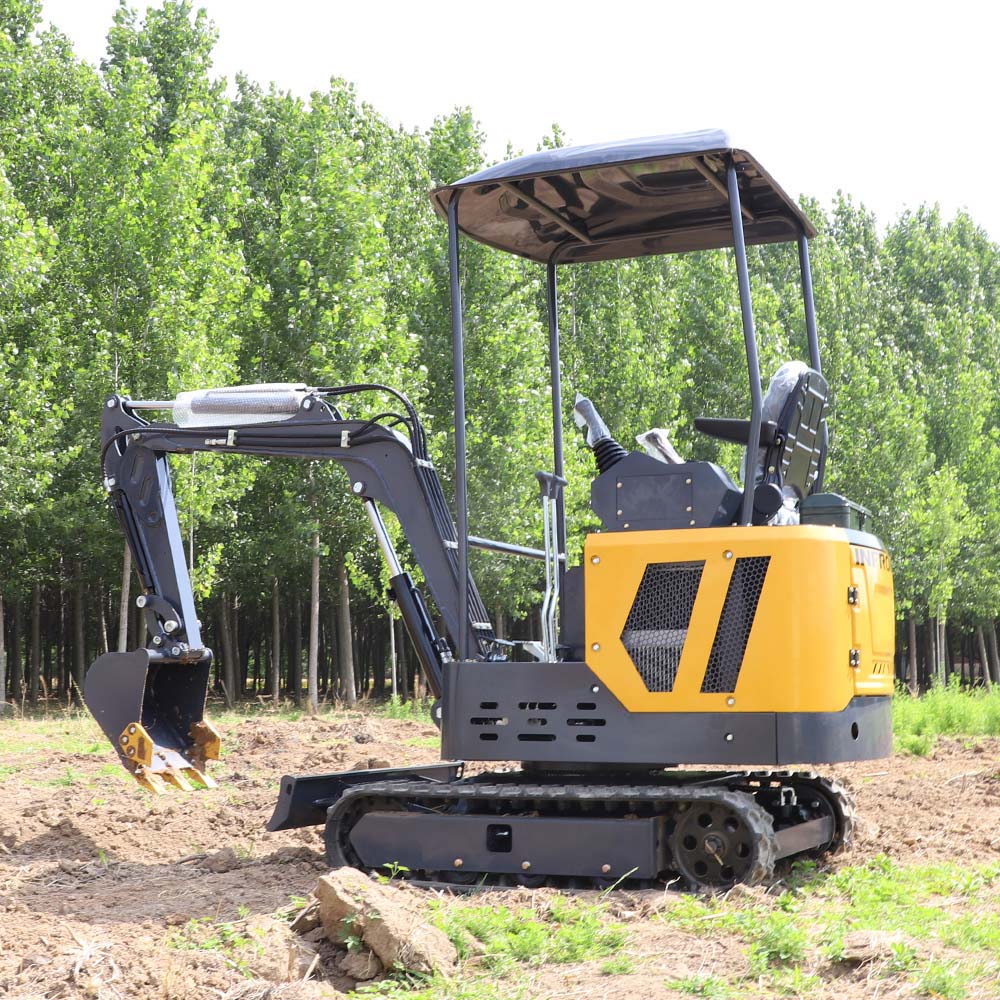

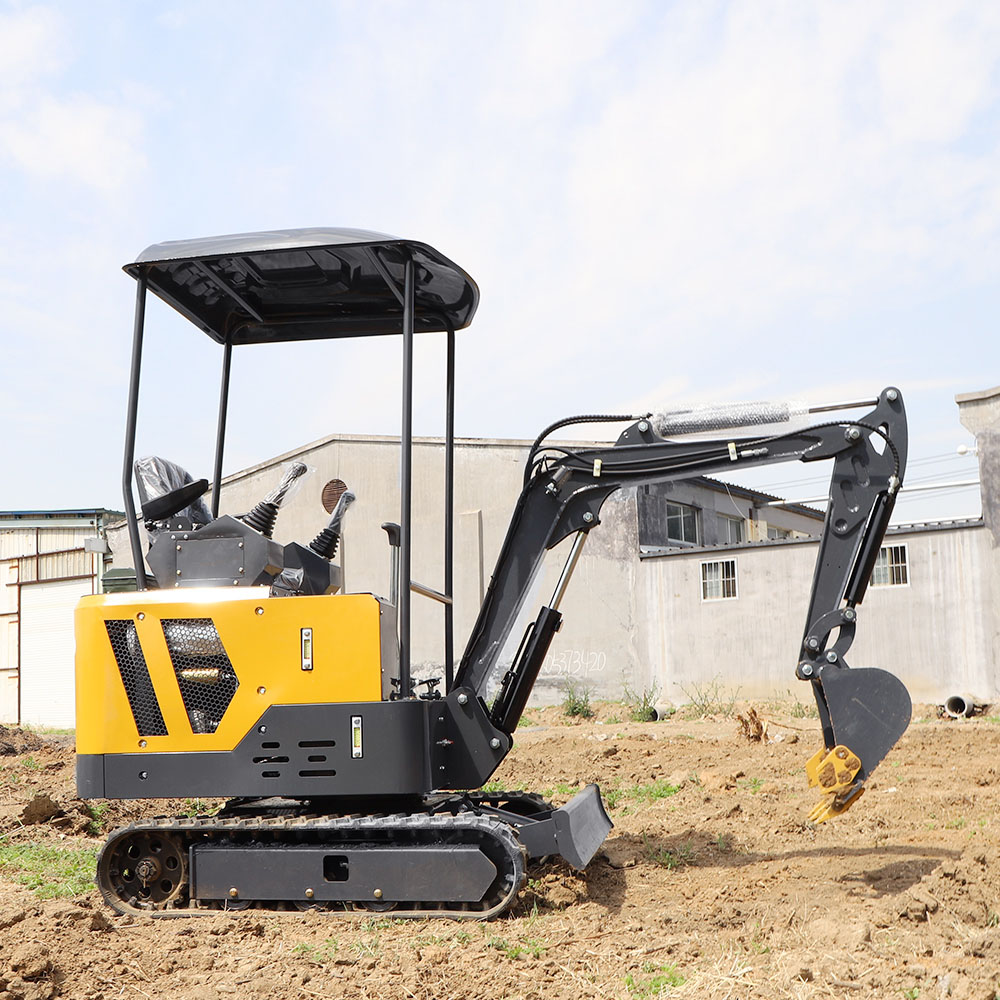

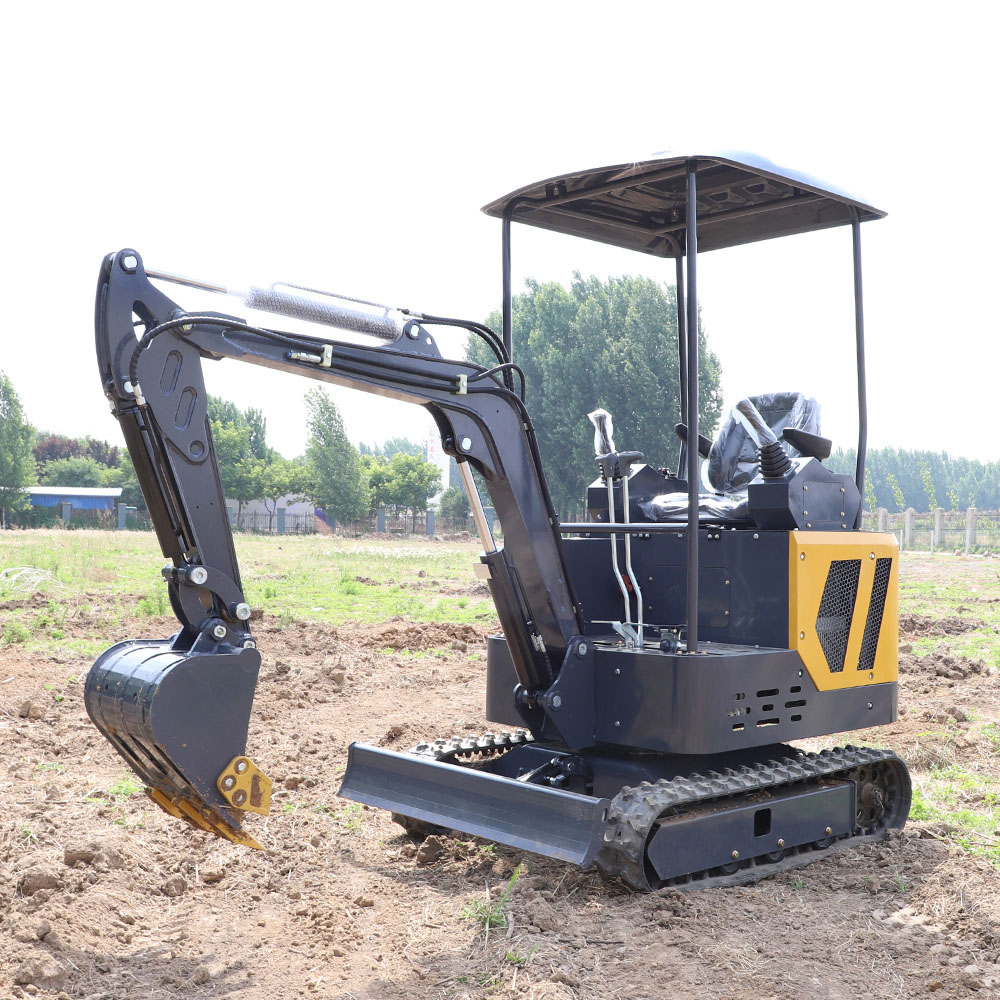

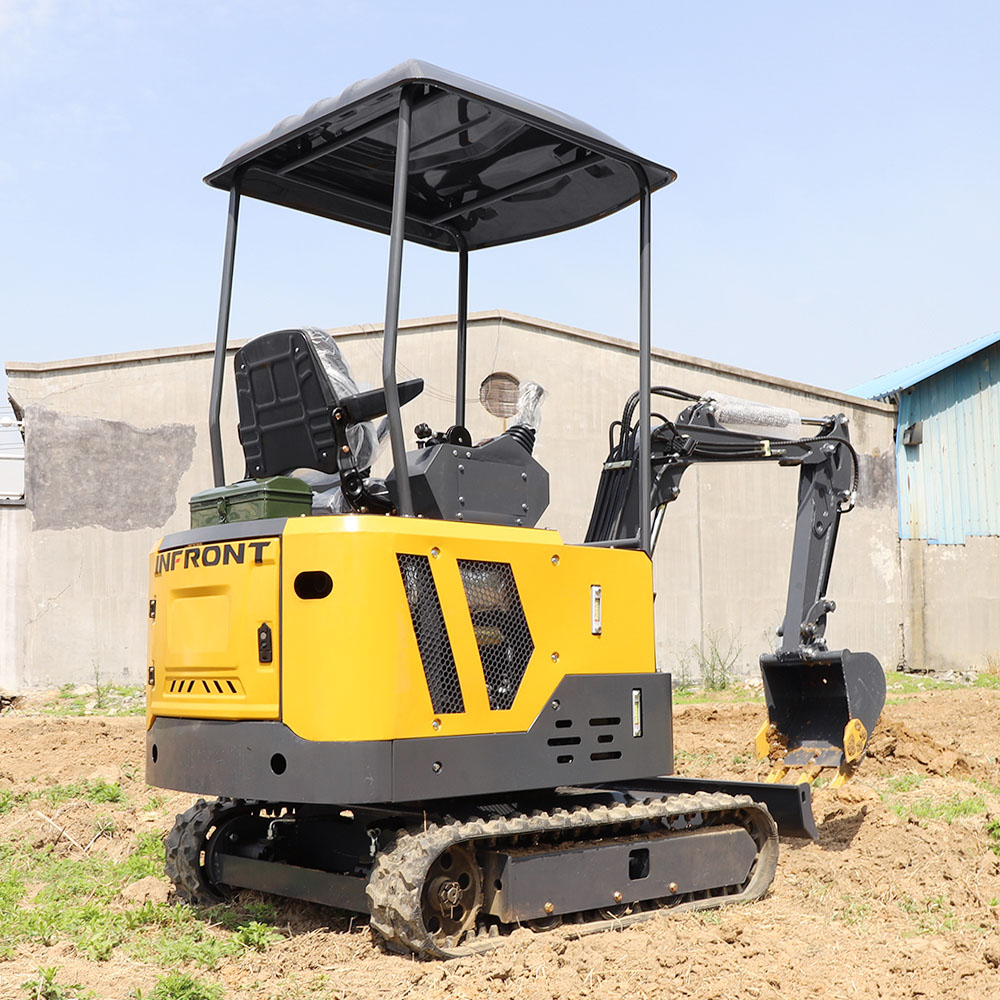

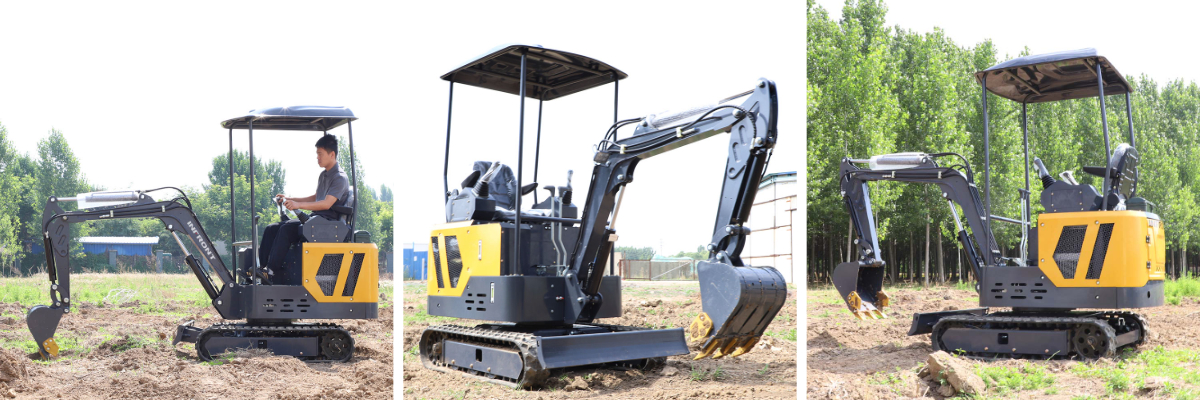

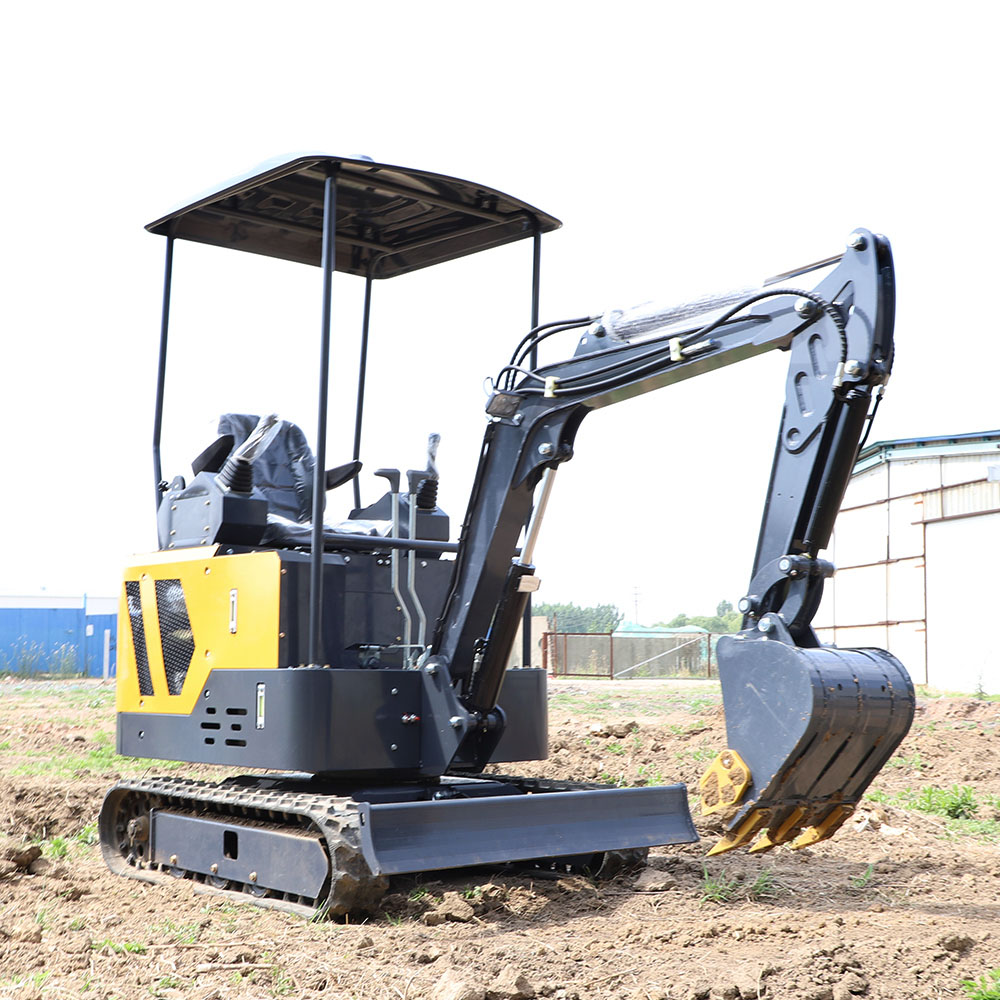

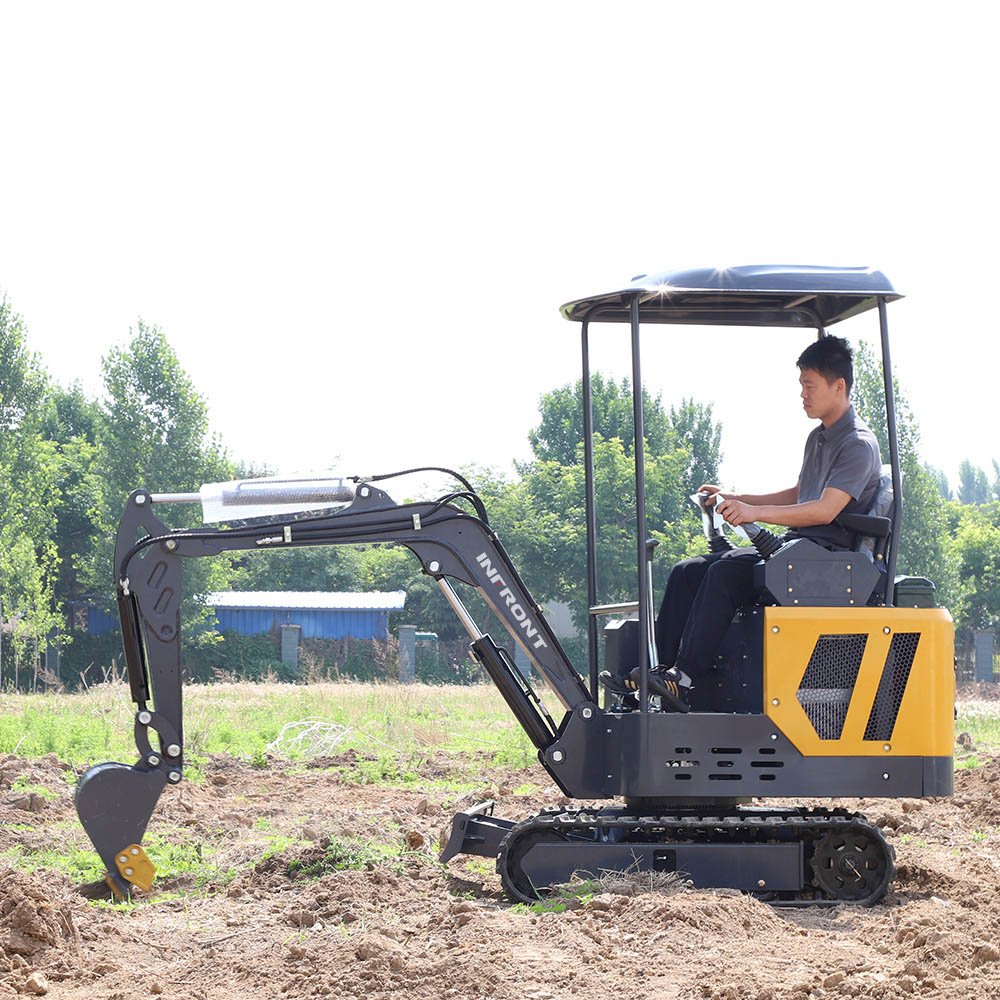

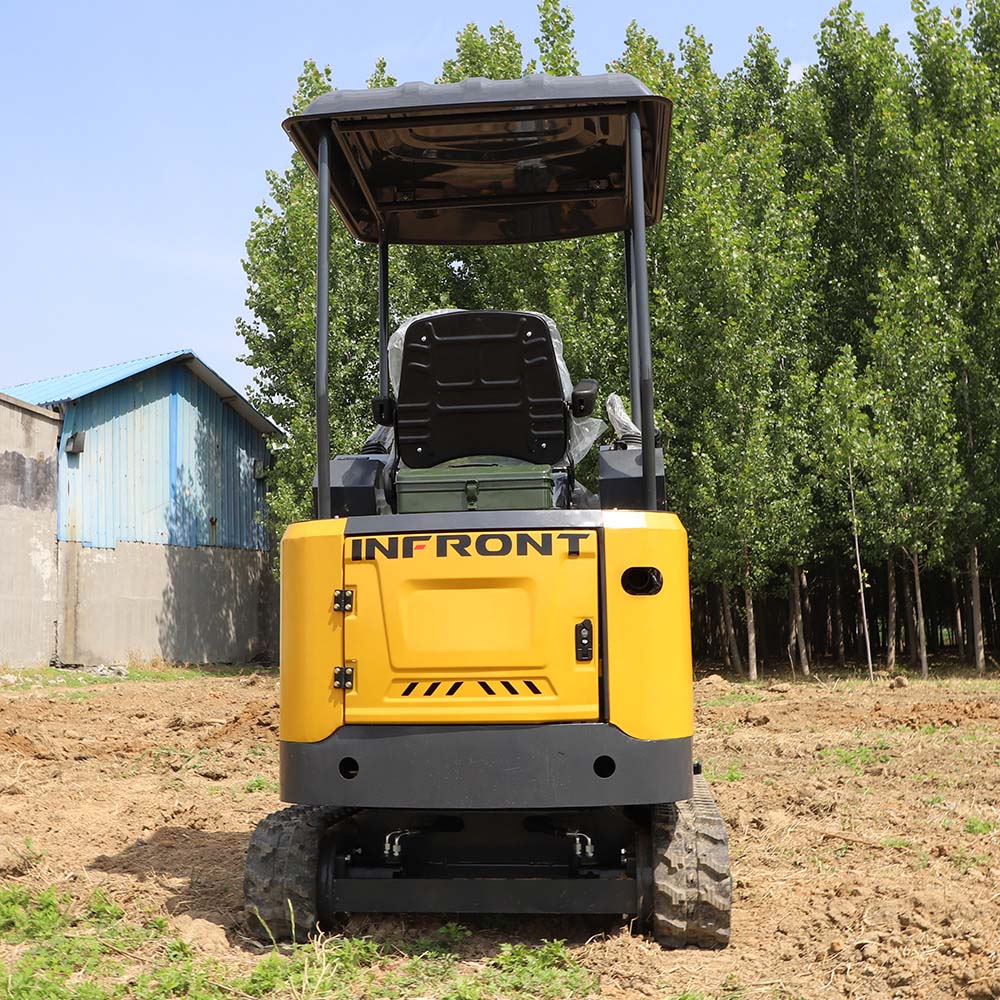

1.7 Ton excavator
• Easy to transport: Compared with large excavators, mini excavators are easier to transport by trailer and do not require specialized transport tools, which reduces transportation costs and complexity.
• Easy to operate: Most mini excavators are designed with user-friendly control systems, and some models are also equipped with features such as automatic idling to save fuel, making operation simpler and more efficient.
• Cost-effectiveness: The cost of purchasing and maintaining a mini excavator is generally lower than that of a full-size excavator. In addition, they tend to be more fuel-efficient, which helps reduce long-term operating costs
Flexibility and maneuverability: Mini excavators are small and can operate in narrow spaces, such as in urban alleys, indoors, or close to existing structures. This feature makes them ideal for delicate work in confined spaces.
Versatility: By replacing different attachments such as grapples, breakers, buckets, etc., mini excavators can perform a variety of tasks, including excavation, demolition, loading, and other special operations.

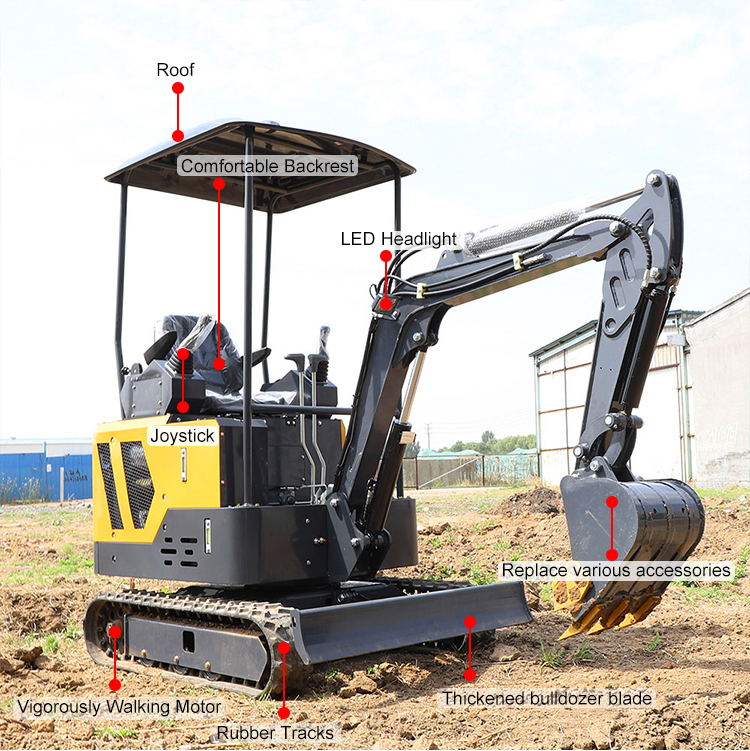

Producto Details：

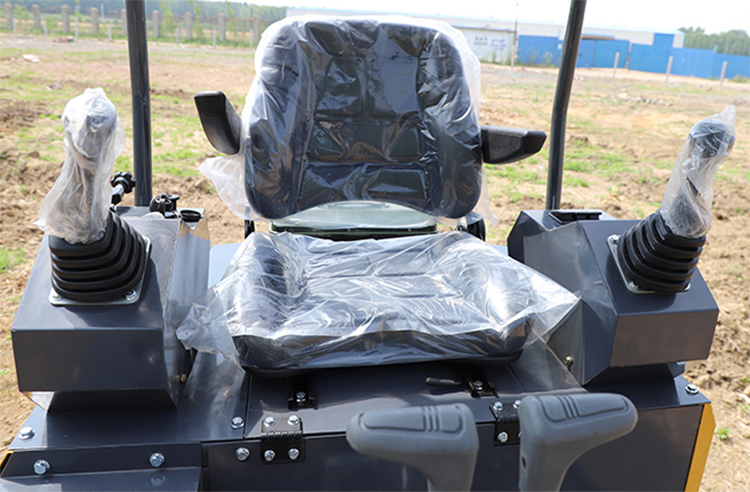

①High end seats Spacious and comfortable, ergonomically designed with an auxiliary control lever.

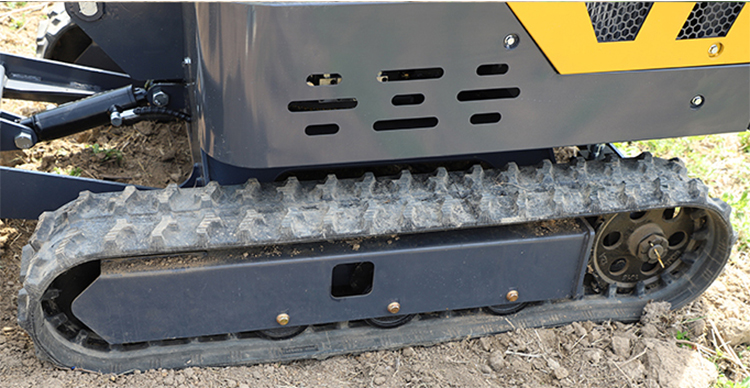

②Engineering track
Specialized engineering track Wear resistant and durable Walk steadily
③Engineering track
Specialized engineering track Wear resistant and durable Walk steadily
Producto Parameter：
LTEM |
Operating Weight:1200KG |
Engine:Koop/Briggs & Stratton EPA EPA |
Hydraulic pump type:Dual hydraulic pump |
Rated power:7KW |
Working pressure:16Mpa |
Travel speed:2.2KM/h |
Slewing speed:13r/min |
Bucket capacity:0.025m² |
Fuel tank capacity:5L/10L |
Gradability:30 degrees |
Ground pressure:20kpa |
Arm digging force:4.6KN |
Bucket digging force:7.2KN |
MAIN DIMENSIONS |
Total length:2876mm |
Total width:850mm |
Total height (seat):1535mm |
Total height (carport):2200mm |
Counterweight ground clearance:385mm |
Minimum ground clearance:132mm |
Tail turning radius:800mm |
Track ground length:900mm |
Track length:1233mm |
Track gauge:670mm |
Track width:840mm |
Track shoe width:180mm |
MAIN DIMENSIONS |
Maximum digging height:2550mm |
Maximum dumping height:1687mm |
Maximum vertical arm digging depth:1626mm |
Maximum digging distance:3077mm |
Maximum digging distance at ground level:2992mm |
Application scenarios：
Greenhouse planting/excavation and crushing/municipal engineering/rural reconstruction.
Site Analysis
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

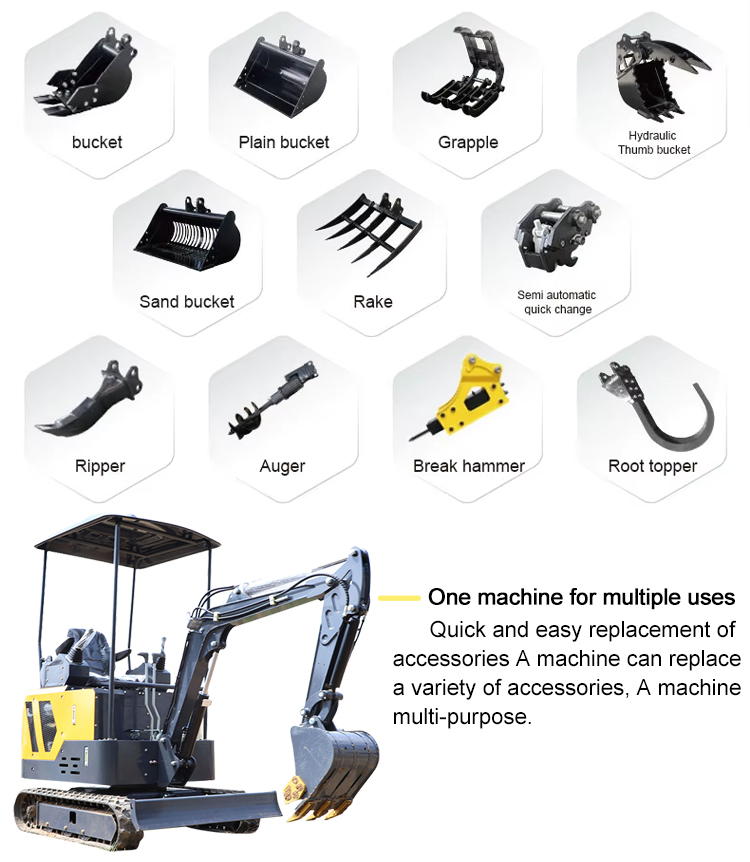

Product Accessories
You can rely on the reliability of the machine: Our machines are very popular among customers and can perform different tasks in different environments. You can choose the desired accessories as needed to unlock more functions.
Annual sales at home and abroad exceed 20,000 units, exported to all over the world, and widely praised! More than 1,000 professional sales and service personnel, more than 60 countries and regions, customer sales teams have been established
