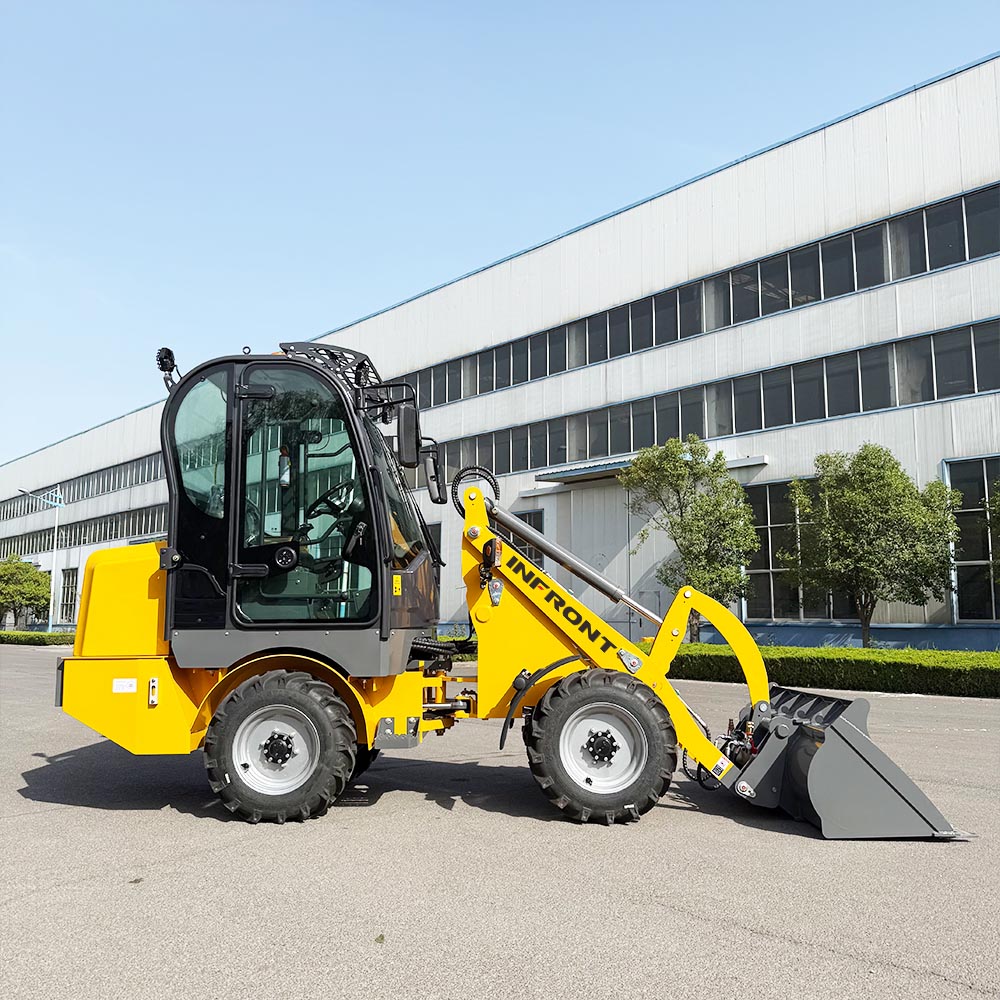

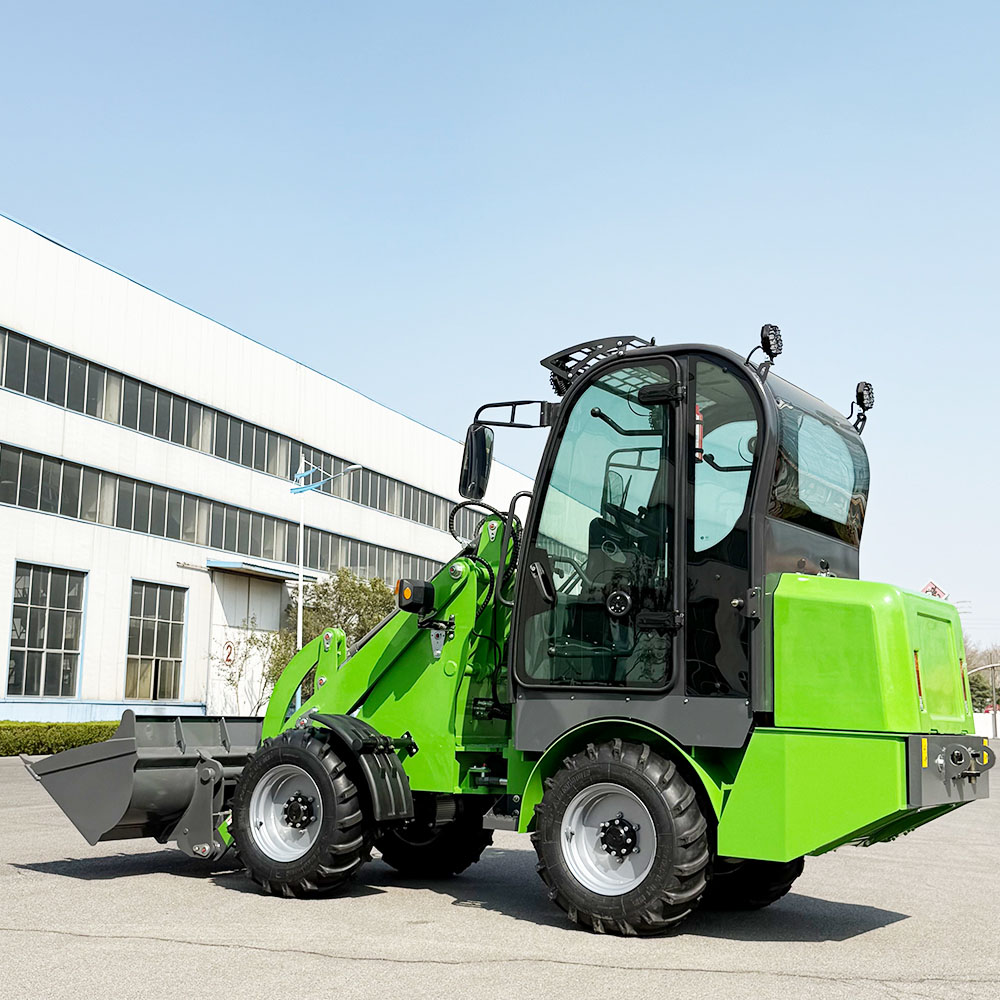

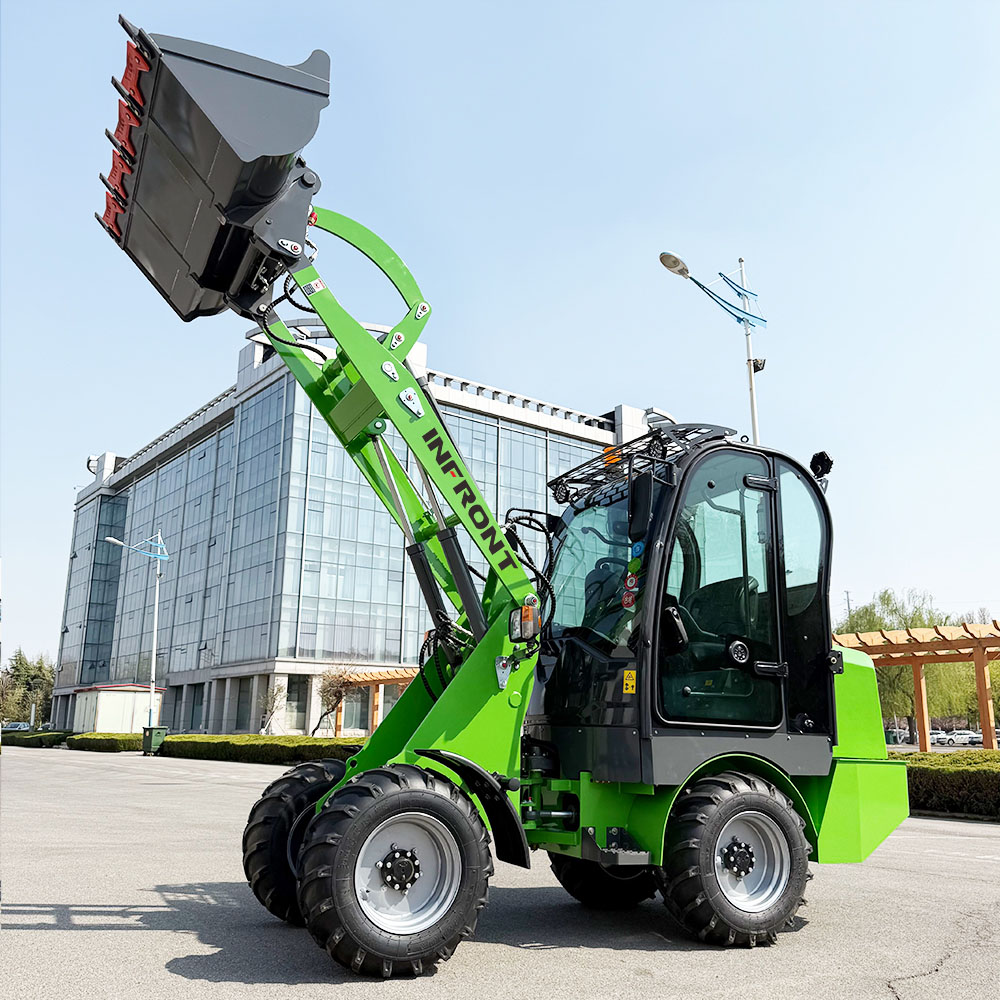

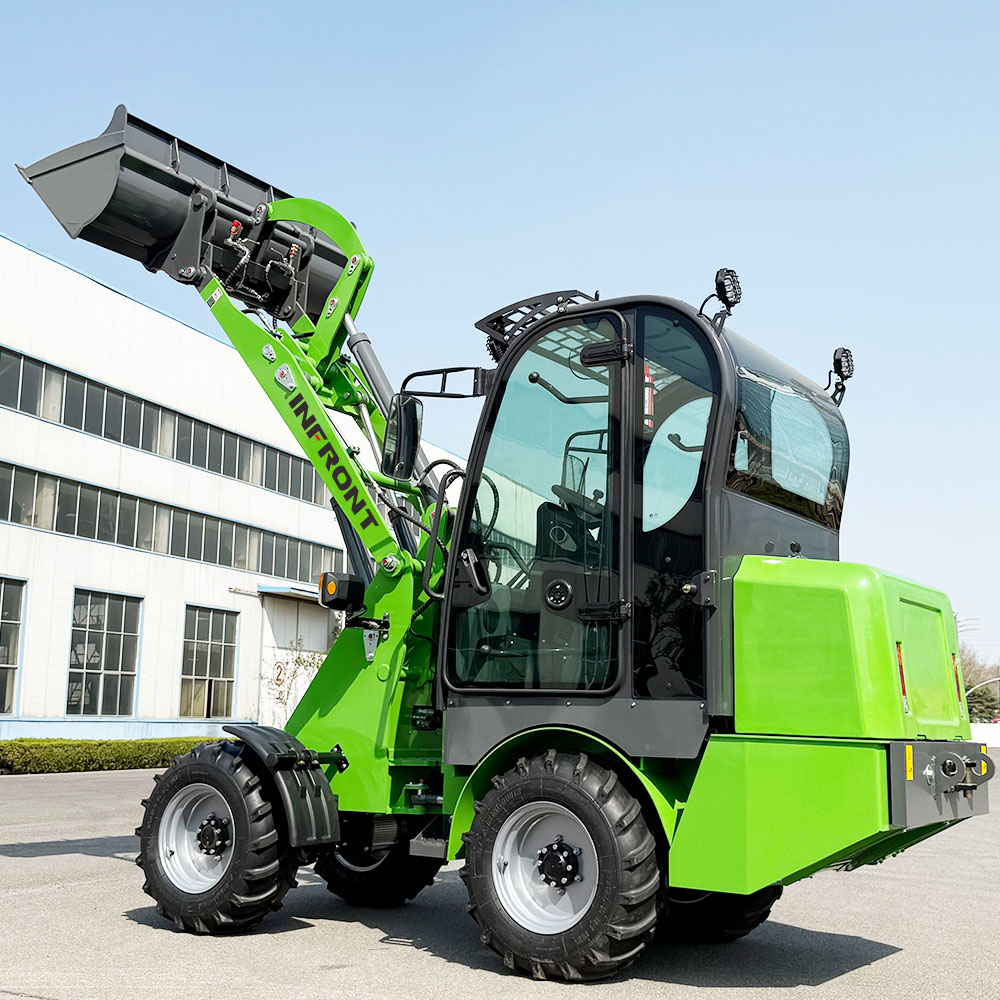

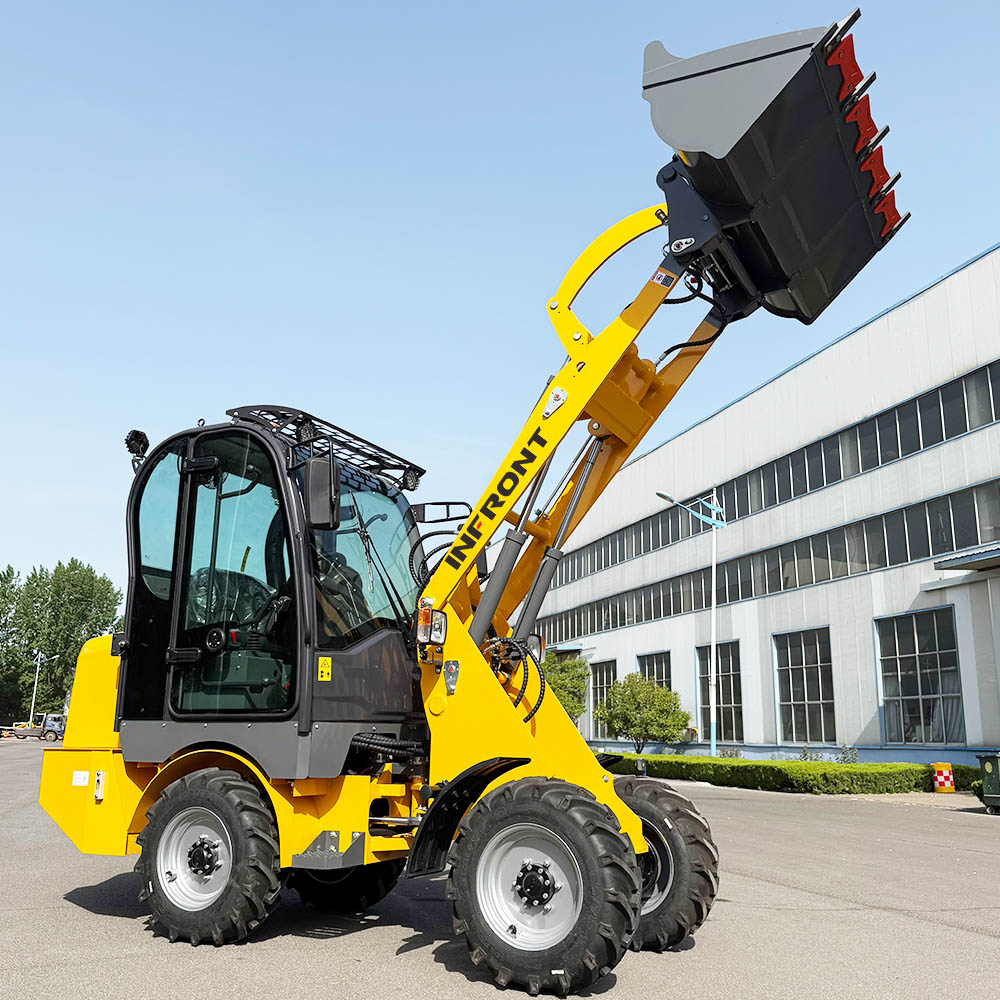

Loader Equipment
● Compact design, low center of gravity, tight turning radius, and powerful performance. With a European-style trailer connection, it's compact, lightweight, and flexible.
● It's suitable for diverse working environments and widely used on farms, making it a great helper for a variety of tasks, including hauling hay, loading and unloading materials, and clearing snow.
A compact loader is a type of construction machinery that must be operated, maintained, and serviced by personnel familiar with its characteristics and possessing relevant operating knowledge. Loaders are primarily used at construction sites, cement prefabrication sites, lime kilns, stone quarries, sand pits, coal yards, snow removal, and bulk material loading and unloading. They can also be used for garbage removal on large farms. Compact multi-purpose loaders are suitable for small and medium-sized construction projects.

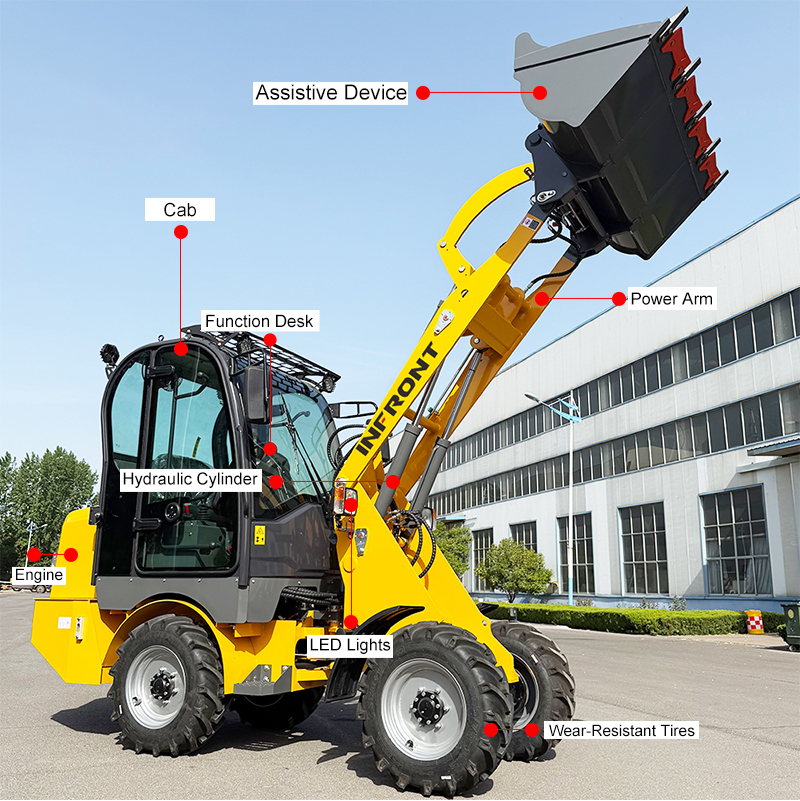

Product Details:

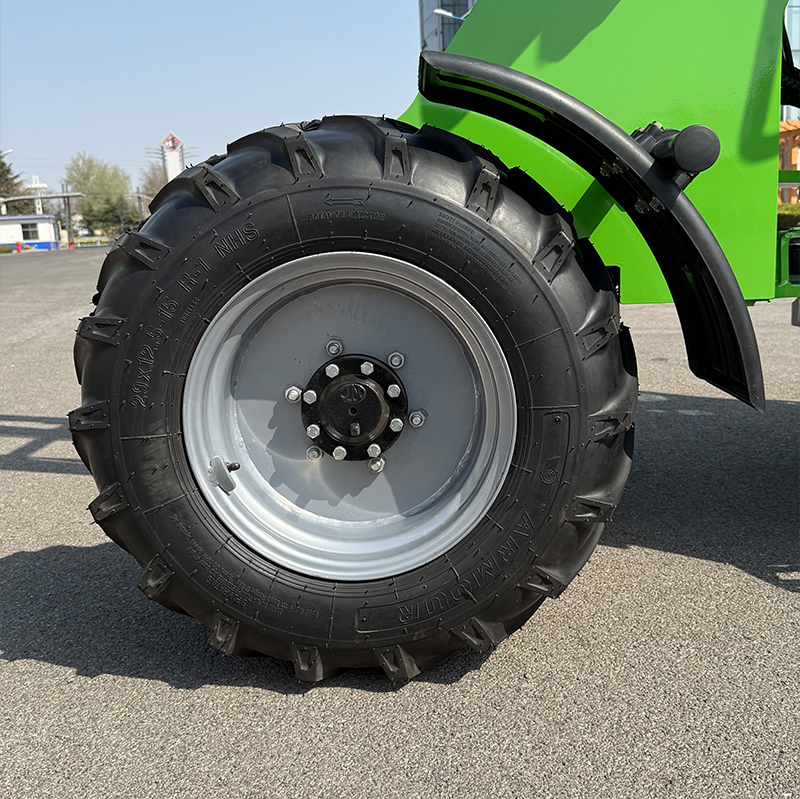

Tires
Thick, wear-resistant tires suitable for all road conditions

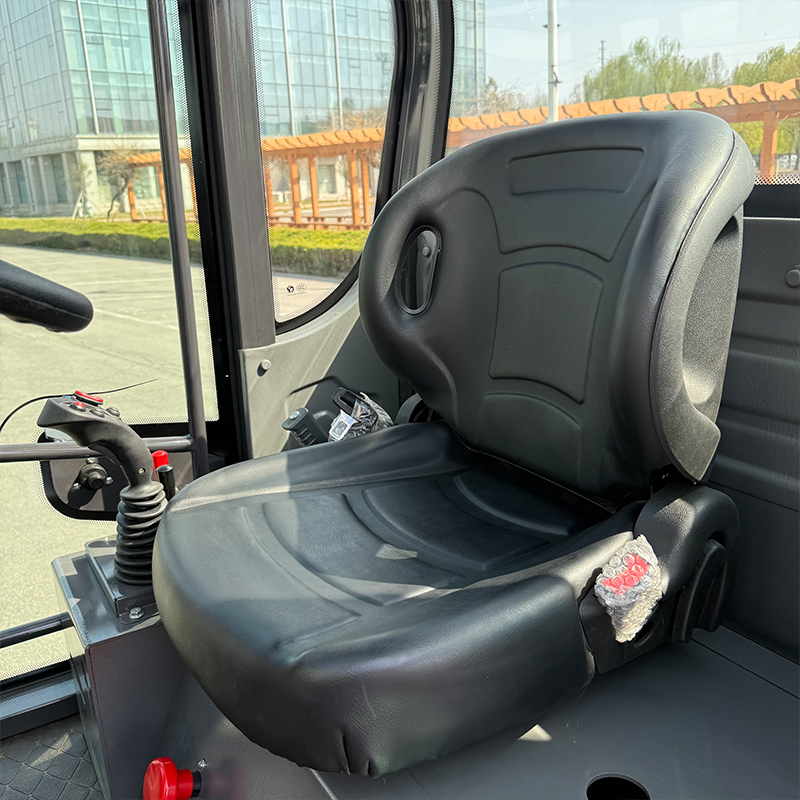

Seat
Adjustable for an enhanced driving experience and a more comfortable ride

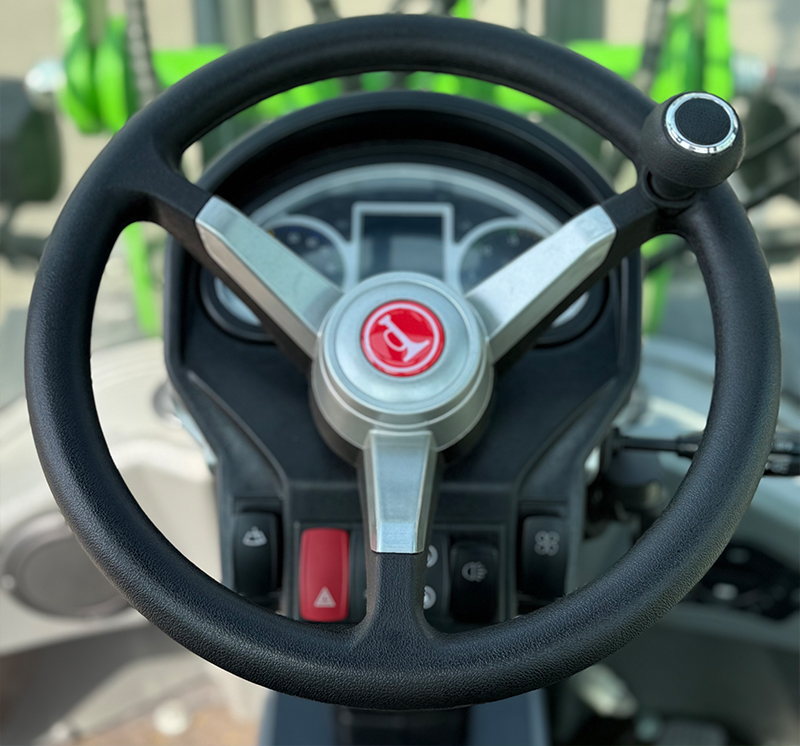

Steering Wheel
Made of high-quality materials for enhanced safety

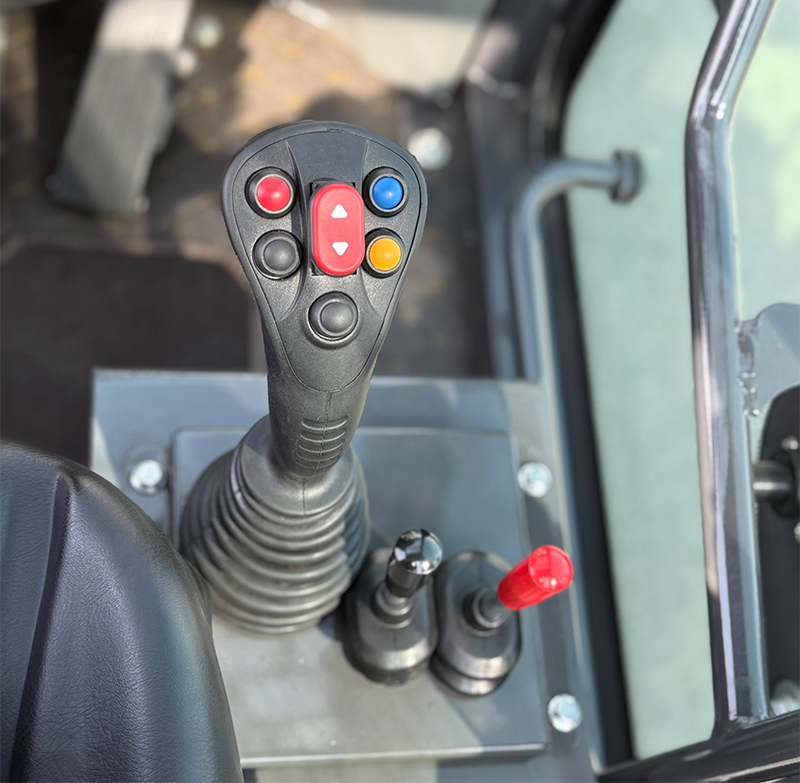

Joystick
Precise control, linear movement, and coordinated multi-action operation reduce effort and fatigue
Product Parameters:
Performance | |
Rated Load(t) | 1 |
Bucket rated capacity(m) | 0.45 |
Dumping height (mm) | 2300 |
Lifting Height(mm) | 3380 |
DumpingReach(mm) | 650 |
Max.Lifting weight(kg) | 1000 |
Max.Excavation Force(kg) | 1100 |
Max.Grade ability(°) | 18 |
Max. Turning Angel(°) | 29±1 |
Dimensions. &.Weight | |
Overall length (mm) | 4450 |
Overall width (mm) | 1260/1300 |
Overall height (mm) | 2380 |
Wheelbase (mm) | 1580 |
Track (mm) | 1000 |
Minimum ground clearance (mm) | 215 |
Net weight (kg) | 2340 |
Battery | |
Number of battery packs | 12 |
Rated voltage (v) | 72 |
Hydraulic System | |
Motor Model | YQP5-72AF-48P |
Voltage (V) | 72 |
Power (W) | 5000 |
Displacement (m³/rpm) | 15 |
Speed (rpm) | 2000 |
Walking System | |
Motor Model | YQP4-72A1-48P |
Voltage (V) | 72 |
Power (W) | 4000x2 |
Speed (rpm) | 2988 |
Tyres | |
Type | 265/75-15.3, 29*12.50-15 |
Working Pressure (mpa) | 0.3 |
Quantity | 4 |
Steering System | |
Steering System Type | Full Hydraulic Steering System |
System Pressure (mpa) | 16 |
Steering Pump Type | Gear Pump |
Steering Cylinder Bore (mm) | φ63-35 |
Quantity (pcs) | 2 |
Braking System | |
Service brake | Drum brake |
Brake drum (mm) | 240 |
Parking brake | Drum brake |
Tip cylinder diameter (mm) | Φ92-45 |
Lift cylinder bore (mm) | Φ82-40 |
Number of lift cylinders (pcs) | 2 |
Oil Capacity | |
Hydraulic oil tank (L) | 54 |
Brake fluid (L) | 0.8 |
Application scenarios：

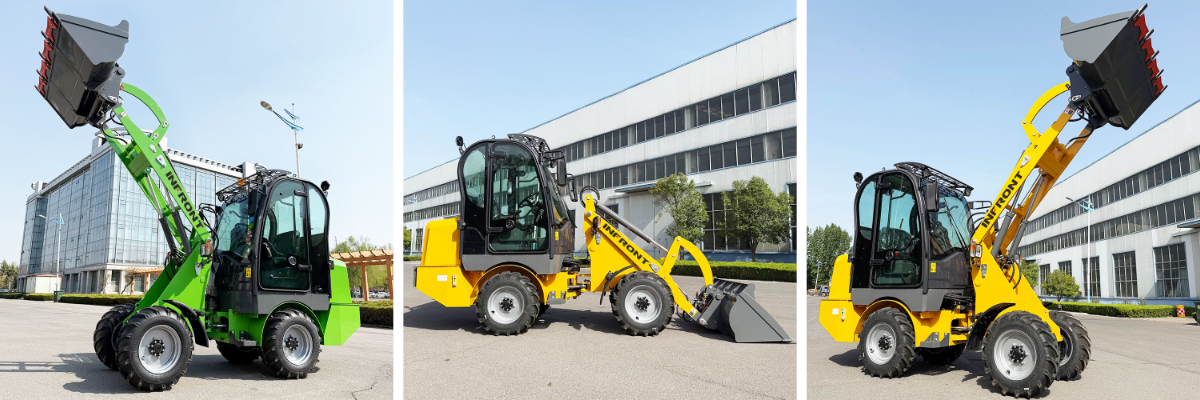

Site Analysis：
Imported hydraulic components are used, which ensure good operability, flexible movement and precise operation.

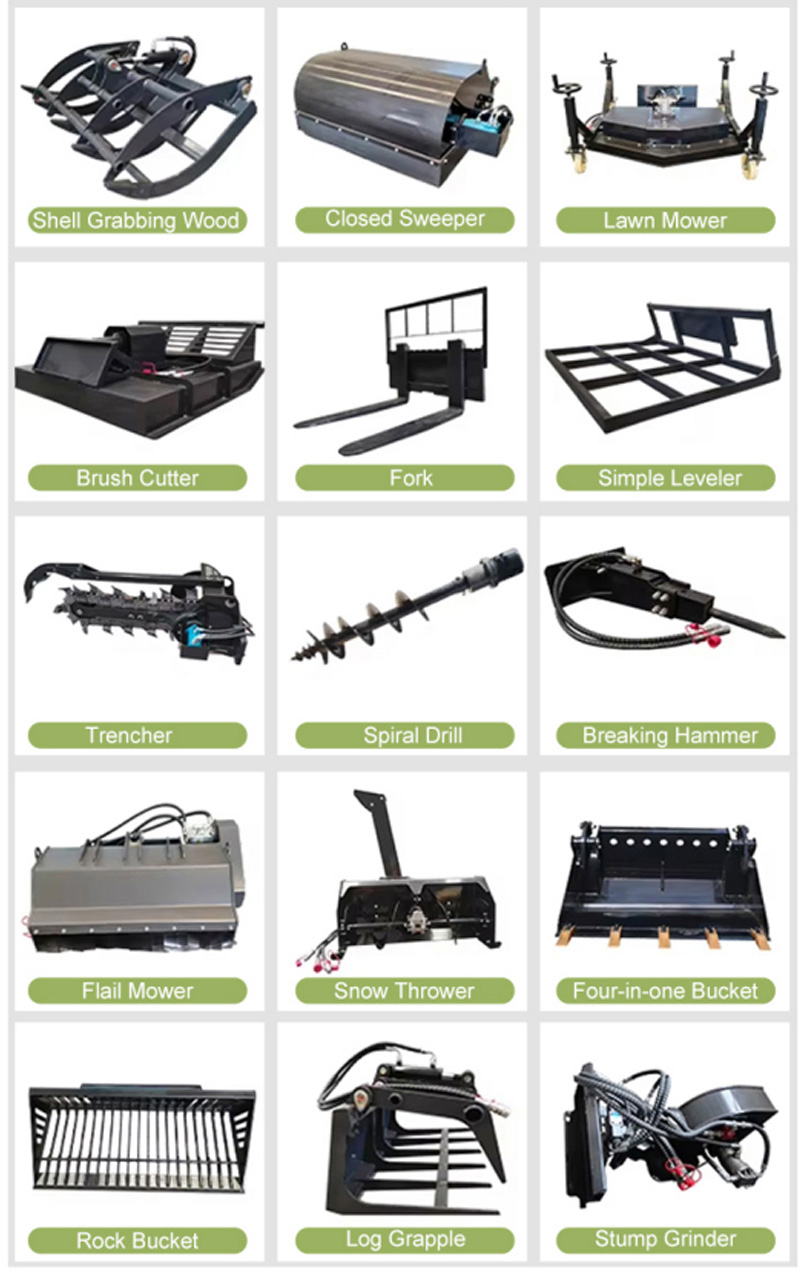

Product Accessories：
One machine for multiple uses, accessories for different applications
