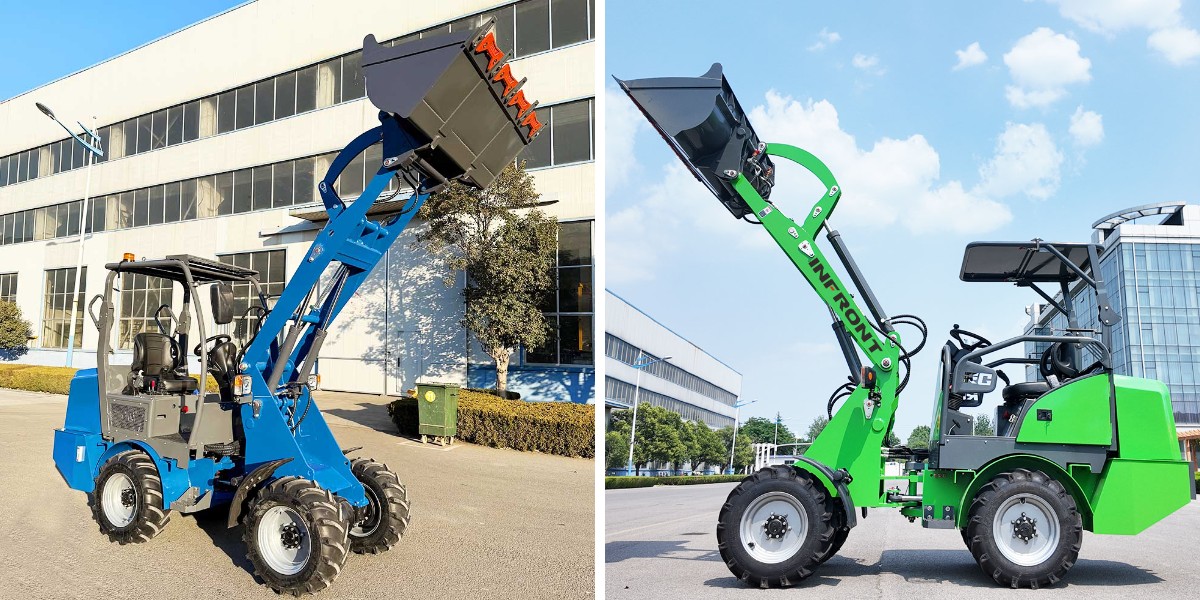

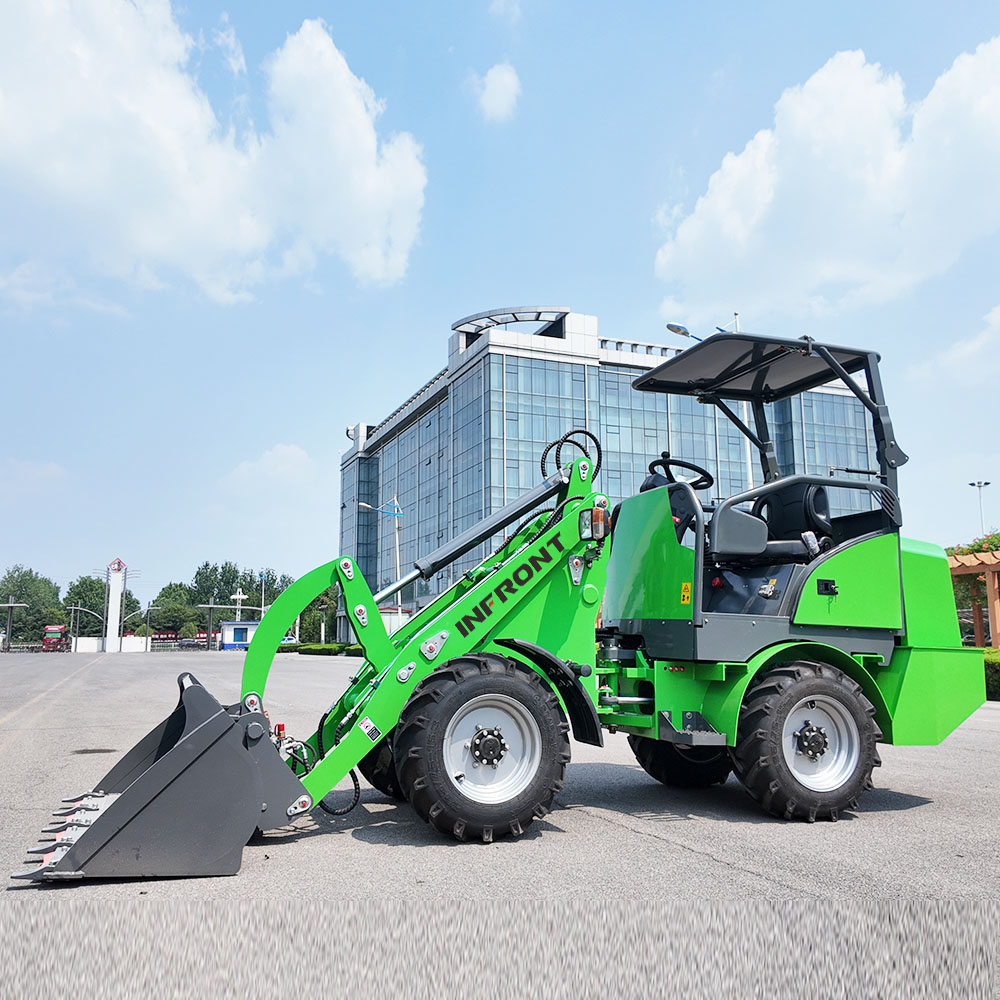

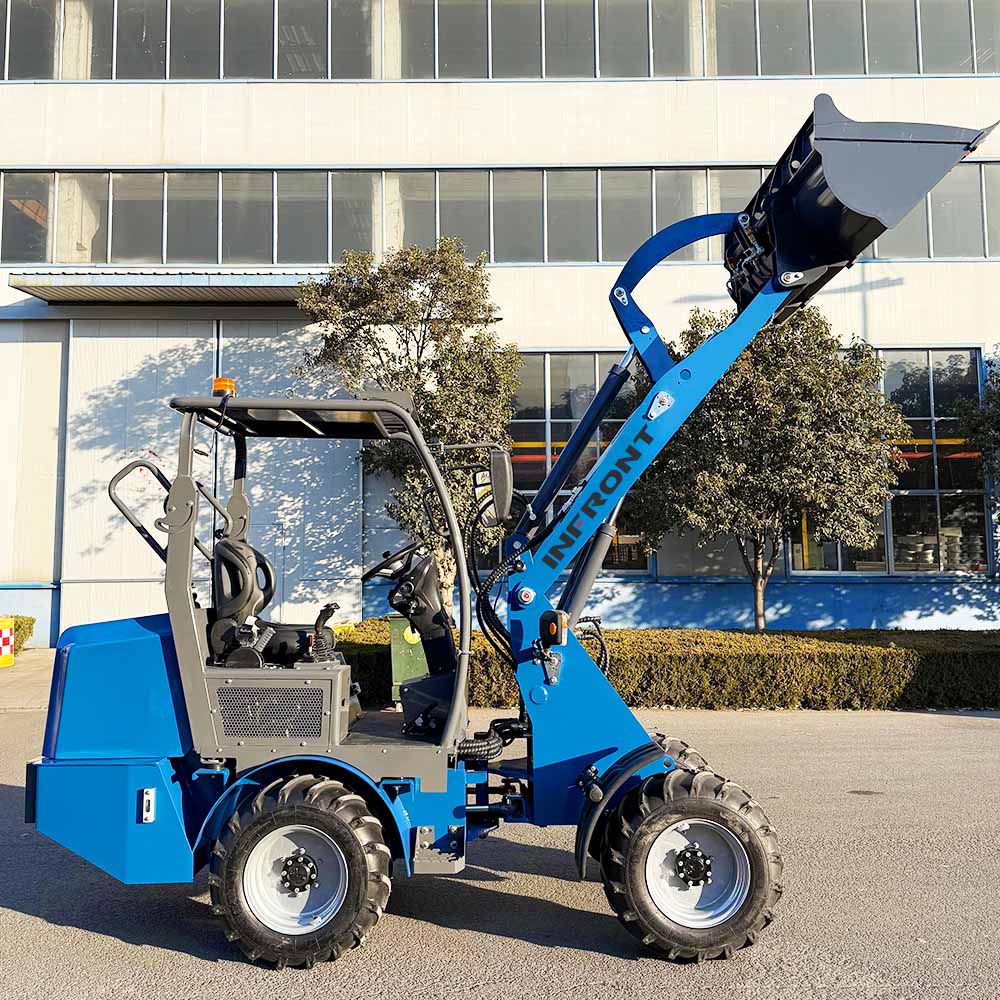

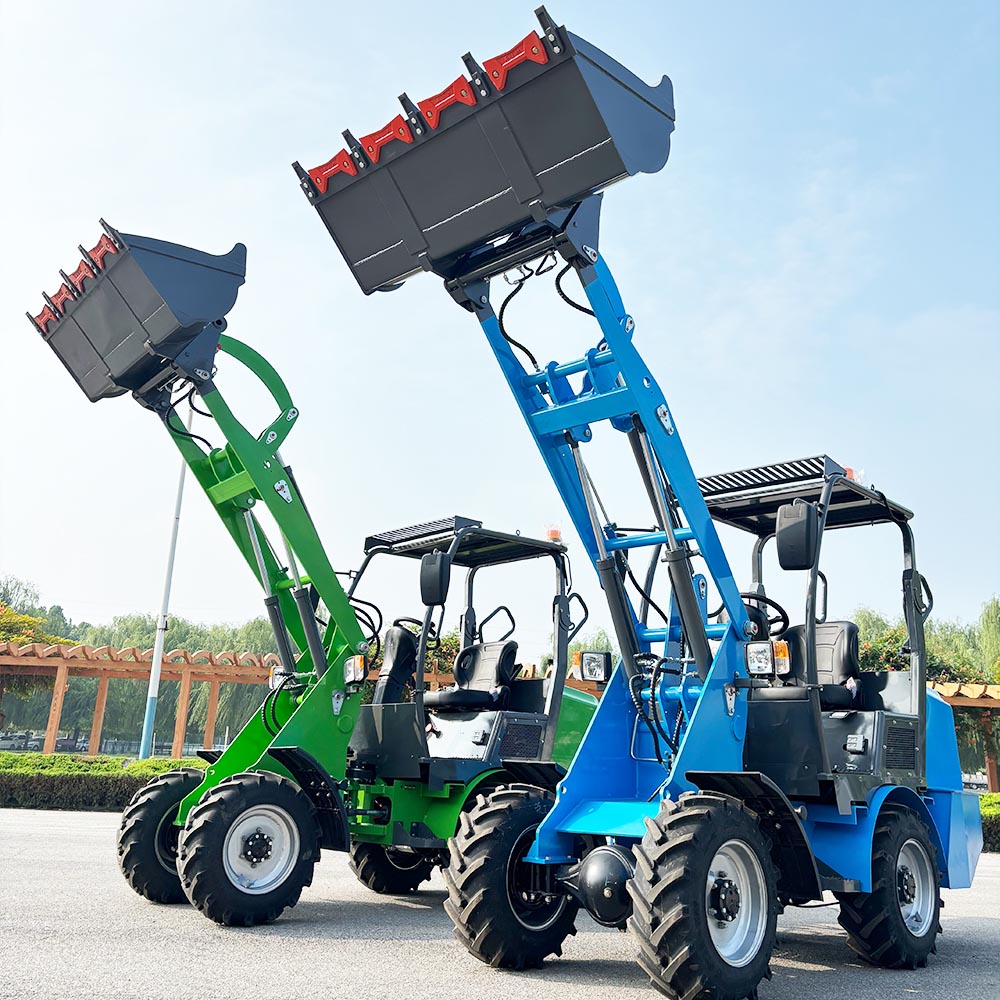

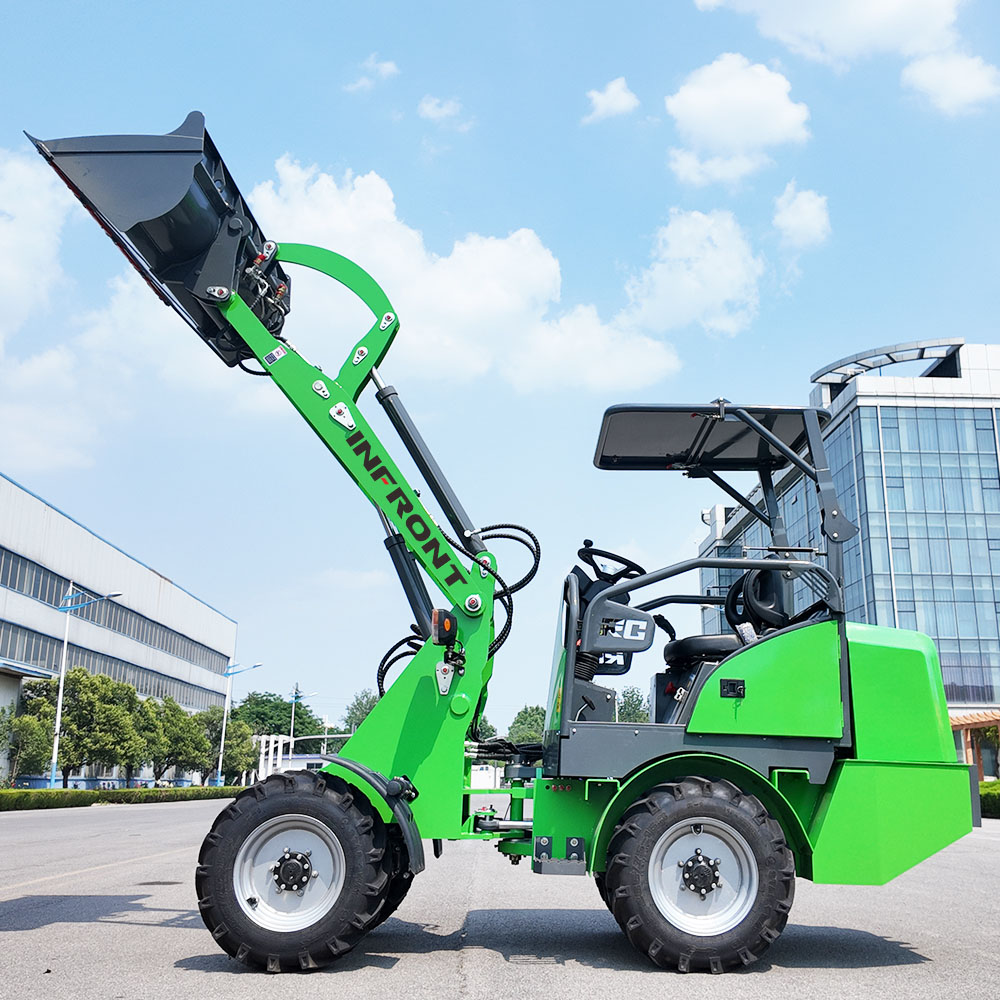

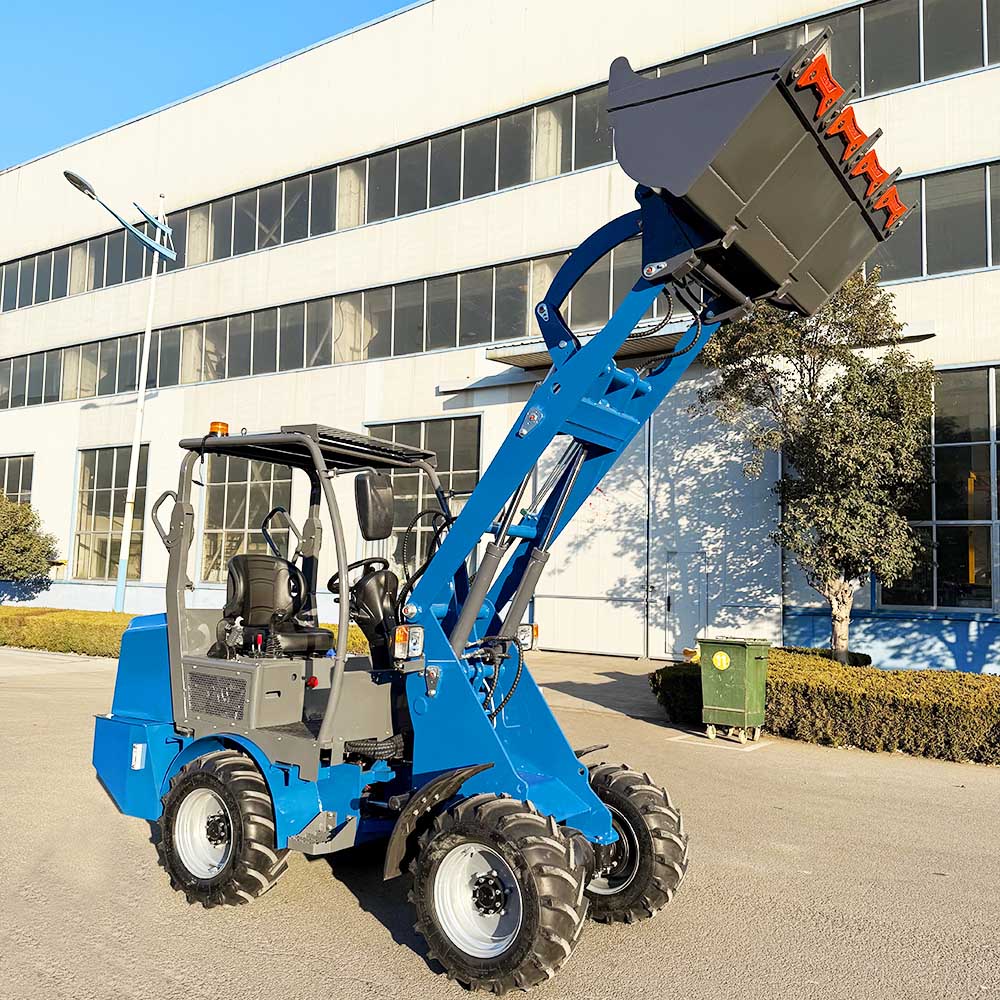

Electric wheel loader
Pure electric drive, zero emissions and low noise, powerful yet cost-saving. Choose it for efficient construction.
Strong power adapts to multiple working conditions, brake energy recovery extends range, simple maintenance for more peace of mind.
Intelligent power control, fast response and high precision, fault early warning reduces downtime, cutting costs and boosting efficiency.
Large-capacity battery for long endurance, stable operation in harsh environments, low noise and comfort for greater reliability.
Zero-Emission Loader is a green and environmentally friendly electric loader
Why choose electric? Because it redefines "efficiency."
Quietness is the new standard for productivity.
Saving money is a proven competitive advantage.
Zero emissions is a silent commitment to responsibility.
Instantaneous torque makes efficiency unstoppable.
The motor reaches peak torque immediately after starting, ensuring lightning-fast shoveling and loading responses. Combined with the intelligent electronic control system, movements are more precise, cycle times are shorter, and throughput per unit time is noticeably increased.
Product Details:

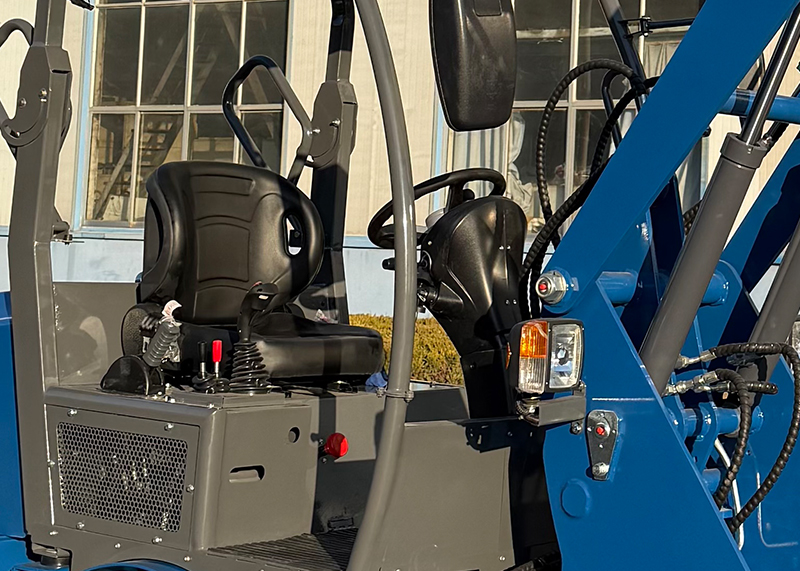

The ergonomically adjustable seat, multi-function integrated joystick and intelligent air-conditioning system make every operation easy and comfortable.

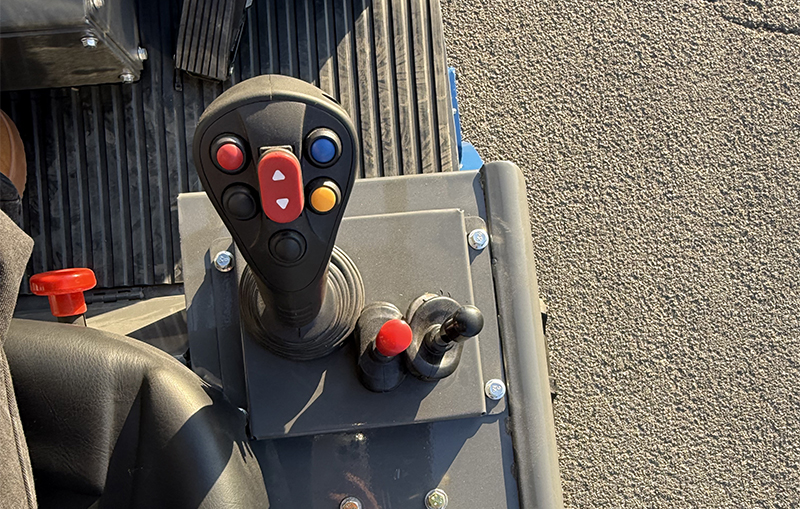

Electronic Joystick
The handle's shape fits the curve of your palm, providing a comfortable grip. The button layout is rational, integrating pilot control and function switching, allowing you to complete all actions with one hand, significantly reducing operator fatigue. The non-slip and wear-resistant surface material adapts to various working conditions and provides stable operation even in wet hands and oily environments.

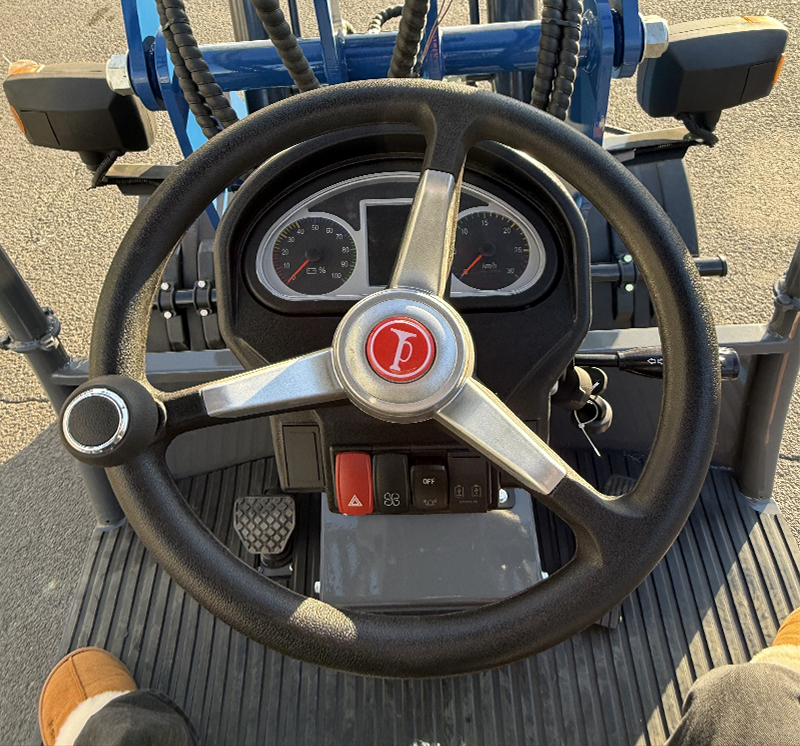

Adjustable Steering Wheel
The adjustable steering wheel improves comfort, control, visibility, accessibility, and safety for all operators.

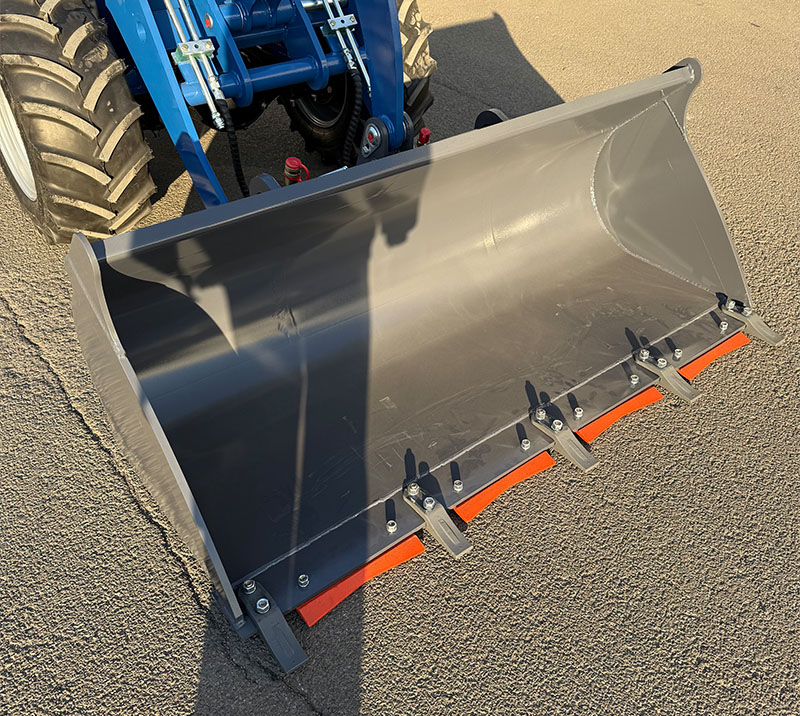

Bucket
The Emission Loader sale bucket is a rugged, wear-resistant, energy-efficient, and intelligent front-end. Crafted from high-strength wear-resistant alloy steel plates and reinforced with a special heat treatment process, it significantly enhances impact and wear resistance, making it a perfect match for demanding applications like sand, gravel, ore, and construction waste. Its service life is over 30% longer than traditional buckets.
Product Parameters:
Performance | |
Rated load capacity (t) | 1 |
Rated bucket capacity (m³) | 0.45 |
Dumping height (mm) | 2300 |
Lifting height (mm) | 3380 |
Dumping radius (mm) | 650 |
Maximum lift height (kg) | 1000 |
Maximum digging force (kg) | 1100 |
Maximum gradeability (°) | 18 |
Maximum turning angle (°) | 29±1 |
Dimensions. &.Weight | |
Overall length (mm) | 4450 |
Overall width (mm) | 1260/1300 |
Overall height (mm) | 2450 |
Wheelbase (mm) | 1580 |
Tire spacing (mm) | 1000 |
Minimum ground clearance (mm) | 215 |
Dry weight (kg) | 2340 |
Battery | |
Number of battery packs | 12 |
Rated voltage (V) | 72 |
Transmission System | |
[Hydraulic System] | |
Motor Model | YQP5-72AF-48P |
Voltage (V) | 72 |
Power (W) | 5000 |
Displacement (m³/rpm) | 15 |
Speed (rpm) | 2000 |
[Walking System] | |
Motor Model | YQP4-72A1-48P |
Voltage (V) | 72 |
Power (W) | 4000x2 |
Speed (rpm) | 2988 |
[Tyres] | |
Type | 265/75-15.3,29*12.50-15 |
Working pressure(mpa) | 0.3 |
Qty | 4 |
Steering System | |
Steering Hydraulic System Type | Full Hydraulic Steering System |
System Pressure (mpa) | 16 |
Steering Pump Type | Gear Pump |
Steering Cylinder Diameter (mm) | Φ63-35 |
Quantity (pcs) | 2 |
Braking System | |
Service brake | Drum brake |
Brake drum (mm) | 240 |
Parking brake | Drum brake |
Tip cylinder diameter (mm) | Φ92-45 |
Lift cylinder bore (mm) | Φ82-40 |
Number of lift cylinders (pcs) | 2 |
Oil Capacity | |
Hydraulic oil tank (L) | 54 |
Brake fluid (L) | 0.8 |
Application scenarios：
Site Analysis：
Imported hydraulic components are used, which ensure good operability, flexible movement and precise operation.
Product Accessories：
Electric loaders support a variety of interchangeable attachments, truly achieving "one machine, multiple uses." Choosing an electric loader with multiple attachments means choosing greater flexibility, greater adaptability, and better overall benefits—allowing one machine to handle the challenges of the entire construction site.
We firmly believe that "quality is the life of an enterprise," and our strict quality control team is committed to providing every customer with satisfactory products. We use the finest materials and components for each piece of equipment and conduct a comprehensive inspection before shipment to ensure long-term durability and reliability. We pay attention to every aspect of production to ensure excellent quality.
