Steel tracks for skid steer
Skid steer loaders, alternatively referred to as skid steers, multipurpose vehicles, and multipurpose engineering machines, are specialized wheeled chassis devices designed to achieve vehicle steering by utilizing the speed differential between their two wheels. They are primarily utilized in compact job sites with uneven surfaces and frequently changing tasks.These loaders are well-suited for various applications, including infrastructure construction, industrial operations, dock handling, urban streets, residential properties, barns, and airport runways. Additionally, they can serve as auxiliary equipment for large-scale construction machinery.
Maneuverability: Small loaders are highly maneuverable, thanks to their compact size and articulated steering. This makes them ideal for working in tight spaces, such as construction sites with limited access or indoor projects.
Details：

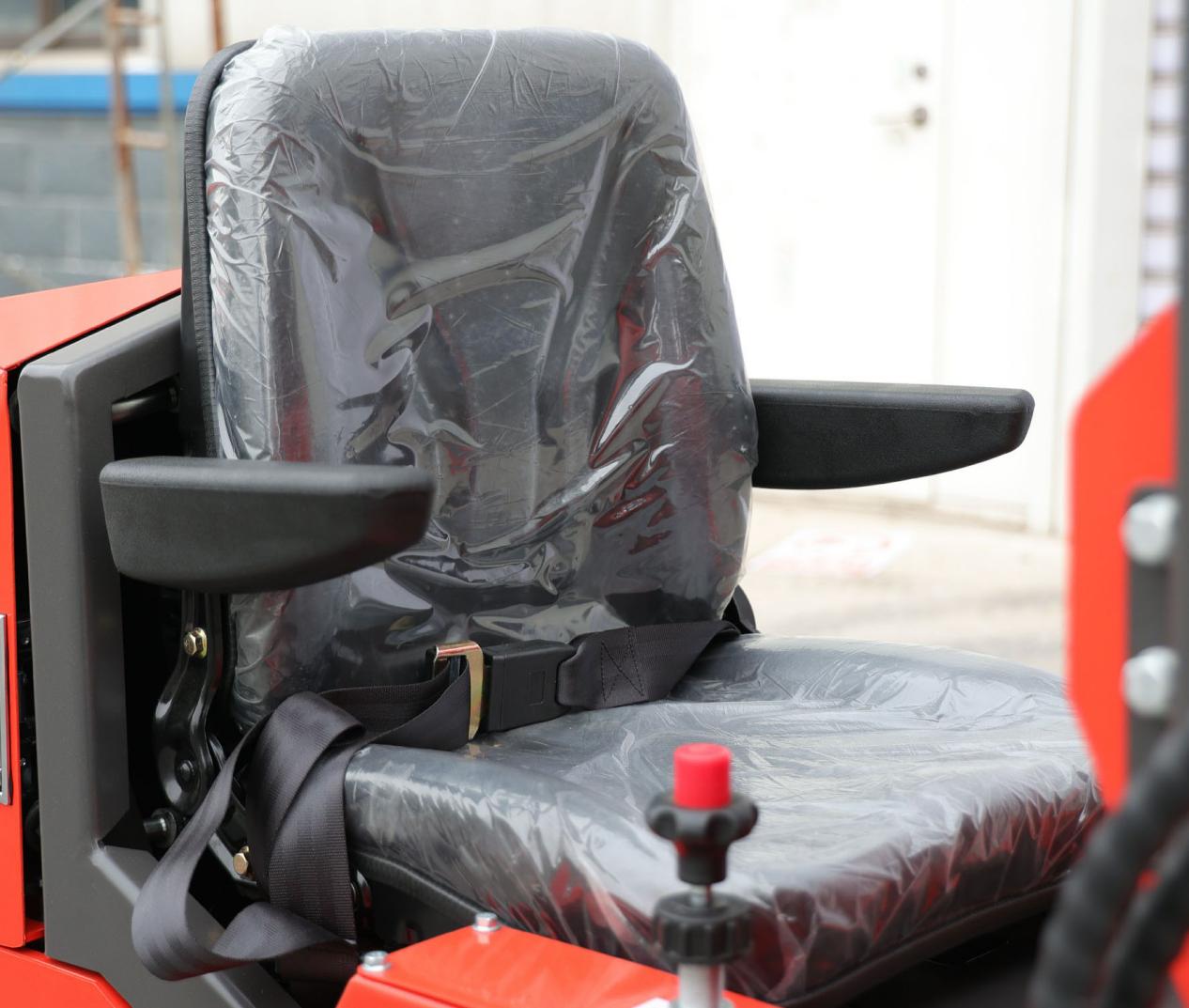

①【Comfortable Backrest】
High end seats Spacious and comfortable,
ergonomically designed with an auxiliary control lever.

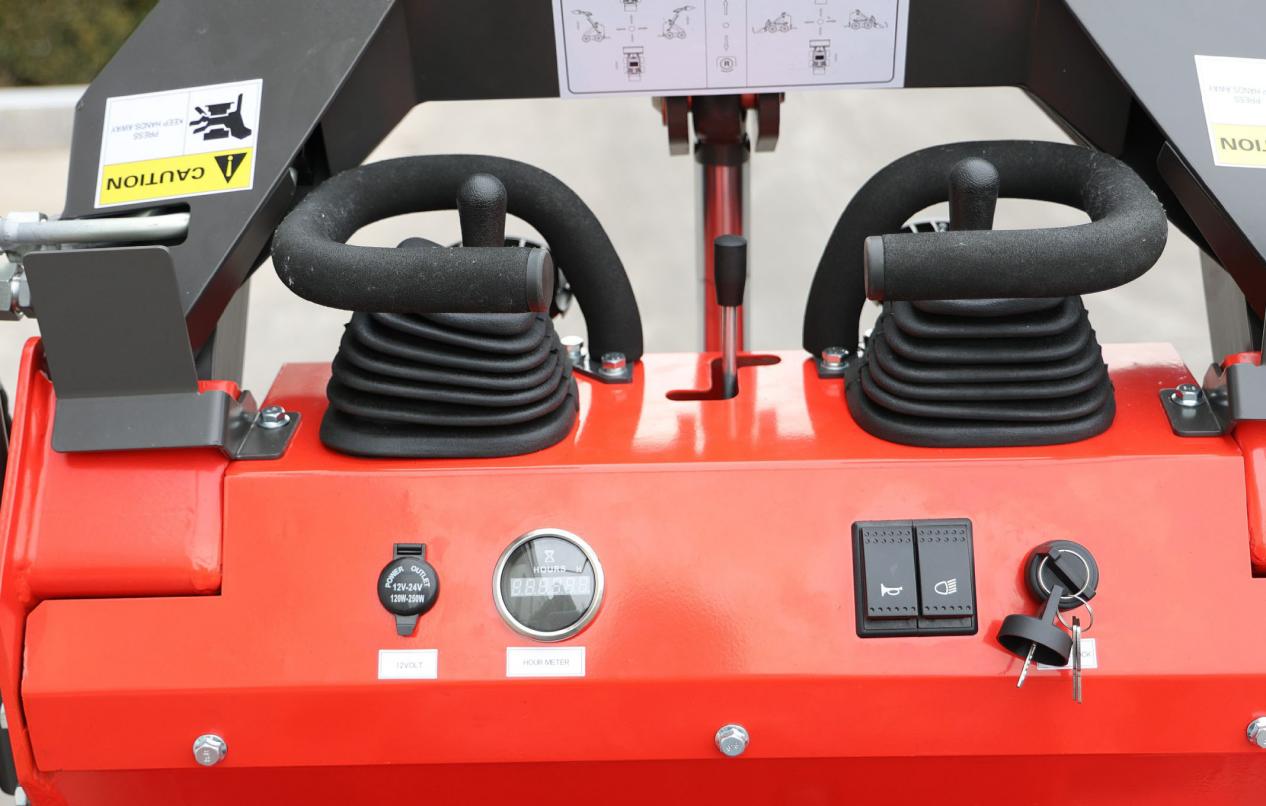

②【Console】
Prevent engine overheating,and prolong engine life

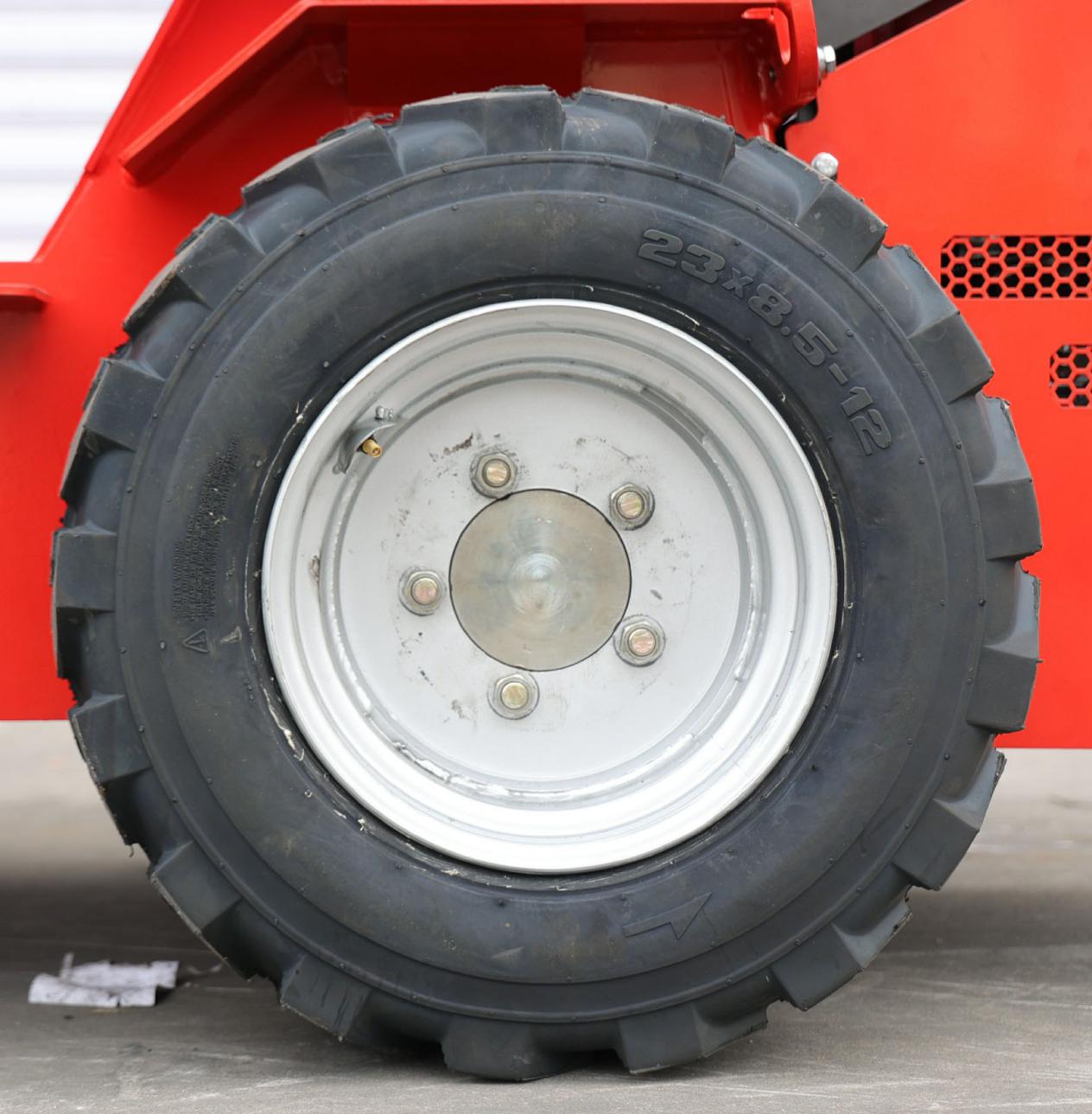

③【Solid Tire】
Strong bearing capacity, suitable for all terrains

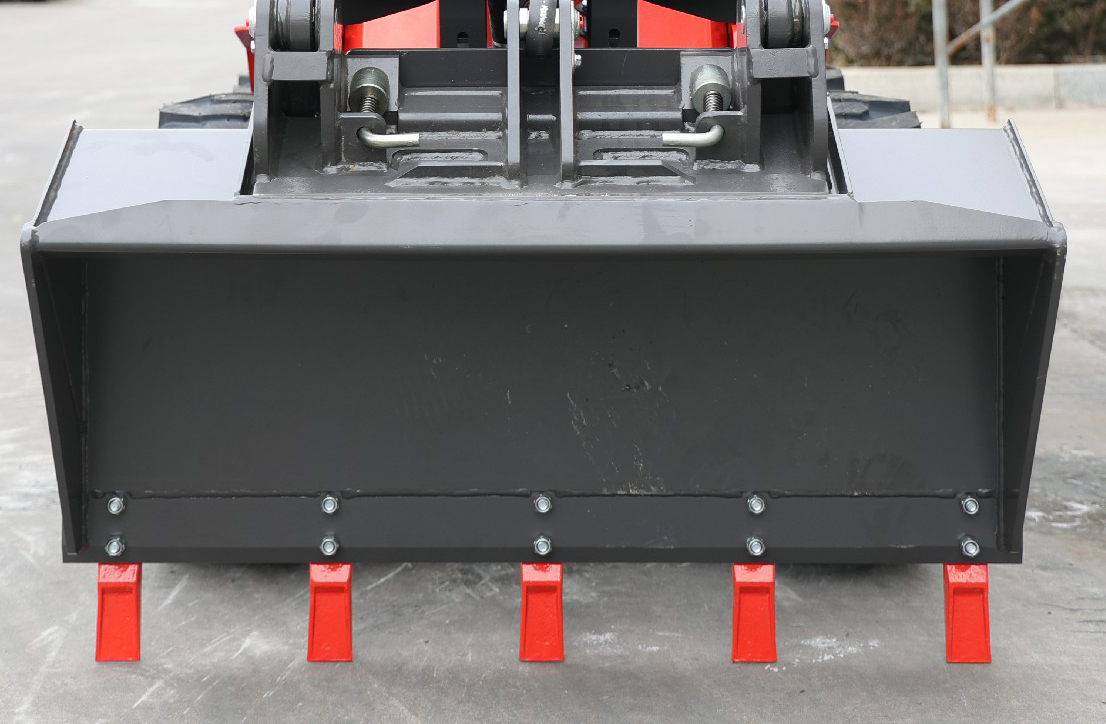

④【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
Parameter | |
Rated Load Capacity | 238 kg |
Bucket Volume | 0.13 m3 |
Maximum Lifting Force | 600 kg |
Speed of Work | 0-4.2 km/h |
Preset Pressure | 18.5 Mpa |
Lifting time | 47s |
Fall Time | 32s |
Tipping Time | 4.6s |
Gradeability | 30% |
Working Weight | 755-780kg |
Brang | Briggs & Stratton/RATO/KOOP |
Type | Petrol / diesel |
Output Power | 13.5HP/15HP/11.7HP |
Fuel Consumption | <3.8,<4.2, ≤2.3 |
Start Mode | Electric Start |
Fuel Tank | 6.6L, 6.7L, 5.5L |
Engine oil | 1.1L, 1.1L, 1.6L |
Hydraulic Tank | 23L |
Starting method | Electric start |
Engine | B&S/Raton |
Rated power | 23HP/3600rpm |
Type | Gasoline Engine, V-Twin |
Fuel tank capacity | 26L |
Hydraulic oil tank capacity | 23L |
Rated pressure | 17MPE |
Walking speed | 0-4.3km/h |
Maximum loading capacity | 800kg |
Rated loading capacity | 560KG |
Standard bucket volume | 0.15mm3 |
Lifting time | 4.5s |
Descent time | 3.1s |
Tipping time | 1.8s |
Climbing ability | 30% |
Body size | 2646*1140*1867mn |
Working weight | 930 KG |
Net weight | 930 KG |
