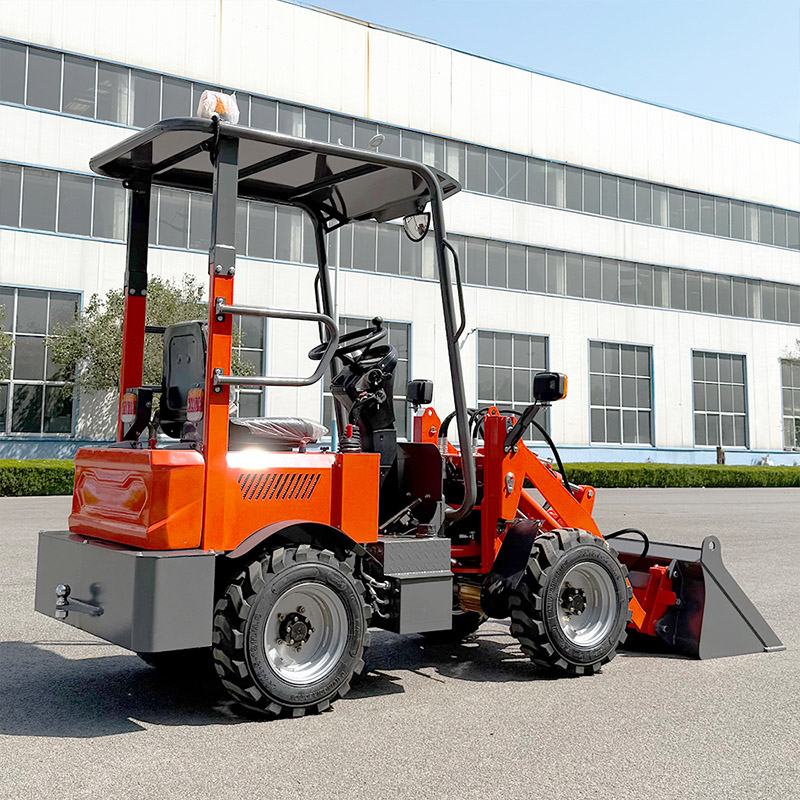

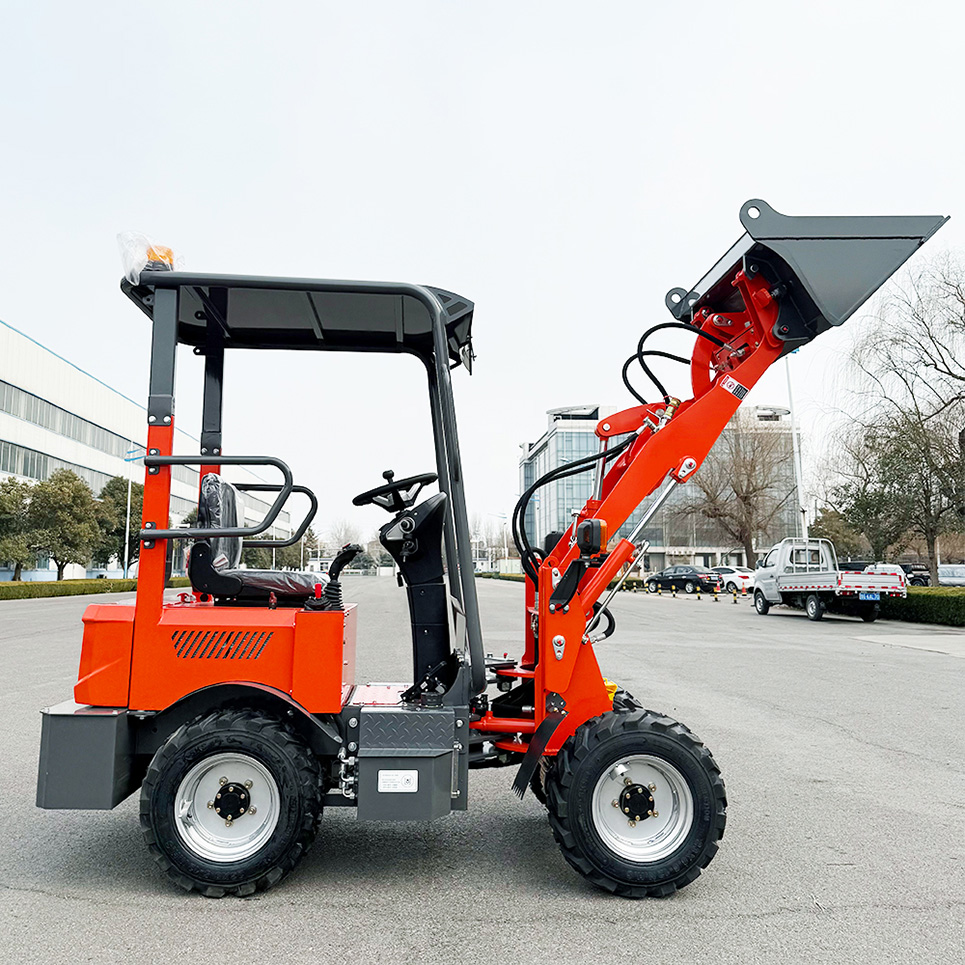

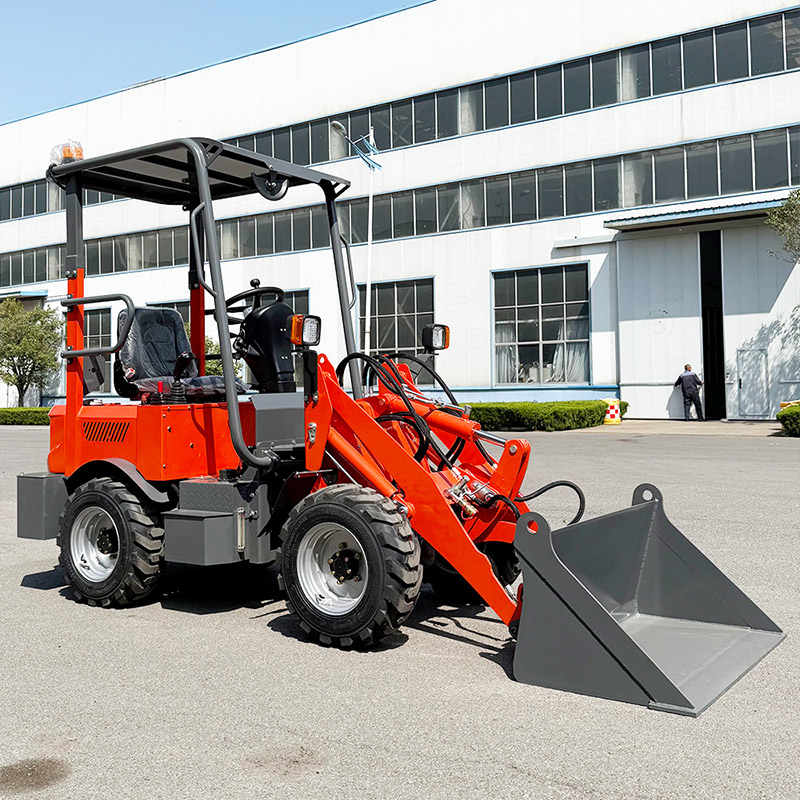

Electric Mini Wheel Loader
Less charging time & Longer work time, charging time less than 8 hours, large capacity cold - resistant maintenance-free battery to make sure 6 hours work time
Comfortable driving, luxurious shock absorption, adjustable seat with seat belt, ergonomic control handle, luxurious digital display instrument
Attachments, the quick hitch and bucket are included as standard, and a wide variety of other attachments are available to handle just about any work that needs doing.
Versatile & User-Friendly： Supports quick attachment changes (bucket, forks, sweepers, etc.), with ergonomic controls, hydraulic steering, and a luxurious digital console for simplified, comfortable operation.
The Electric Mini Wheel Loader is built for operators who need compact power, multi-functionality, and quiet, eco-friendly operation. With a full charge time of less than 8 hours and up to 6 hours of continuous work, this zero-emission loader is perfect for urban construction, farm work, landscaping, and warehouse operations. Its quick hitch design allows easy attachment swaps, while the small chassis ensures agile performance even in single-lane spaces—making it the smart choice for efficiency-focused teams.
Small and flexible, capable of operating within a single lane;
Multiple functions, one machine with multiple uses,
Easy operation and convenient maintenance.

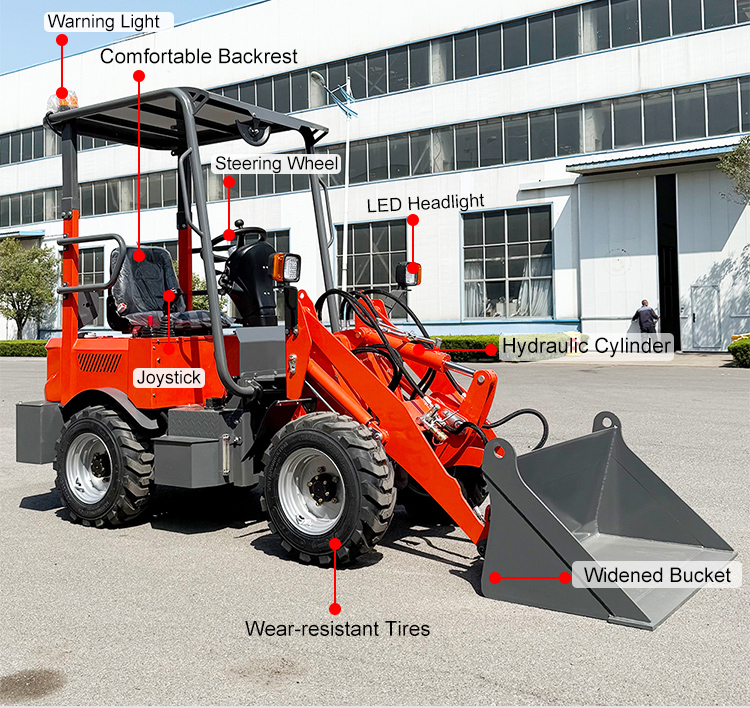

Details：

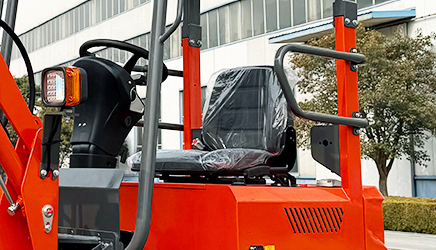

【Comfortable Backrest】
High end seats Spacious and comfortable, ergonomically designed with an auxiliary control lever.
【Console】
Prevent engine overheating,and prolong engine life

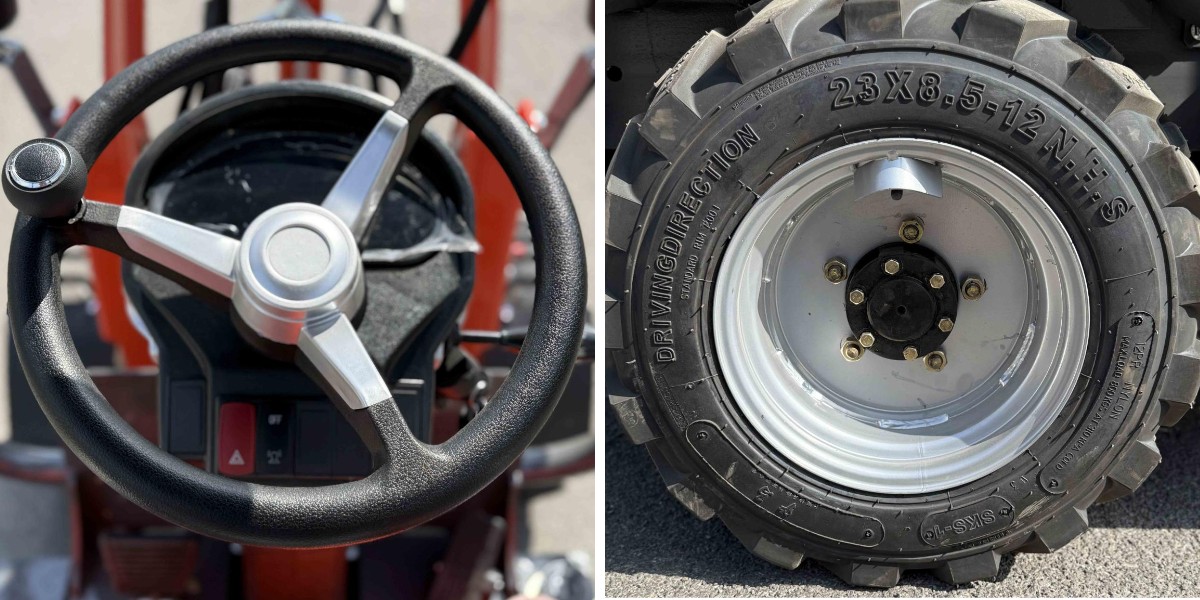

【Solid Tire】
Strong bearing capacity, suitable for all terrains

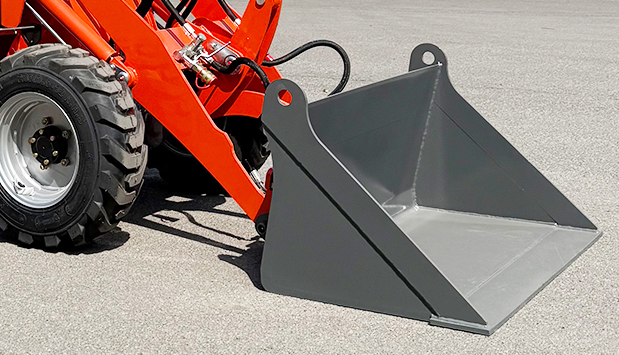

【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
Parameter：
Machine Parameters (Theoretical Values) | |
Rated Load (KG) | 400 |
Rated Capacity of Bucket (m³) | 0.22 |
Dumping Height (mm) | 1360 |
Lifting Height (mm) | 2200 |
Unloading Distance (mm) | 600 |
Maximum Load (KG) | 400/600 |
Maximum Rising Force (KG) | 550 |
Maximum Climbing Ability (°) | 15 |
Maximum Steering Angle (°) | 35±1 |
Machine Dimensions | |
Total Length (mm) | 3280 |
Bucket Width (Total Width) (mm) | 1100 |
Total Height (mm) | 2100 |
Wheelbase (mm) | 1350 |
Track (mm) | 860 |
Minimum Ground Clearance (mm) | 200 |
Net Weight (KG) | 1150 |
Number of Battery Packs | 5 |
Rated Voltage (V) | 60 |
Hydraulic System | |
Motor Model | YS155-3-60-S02A |
Voltage (V) | 60 |
Power (W) | 3000 |
Displacement (mL/rev) | 14 |
Travel System | |
Speed (RPM) | 3000 |
Motor Model | KC2500-60-QS |
Voltage (V) | 60 |
Power (W) | 2500 |
Speed (RPM) | 3000 |
Tire Specifications | |
Type | 23×8.5-12 |
Working Pressure (MPa) | 0.3 |
Quantity | 4 |
Steering System | |
Steering Hydraulic System Type | Fully Hydraulic Steering |
System Pressure (MPa) | 16 |
Steering Pump Type | Gear Pump |
Steering Cylinder Diameter (mm) | Φ50-25 |
Quantity (pcs) | 2 |
Braking System | |
Service Brake | Drum Brake |
Brake Drum (mm) | 240 |
Parking Brake | Drum Brake |
Tip Cylinder Diameter (mm) | Φ73-35 |
Lift Cylinder Diameter (mm) | Φ60-30 |
Lift Cylinder Quantity (pcs) | 2 |
Fluid Capacity | |
Hydraulic Oil Tank (L) | 38 |
Brake Fluid (L) | 0.8 |
Application scenarios：
Site Analysis
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

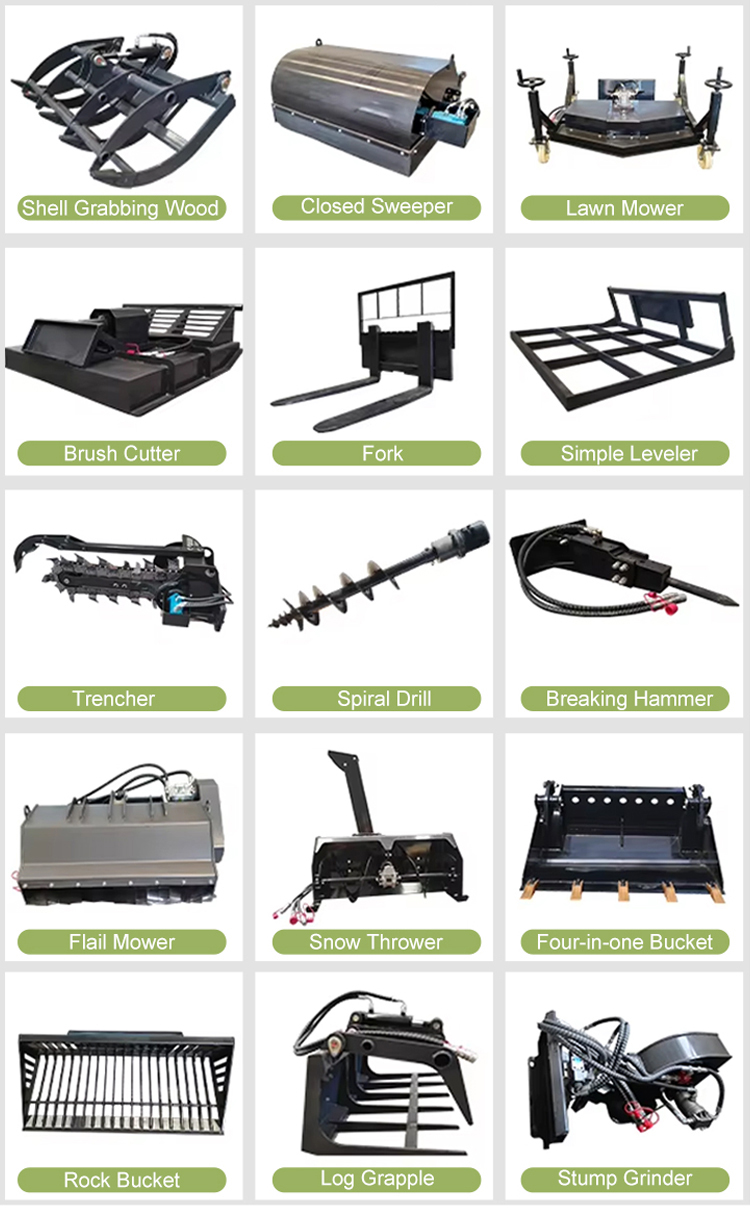

Product Accessories
(Versatility, one machine for multiple uses: Compact loaders are extremely versatile and can be equipped with a variety of attachments, such as buckets, forklifts, grapples, augers and brooms. This versatility enables them to handle a variety of tasks, from loading and transporting materials to landscaping and snow removal.)
Annual sales at home and abroad exceed 20,000 units, exported to all over the world, and widely praised! More than 1,000 professional sales and service personnel, more than 60 countries and regions, customer sales teams have been established
