Electric Compact Loader
Powerful power: using high-performance engine, stable power output, adapting to high-intensity operation requirements.
Flexible and maneuverable: compact design, zero turning radius, can operate freely in narrow spaces,
improving construction efficiency.
Comfort-Focused Cab Design: Ergonomic seating with auxiliary lever and safety-focused layout for long-term operator comfort.
Durable Tires for All Terrains: Heavy-duty 10.0/75-15.3 solid tires offer strong grip and performance across construction, farm, and yard environments.
Efficient Fuel & Hydraulic System: 30L diesel and hydraulic tank ensures long working cycles with low consumption.

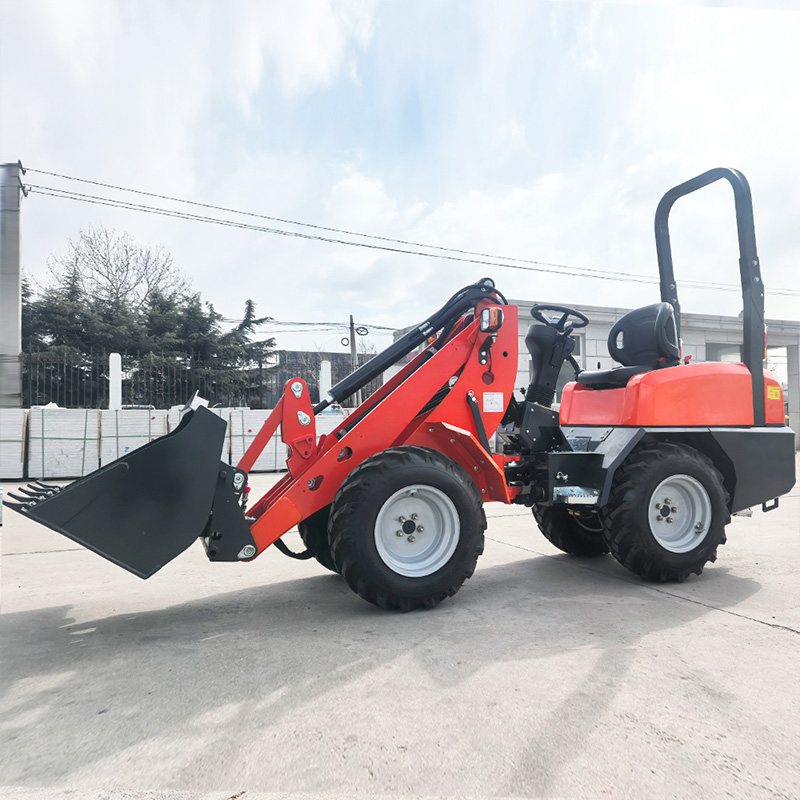

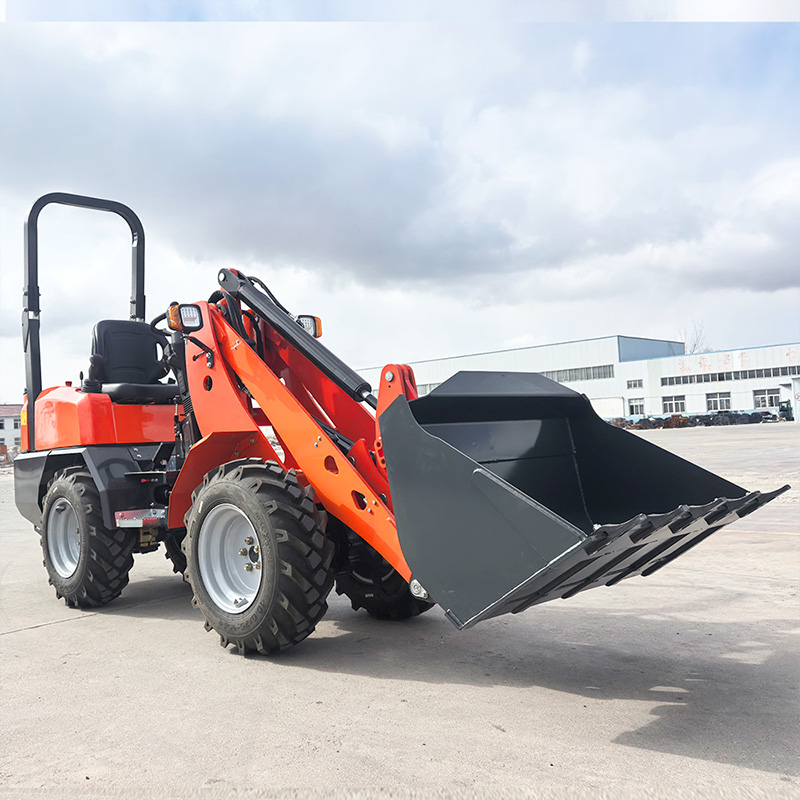

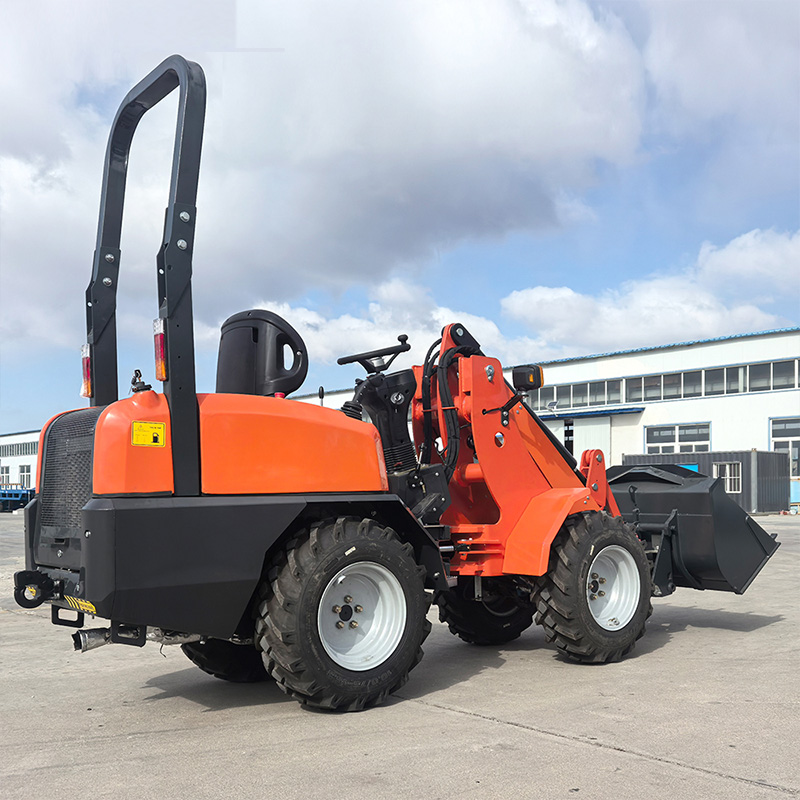

The Multifunctional Compact Wheel Loader – 1 Ton Rated Load is a high-performance, easy-to-operate machine designed for versatility and durability in tight workspaces. With a compact body, intelligent hydraulic system, and a fast-attach design, this loader supports rapid switching between buckets, breaker hammers, sweepers, and fork arms—realizing true "one machine, multiple uses." It’s an ideal choice for small construction teams, urban utility projects, farming tasks, and landscaping operations, especially in scenarios that demand low emissions, quiet performance, and operational efficiency.
Multifunctional accessories - supports quick replacement of buckets, breaker hammers, sweepers, fork arms and other accessories, realizing "one machine for multiple uses".
Intelligent control - humanized cab design, some models are equipped with intelligent hydraulic system and electronic control technology, making operation more convenient.

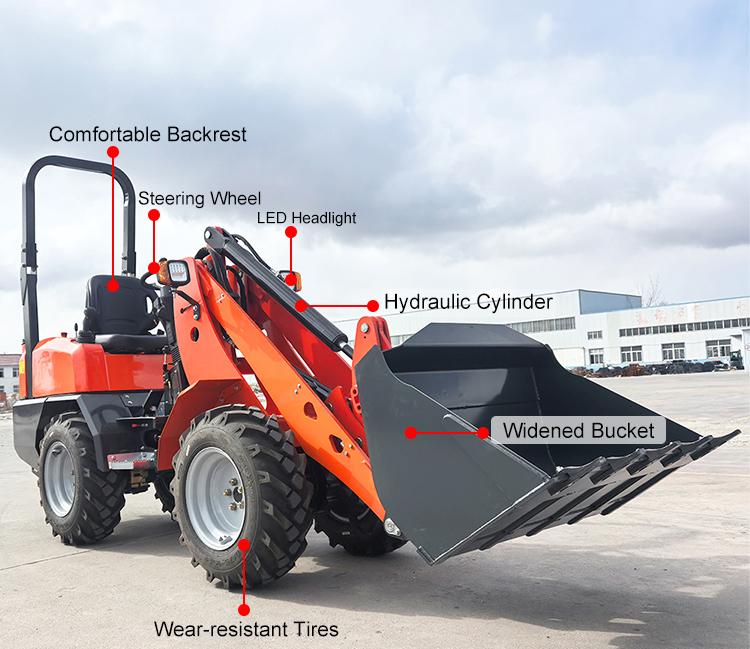

Product Details：

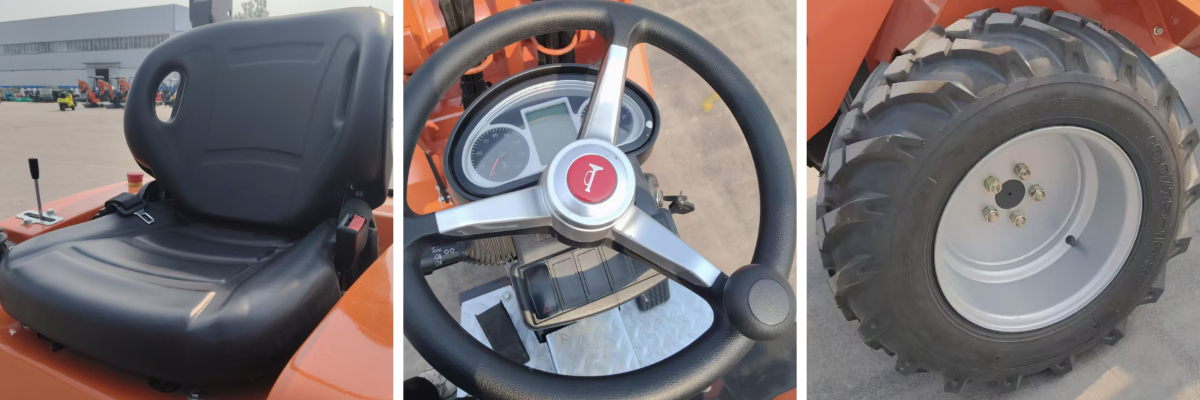

【Comfortable Backrest】
Fully wrapped seat, high-end and comfortable, suitable for long-term work
【Console】
The joystick fits securely and comfortably in your hand. The controls are durable and responsive, keeping you in control of the machine and key functions.
【Solid Tire】
Strong wear resistance and good safety performance

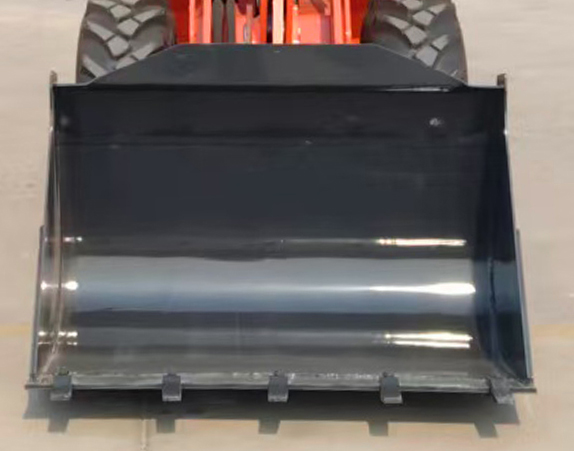

④【Reinforced bucket】
High capacity hopper operation peed and efficiency
Product Parameter：
| Specification | Value |
Total length of the vehicle | 4300 mm |
Total length of the vehicle (excluding bucket) | 3500 mm |
Center of the front axle (front wheel center) | 625 mm |
Wheelbase | 1550 mm |
Rear suspension length | 1145 mm |
Total height | 2500 mm |
Seat height | 1220 mm |
Total working height | 3720 mm |
Maximum bucket fulcrum height | 2950 mm |
Empty loading height | 2670 mm |
Unloading height | 2090 mm |
Safety distance | 410 mm |
Total width of the vehicle | 1040 mm |
Wheel center width | 780 mm |
Ground clearance | 235 mm |
Total maximum turning radius (outside) | 2780 mm |
Vehicle turning radius (outside) | 2400 mm |
Inner turning radius of the vehicle body | 1343 mm |
Articulated turning angle | 45° |
Maximum height, bucket retracting angle | 51° |
Maximum height, bucket unloading angle | 45° |
Lowest point, bucket retracting angle | 51° |
Tire specifications | 10.0/75-15.3 (400/60-15.5 optional) |
Operating weight | 2000 KG |
Tipping load | 850 KG |
Rated load | 1000 KG |
Hydraulic oil tank capacity | 30 L |
Diesel tank capacity | 30 L |
Gradability | 30% |
Application scenarios：
Site Analysis
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

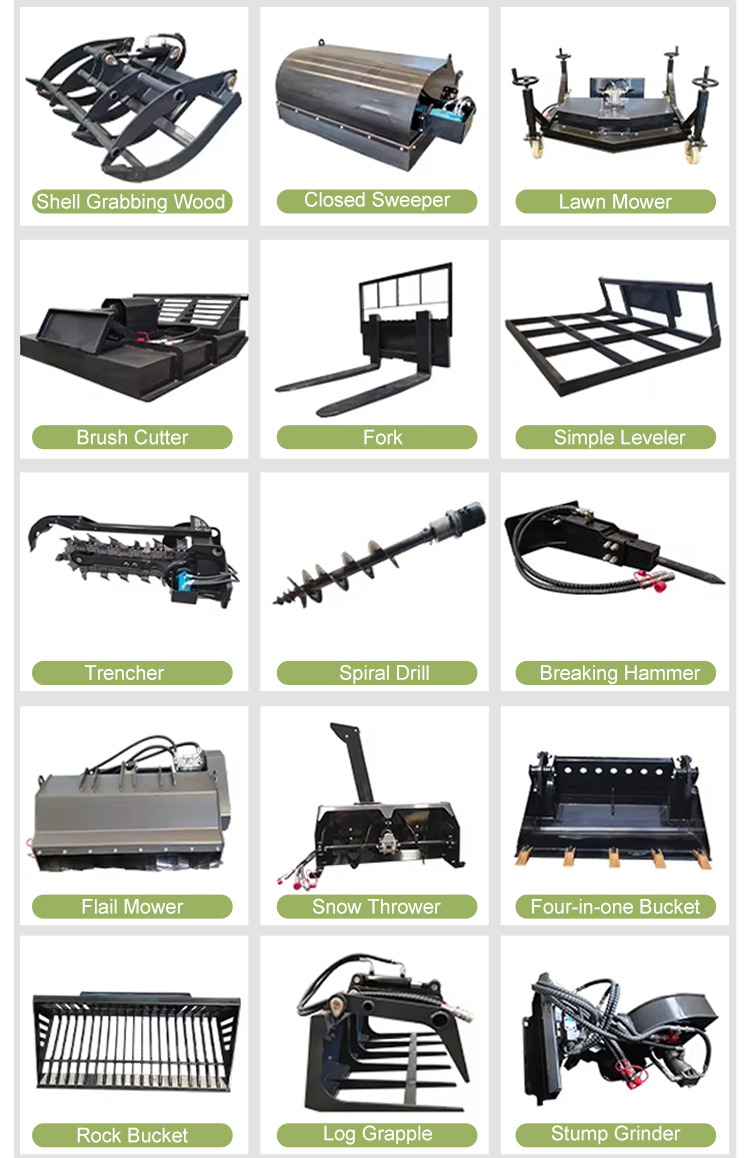

Product Accessories
Versatility: Small loaders are incredibly versatile machines that can be equipped with various attachments, such as buckets, forks, grapples, augers, and brooms. This versatility allows them to tackle a wide range of tasks, from loading and hauling materials to landscaping and snow removal.
Annual sales at home and abroad exceed 20,000 units, exported to all over the world, and widely praised! More than 1,000 professional sales and service personnel, more than 60 countries and regions, customer sales teams have been established
