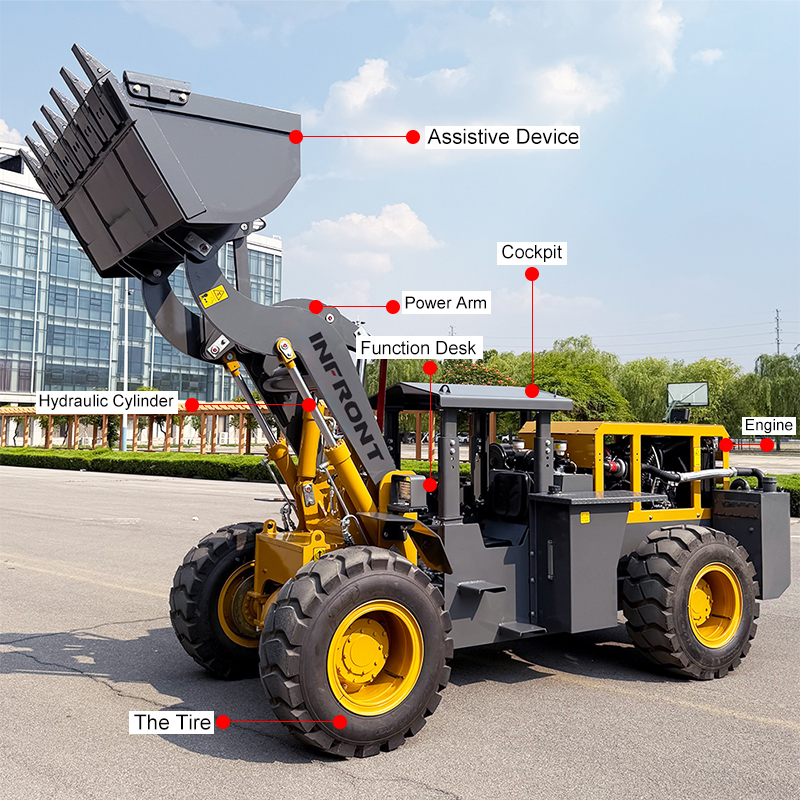

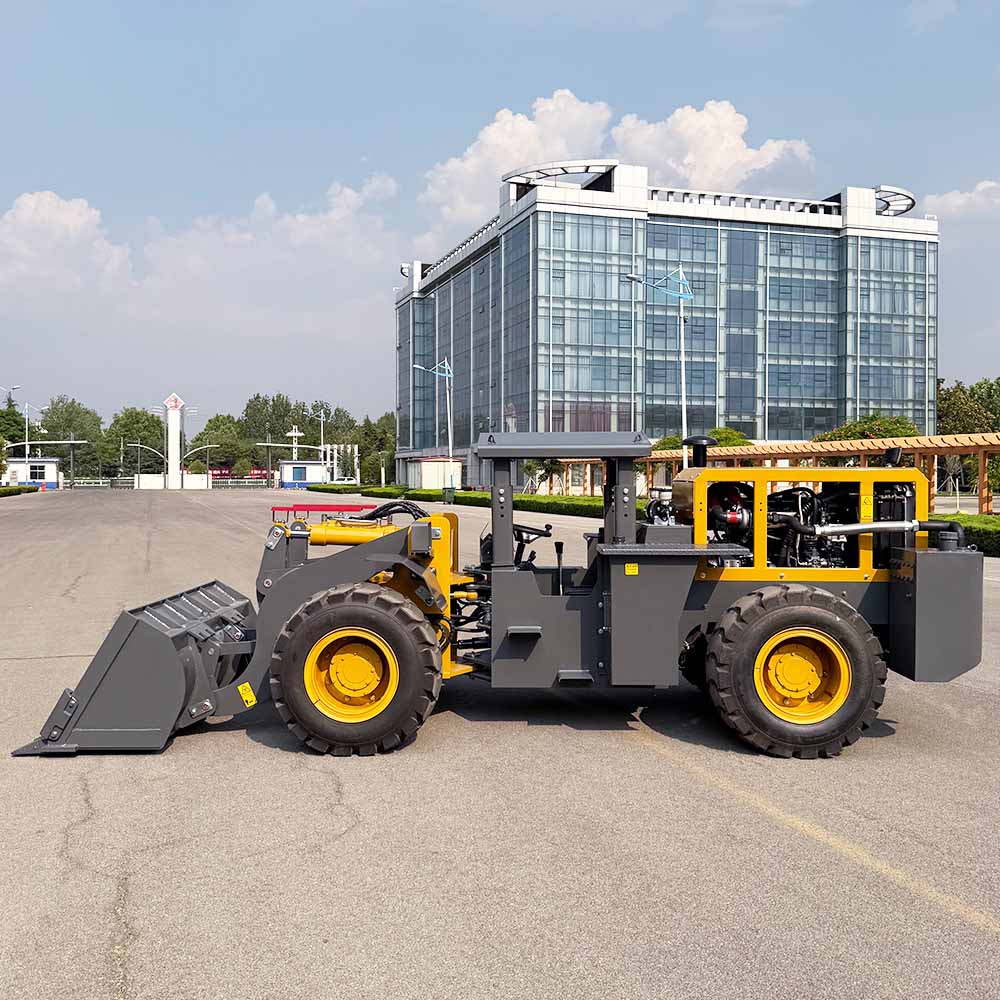

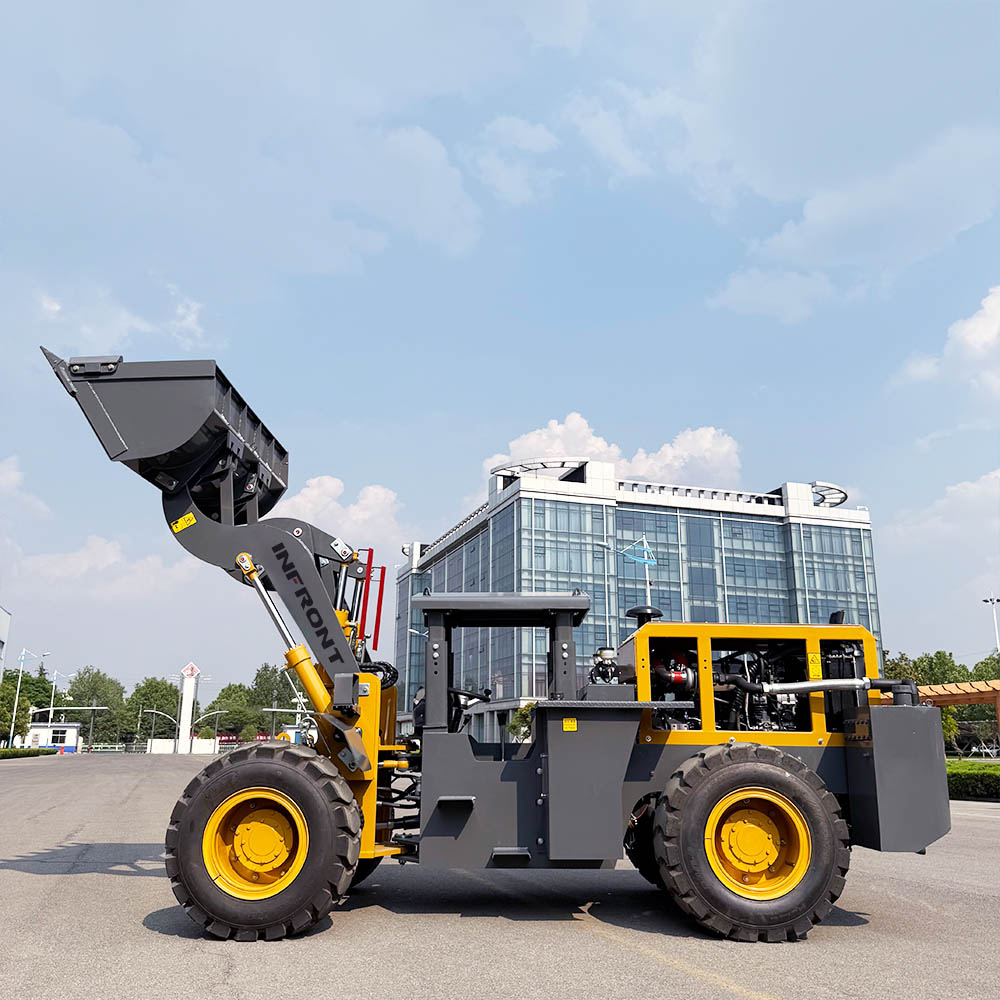

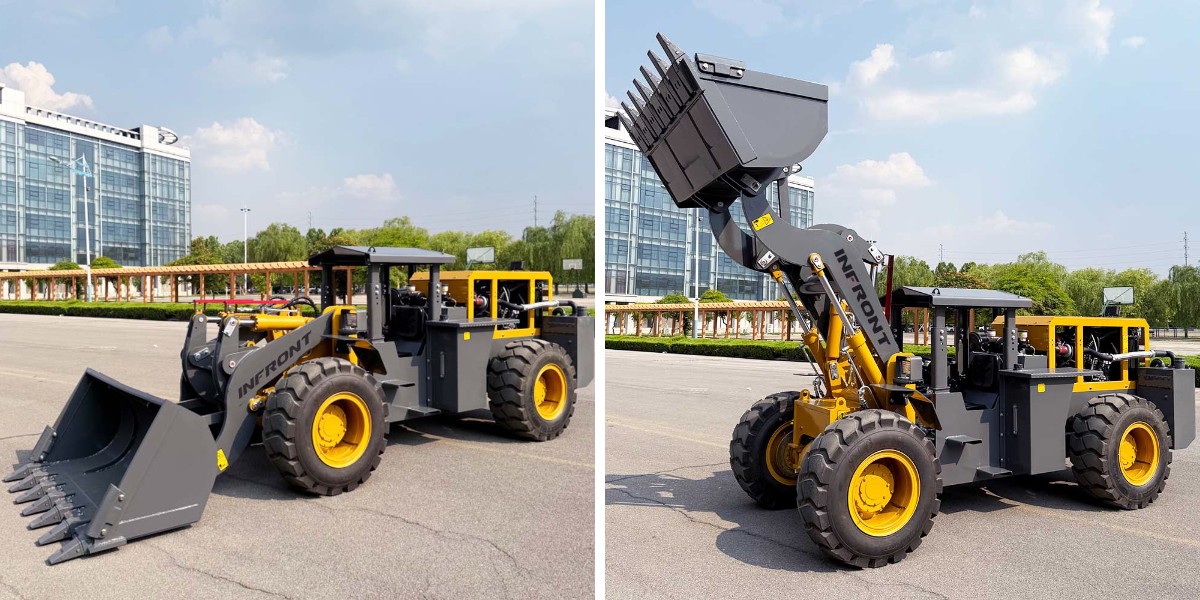

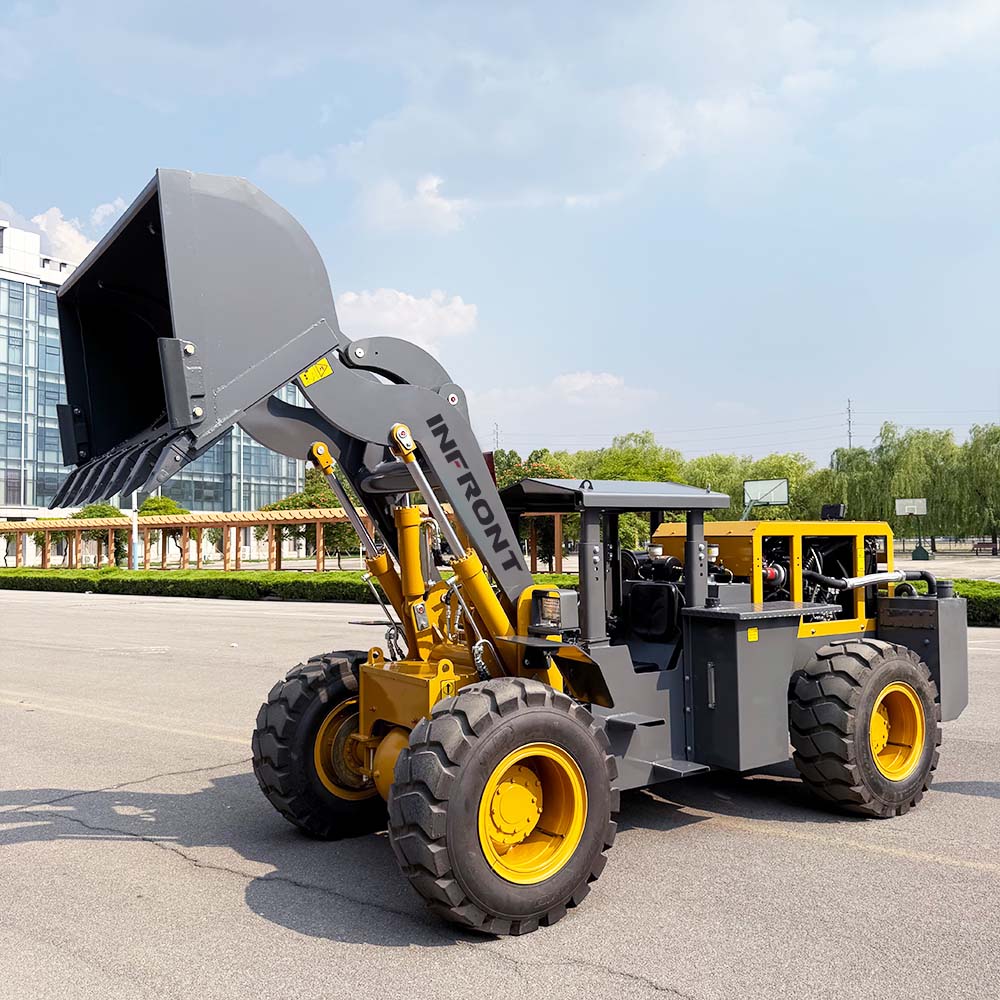

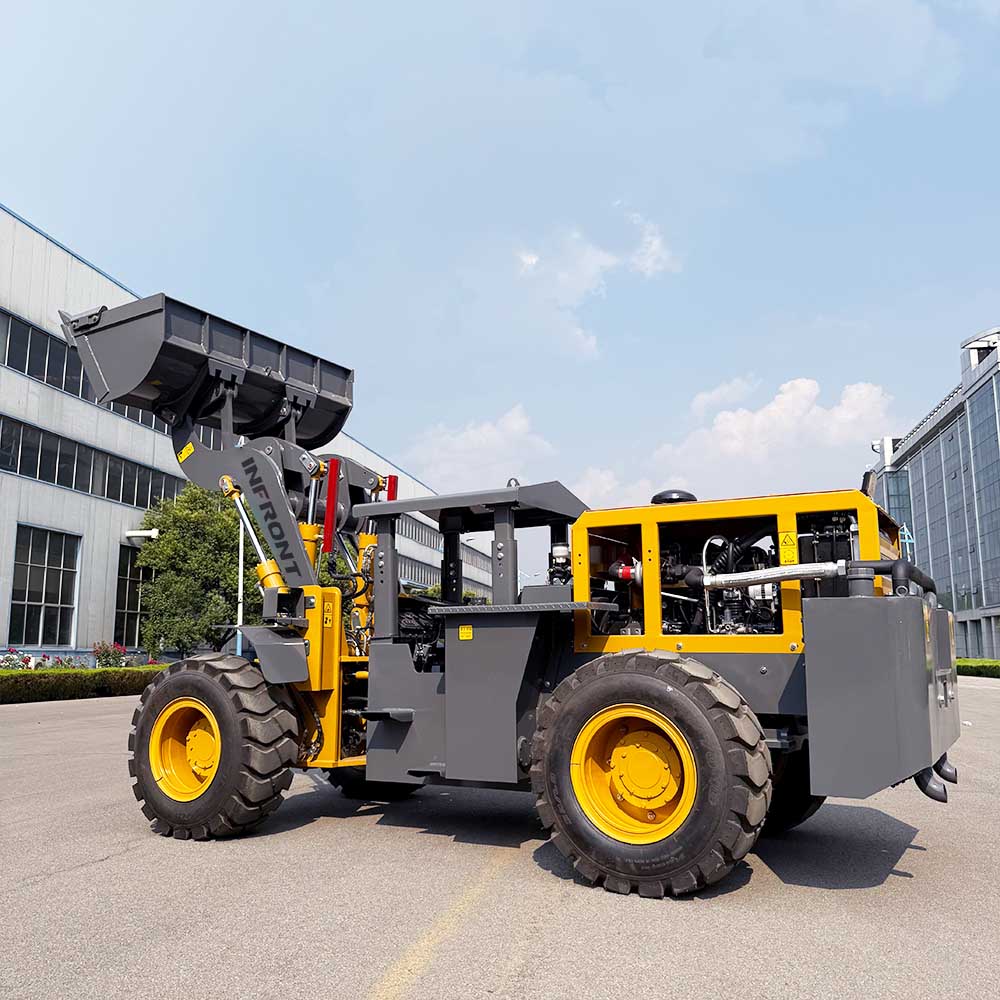

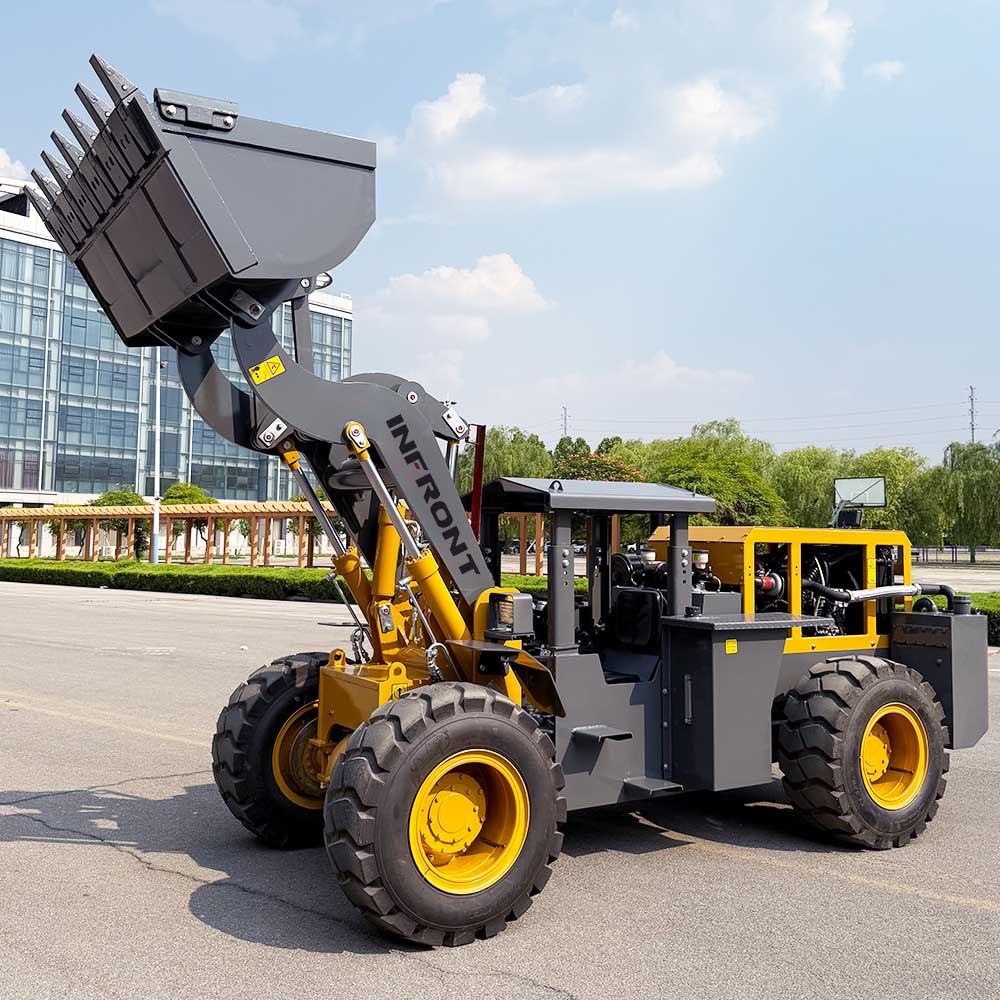

Multi-Purpose Loader
As an indispensable piece of heavy equipment in modern construction, loaders boast one of their greatest strengths: efficient operation. Whether moving earth, loading and unloading sand and gravel, or stacking materials, loaders can complete a large volume of work in a short period of time. Their powerful powertrain and rapid cycle times significantly improve overall construction site efficiency, shortening construction schedules and reducing labor costs, making them an ideal choice for boosting project productivity.
The fuel-powered model has less power attenuation during continuous high-load operation, making it suitable for long-term high-intensity work. It adopts pilot hydraulic control, which is sensitive to operation, has stronger lifting and digging force, and can quickly complete shoveling and unloading operations.
Details：

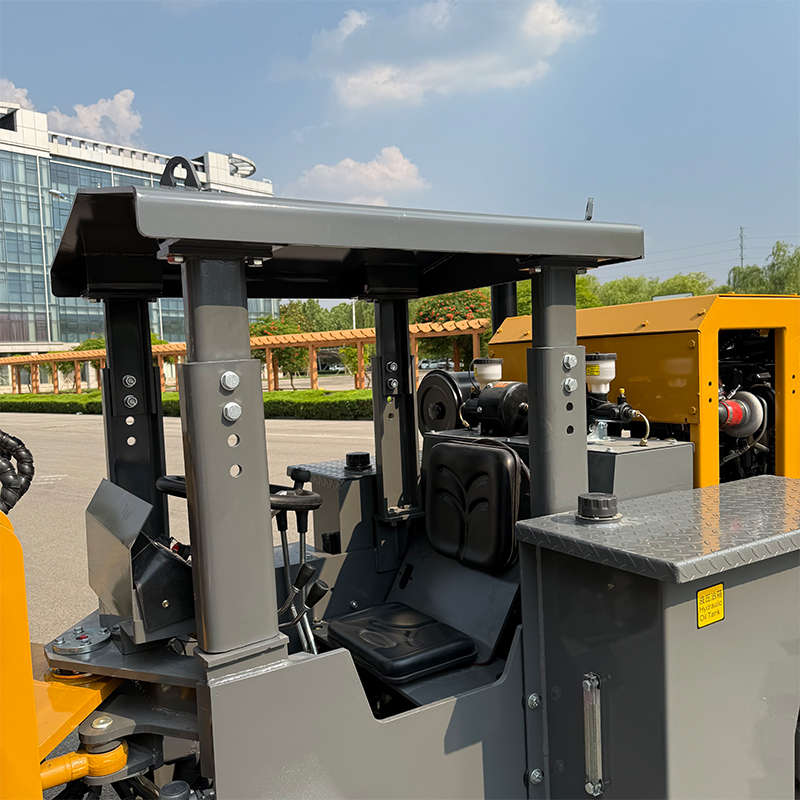

Comfortable Working Environment
Thanks to an efficient heating and ventilation system (including a fan, fresh air filter, and strategically located air nozzles), the cab's working environment is excellent.

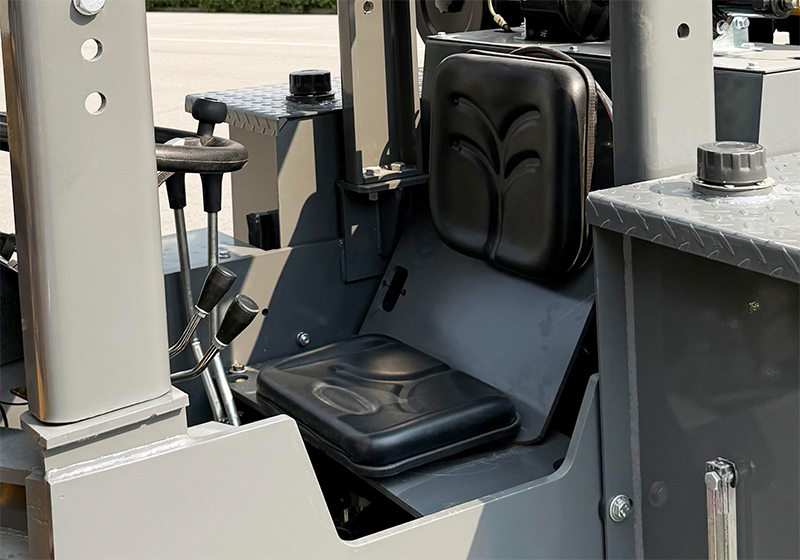

Comfortable Seat
Built-in springs, hydraulic shock absorbers, or elastic cushions filter out jerky movements (such as those found on construction sites and mines), minimizing the impact on the operator.
Articulated Swing Joint
The legendary articulated swing joint ensures that all four wheels are always in contact with the ground, allowing the machine to move with maximum traction.

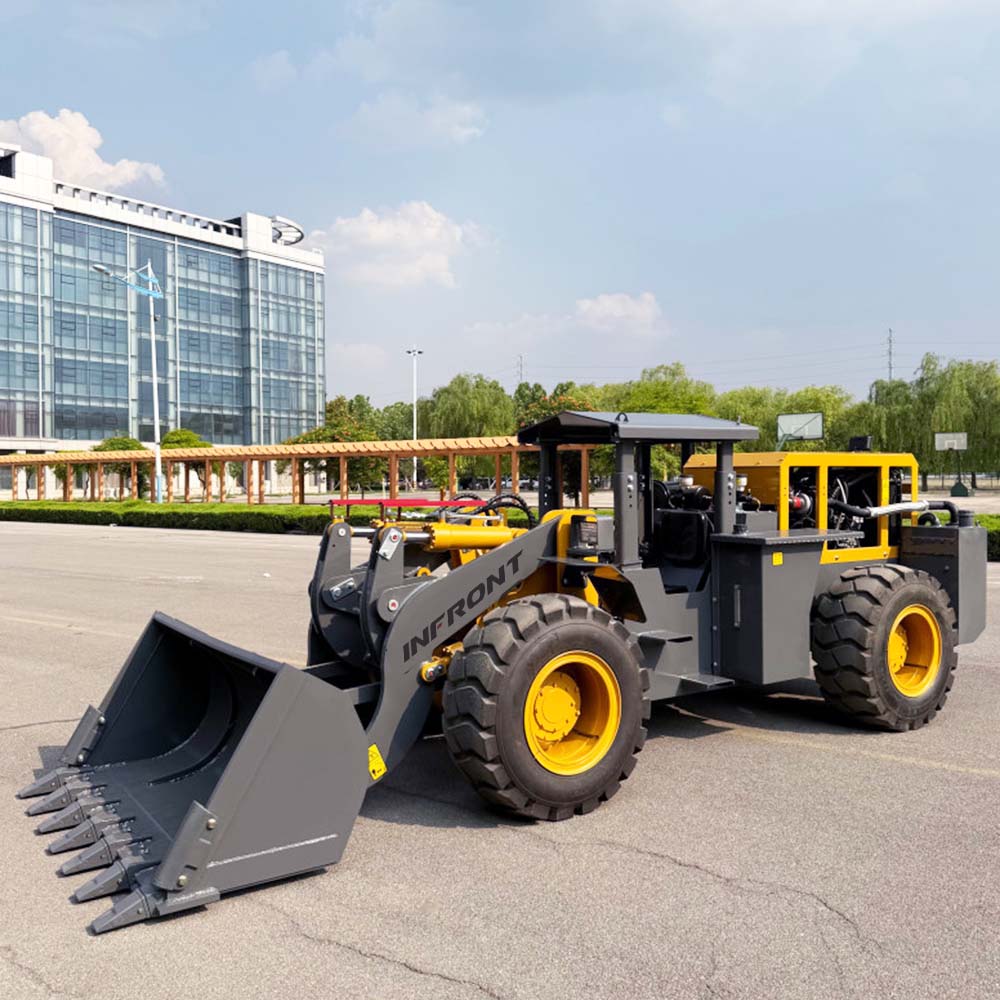

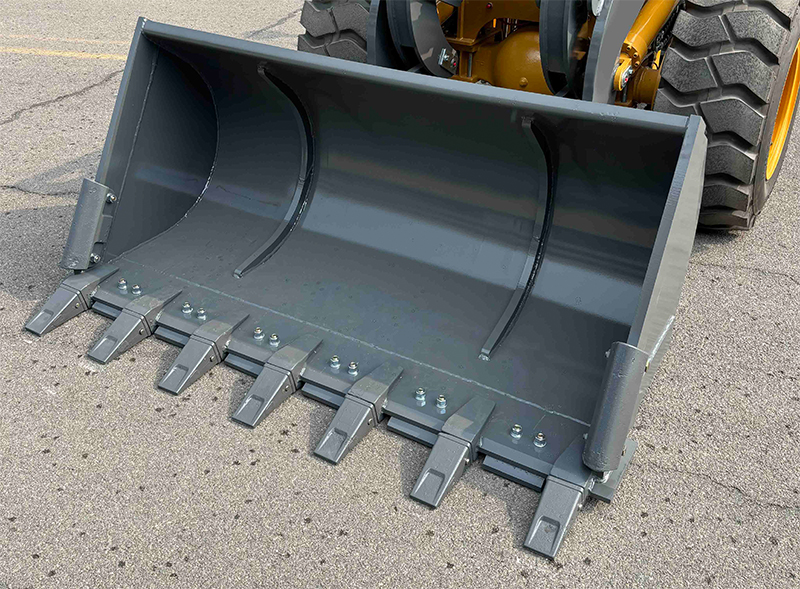

Large-Capacity Bucket
A larger bucket means greater capacity, increased loading capacity, and improved productivity.
Parameter：
Minimum turning radius (MM) | 5850 |
Theoretical climbing angle (°) | 15 |
Maximum driving speed (KM) | 38 |
Minimum driving speed (KM) | 8 |
Maximum unloading height (MM) | 1700 |
No-load lifting time (s) | ≤3 |
No-load lowering time (s) | ≤2 |
No-load unloading time (s) | ≤1.5 |
Three items sum (s) | ≤6.5 |
Wheelbase (MM) | 2450 |
Unloading distance (MM) | 900 |
Unloading angle (°) | 35 |
Complete machine parameters | |
Body length (MM) | 5540 |
Body width (MM) | 1700 |
Body height (MM) | 1890 |
Minimum ground clearance (MM) | 245 |
Wheelbase (MM) | 1580 |
Rated load capacity (KG) | 2800 |
Machine weight (KG) | 5200 |
Bucket length, depth, height (MM) | 1800*520*850 |
Bucket capacity (m²) | 1.0 |
Engine parameters | |
Rated power (KW) | 85 kilowatts |
Rated speed (r/min) | 2400 |
Transmission system parameters | |
Model | 300 high and low speed |
Speed gear | 2 front and 2 rear |
Brake type | air brake |

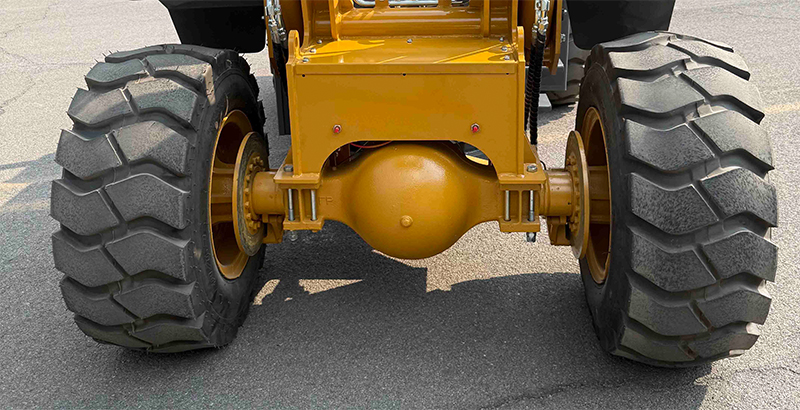

Axle | heavy wheel side axle |
Tyre model | 15/70-18 |
Front wheel pressure (Mpa) | 0.33 |
Rear wheel pressure (Mpa) | 0.3 |
Steering system | |
Type | Full hydraulic steering |
Steering angle (°) | 35 |
System working pressure (MPa) | 16 |
Refueling capacity | |
Fuel theoretical solvent (L) | 80 |
Hydraulic oil theoretical volume (L) | 80 |
Axle single (L) | 16 |
Engine oil (L) | 6.5 |
Transmission gear oil (L) | 24 |
Brake system (L) | 3 |
Application scenarios：
Site Analysis：
Full hydraulic steering system, flexible hydraulic system, easy operation, high efficiency and energy saving

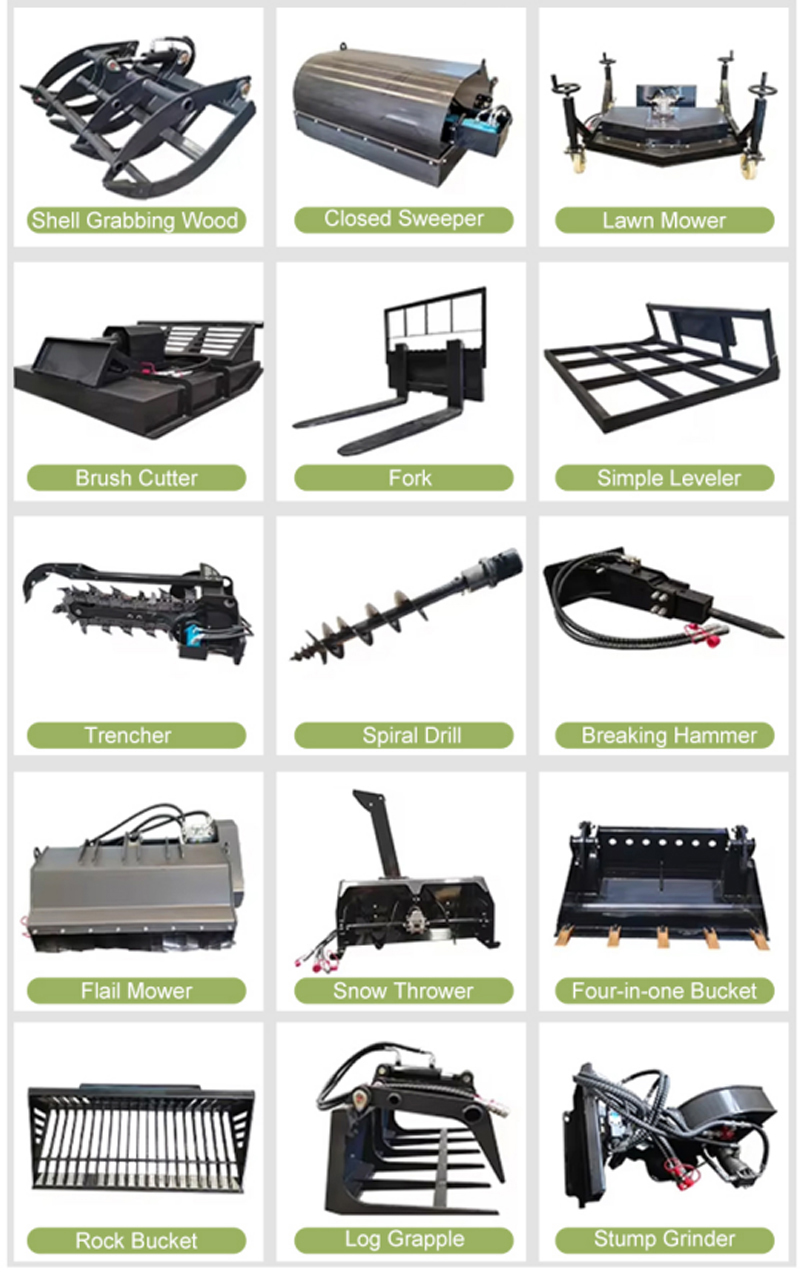

Product Accessories：
One machine for multiple uses, accessories for different applications
Our products sell over 20,000 units annually, both domestically and internationally, and are widely praised worldwide. We have over 1,000 professional sales and service personnel, and have established customer service teams in over 60 countries and regions.
