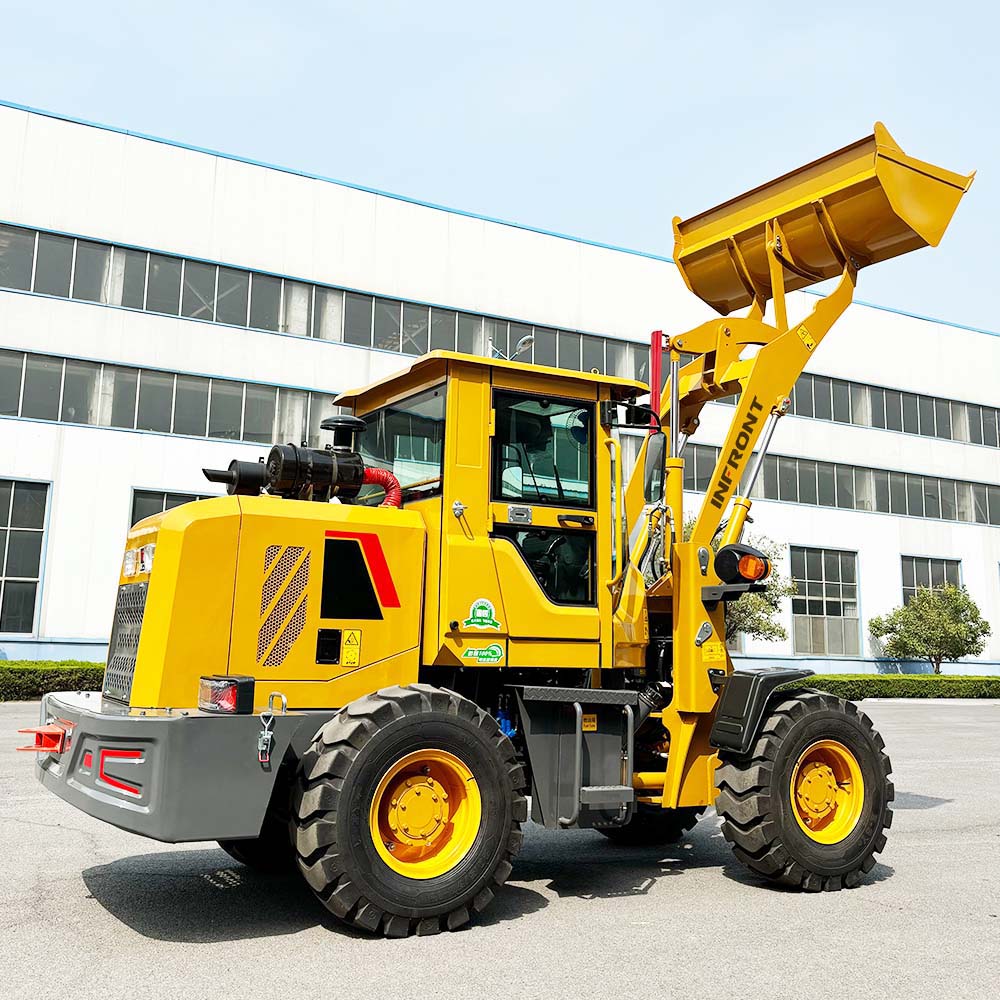

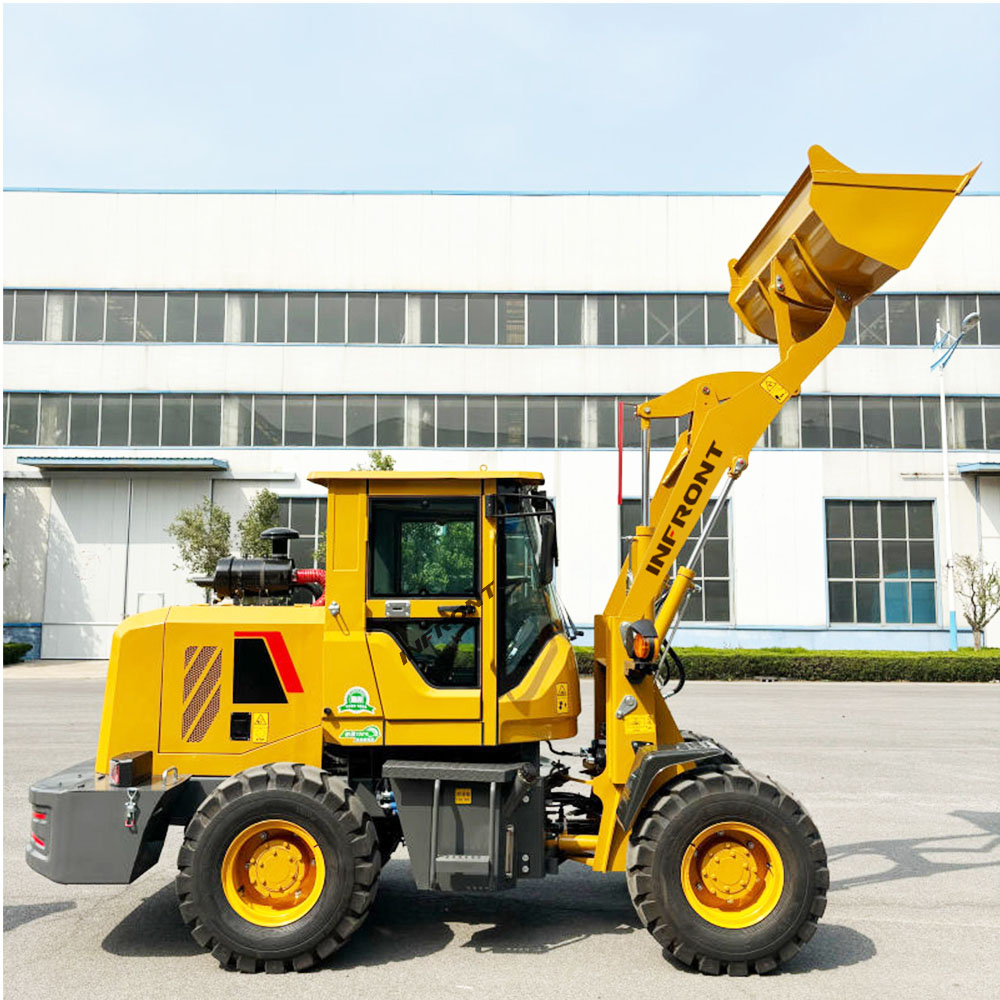

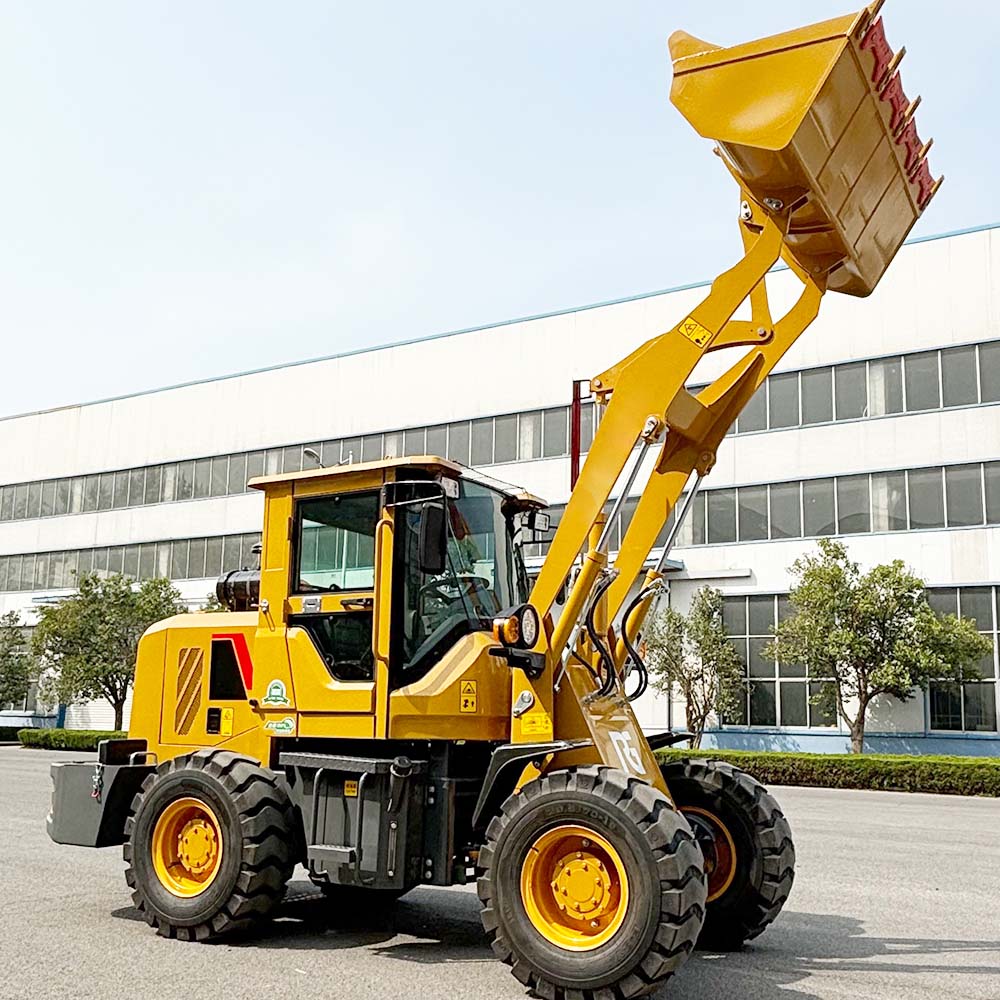

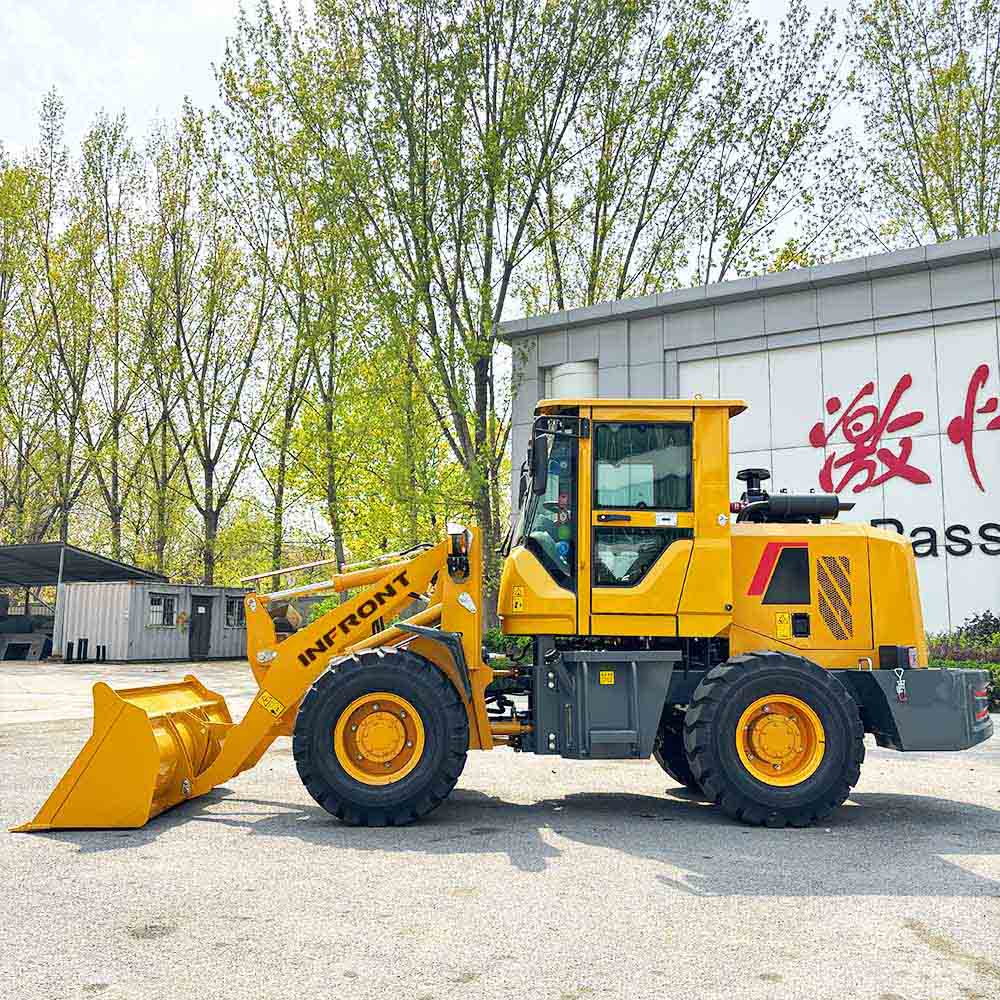

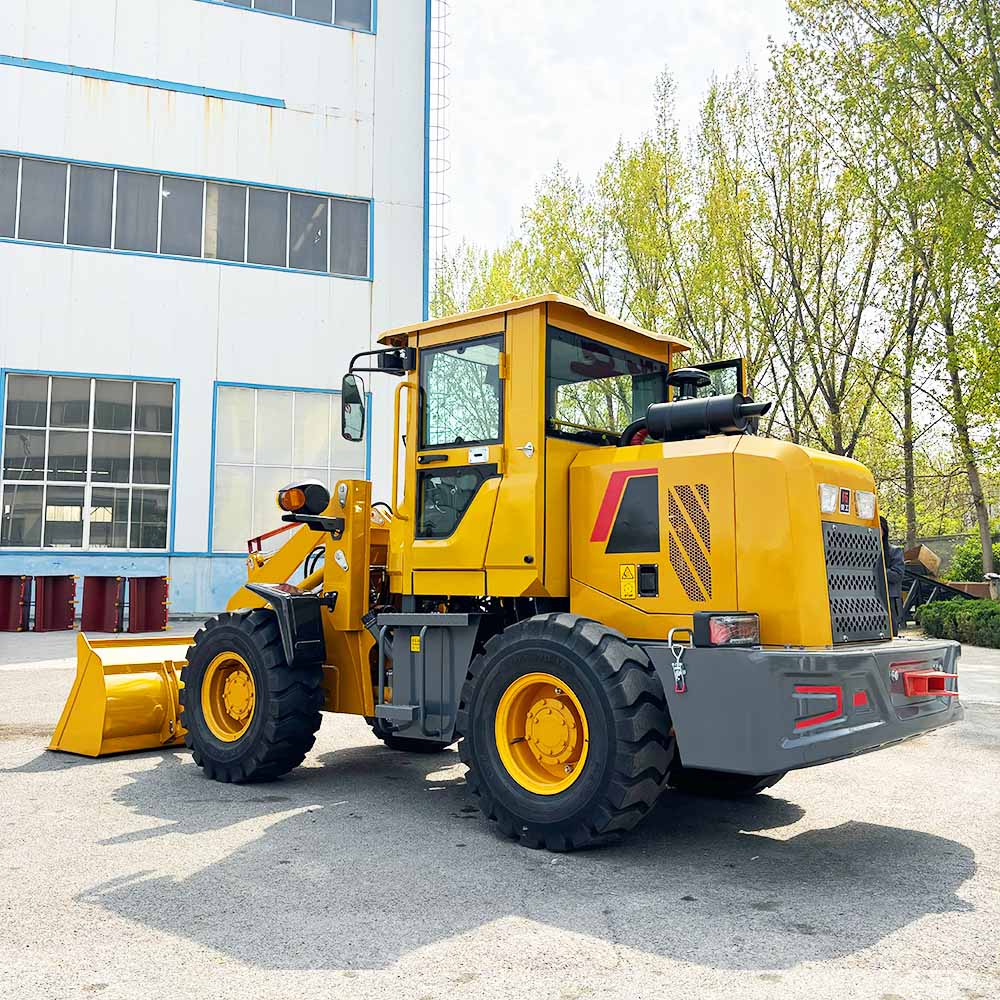

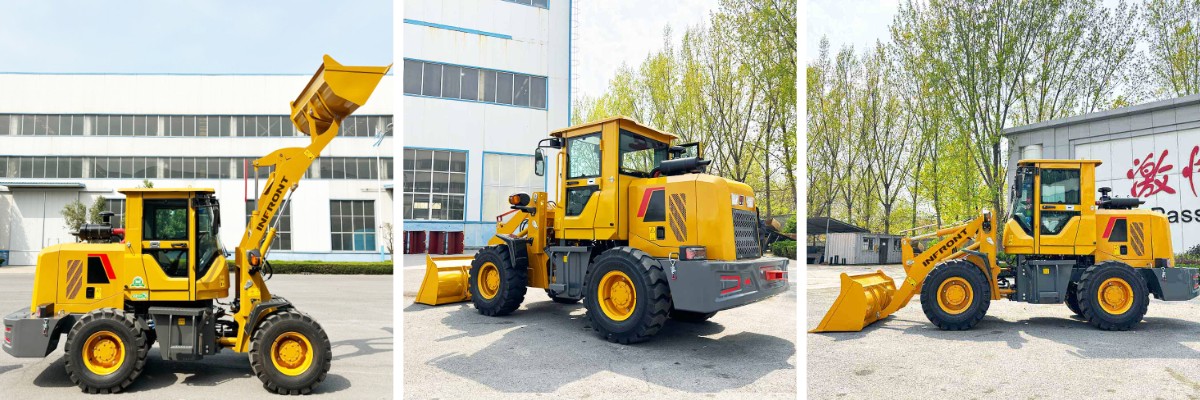

Construction Loader
Agile & Powerful: Compact size with robust performance for tight spaces
Multi-Functional:Quick-change attachments handle digging,lifting,sweeping,etc.
All-Terrain Ready: Enhanced traction for rough/sloped surfaces
Operator-Friendly: Intuitive controls with excellent visibility
Low Maintenance: Durable construction with easy service access
Perfect for construction, landscaping, agriculture, and industrial tasks.
Its core selling points are strong power, low energy consumption and easy operation. It also takes into account flexibility, efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions. It is especially suitable for individual farmers, small engineering teams and environmental protection companies.
Product Details：

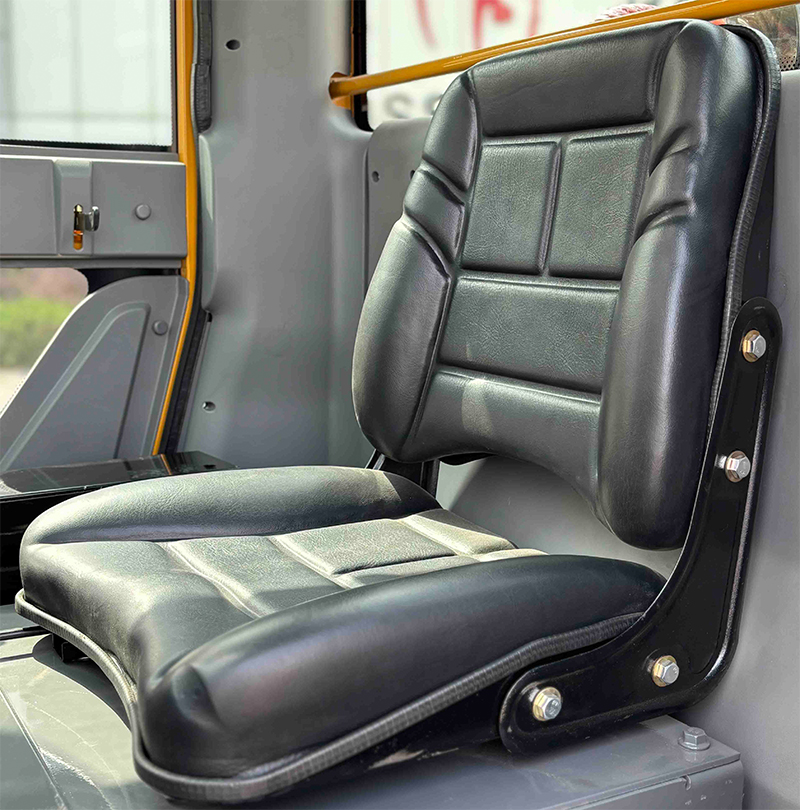

【Comfortable Backrest】
The curvature of the seat back and cushion fits the human body curve, especially strengthening the lumbar support (some with adjustable lumbar support)

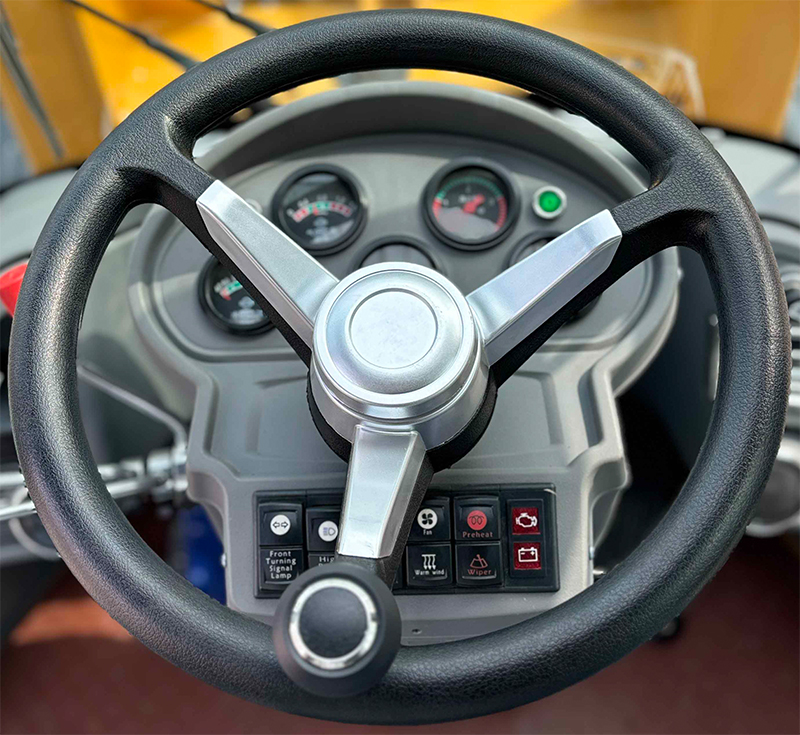

【Console】
The core control devices (such as bucket lift/tilt joystick, travel gear lever, accelerator pedal), auxiliary control buttons (such as lights, horn, air conditioning) and attachment switch keys (such as breaker hammer and forklift attachment control) are integrated into the console area, reducing the driver's arm movement range and achieving "hands on the lever" fast operation. It is particularly suitable for high-intensity operations such as frequent loading and unloading and short-distance transportation.

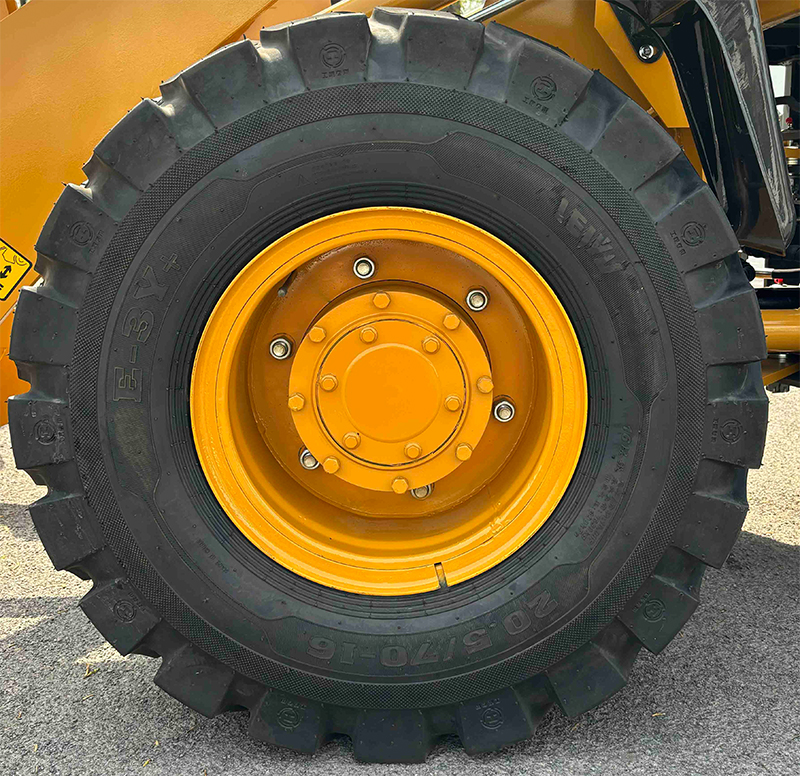

【Solid Tire】
Strong bearing capacity, suitable for all terrains

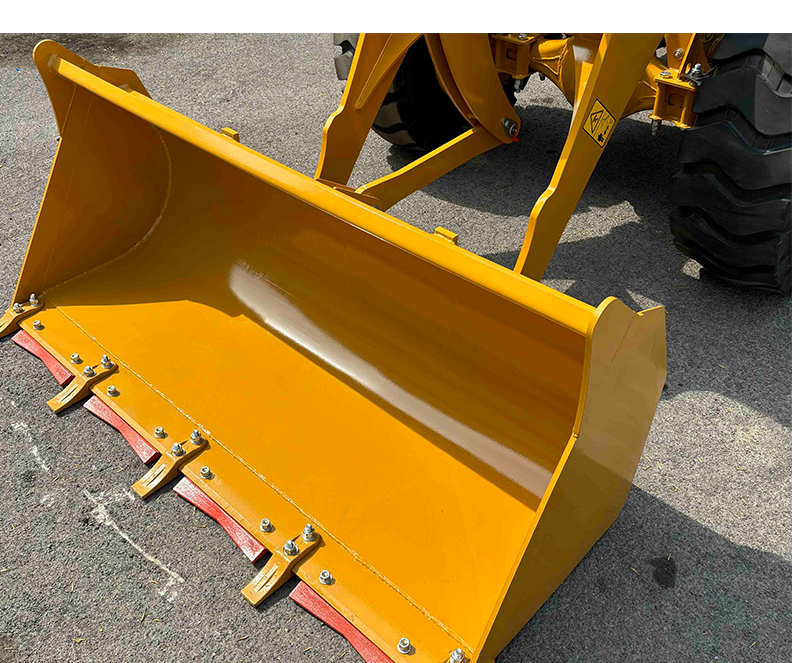

【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
Product Parameters：
Machine parameters (theoretical values) | |
Minimum turning radius (MM) | 4300 |
Theoretical climbing angle (°) | 15 |
Maximum driving speed (KM) | 32 |
Minimum driving speed (KM) | 8 |
Maximum unloading height (MM) | 2700 |
No-load lifting time (s) | K4 |
No-load lowering time (s) | <2.1 |
No-load unloading time (s) | <1.0 |
Three items sum (s) | <7.1 |
Wheelbase (MM) | 1960 |
Unloading distance (M M) | 700 |
Unloading angle (°) | 33.5 |
Complete machine parameters | |
Body length (MM) | 4880 |
Body width (MM) | 1650 |
Body standard (minimum) height (MM) | 2200 |
Minimum ground clearance (MM) | 280 |
Wheelbase (MM) | 1230 |
Rated load capacity (KG) | 600 |
Complete machine weight (KG) | 2500 |
Bucket length, depth, height (MM) | 1600*390*690 |
Bucket capacity (m²) | 0.5 |
Engine parameters | |
Rated power (KW) | 36.8 |
Rated speed (r/min) | 2400 |
Number of cylinders | 4 |
Transmission system parameters | |
Type | 265 high and low speed |
Speed gear | front 4 rear 4 |
Brake type | air brake |
Axle | wheel side axle |
Tyre model | 20.5-70/16 |
Front wheel pressure (Mpa) | 0.33 |
Rear wheel pressure (Mpa) | 0.3 |
Steering system | |
Type | full hydraulic steering |
Steering angle (°) | 32 |
System working pressure (MPa) | 16 |
Refueling capacity | |
Theoretical fuel solvent (L) | 40 |
Theoretical volume of hydraulic oil (L) | 35 |
Axle single (L) | 8 |
Engine oil (L) | 6.5 |
Transmission gear oil (L) | 24 |
Brake system (L) | 3 |
Application scenarios：
Site Analysis:
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

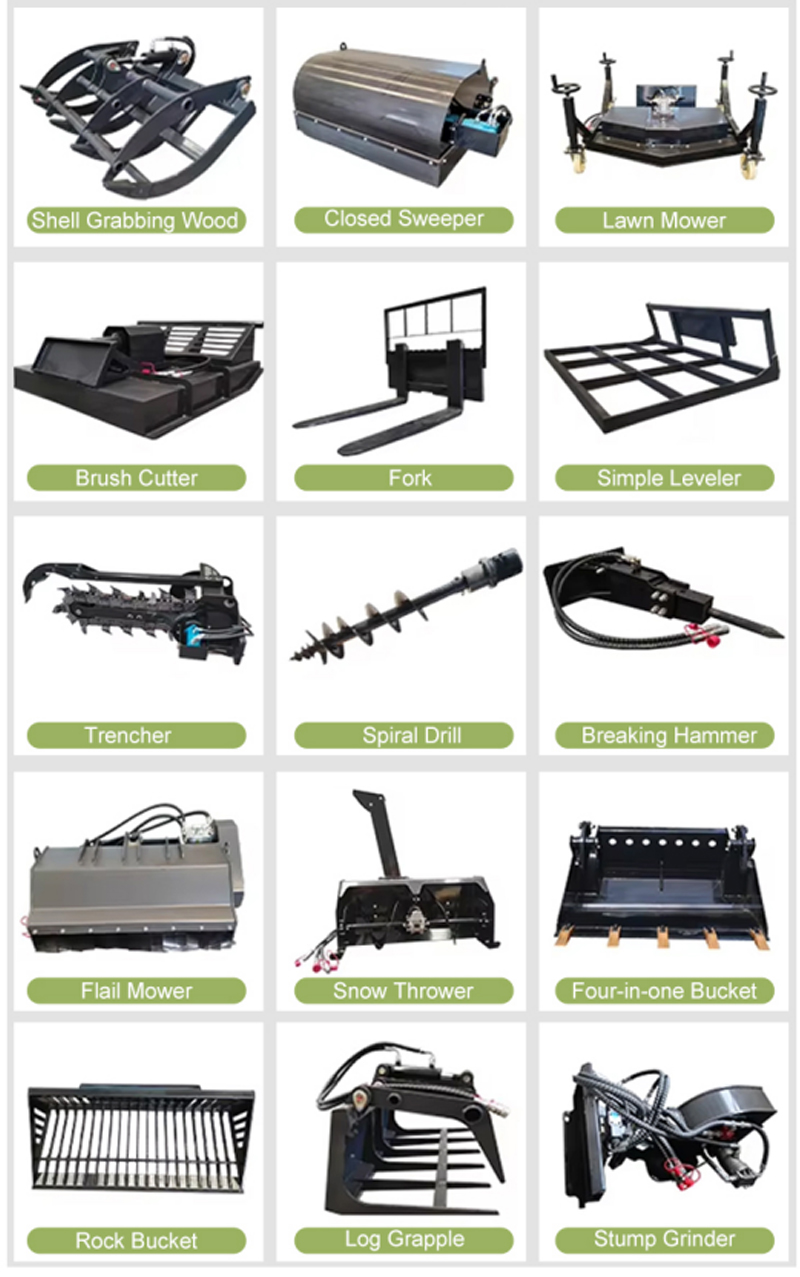

Product Accessories
(Versatility, one machine for multiple uses: Compact loaders are extremely versatile and can be equipped with a variety of attachments such as buckets, forklifts, grapples, augers and brooms.)
Our team of experienced consultants will provide you with the perfect product solution based on your needs, and can also provide personalized customization. All you need to do is tell us your needs.
