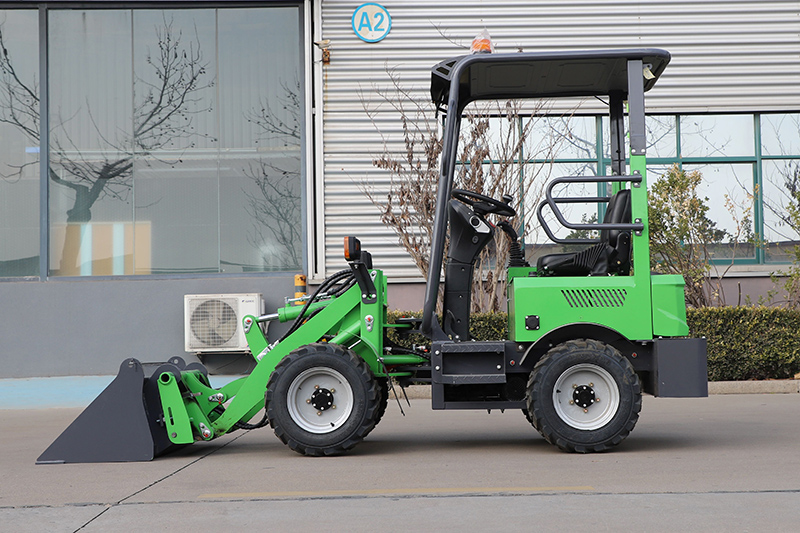

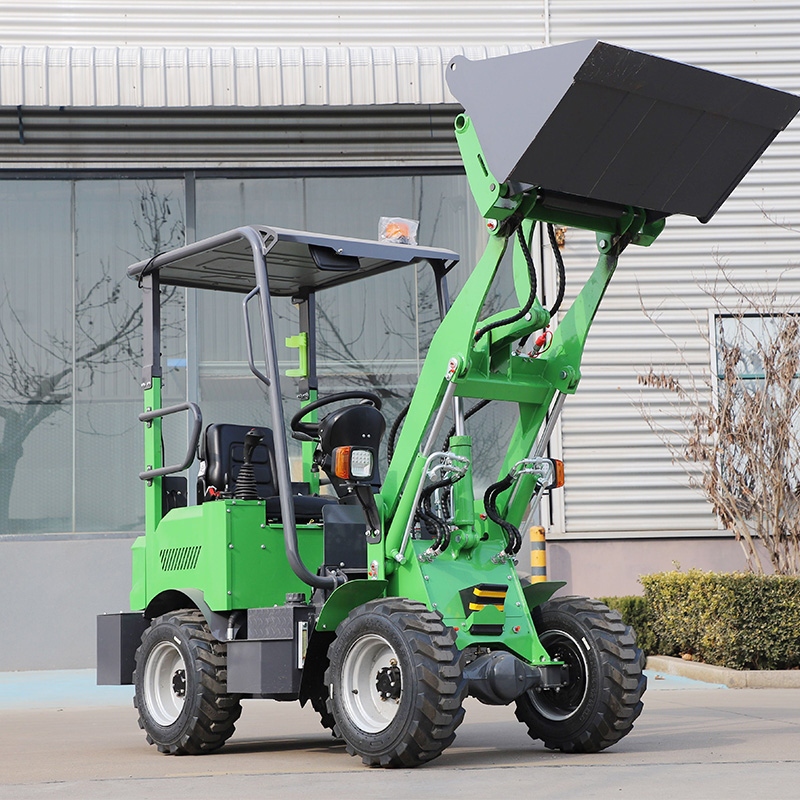

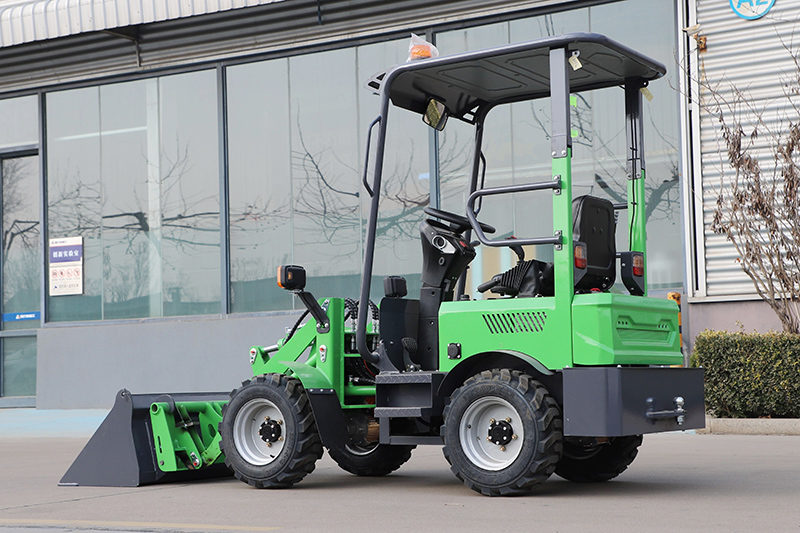

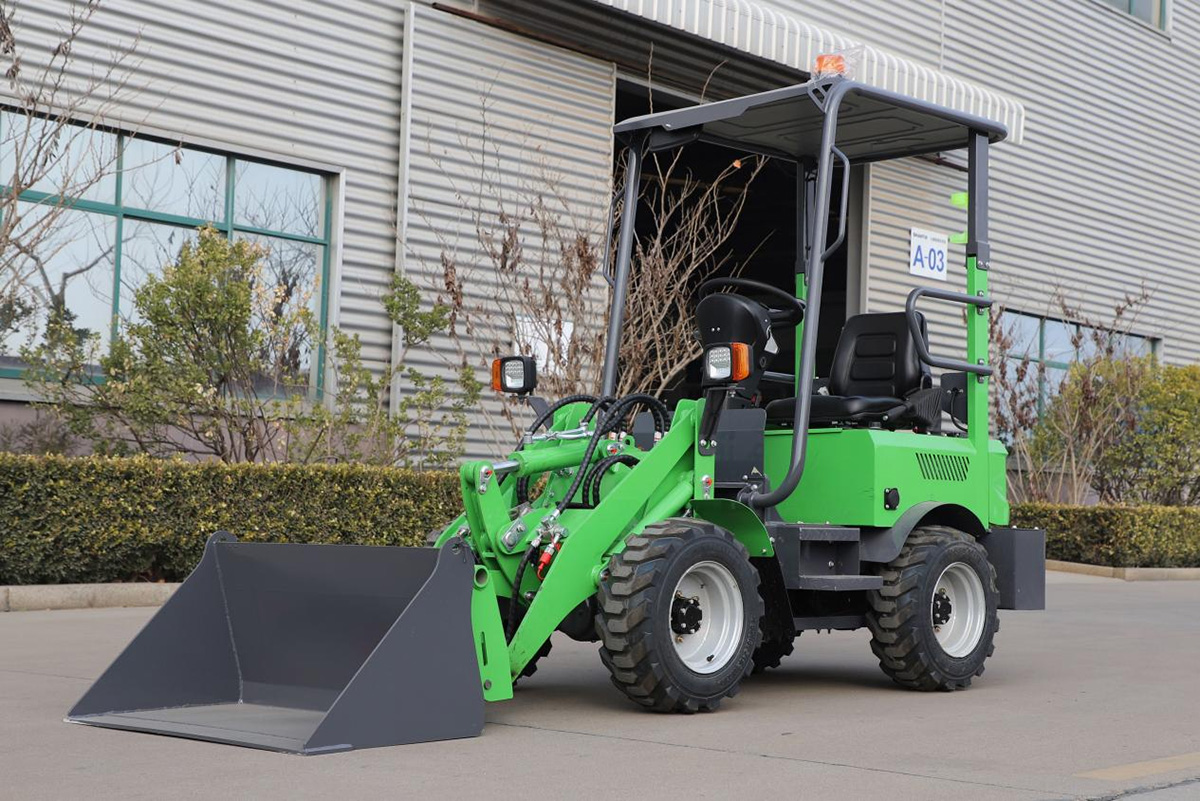

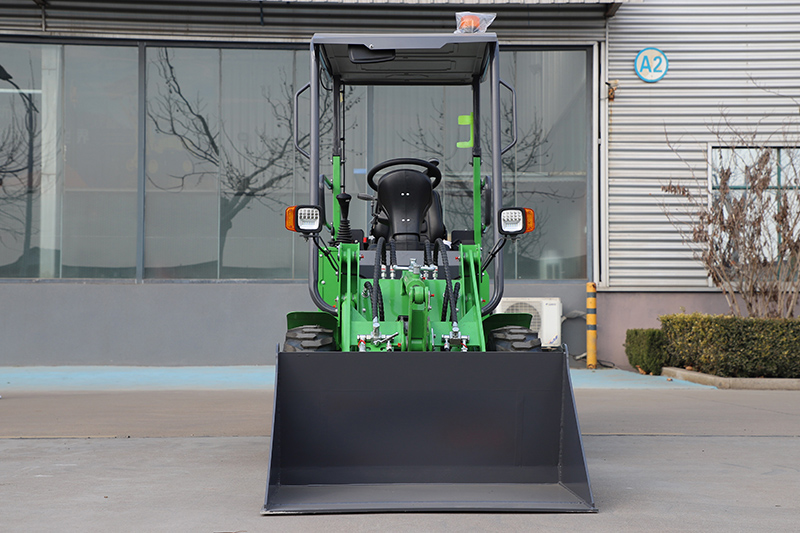

Compact Wheel Loader
Comfortable driving, luxurious shock absorption, adjustable seat with seat belt, ergonomic control handle, luxurious digital display instrument
Attachments, the quick hitch and bucket are included as standard, and a wide variety of other attachments are available to handle just about any work that needs doing.
The Compact Wheel Loader is engineered to deliver clean, efficient, and powerful performance in confined and environmentally sensitive spaces. With its zero-emission design and compact body, this electric loader is ideal for urban construction, farm operations, garden maintenance, and warehouse logistics. Compared to traditional fuel-powered machines, it reduces energy consumption by up to 80%, offering significant cost savings and environmental benefits while maintaining high operational efficiency.
Electric wheel loader, with its zero-emission and ultra-quiet compact design, is meticulously crafted for a variety of scenarios including urban construction, farm operations, garden maintenance, and warehouse management. Compared to traditional fuel-powered equipment, it significantly reduces energy consumption by 70% to 80% during operation, achieving high efficiency and energy savings.

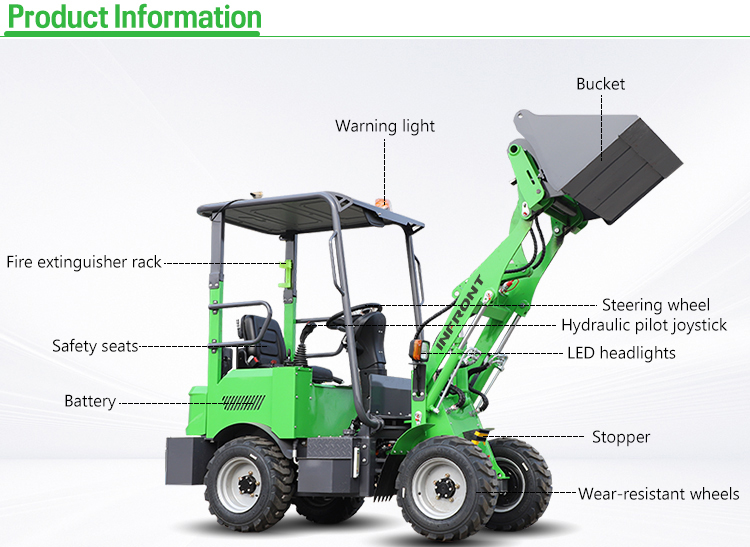

Details：

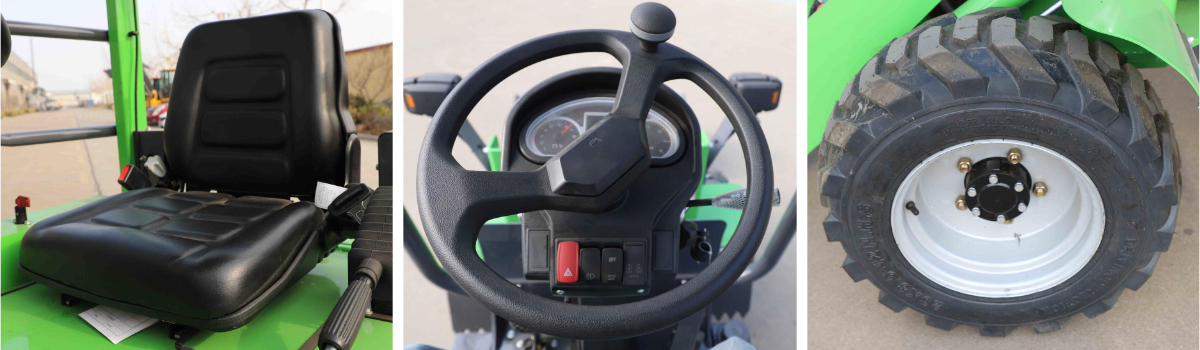

【Comfortable Backrest】
Comfortable driving, luxurious shock absorption, adjustable seat with seat belt, ergonomic control handle, luxurious digital display instrument.
【Console】
Prevent engine overheating,and prolong engine life
【Solid Tire】
The best tire for every road condition, with a variety of different tires to choose from.

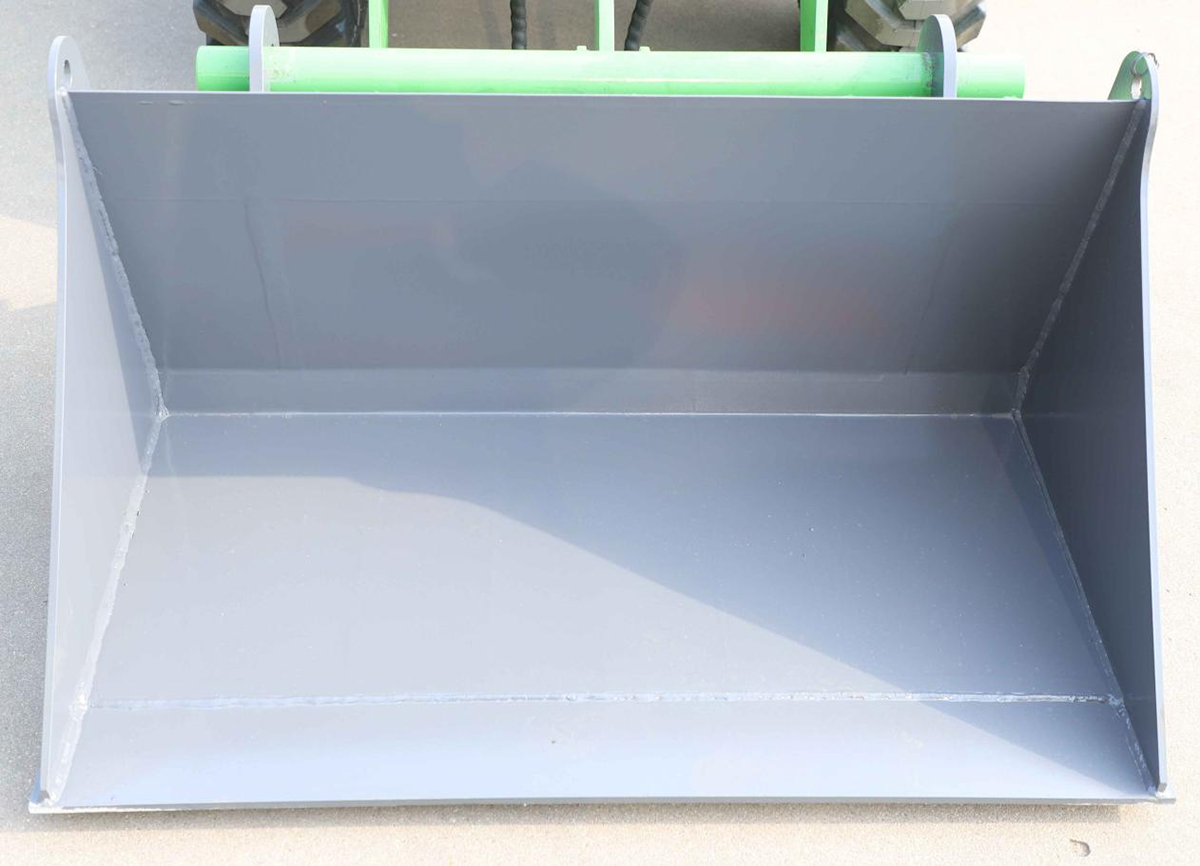

④【Bucket】
The bucket pin is equipped with a dust apron to extend the service life of the pin and bushing.
Parameter：
| Specification | Value |
Rated working capacity (kg) | 400 |
Machine weight (kg) | 1120 |
Bucket capacity (m3) | 0.2 |
Maximum steering angle | ±35° |
Minimum turning radius (mm) | 2520 |
Swing amplitude | 70 |
Three items and time (s) | 7.5 |
Working time (h) | 6 |
Travel speed (km/h) | Low speed 10/High speed 18 |
Unloading height (mm) | 1400 |
Lifting height (mm) | 2160 |
Machine size (LWH) (mm) | 3260*1140*2085 |
Unloading distance (mm) | 600 |
Bucket width (mm) | 1040 |
Wheelbase (mm) | 1330 |
Track (mm) | 840 |
Minimum ground clearance (mm) | 200 |
Battery model | Lead-acid maintenance-free type |
Battery type | 5 |
Number of battery packs (groups) | 9 |
Total battery capacity (kW) | 60 |
Rated voltage (V) | 8 |
Battery charging time (h) | 60 |
Travel system voltage (V) | 2.5*2 |
Travel system power (kW) | 2 |
Number of travel motors | 6.00-12 |
Tire model | mountain tire |
Service brake | Drum oil brake |
Parking brake | Drum hand brake |
Application scenarios：
Site Analysis
Compact dimensions, it is perfect for work in complicated interiors, farm, garden, warehouse, road construction.

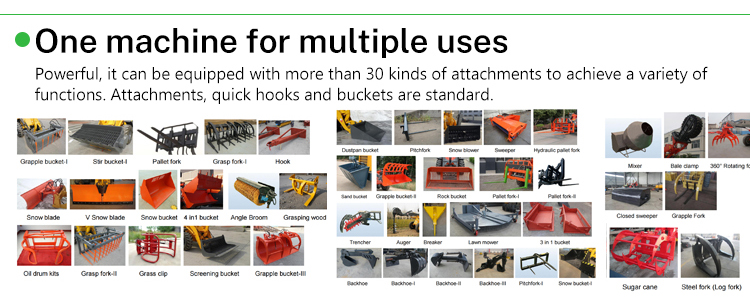

Product Accessories
(Versatility, multi-purpose use: Equipped with a variety of attachments, such as buckets, forklifts, grapples, augers, and brooms. We can also customize attachments according to customer needs.)
