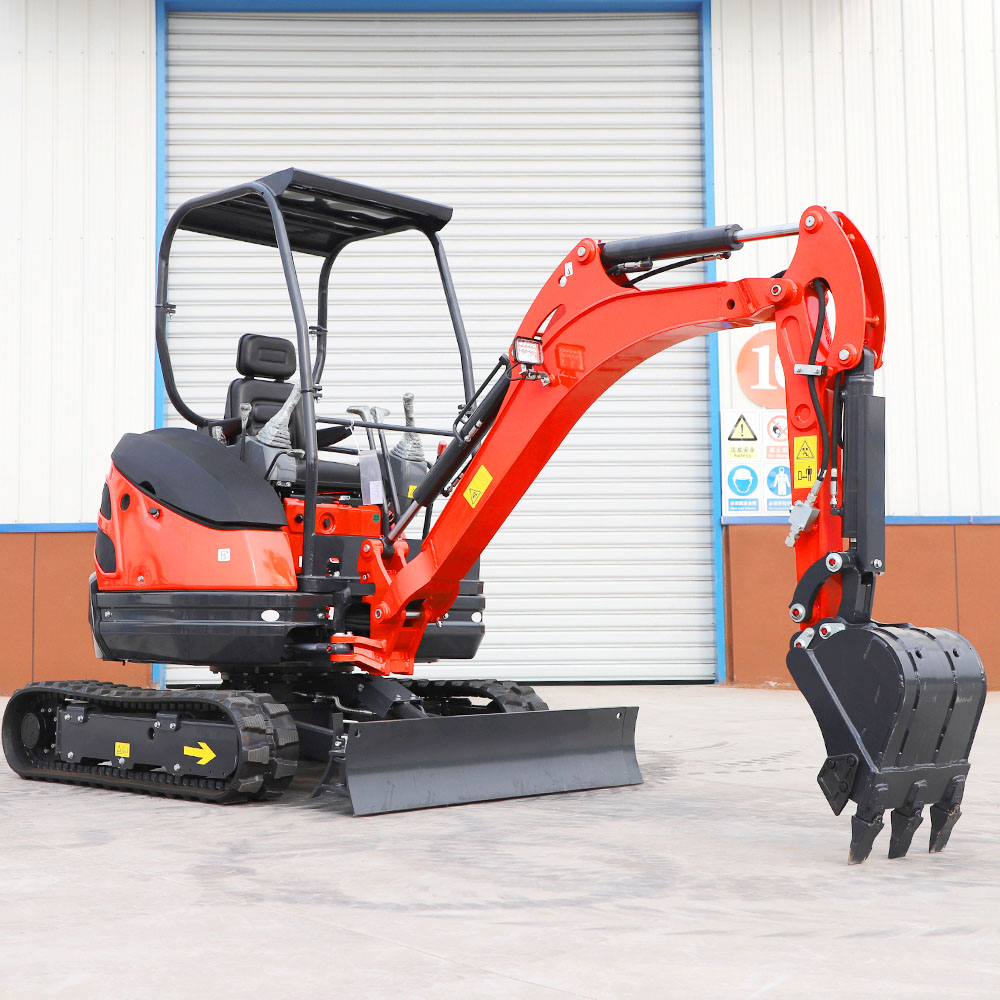

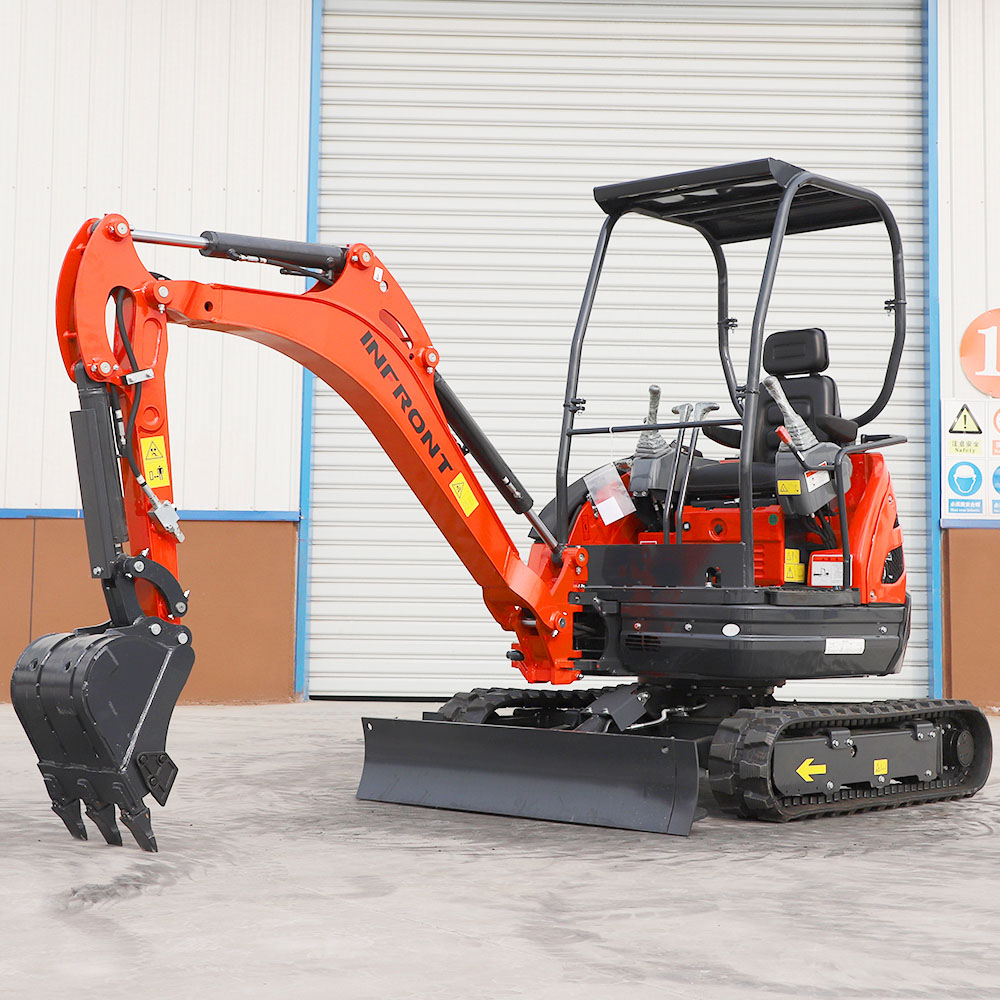

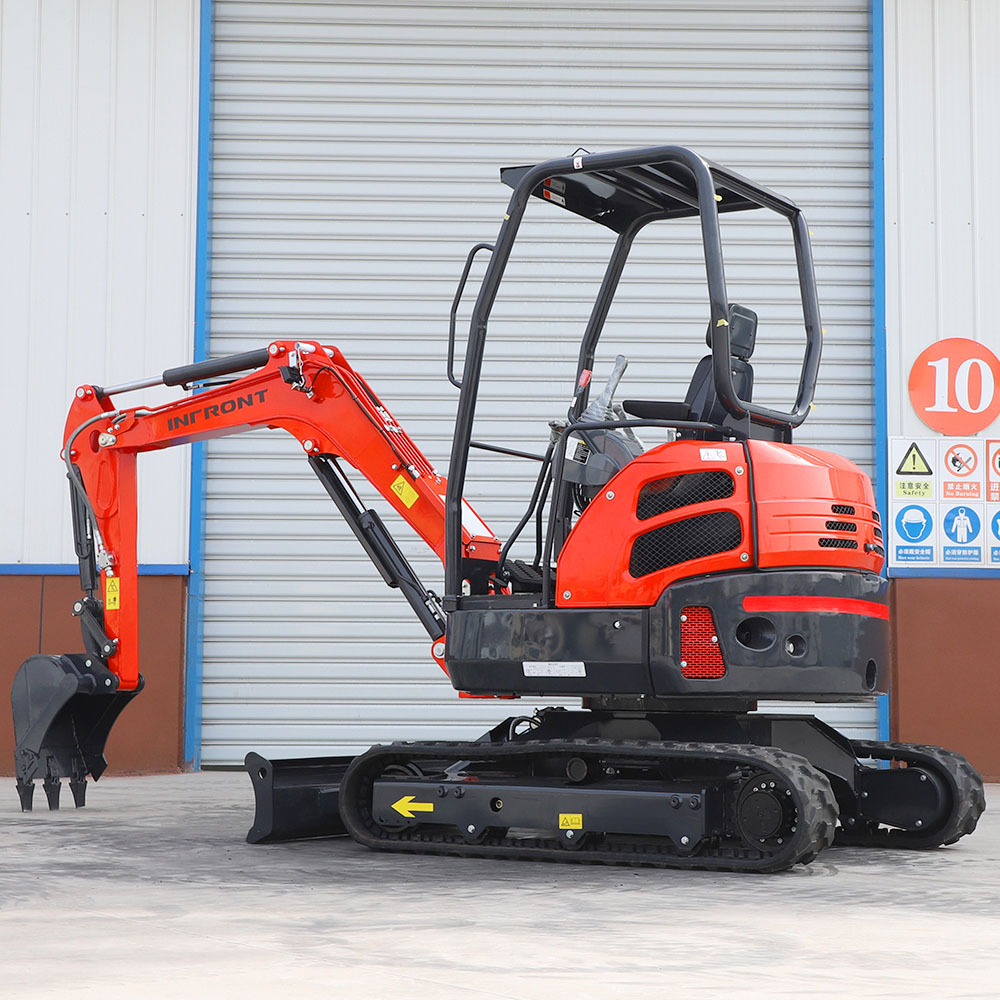

Mini excavator price
The excavator is light in weight and has a low ground pressure. It is not easy to get stuck when operating on soft ground (such as farmland, lawns, and plastic venues), nor will it cause serious crushing damage to the ground. It is suitable for agricultural planting, landscaping and other scenes with high requirements for ground protection.
The engine power is small, the fuel consumption is low, and the long-term use cost is lower than that of medium and large excavators. • Simple maintenance, small size and light weight of parts, convenient daily maintenance operations such as changing oil and filter, low maintenance cost, suitable for individual operators or small construction teams.

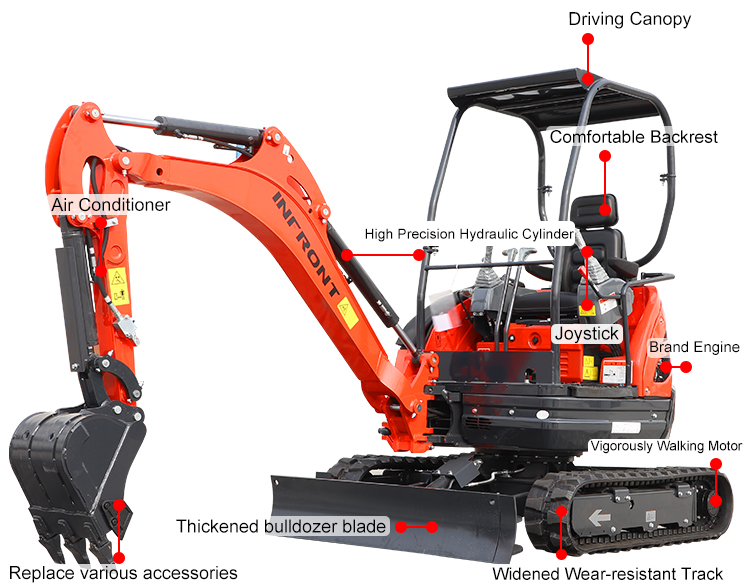

Product Details

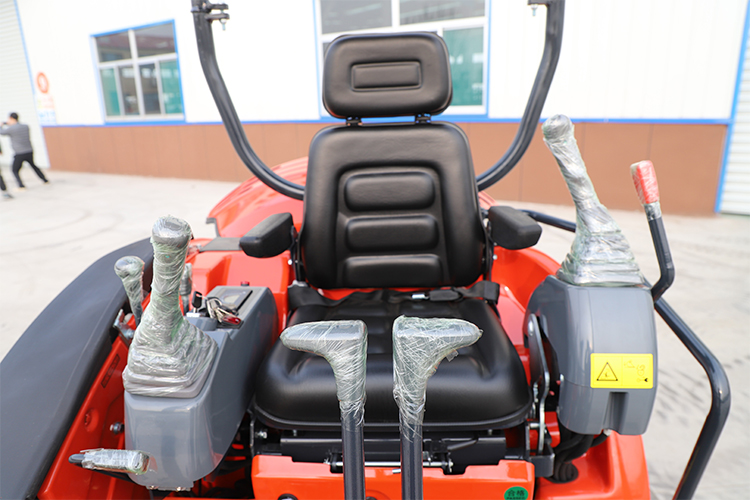

【Comfortable Seat】
The ergonomic design of the seat, which can provide the driver with good waist and back support, and the driver will not feel tired even after long driving. The cab has good sealing performance and caneffectively isolate the external noise.

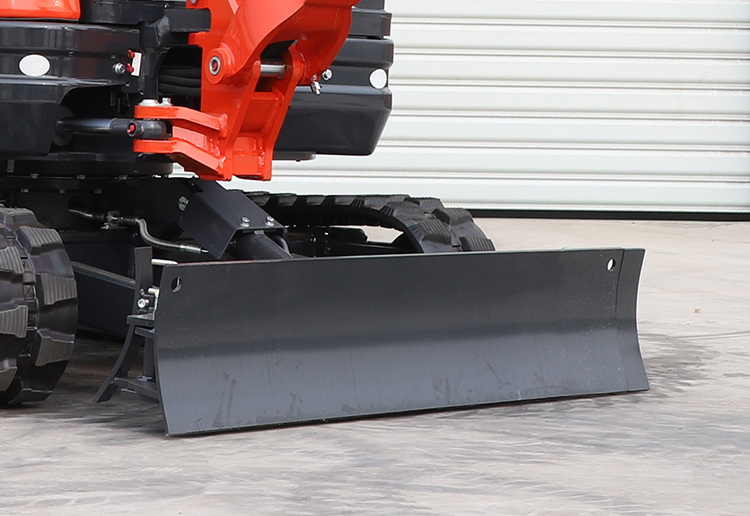

【Upgraded Bulldozer】
Complete bulldozing work and level the ground to make work safer and more stable

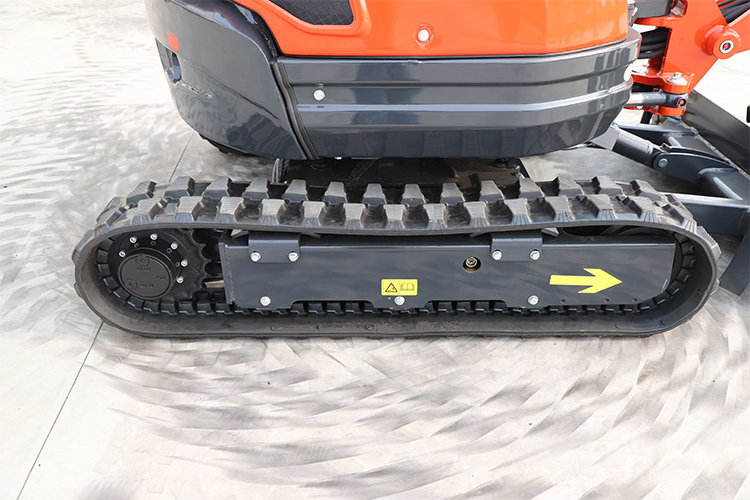

【Engineering-grade Tracks】
Reinforced and durable, suitable for various terrains
Product Parameter
MACHINE SIZE | |
Overall dimensions | 3450*1100*2570mm |
Machine weight | |
Bucket capacity | 0.04m3 |
Engine model | D1105-E4B-CBH-1 |
Displacement | 1.1L (cc) |
Output power | 14/2200KW/rpm |
Slewing speed | 9.5r/min |
Travel speed | 2/3.5km/h |
Swing angle | 65/60 |
Gradability | 58 (30)% (") |
Average ground contact pressure | 26kPa |
Bucket digging grip | 18.4KN |
Fuel tank capacity | 31.6L |
SCOPE OF WORK | |
Maximum digging height | 3170mm |
Maximum unloading height | 2365mm |
Maximum digging depth | 2300mm |
Maximum vertical digging depth | 1900mm |
Maximum digging radius | 4070mm |
Maximum ground digging radius | 3940mm |
Minimum front rotation radius | 1730mm |
Center of rotation to end of track | 830mm |
Bulldozer width | 1100/1255mm |
Bulldozer height | 200mm |
Maximum bulldozer height | 210mm |
Maximum bulldozer depth | 380mm |
Multi-scenario application：
Suitable for a variety of occasions Excellent performance and easy start-up.
Site Analysis
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

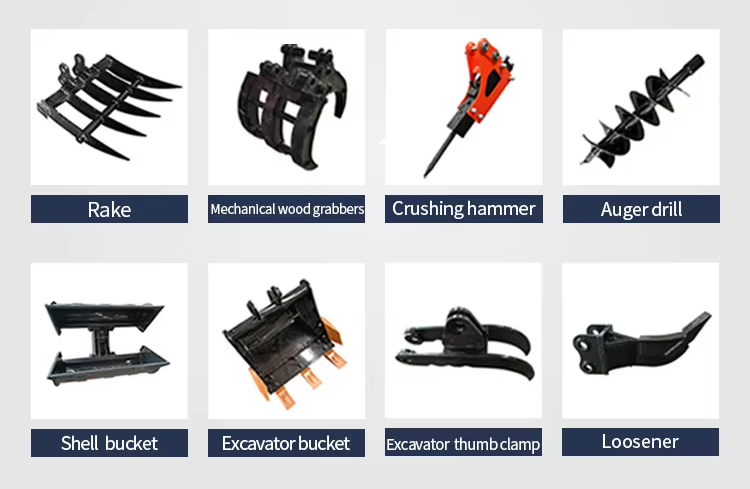

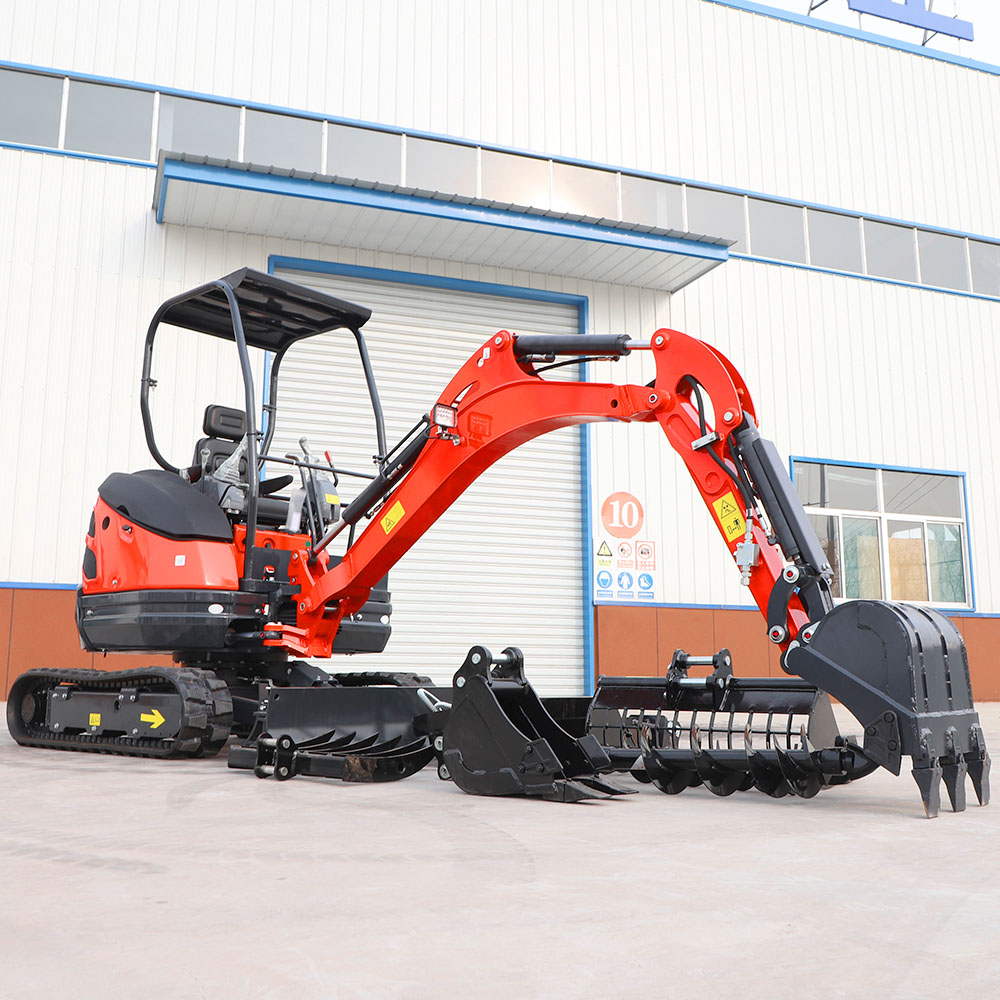

Product Accessories
(Versatility, one machine for multiple uses: Compact loaders are extremely versatile and can be equipped with a variety of attachments, such as buckets, forklifts, grapples, augers and brooms. This versatility enables them to handle a variety of tasks, from loading and transporting materials to landscaping and snow removal.)
Annual sales at home and abroad exceed 20,000 units, exported to all over the world, and widely praised! More than 1,000 professional sales and service personnel, more than 60 countries and regions, customer sales teams have been established
