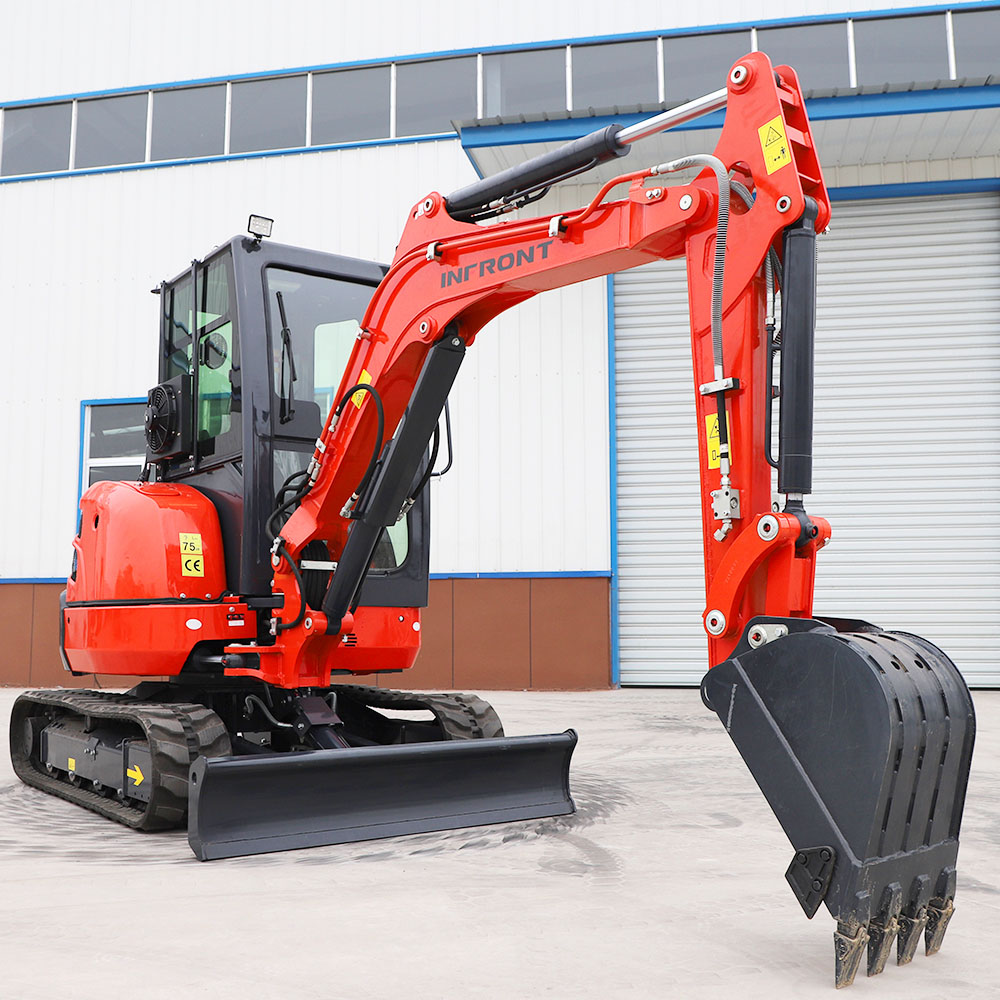

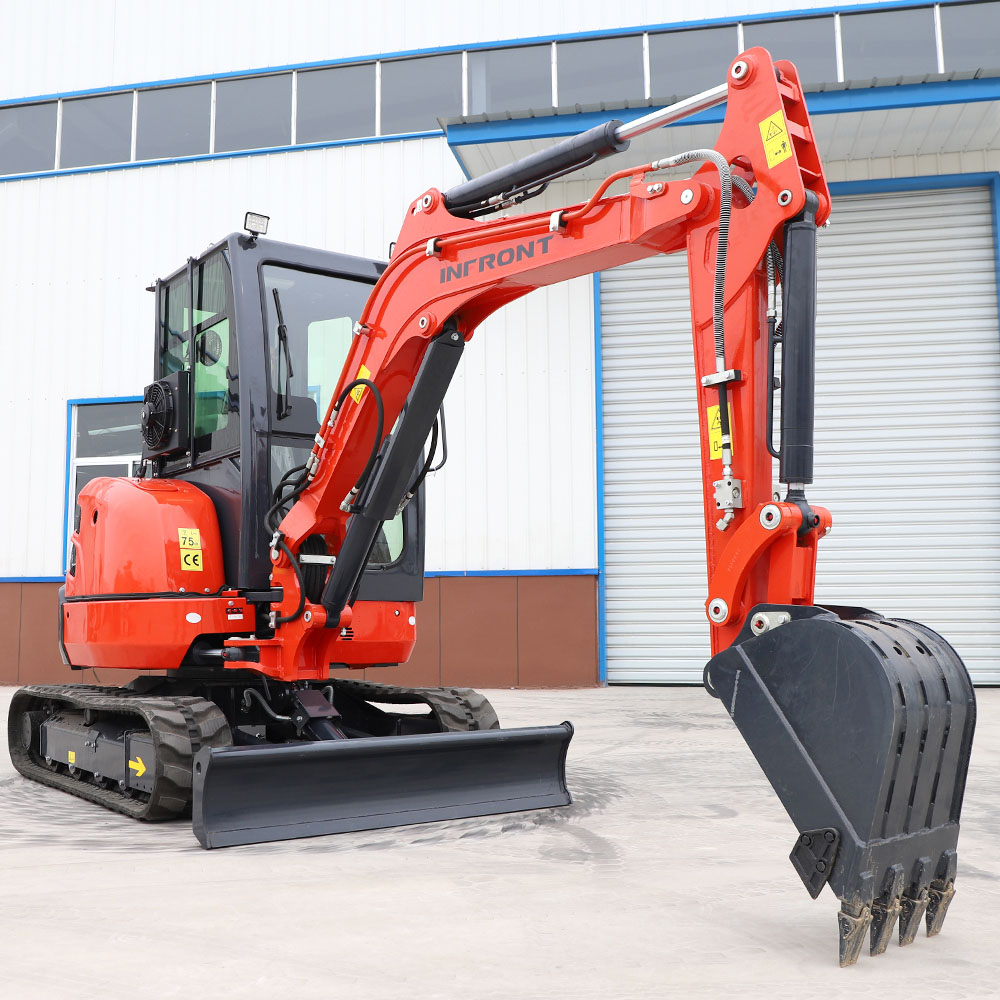

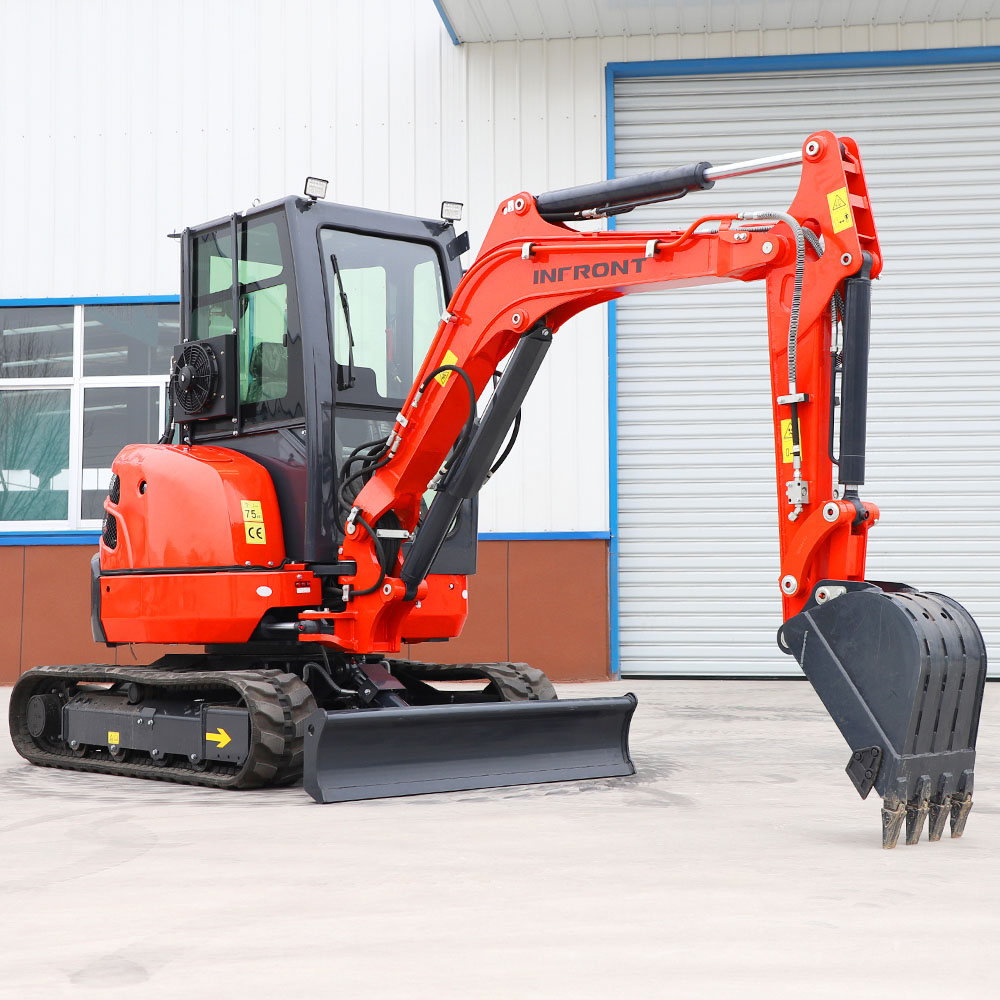

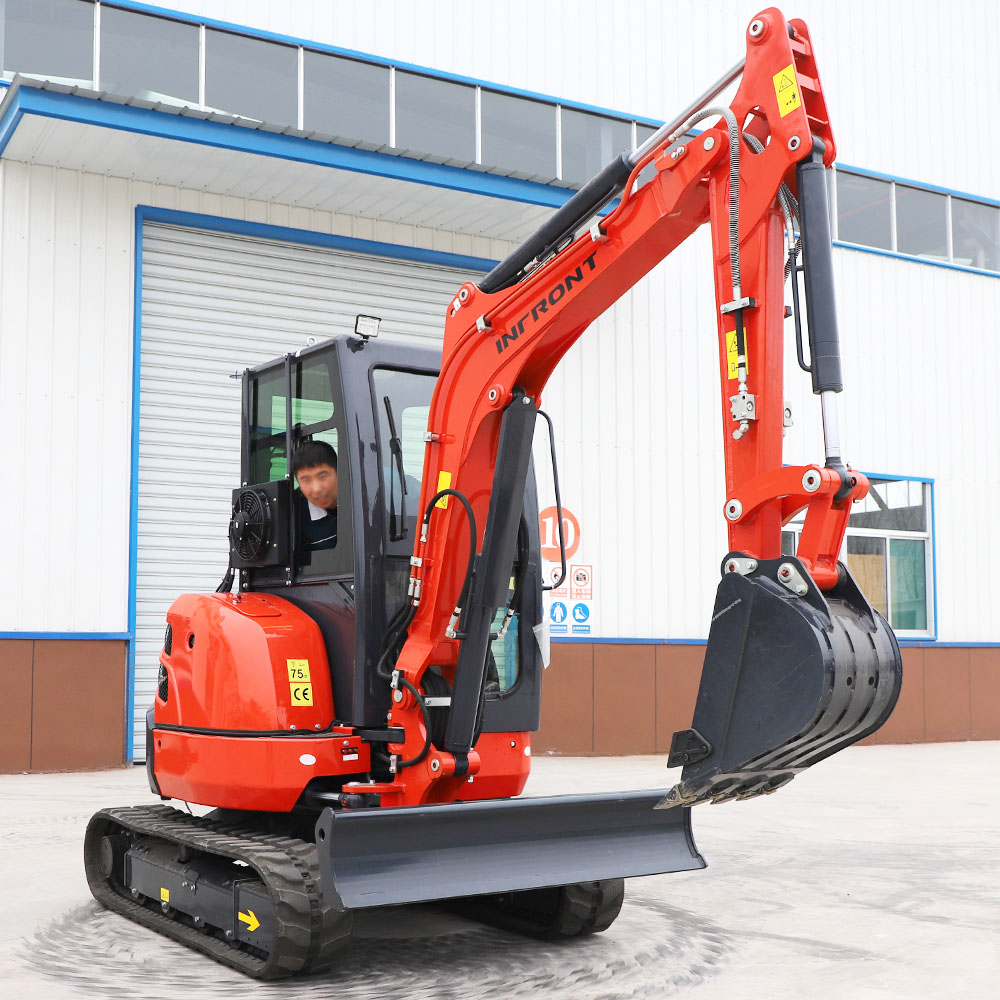

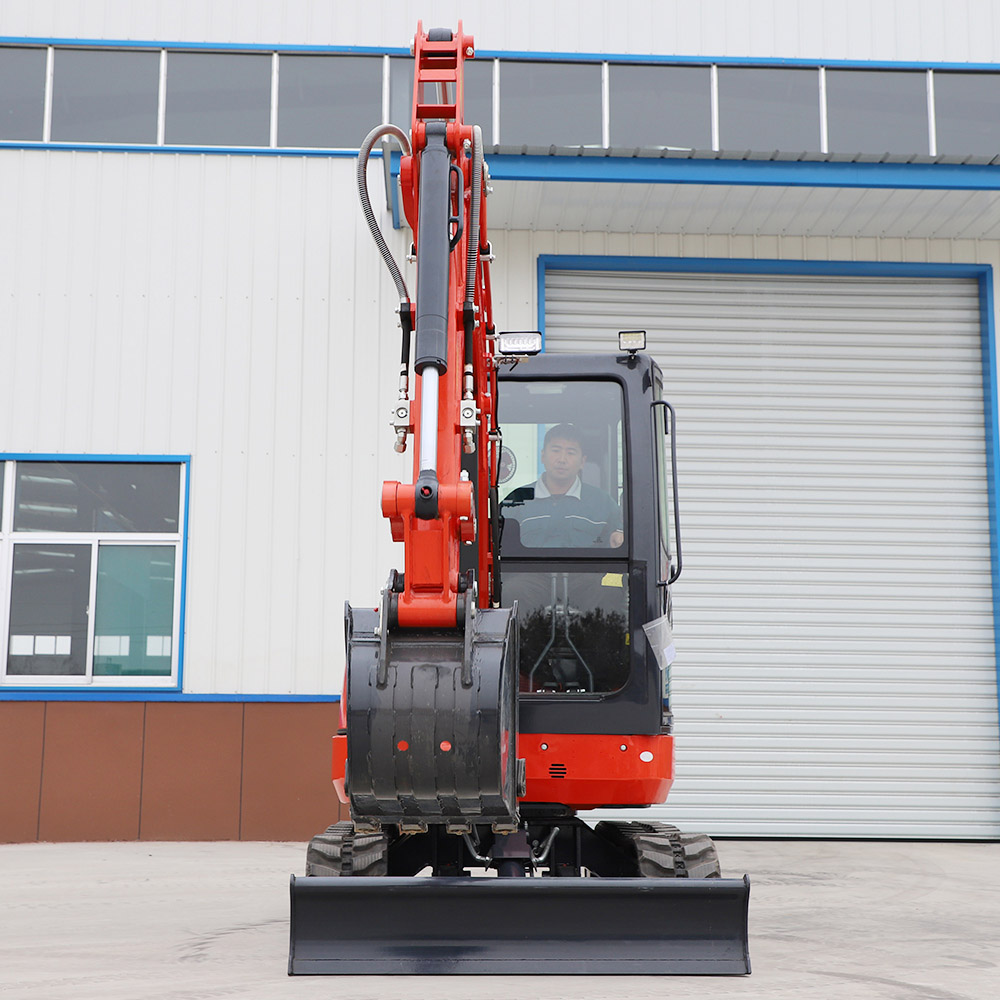

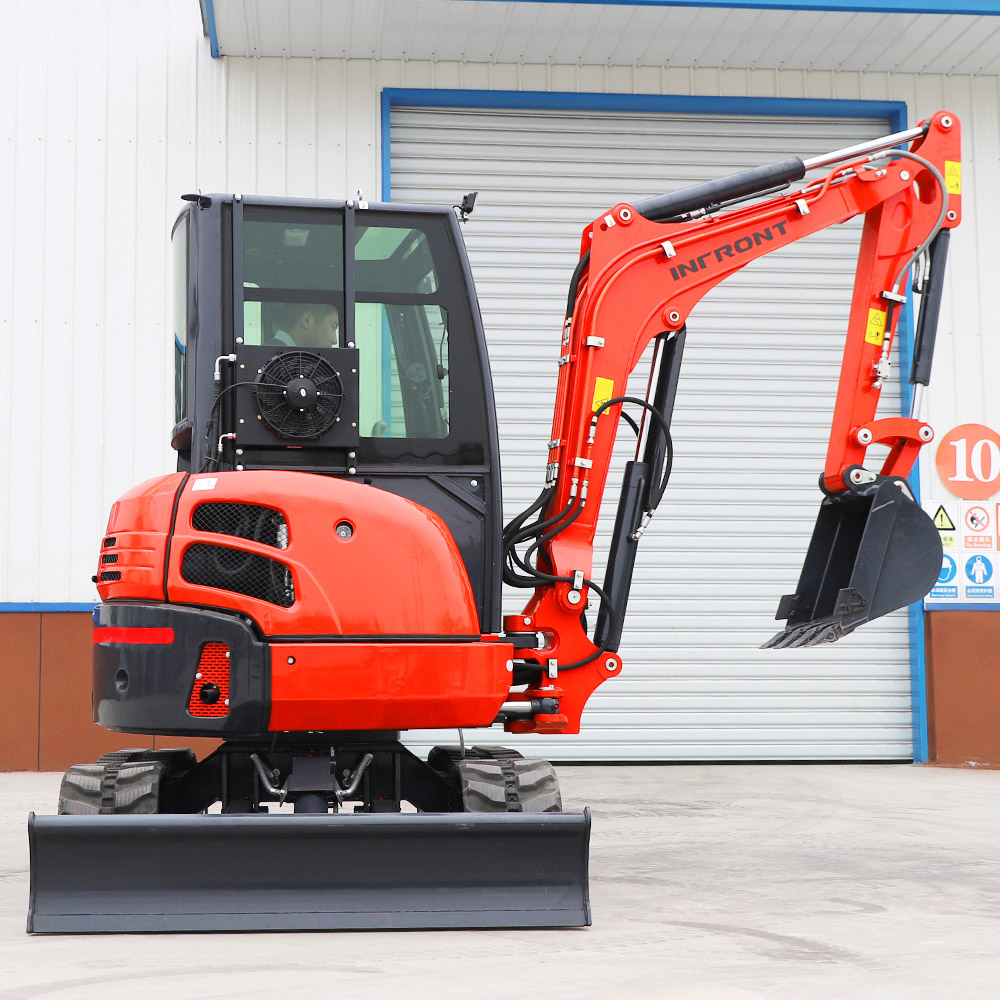

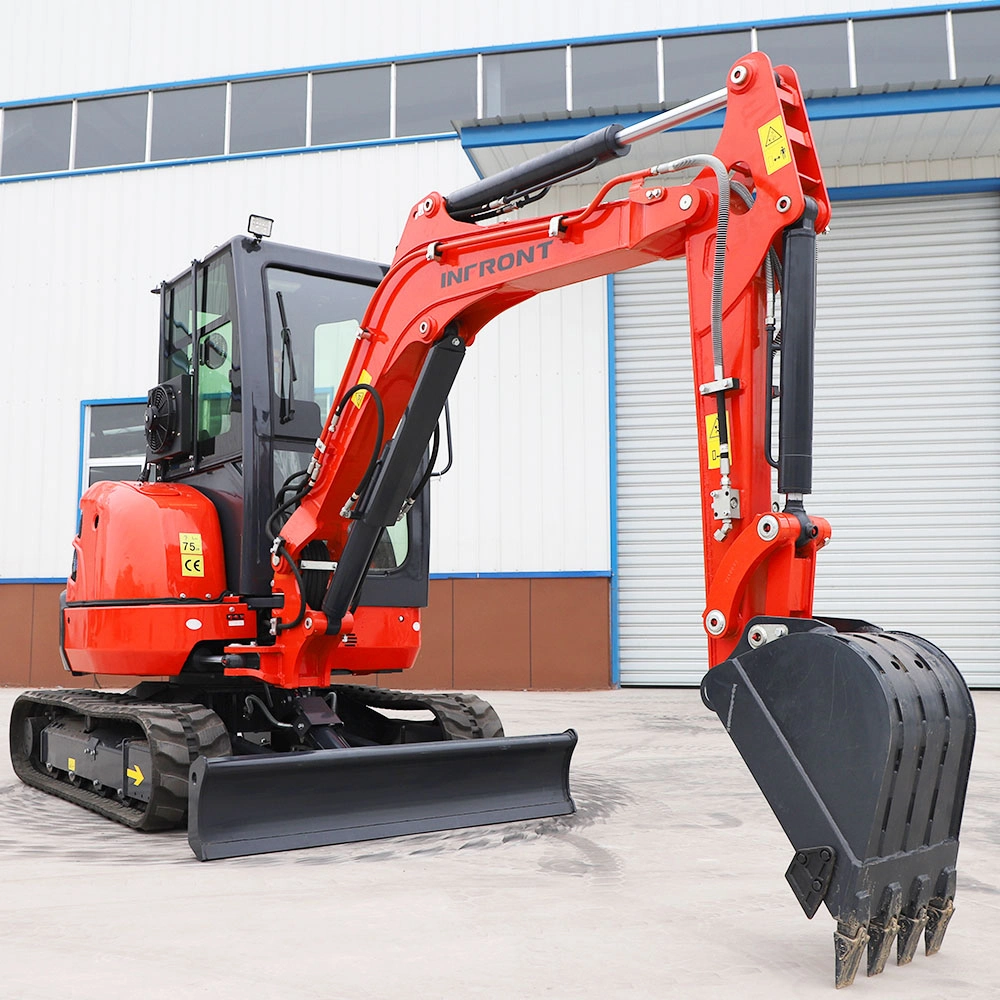

3.5 Ton Excavator
With excellent work efficiency and excellent cost-effective;
The standard configuration bulldozer can be flat site, earth backfill, increase machine stability;
Simple, small and flexible, easy to transport, can work in small venues, especially for orchards such as kiwifruit, vineyards, oranges, navel orange value, trenching, fertilization, weeding;
With mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved.

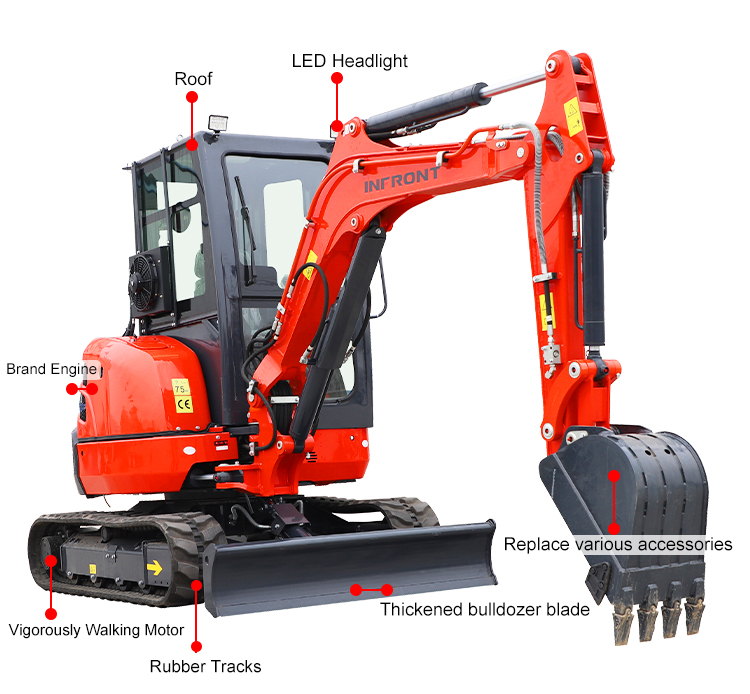

Steel made with wear-resistant and high-toughness steel materials Equipped With high-quality, Renowned brand hydraulic systems Switch between ISO and SAE operation modes Comfortable seats Equipped with air conditioning Excellent sound insulation and shock.

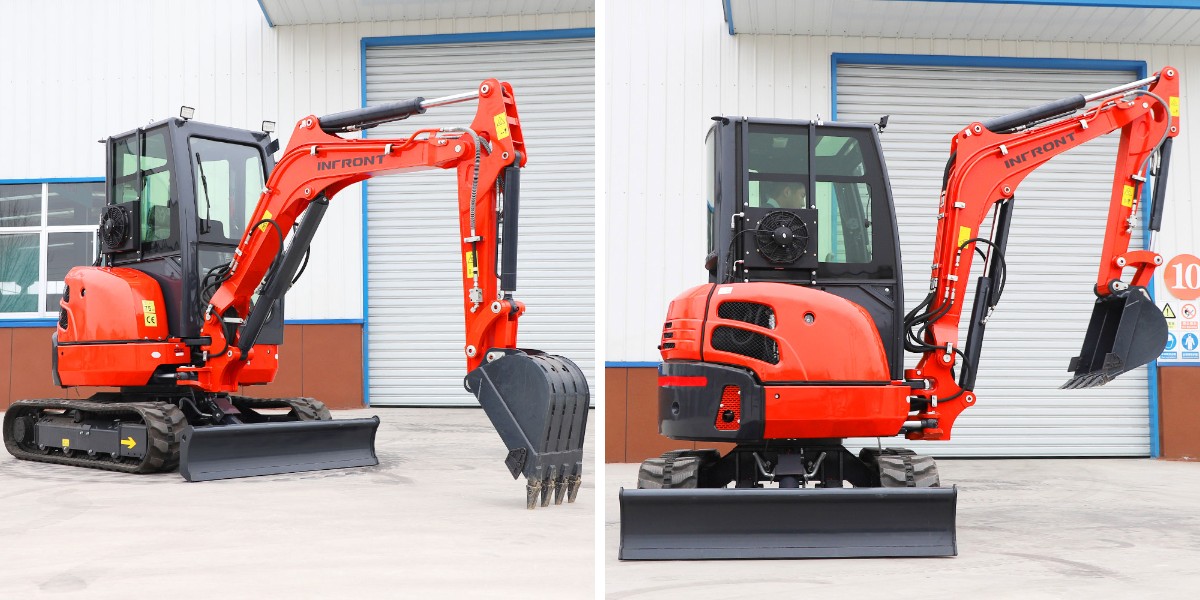

Product Details：

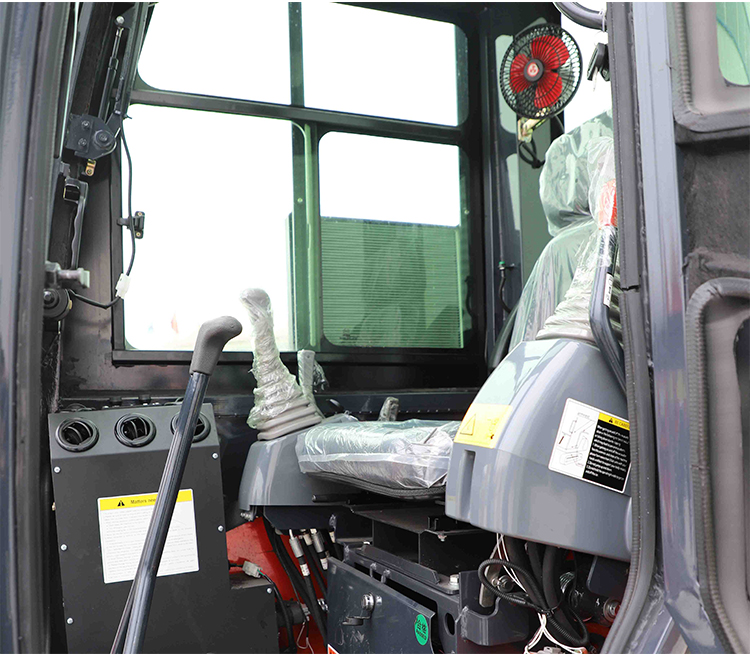

The seat is ergonomically designed to provide the driver with good lumbar and back support, so the driver will not feel tired even after driving for a long time.

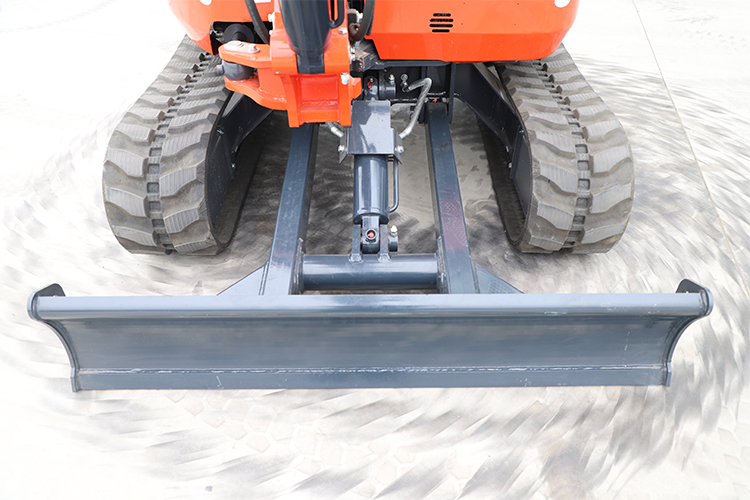

Bulldozer shovel Thick, high quality, and long service life.Suitable for leveling the site, stacking materials, and backfilling operations.

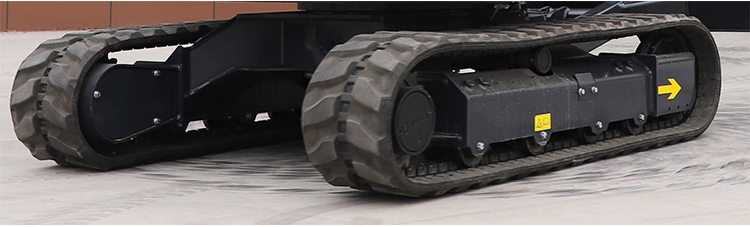

Excavator rubber tracks stand out in the field of modern engineering construction for their significant advantages in reducing noise, protecting the ground, stable operation and environmental protection.
Product Parameter：
Overall dimensions | 4485*1550*2435mm |
Machine weight | 3515kg |
Bucket capacity | 0.09m3 |
Engine model | 3TNV88F-ESSY |
Displacement | 1.642L(cc) |
Output power | 18.2/2200KW/rpm |
Slewing speed | 8.5r/min |
Travel speed | 3.0/4.2km/h |
Swing angle | 70/50° |
Gradability | 58(30)% (° ） |
Average ground pressure | 28kpa |
Bucket digging force | 26.5kn |
Fuel tank capacity | 29L |
Maximum digging height | 4600mm |
Maximum dumping height | 3175mm |
Maximum digging depth | 2880mm |
Maximum vertical digging depth | 2305mm |
Maximum digging radius | 4965mm |
Maximum ground digging radius | 4845mm |
Minimum front rotation radius | 2035mm |
Center of rotation to end of crawler track | 1030mm |
Dozer blade width | 1550mm |
Dozer blade height | 335mm |
Maximum dozer height | 360mm |
Maximum dozer depth | 340mm |

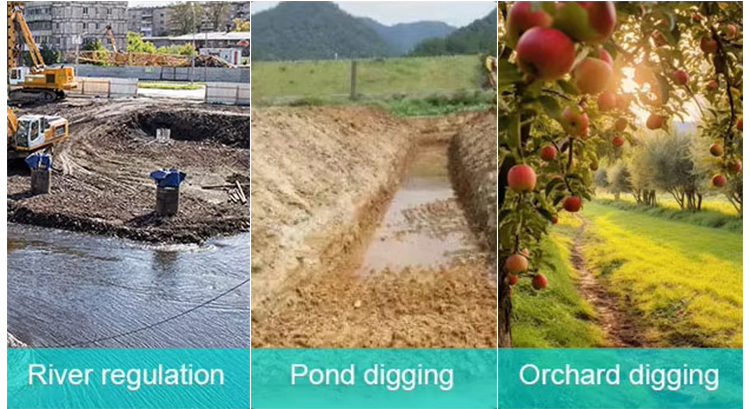

Application scenarios：
Suitable for a variety of occasions
Site Analysis：
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

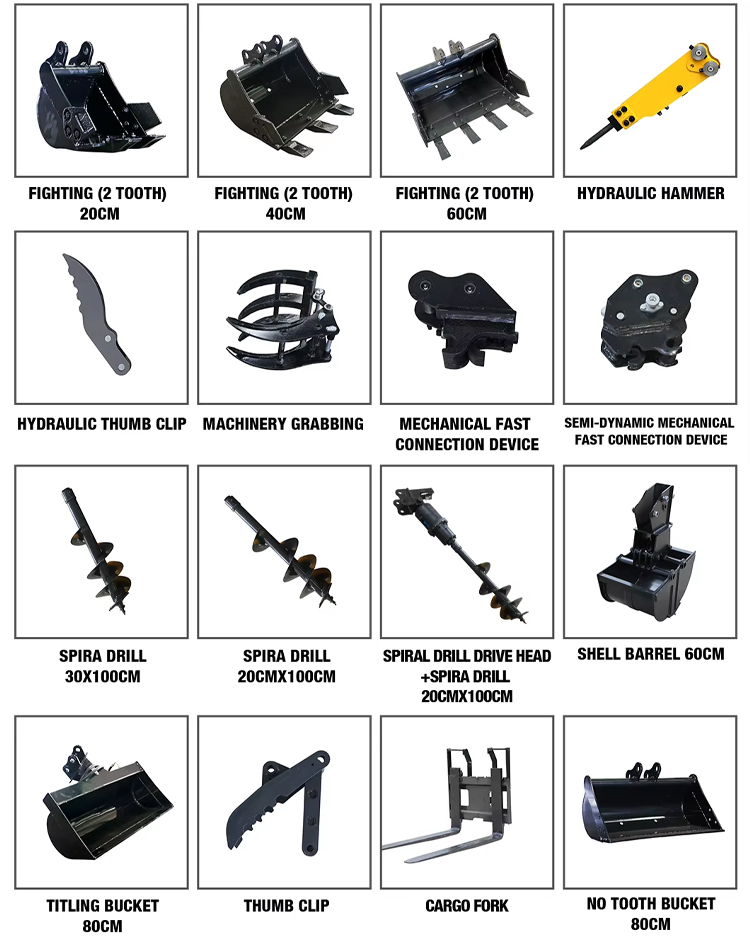

Optional accessories
Multifunctional machine with a variety of accessories
Annual sales at home and abroad exceed 20,000 units, exported to all over the world, and widely praised! More than 1,000 professional sales and service personnel, more than 60 countries and regions, customer sales teams have been established
