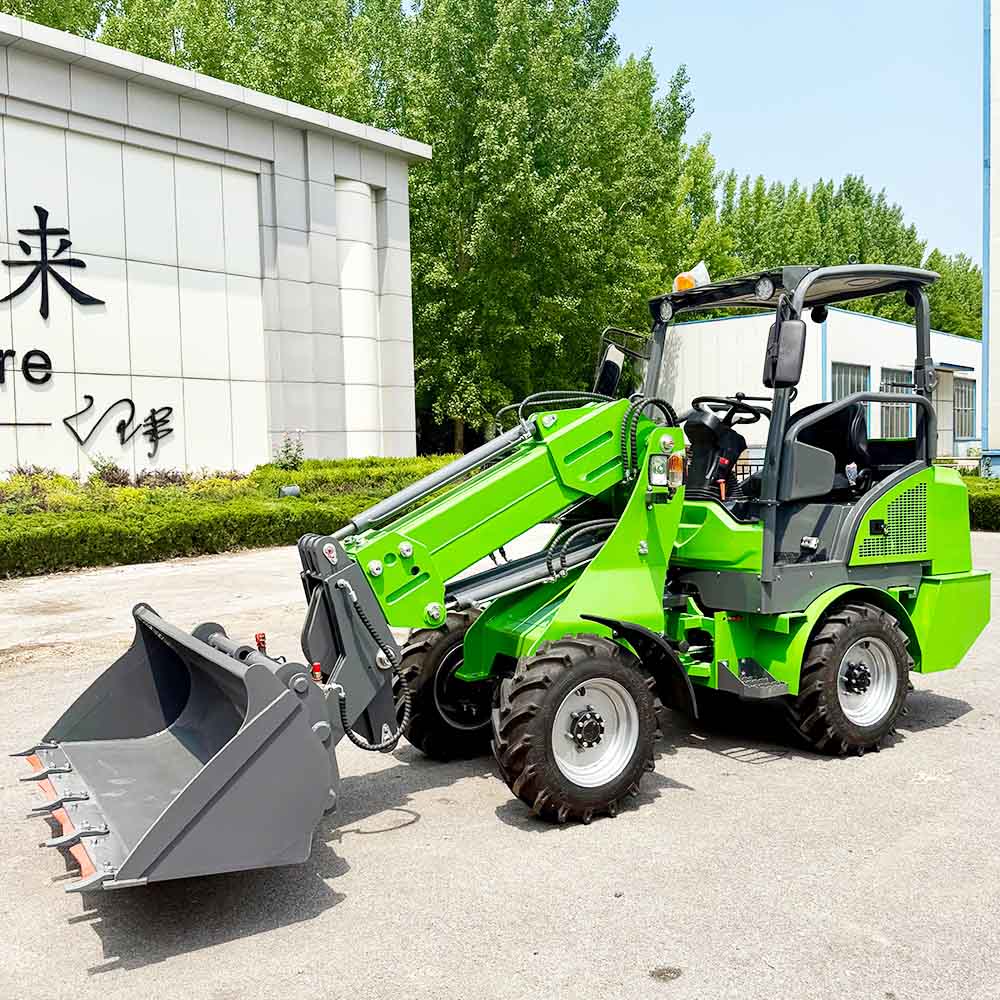

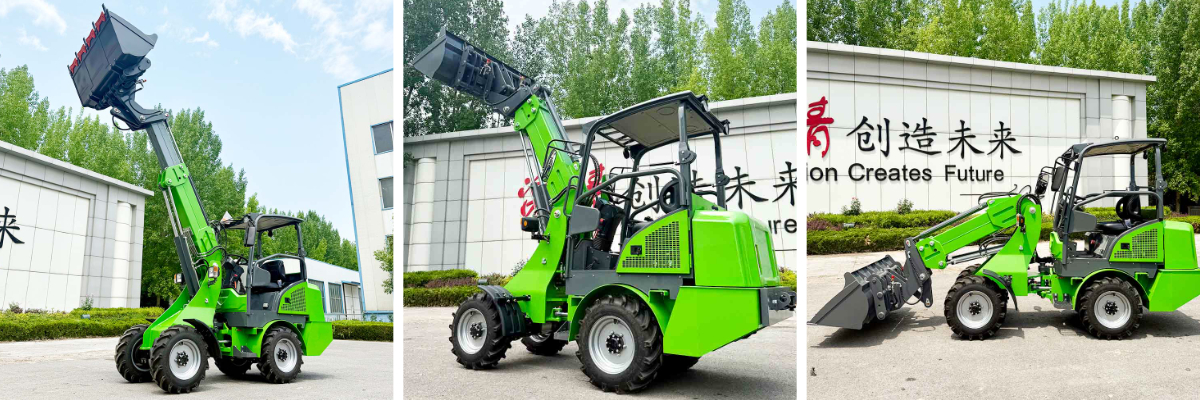

Electric front end loader for garden tractor
This flexibility is particularly evident in agricultural scenarios: when equipped with a pitchfork, the arm can be extended to reach the top of a 3-meter-high haystack to retrieve material, preventing the collapse of the pile caused by the insufficient arm length of traditional loaders. When equipped with a bucket, it can operate close to the ground to clear weeds in orchard crevices, with a minimum operating height of only 20 cm. In municipal rescue operations, the telescopic arm can reach across a 1.5-meter-wide trench to retrieve trapped vehicles or extend to the center of a river to clear floating debris, eliminating the need for a temporary work platform and significantly reducing on-site deployment time.
Electric wheel loaders are a greener and more cost-effective alternative to traditional diesel-powered loaders. Their zero emissions, lower operating costs, and improved performance make them a viable option for various industries. As technology continues to advance, we can expect to see more electric wheel loaders on construction sites and mining operations in the future.

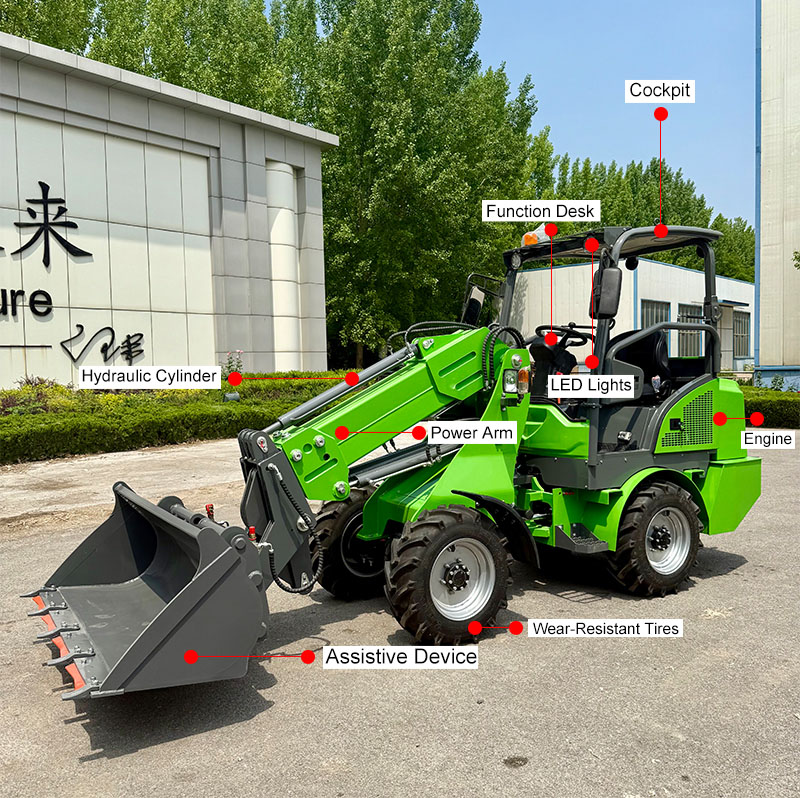

Product Details:

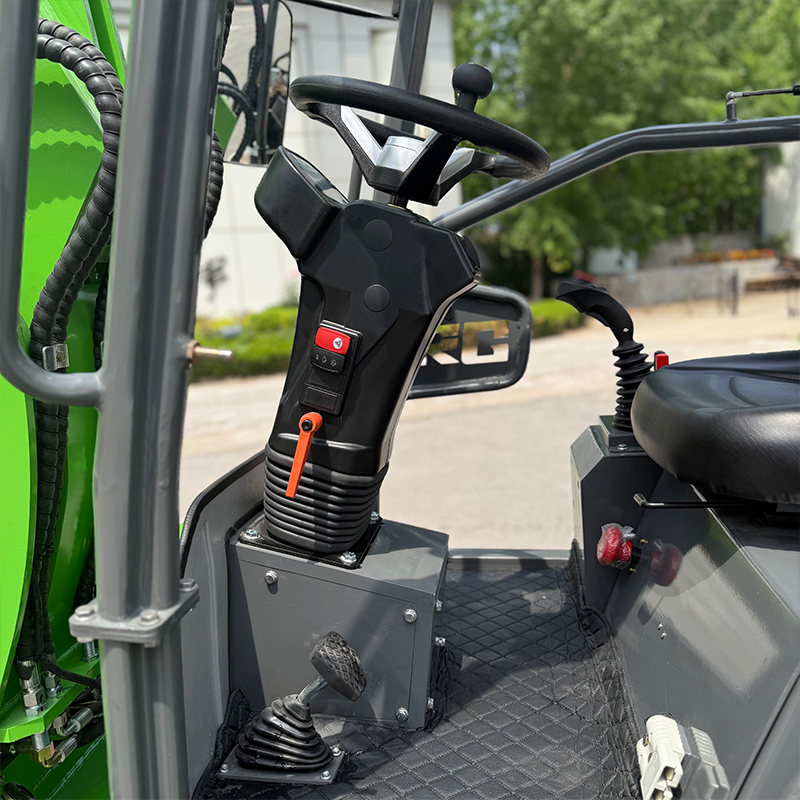

【Adjustable Steering Column】
The steering column can be individually adjusted to suit the operator's needs. This ensures that every operator can operate the machine ergonomically and without fatigue.

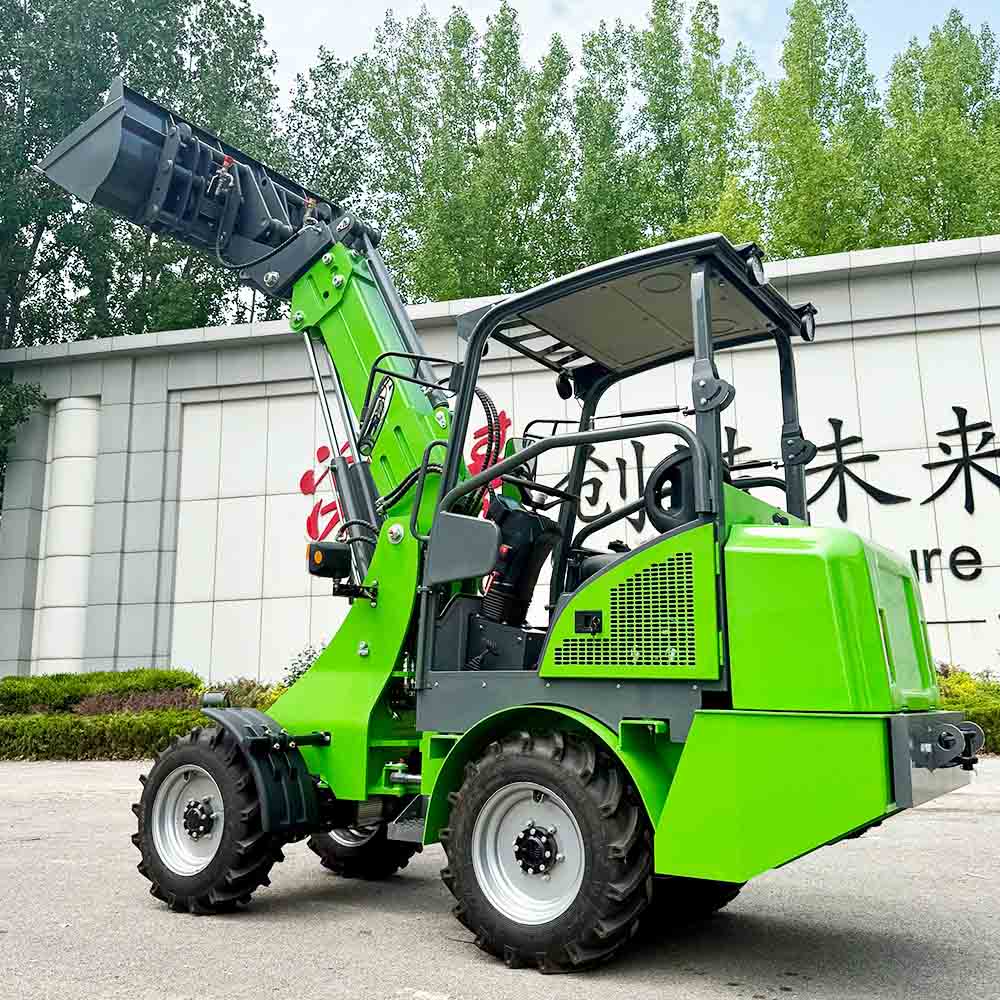

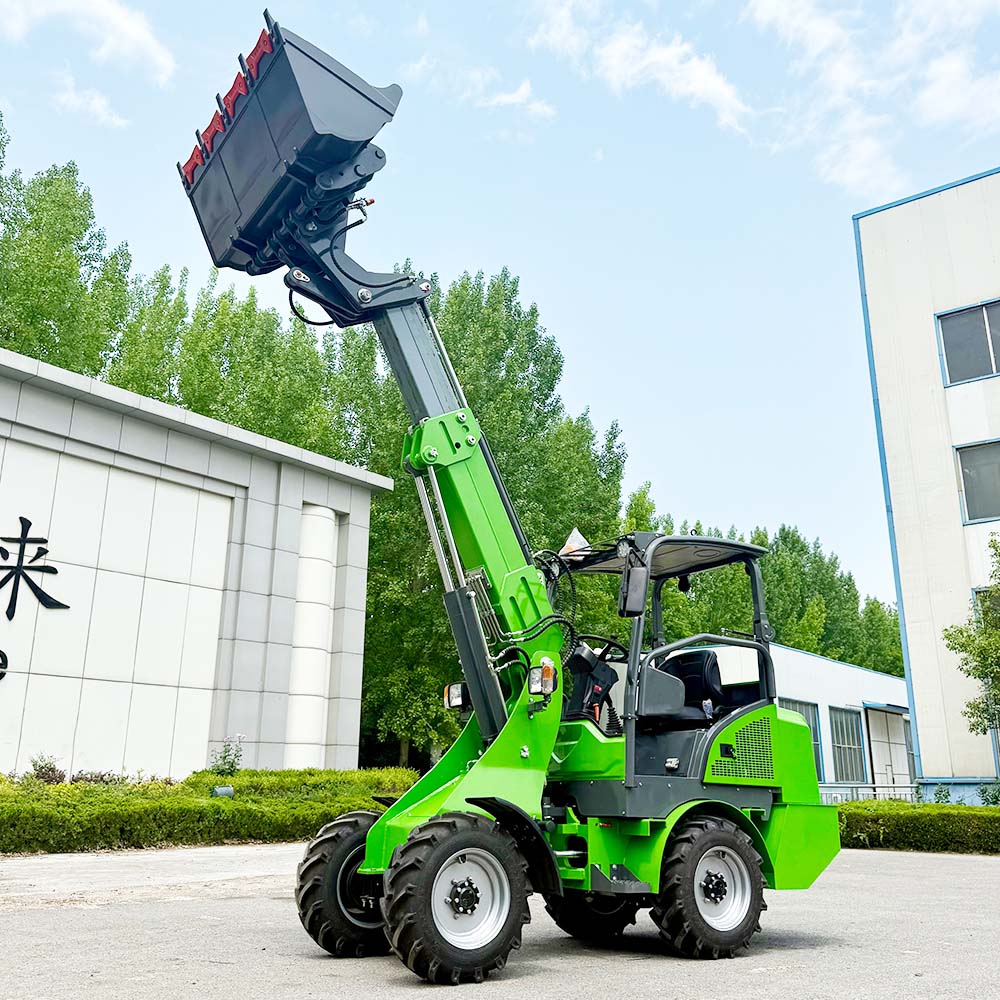

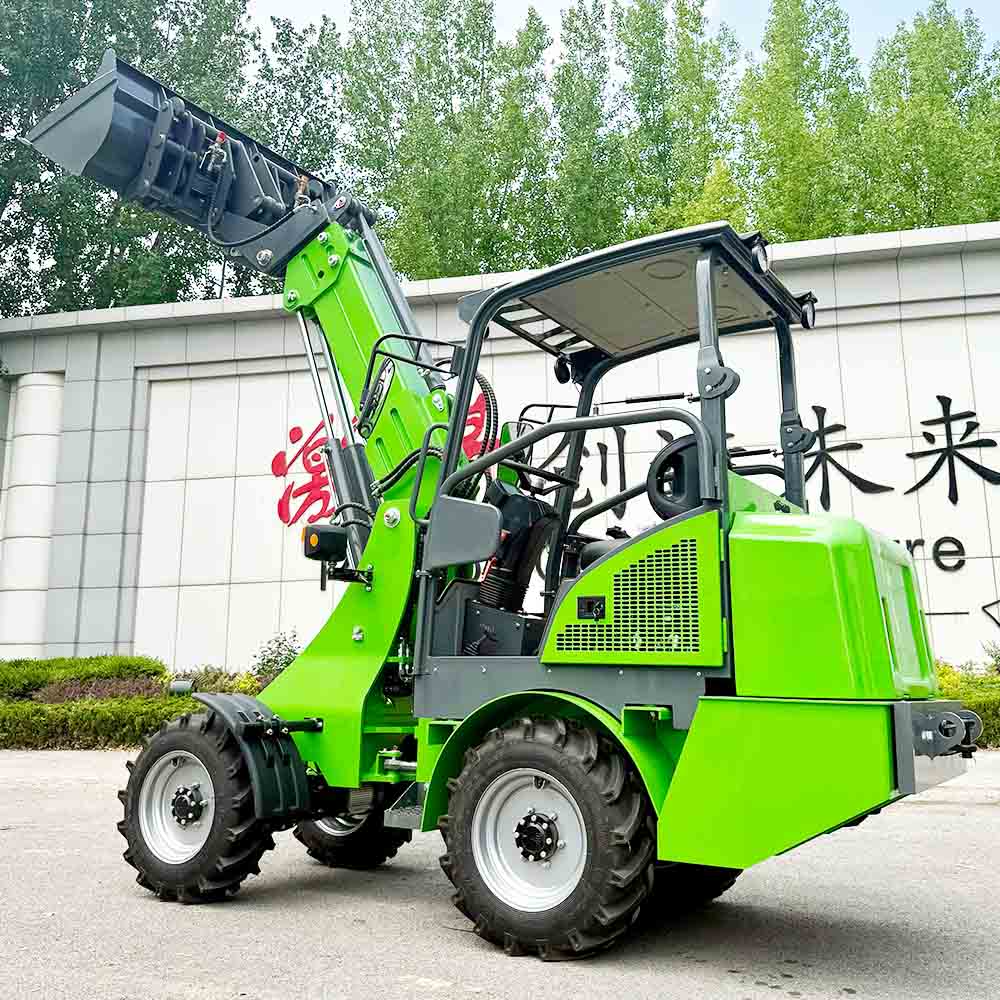

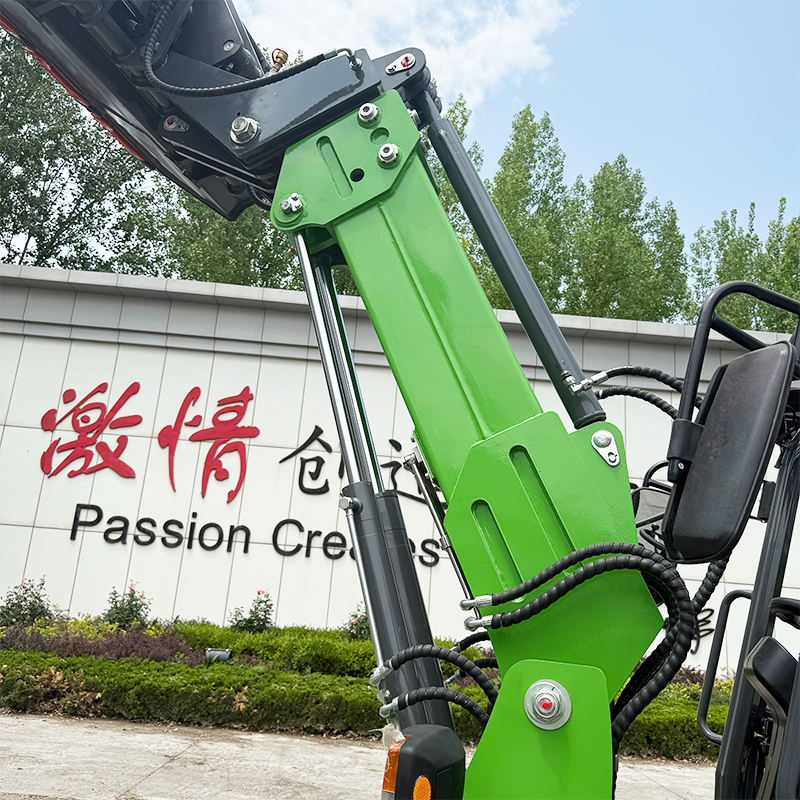

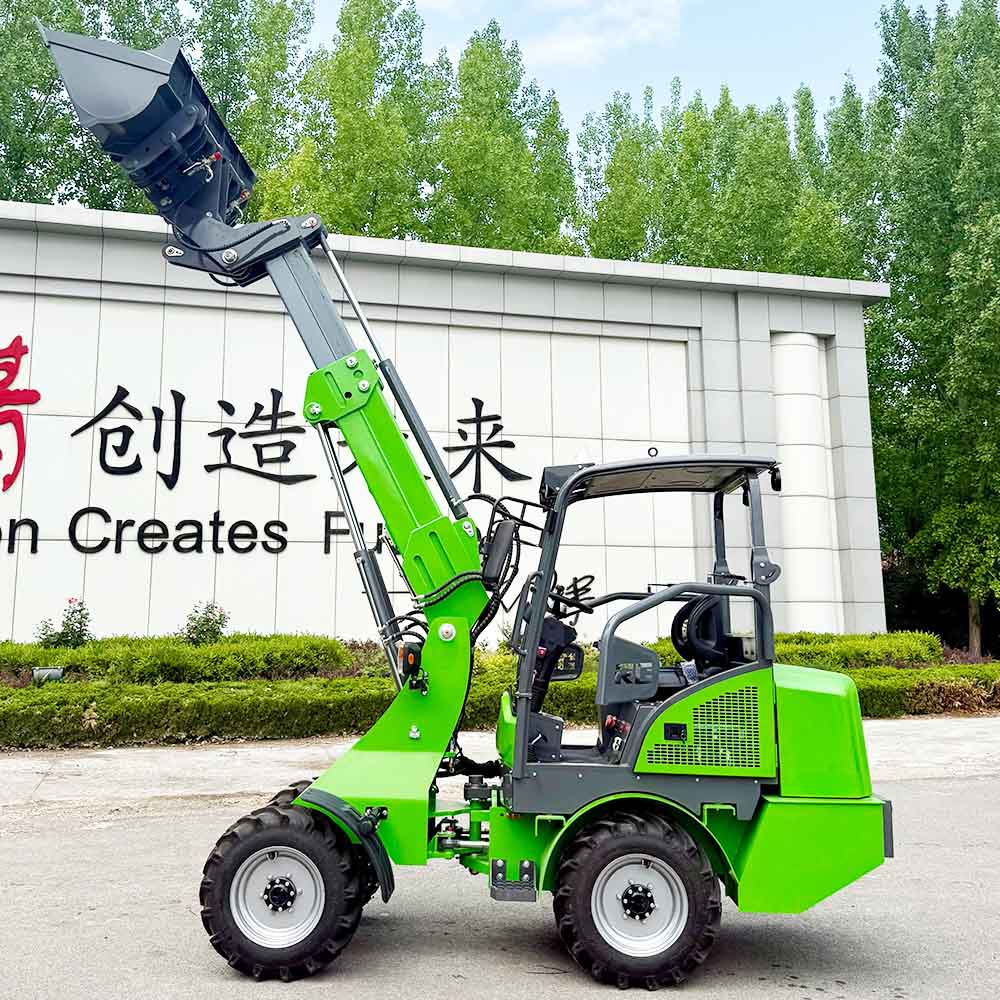

【Sturdy Telescopic Boom】
The telescopic boom features a sturdy and stable structure. Parallel movement is hydraulically driven. All important hydraulic lines are internally located and protected from external influences.

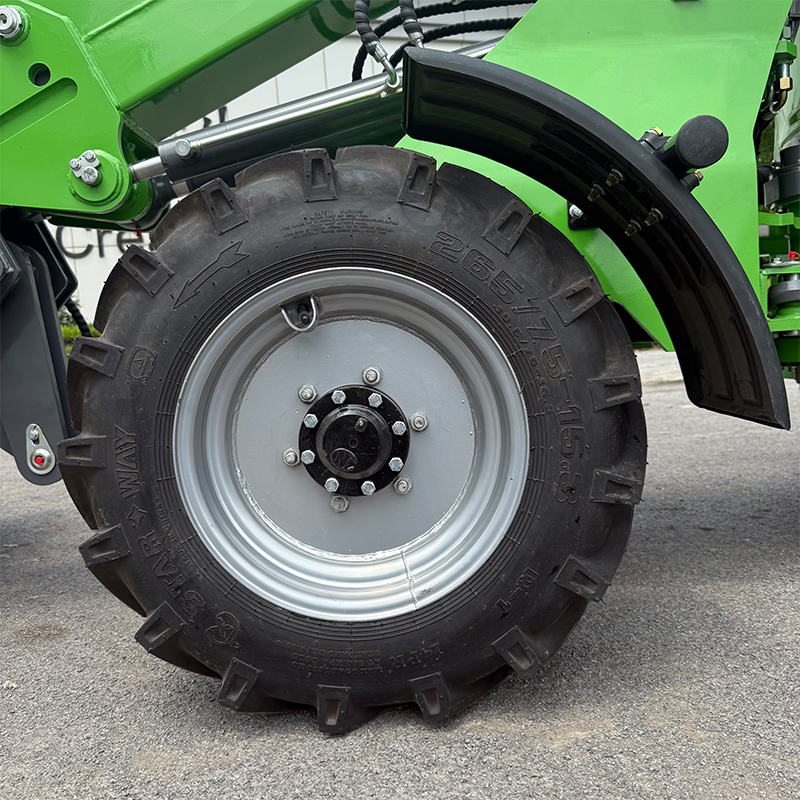

【Rubber Tires】
The loader's turf tires minimize damage to turf surfaces and reduce soil compaction.

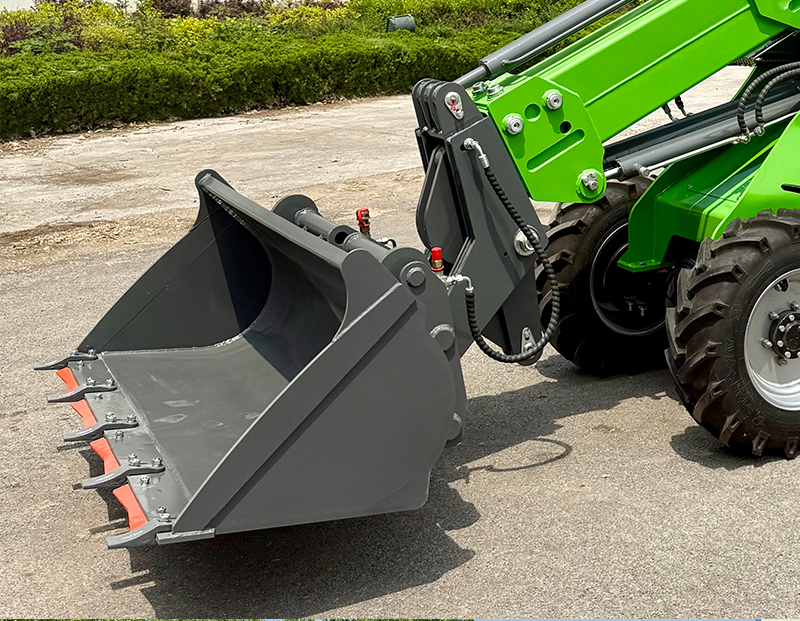

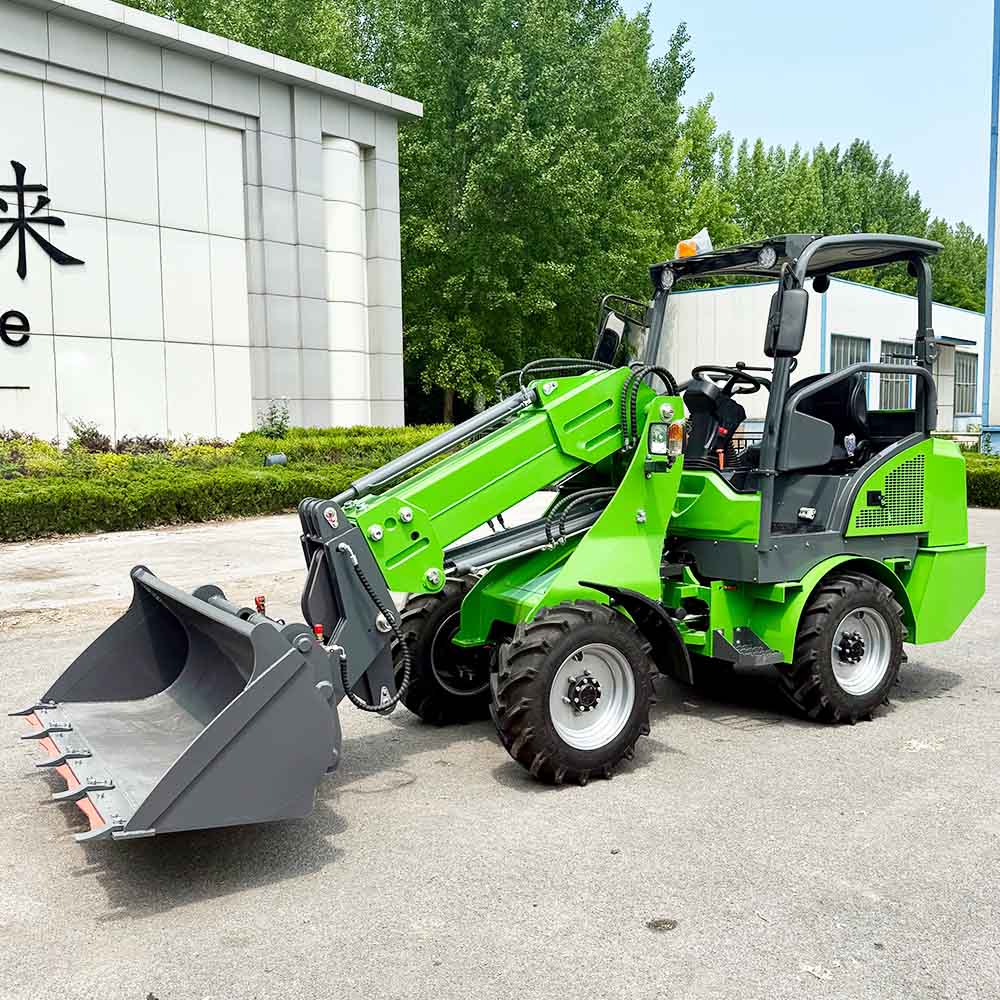

【Reinforced Bucket】
The bucket is made of high-quality material with increased hardness, effectively preventing corrosion and ensuring durability.
Product Parameters:
Electric wheel loader specification | |
Performance | |
Rated Load(t) | 1 |
Bucket rated capacity(㎡) | 0.45 |
Dumping height(mm) | 2450\3150 |
Lifting Height(mm) | 3680\4350 |
Dumping Reach(mm) | 800\1200 |
Max.Lifting weight(kg) | 1000\500 |
Max.ExcavationForce(kg) | 1100\600 |
Max.Grade ability(°) | 18 |
Max.Turning Angel(°) | 29±1 |
Dimensions and weight | |
Overal1 length(mm) | 4580 |
Overallwidth(mm) | 1260/1300 |
Overall Height (mm) | 2450 |
Wheelbase(mm) | 1580 |
Tire spacing (mm) | 1000 |
Min Ground Clearance(mm) | 215 |
Net Weight(kg) | 2840 |
Battery | |
No. of battery groups | 12 |
Rated Voltage(v) | 72 |
Hydraulic System | |
Motor No. | YQP5-72AF-48P |
Voltage(v) | 72 |
Power(W) | 5000 |
Displacement (m1/r) | 15 |
Rotating Speed(r/min) | 2000 |
Walking System | |
Motor No. | YQP4-72A1-48P |
Voltage(v) | 72 |
Power (W) | 4000x2 |
Rotating speed (r/min) | 2988 |
Tyres | |
Type | 29*12. 50-15 |
Working pressure(mpa) | 0.3 |
Qty | 4 |
Steering System | |
Type of Steering Hydraulic System | Hydraulic Steering System |
System Pressure(mpa) | 16 |
Type of Steering Pump | Gear Pump |
Steering Cylinder Bore (mm) | Φ63-35 |
Qty(pc) | 2 |
Braking System | |
Service Brake | Drum Brake |
Brake Drum(mm) | 240 |
Parking Brake | Drum Brake |
DumpingCylinder-Bore(mm) | Φ100-50 |
Lifting Cylinder-Bore（mm) | Ø105-60 |
LiftingCylinderQty(pc) | 1 |
Oil Capacity | |
Hydraulic Oi1Tank(L) | 54 |
Brake Fluid (L) | 0.8 |
Application scenarios：
Site Analysis：
Imported hydraulic components are used, which ensure good operability, flexible movement and precise operation.

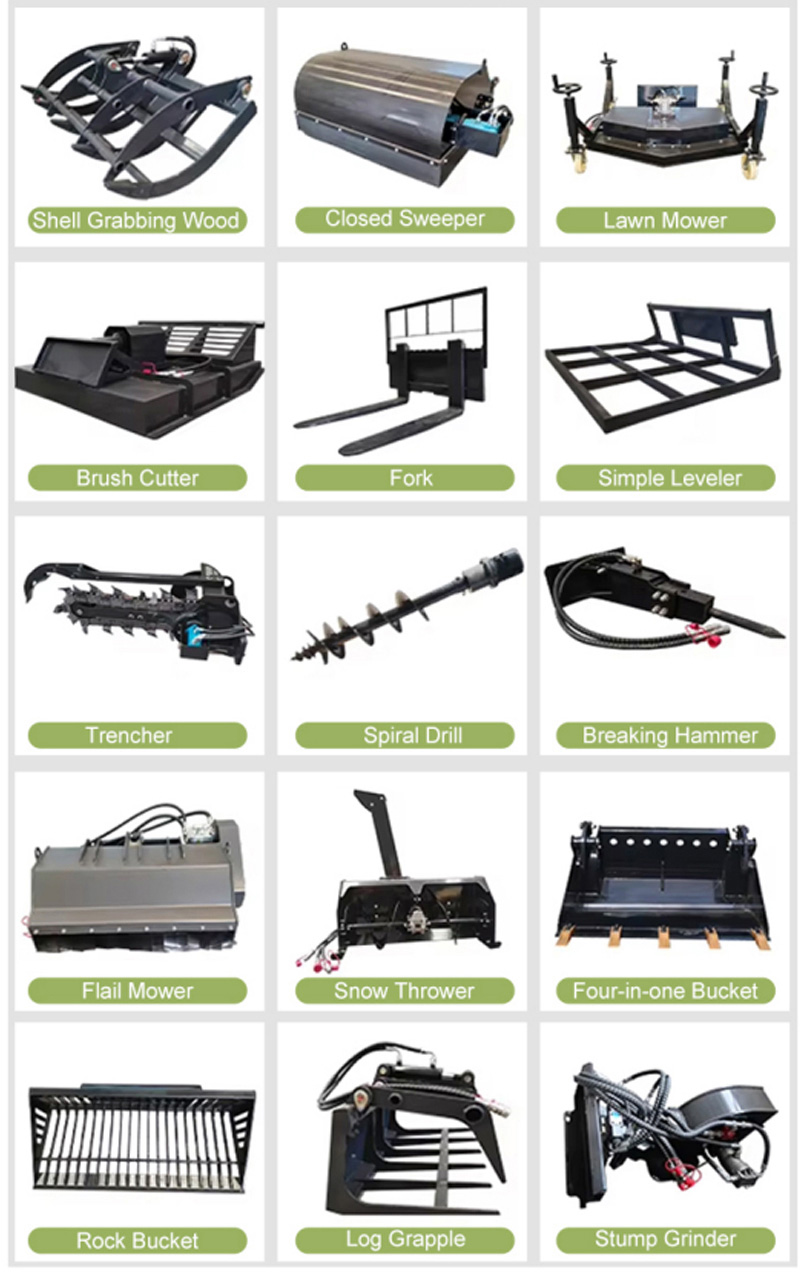

Product Accessories：
One machine for multiple uses, accessories for different applications
Our products sell over 20,000 units annually, both domestically and internationally, and are widely praised worldwide. We have over 1,000 professional sales and service personnel, and have established customer service teams in over 60 countries and regions.
