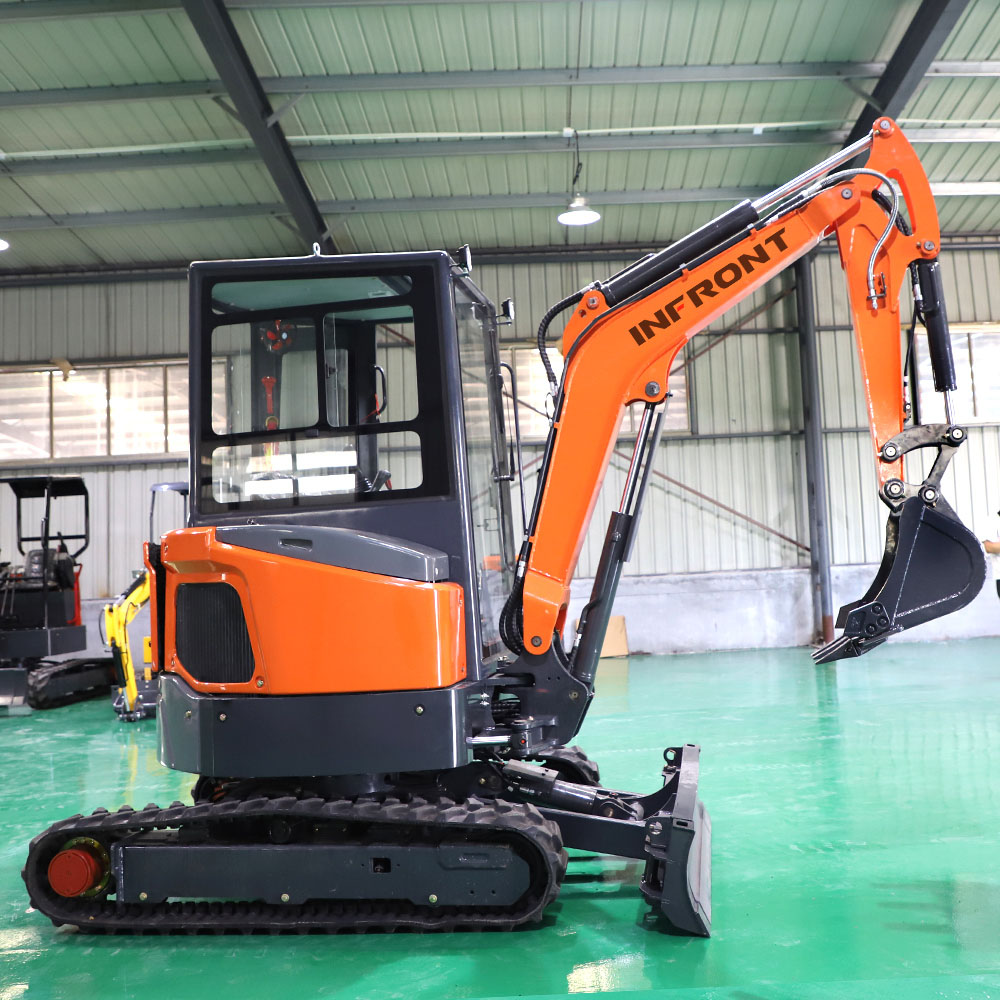

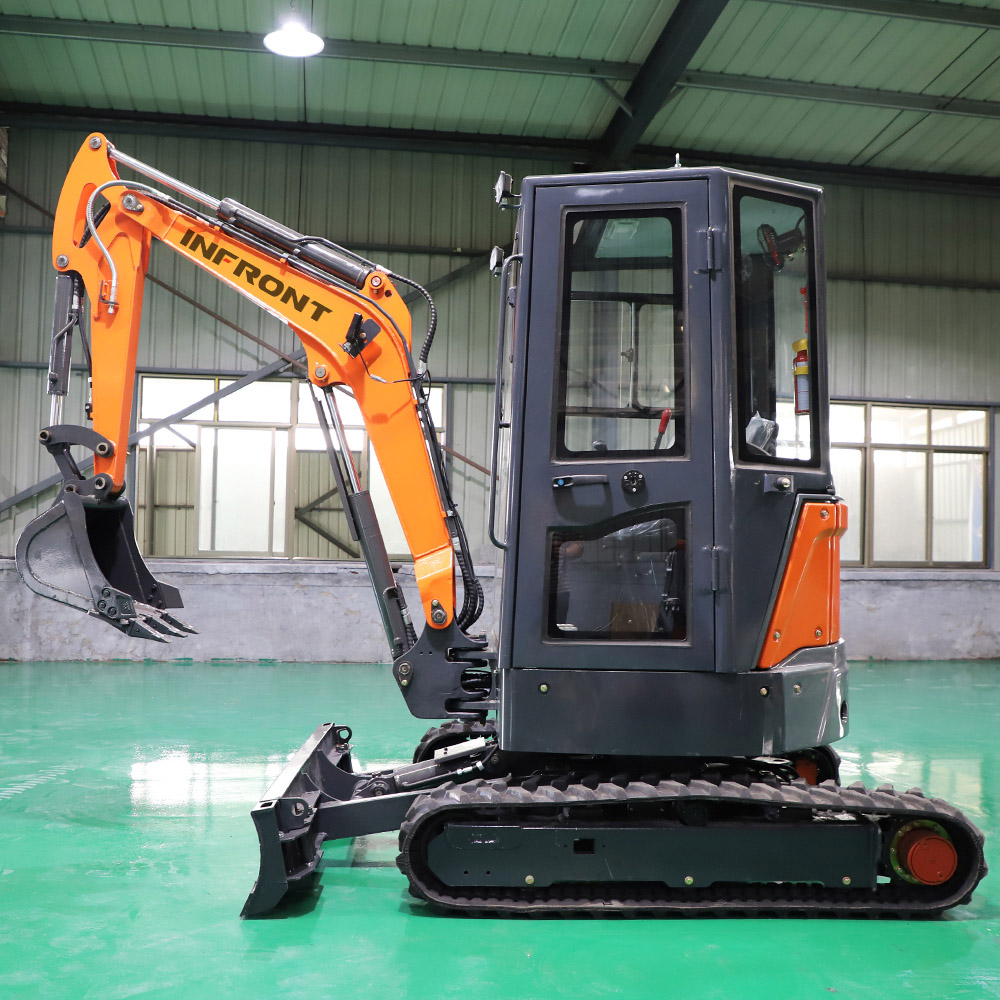

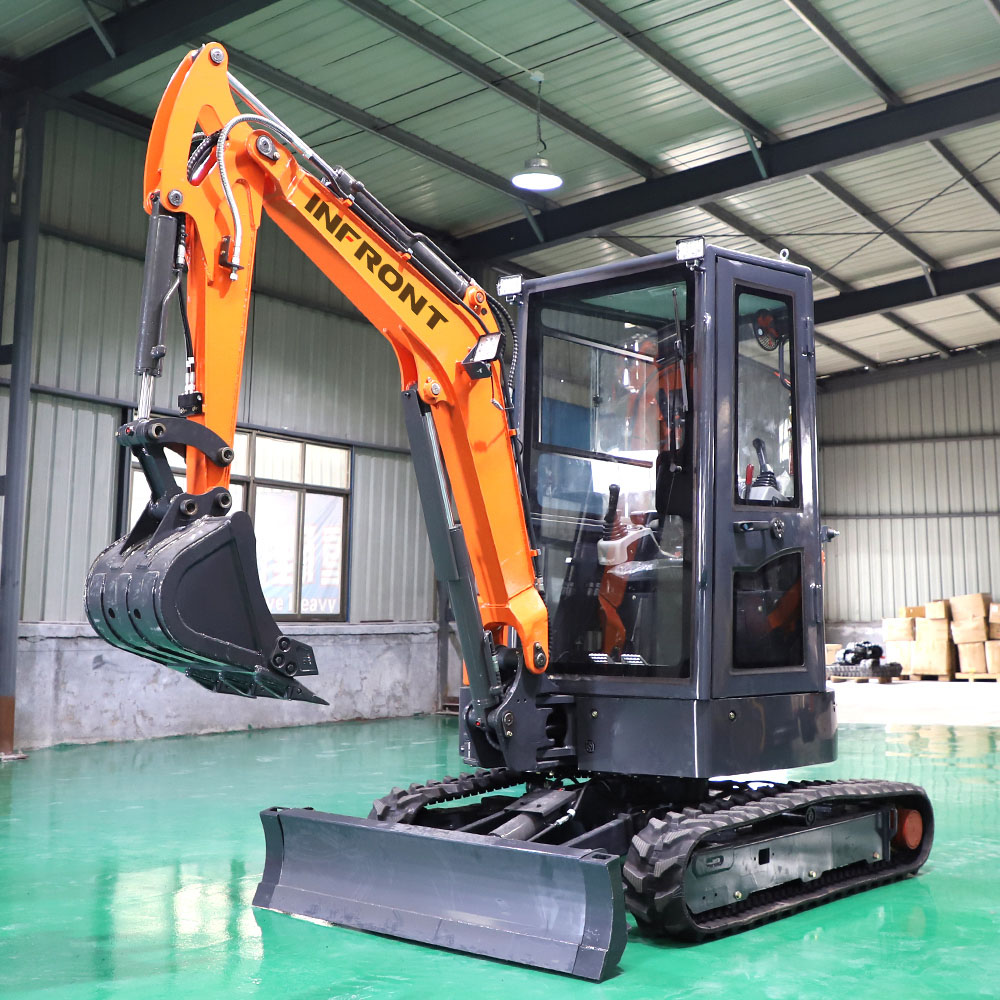

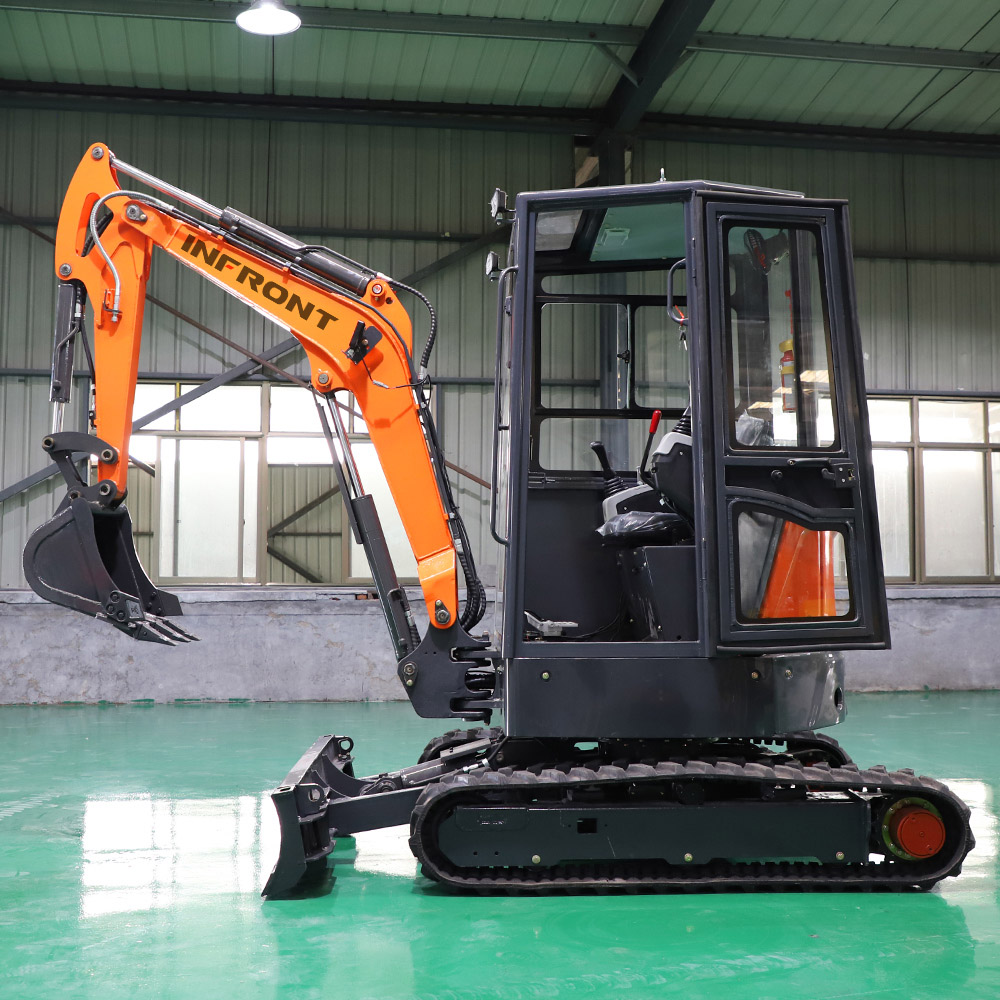

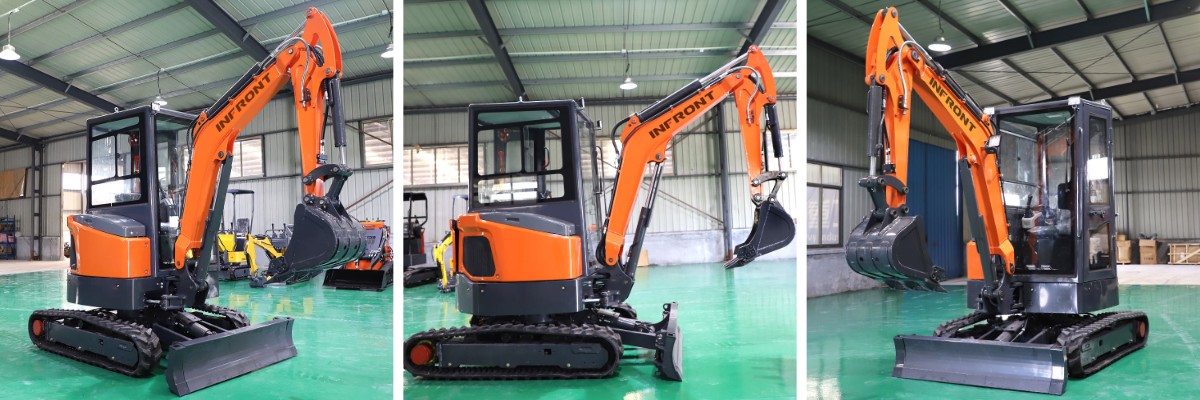

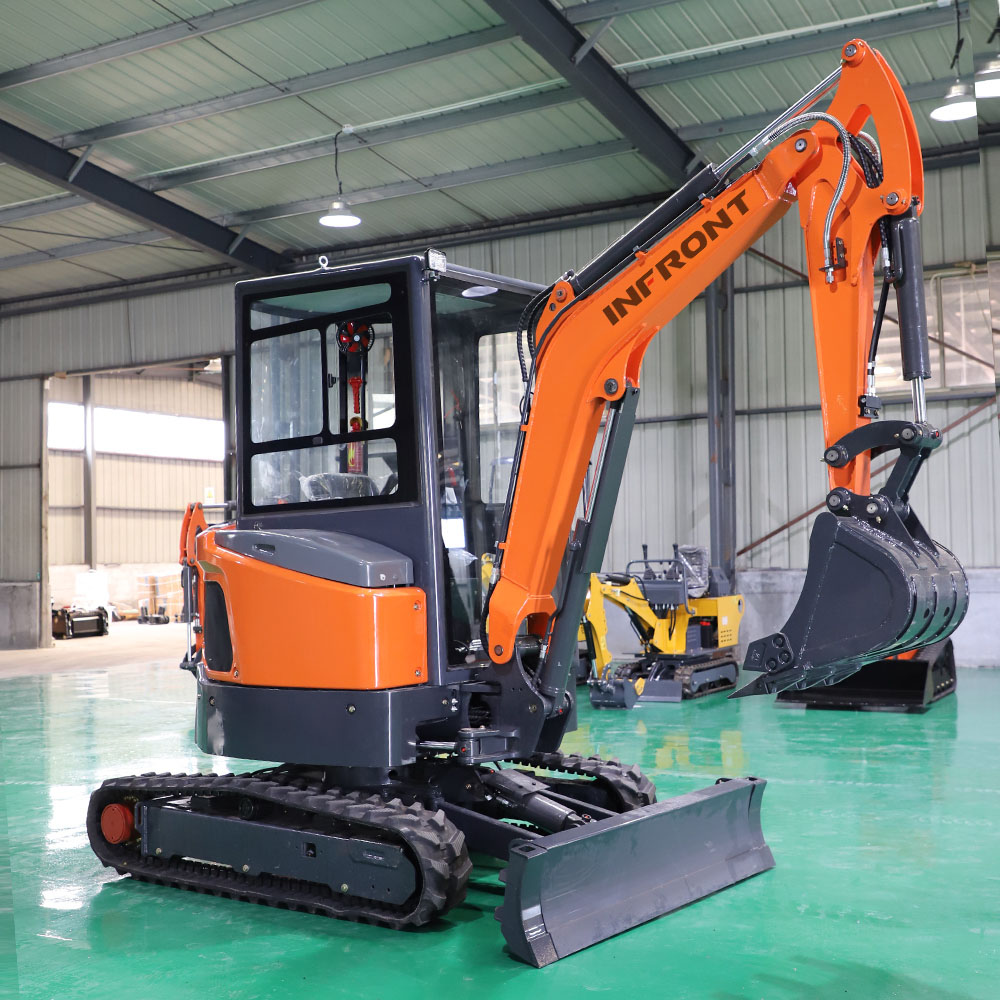

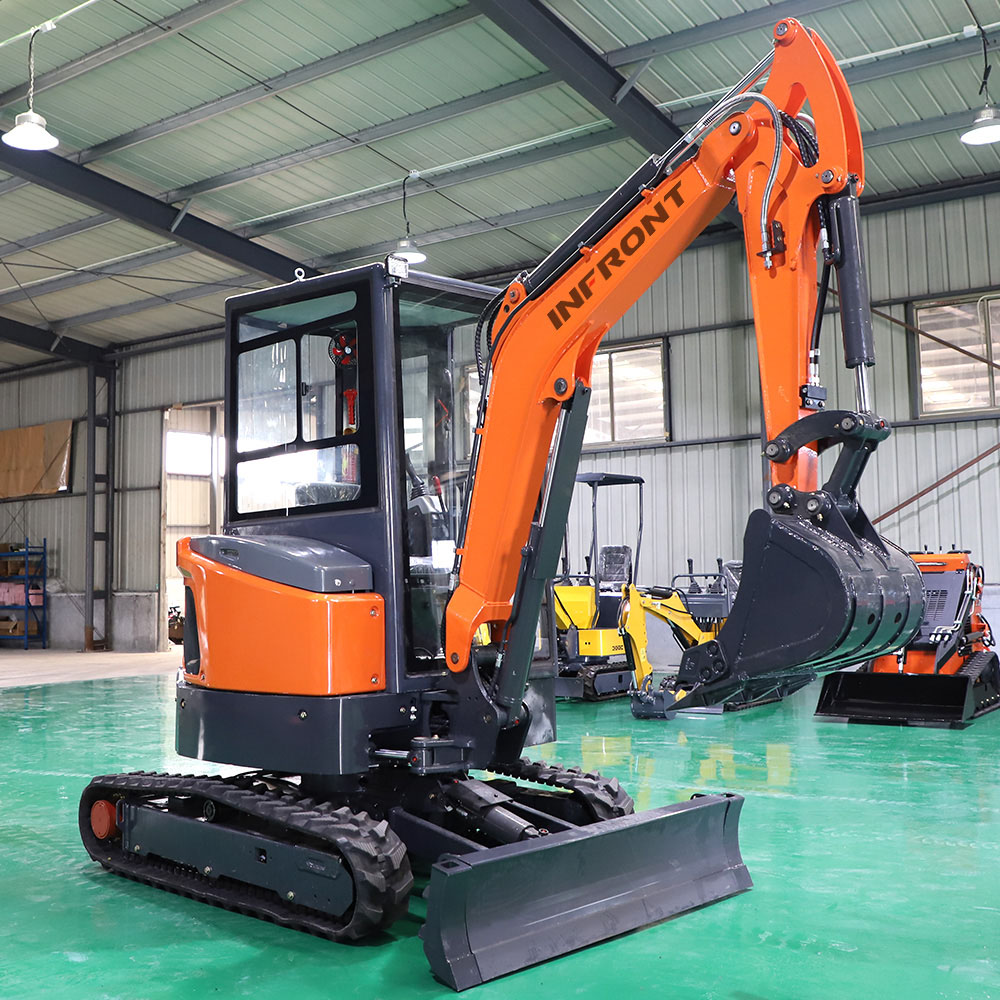

2.8 Ton Excavator
Excellent performance
Adopting internationally renowned brand engines Original imported hydraulic system, fast response speed, precise action
Large displacement main pump with strong power, 20% higher operating efficiency
Energy-saving and environmentally friendly design
Intelligent power matching system, fuel consumption reduced by 15-20% Meeting National IV emission standards and environmental protection standards The whole series has passed CE safety certification Low noise design, more environmentally friendly operation
Super durable quality
Key structural parts are made of high-strength alloy steel Reinforced working device design, service life extended by 30% The whole vehicle is rust-proofed to adapt to various harsh working conditions
Intelligent control experience
7-inch color LCD display, information is clear at a glance Intelligent fault diagnosis system, quickly locate problems
Optional remote monitoring system to achieve intelligent management Ergonomic control design
Safety and comfort guarantee
Panoramic cab, wide field of view without blind spots Suspended seat, greatly reducing operator fatigue Air conditioning system ensures a comfortable working environment
Powerful force, long service life, low noise, low emission, low fuel consumption, easy maintenance. Performance, noise and emissions are up to European standards.Different devices and features are tailored to your needs and requirements.

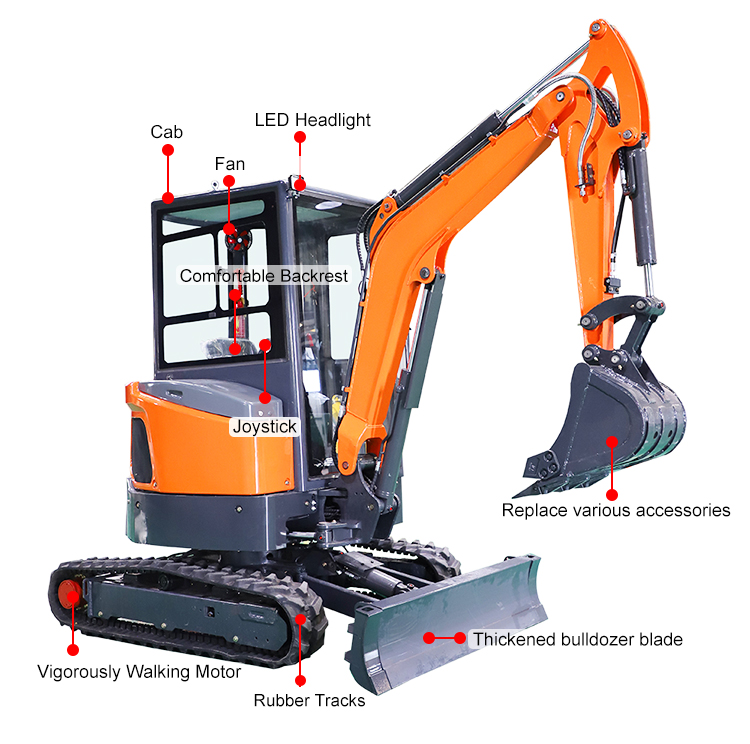

Product Details：

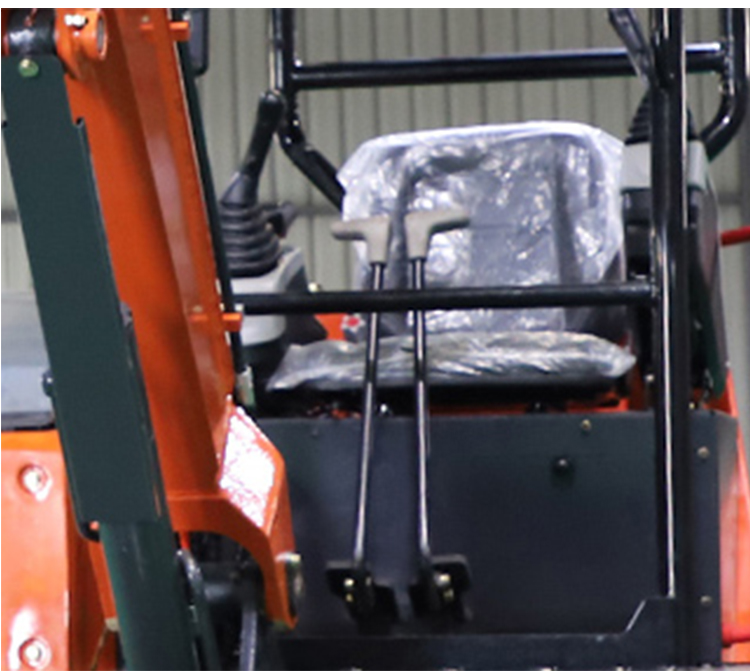

【Comfortable Backrest】
The excavator seat is designed with a comprehensive focus on shock absorption, adaptability, support, durability, and safety. This design not only meets the high-intensity operation requirements of construction machinery, but also maximizes the protection of the operator's body, improving comfort and efficiency during long-term work.

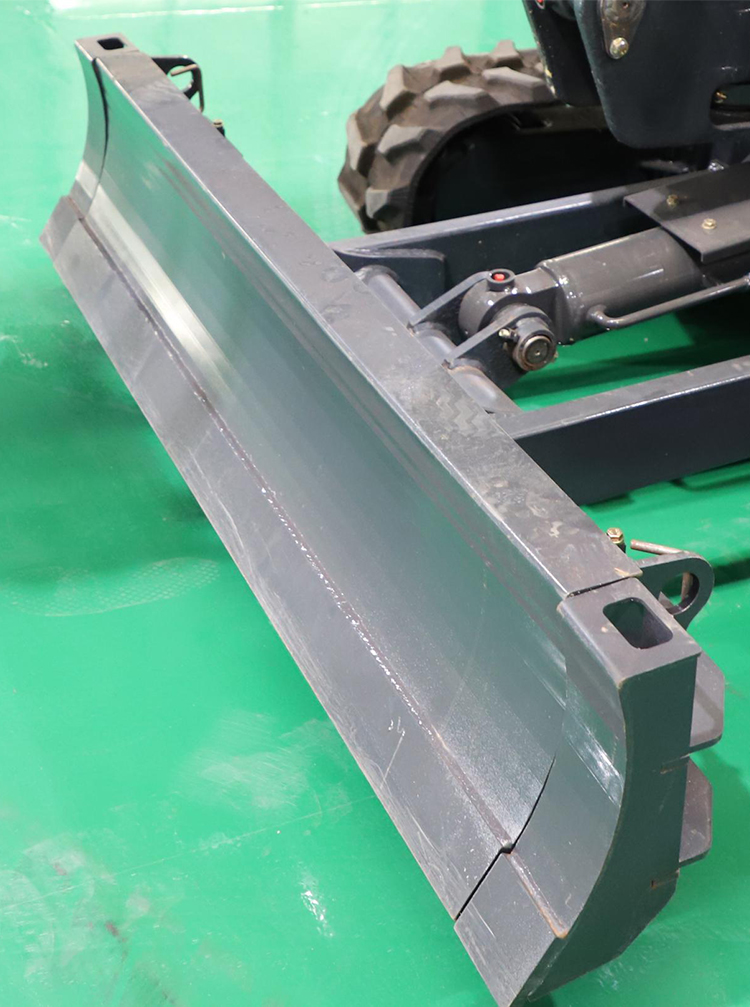

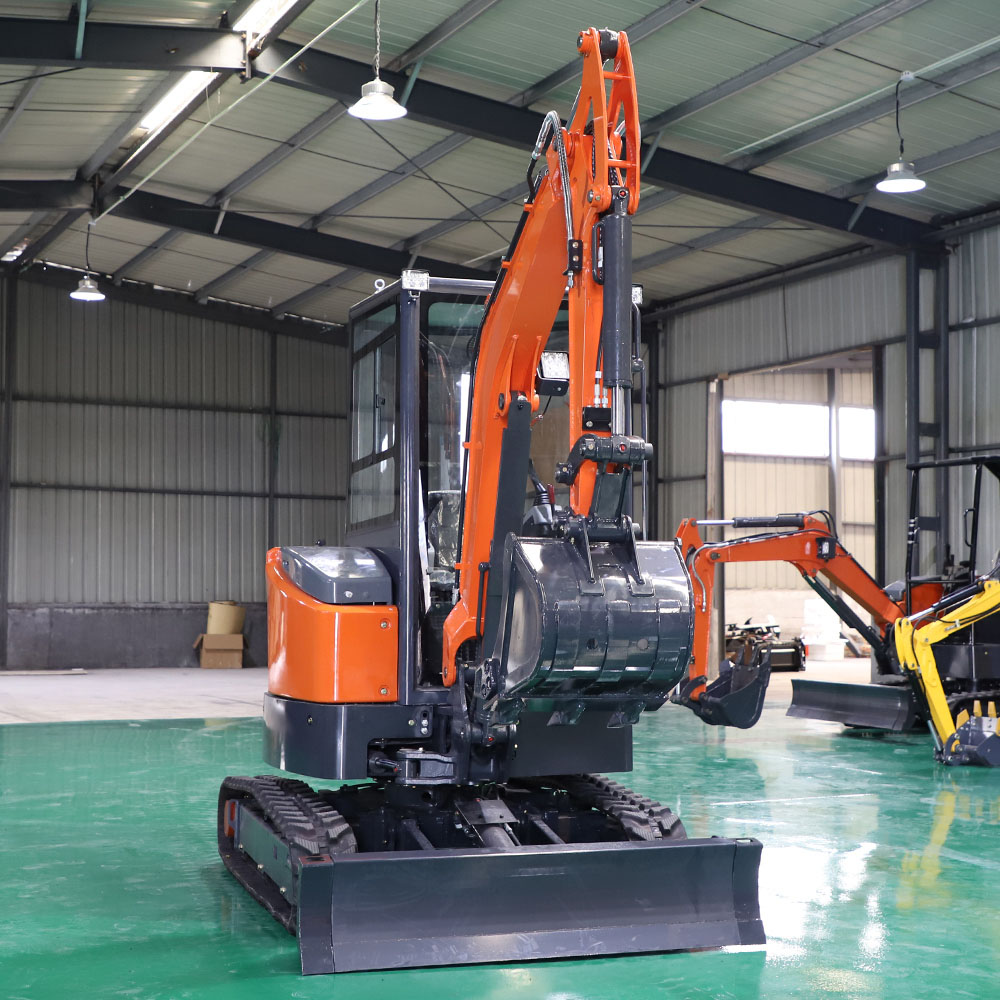

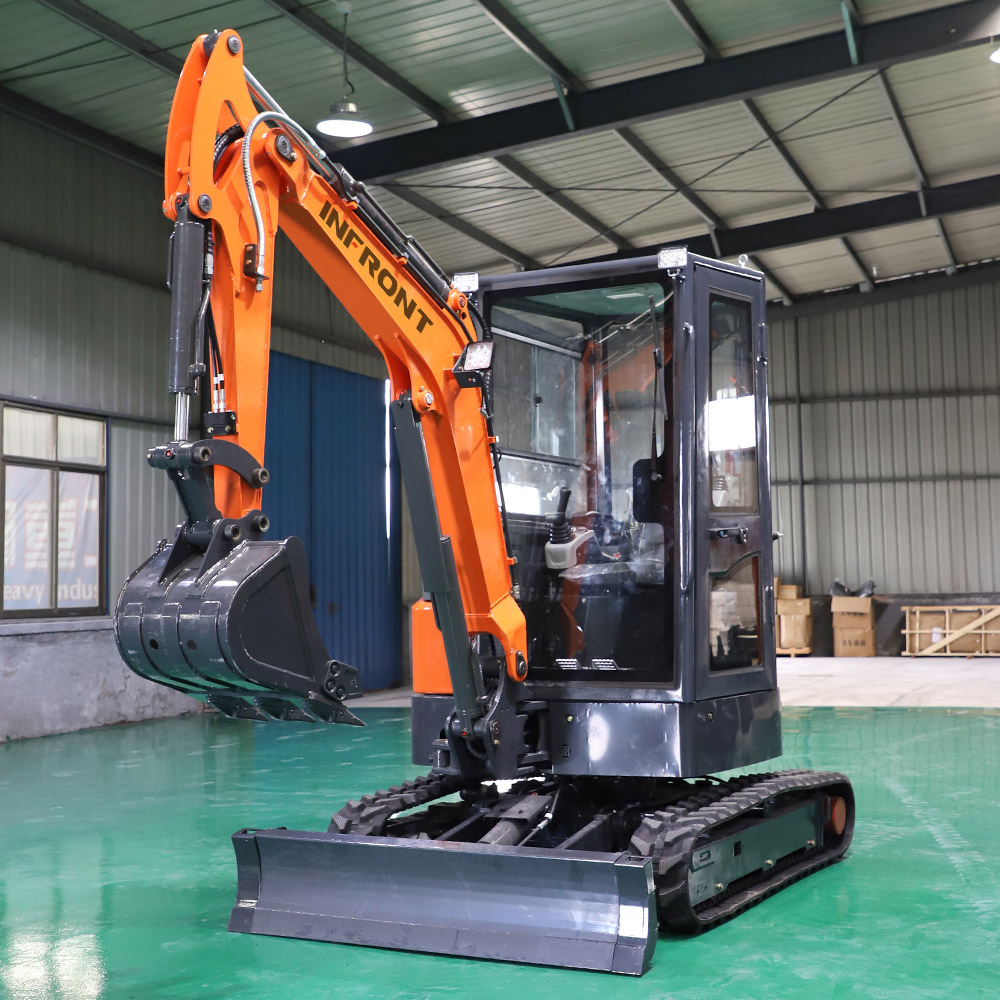

【Bulldozer Shovel Thick 】
The bulldozer blade is controlled by a hydraulic system, and the operating handle is linked to the main operating system. The operator can quickly switch the height and angle of the bulldozer blade without the need for additional complex operations. Its shovel surface has high strength (mostly made of high-strength wear-resistant steel), can adapt to pushing operations on hard ground, is not easy to deform, and has low maintenance costs.

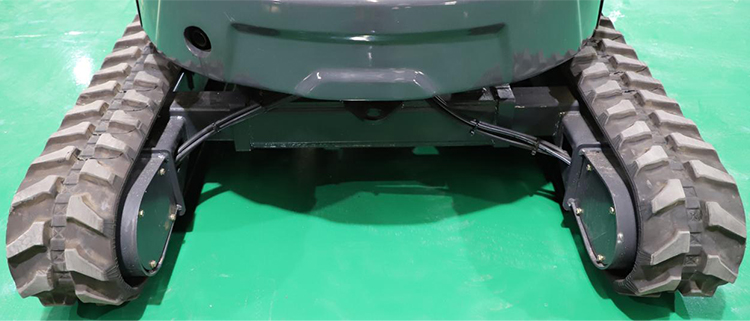

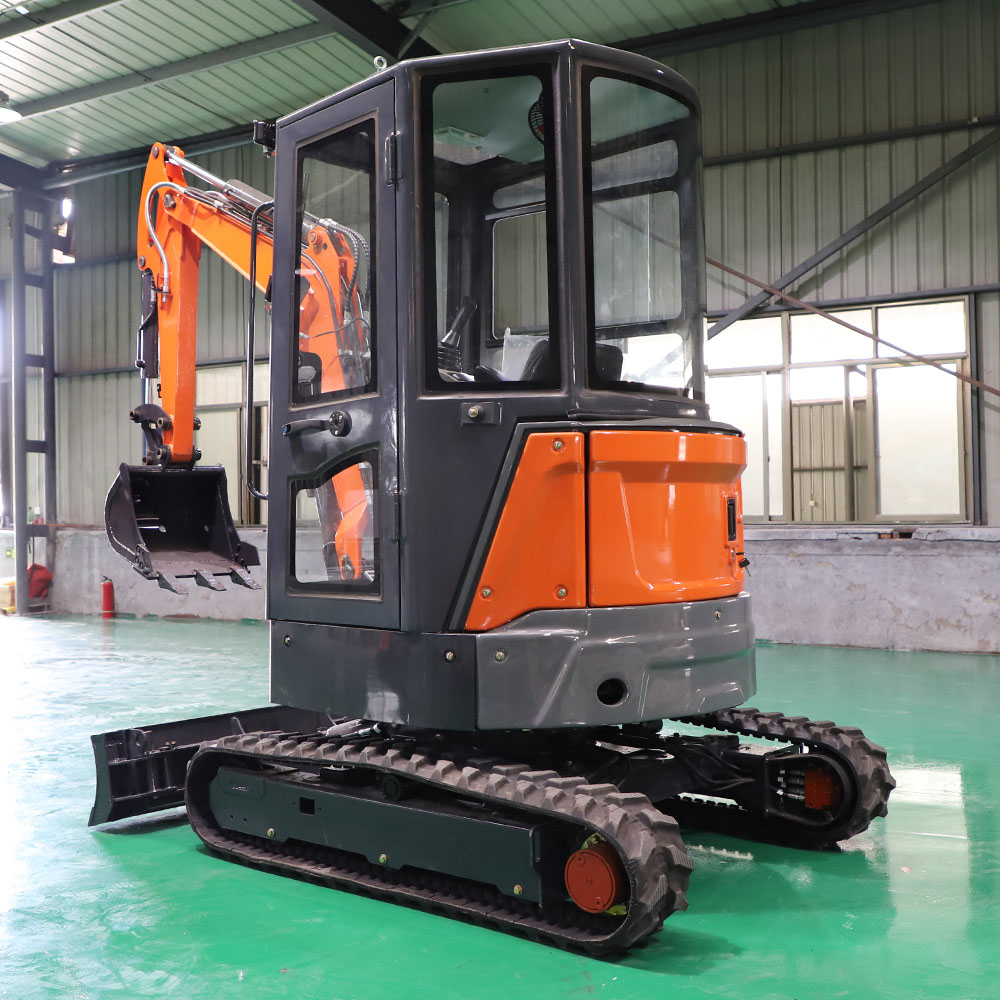

【Rubber Track】
Lightweight, low vibration, strong adhesion, good adaptability, and does not damage the road surface
Product Parameter：
Operating weight | 2800Kg |
Bucket capacity | 0.068m3 |
Engine Manufacturer | Yanmar3TNV-80F |
Engine power | 14.6/2400Kw/rpm |
Hydraulic system | Load sensitive system |
Hydraulic pump type | Variable piston pump |
Max. digging force(Arm) | 17kN |
Max. digging force(Bucket) | 21kN |
Swing speed | 9rpm |
Operating pressure | 24.5MPa |
Fuel tank capacity | 31L |
Hydraulic fuel tank capacity | 28L |
Max. digging height | 4160mm |
Max. dumping height | 2850mm |
Max. digging depth | 2450mm |
Max. horizontal digging depth | 1951mm |
Max. digging radius | 4520mm |
Max. horizontal digging radius | 4410mm |
Min. swing radius of the front | 2135mm |
Min. swing radius of the rear | 700mm |
Boom swing range (L/R) | 60/45° |
Overall length | 4088mm |
Overall width | 2410mm |
Upper-structure width | 1360mm |
Lower-structure width | 1500mm |
Lower-structure width (Stretch range) | 1360/1560mm |
Max. lifting height of dozer blade | 350/410mm |
Track shoe width (Steel track/Rubber track) | 230/250mm |
Application scenarios：
Suitable for a variety of occasions, excellent performance and easy start-up.
Site Analysis
Its core selling points are small size, strong power, low energy consumption and easy operation. It also takes into account flexibility, high efficiency and environmental protection. It is suitable for small and medium-sized operation scenarios with requirements on space, noise and emissions, and is especially suitable for purchase by individual farmers, small engineering teams and environmental protection companies.

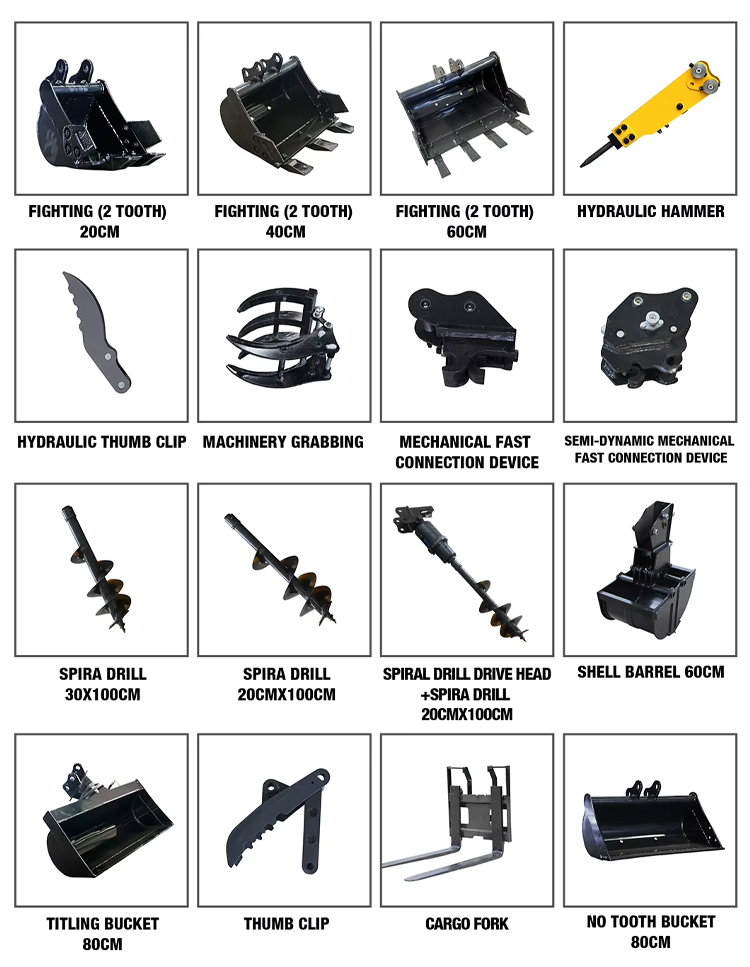

Product Accessories
(Versatility, one machine for multiple uses: Compact loaders are extremely versatile and can be equipped with a variety of attachments, such as buckets, forklifts, grapples, augers and brooms. This versatility enables them to handle a variety of tasks, from loading and transporting materials to landscaping and snow removal.)
In 2015, it obtained LS09001 quality management system certification, National III certification, European CE quality certification, and Euro 5 emission certification.
